| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T02_9000000422_03042cztM0_level2.evt | modeM0/AS1G05_237T02_9000000422_03042cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,772,160 | 73,108,800 |
| Size | 476.6 MB | 69.7 MB |
| Events in quadrant A | 2,155,052 | 489,799 |
| Events in quadrant B | 7,987,046 | 422,582 |
| Events in quadrant C | 2,112,289 | 485,665 |
| Events in quadrant D | 2,550,237 | 472,934 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10069 | 2 |
| B | 0 | 27088 | 1 |
| C | 0 | 9964 | 1 |
| D | 0 | 11193 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4878 | 15 | 0.307503% |
| B | 4878 | 1869 | 38.314883% |
| C | 4878 | 14 | 0.287003% |
| D | 4878 | 106 | 2.173022% |

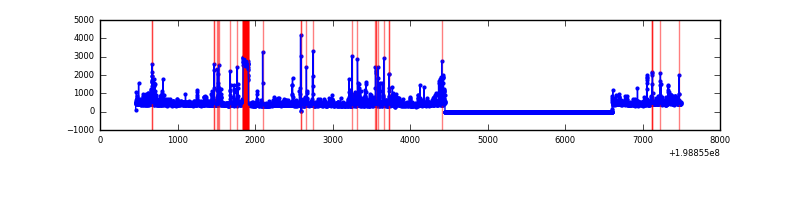

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7035 | 4879 | 13 | 13 | 0.18% | 0.27% |  |
| B | 7035 | 4879 | 1783 | 1783 | 25.34% | 36.54% |  |
| C | 7035 | 4879 | 8 | 8 | 0.11% | 0.16% |  |
| D | 7035 | 4879 | 96 | 96 | 1.36% | 1.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 247 | 73179 | 701.67 | 513 | 502 | 103.6 |
| A | 0 | 128 | 43866 | 418.66 | 513 | 502 | 103.6 |
| A | 13 | 251 | 43429 | 414.45 | 513 | 502 | 103.6 |
| B | 15 | 204 | 5786841 | 63685.04 | 475 | 465 | 90.9 |
| B | 2 | 249 | 155732 | 1708.87 | 475 | 465 | 90.9 |
| B | 7 | 252 | 66957 | 731.81 | 475 | 465 | 90.9 |
| C | 1 | 192 | 41765 | 352.06 | 505 | 506 | 117.2 |
| C | 6 | 80 | 26029 | 217.79 | 505 | 506 | 117.2 |
| C | 1 | 16 | 20933 | 174.3 | 505 | 506 | 117.2 |
| D | 10 | 199 | 207377 | 1685.51 | 499 | 486 | 122.7 |
| D | 2 | 152 | 117324 | 951.86 | 499 | 486 | 122.7 |
| D | 13 | 70 | 82221 | 665.88 | 499 | 486 | 122.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

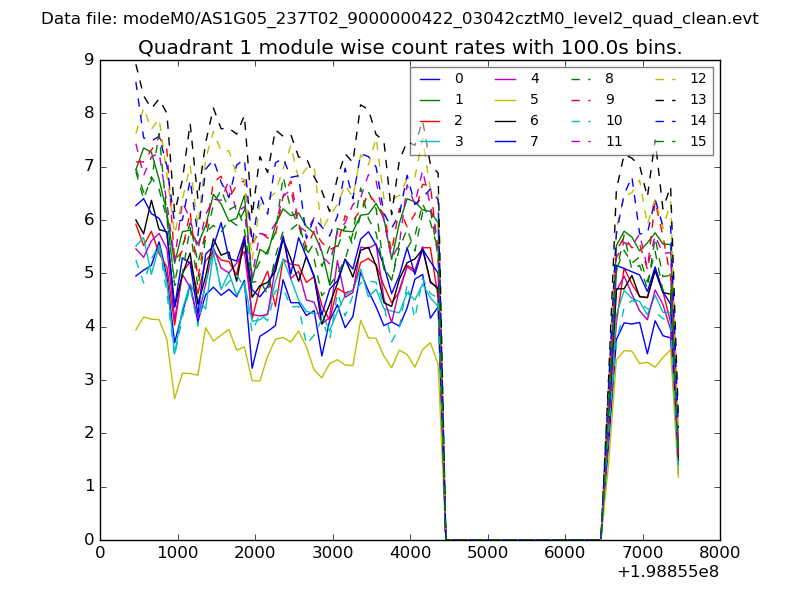

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

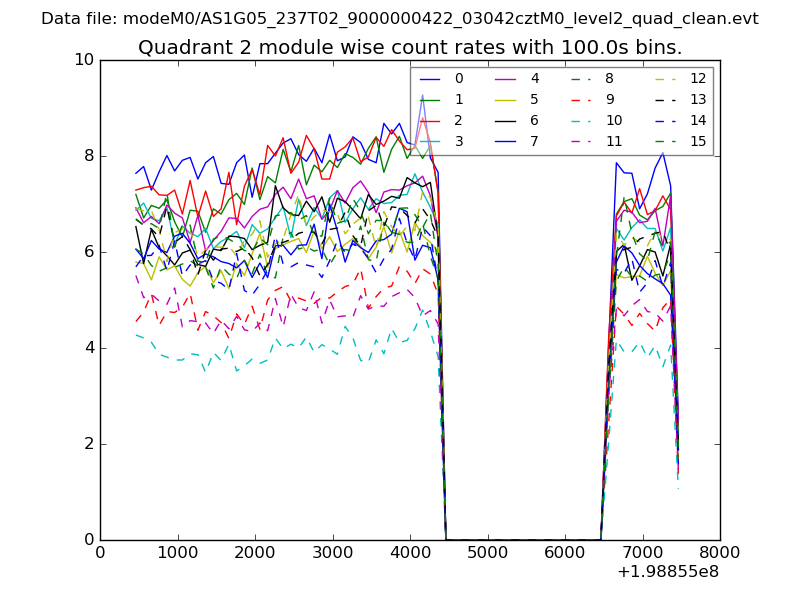

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

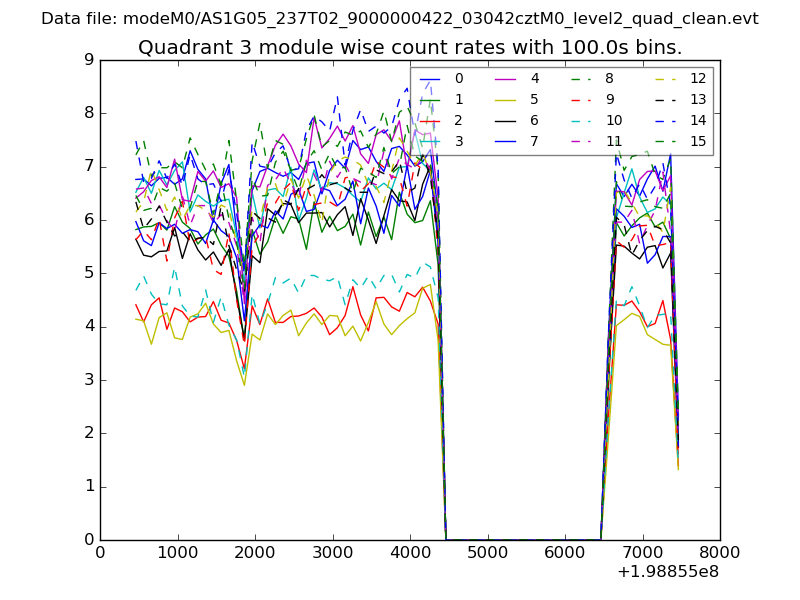

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

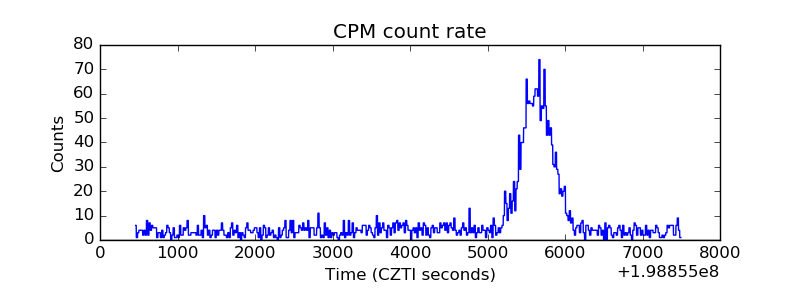

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

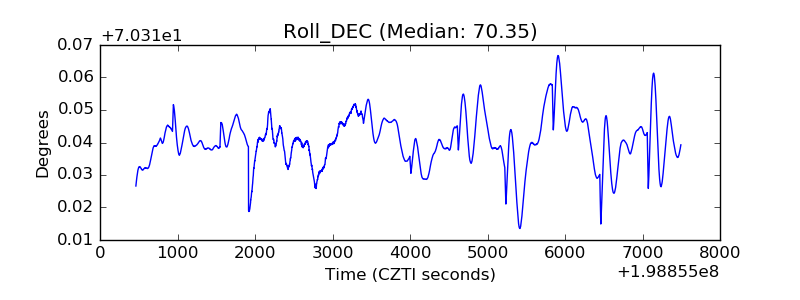

| _Roll_DEC |  |

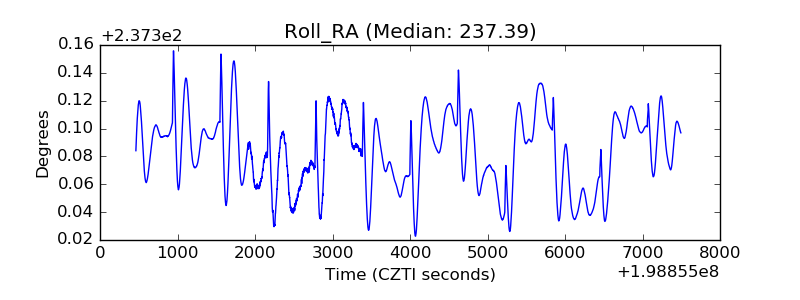

| _Roll_RA |  |

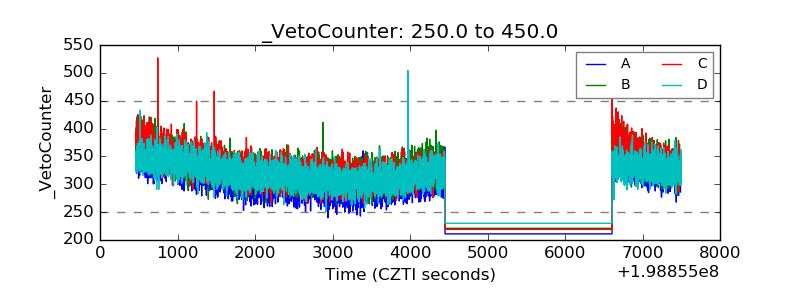

| Veto Counter |  |
