| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T02_9000000422_03043cztM0_level2.evt | modeM0/AS1G05_237T02_9000000422_03043cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,349,120 | 71,631,360 |
| Size | 428.5 MB | 68.3 MB |
| Events in quadrant A | 2,087,952 | 470,428 |
| Events in quadrant B | 6,492,724 | 430,881 |
| Events in quadrant C | 2,178,806 | 472,522 |
| Events in quadrant D | 2,524,573 | 459,151 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9804 | 2 |
| B | 0 | 22547 | 1 |
| C | 0 | 10058 | 1 |
| D | 0 | 11087 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4778 | 3 | 0.062788% |
| B | 4778 | 931 | 19.485140% |
| C | 4778 | 14 | 0.293010% |
| D | 4778 | 88 | 1.841775% |

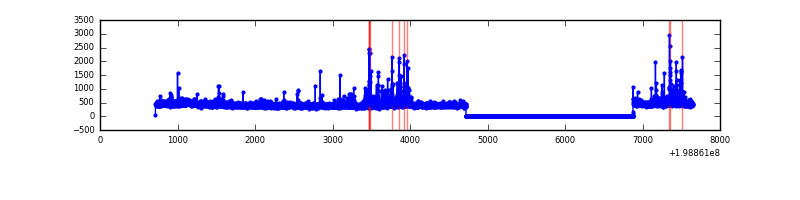

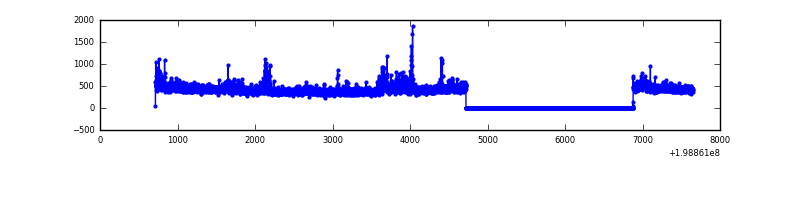

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6934 | 4779 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6934 | 4779 | 909 | 909 | 13.11% | 19.02% |  |
| C | 6934 | 4779 | 11 | 11 | 0.16% | 0.23% |  |
| D | 6934 | 4779 | 95 | 95 | 1.37% | 1.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 80590 | 797.22 | 495 | 484 | 100.5 |
| A | 12 | 247 | 61130 | 603.55 | 495 | 484 | 100.5 |
| A | 0 | 128 | 20401 | 198.21 | 495 | 484 | 100.5 |
| B | 15 | 204 | 4398383 | 47186.47 | 482 | 470 | 93.2 |
| B | 2 | 249 | 86093 | 918.67 | 482 | 470 | 93.2 |
| B | 7 | 252 | 53635 | 570.42 | 482 | 470 | 93.2 |
| C | 15 | 208 | 170800 | 1503.89 | 490 | 492 | 113.2 |
| C | 1 | 16 | 29725 | 258.14 | 490 | 492 | 113.2 |
| C | 6 | 80 | 17898 | 153.7 | 490 | 492 | 113.2 |
| D | 7 | 80 | 208731 | 1772.27 | 479 | 466 | 117.5 |
| D | 2 | 152 | 190198 | 1614.56 | 479 | 466 | 117.5 |
| D | 13 | 70 | 160695 | 1363.5 | 479 | 466 | 117.5 |

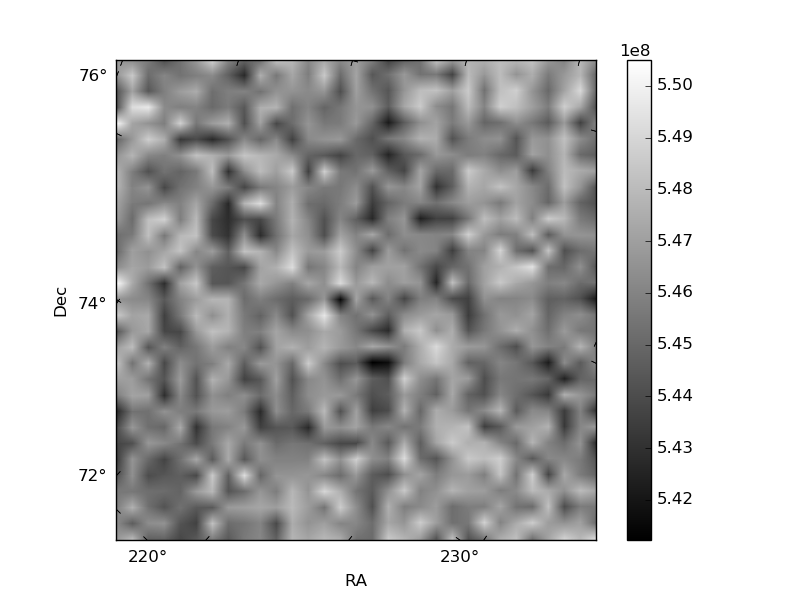

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

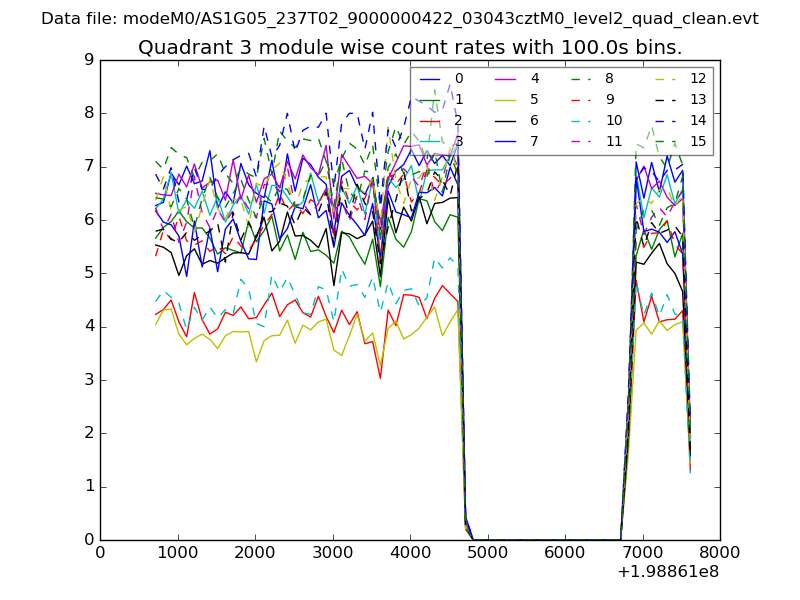

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

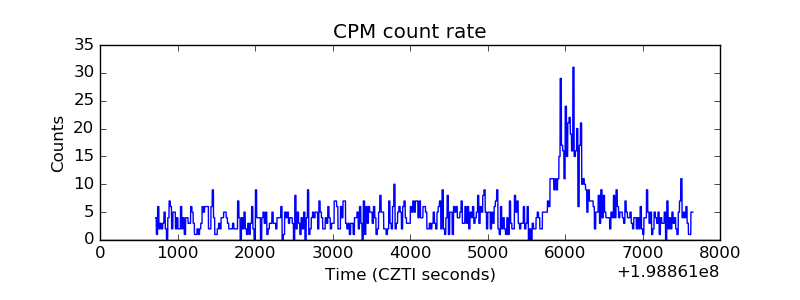

| _CPM_Rate |  |
| CZT Counter |  |

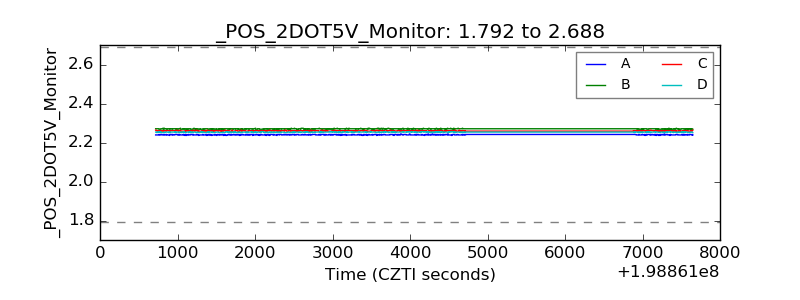

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

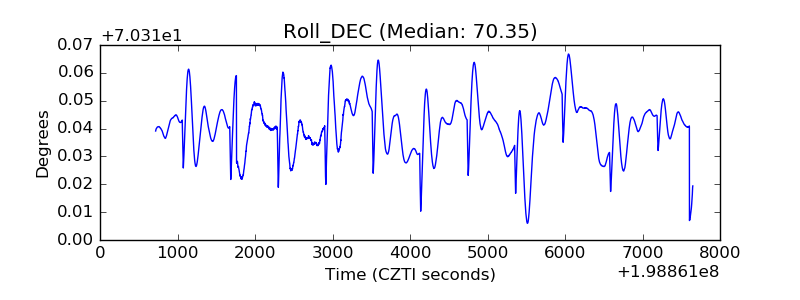

| _Roll_DEC |  |

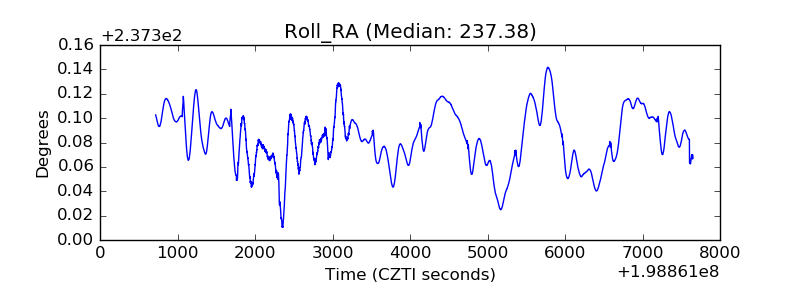

| _Roll_RA |  |
| Veto Counter |  |
