| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T02_9000000422_03044cztM0_level2.evt | modeM0/AS1G05_237T02_9000000422_03044cztM0_level2_quad_clean.evt |
| Size (bytes) | 317,586,240 | 76,178,880 |
| Size | 302.9 MB | 72.6 MB |
| Events in quadrant A | 2,083,359 | 486,769 |
| Events in quadrant B | 2,422,736 | 484,589 |
| Events in quadrant C | 2,153,853 | 499,165 |
| Events in quadrant D | 2,615,980 | 484,596 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10185 | 3 |
| B | 0 | 10832 | 2 |
| C | 0 | 10308 | 2 |
| D | 0 | 11585 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5017 | 4 | 0.079729% |
| B | 5017 | 21 | 0.418577% |
| C | 5017 | 15 | 0.298983% |
| D | 5017 | 69 | 1.375324% |

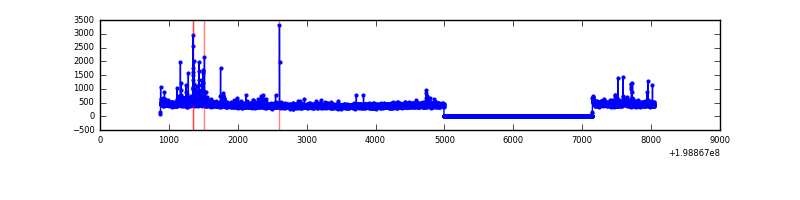

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7173 | 5018 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7173 | 5018 | 11 | 11 | 0.15% | 0.22% |  |
| C | 7173 | 5018 | 4 | 4 | 0.06% | 0.08% |  |
| D | 7173 | 5018 | 66 | 66 | 0.92% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 247 | 78119 | 739.83 | 513 | 502 | 104.9 |
| A | 0 | 50 | 7267 | 64.48 | 513 | 502 | 104.9 |
| A | 12 | 194 | 5596 | 48.55 | 513 | 502 | 104.9 |
| B | 15 | 204 | 173805 | 1698.8 | 524 | 511 | 102.0 |
| B | 7 | 252 | 73154 | 712.12 | 524 | 511 | 102.0 |
| B | 2 | 249 | 54830 | 532.49 | 524 | 511 | 102.0 |
| C | 15 | 208 | 62213 | 523.24 | 512 | 514 | 117.9 |
| C | 6 | 80 | 24530 | 203.67 | 512 | 514 | 117.9 |
| C | 1 | 16 | 20771 | 171.79 | 512 | 514 | 117.9 |
| D | 2 | 152 | 188981 | 1527.82 | 504 | 491 | 123.4 |
| D | 7 | 80 | 130030 | 1049.99 | 504 | 491 | 123.4 |
| D | 13 | 114 | 118424 | 955.91 | 504 | 491 | 123.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

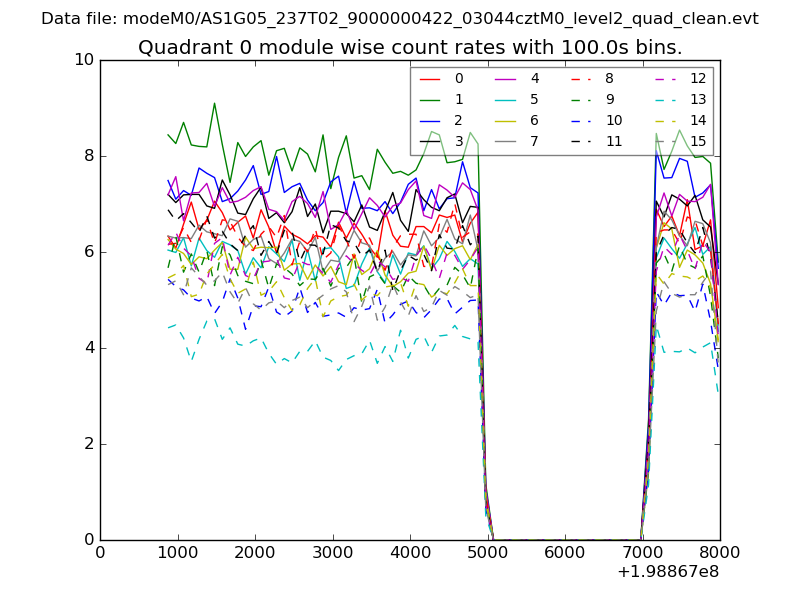

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

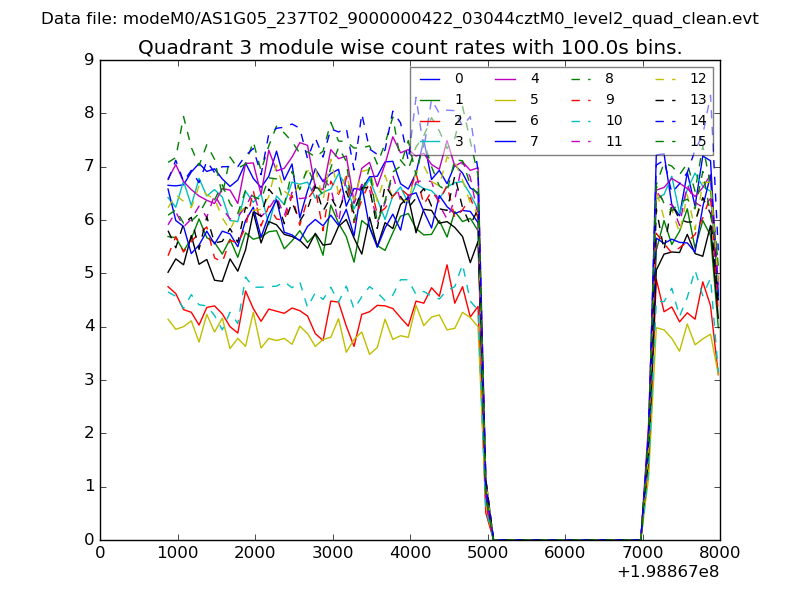

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

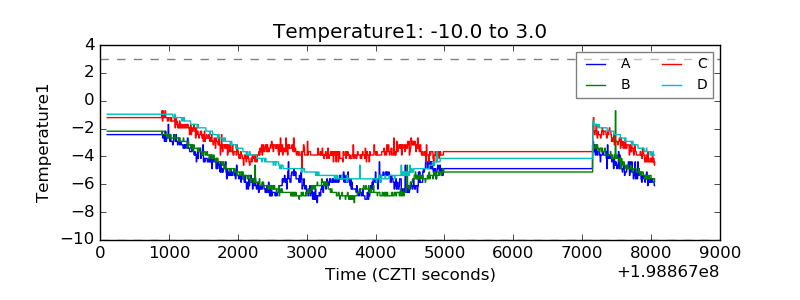

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

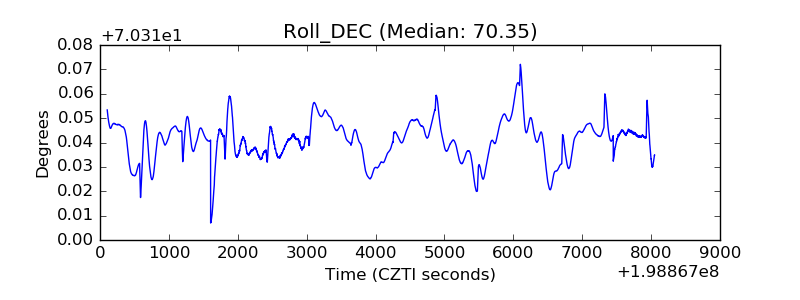

| _ROLL_ROT |  |
| _Roll_DEC |  |

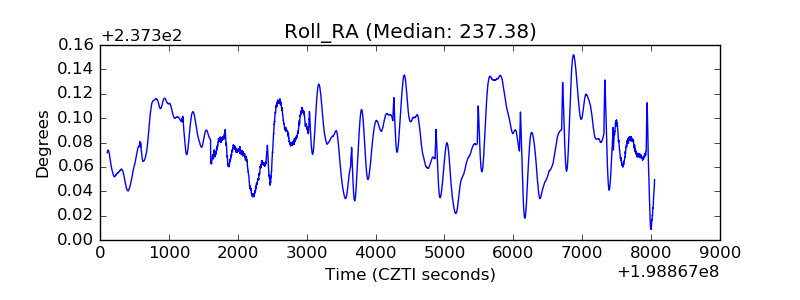

| _Roll_RA |  |
| Veto Counter |  |
