| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T03_9000000426_03076cztM0_level2.evt | modeM0/AS1G05_237T03_9000000426_03076cztM0_level2_quad_clean.evt |
| Size (bytes) | 242,066,880 | 53,755,200 |
| Size | 230.9 MB | 51.3 MB |
| Events in quadrant A | 1,512,833 | 353,701 |
| Events in quadrant B | 1,615,389 | 350,811 |
| Events in quadrant C | 1,508,643 | 354,237 |
| Events in quadrant D | 2,464,078 | 330,556 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6889 | 2 |
| B | 0 | 7062 | 1 |
| C | 0 | 6922 | 1 |
| D | 0 | 9919 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3362 | 3 | 0.089233% |
| B | 3362 | 4 | 0.118977% |
| C | 3362 | 8 | 0.237954% |
| D | 3362 | 205 | 6.097561% |

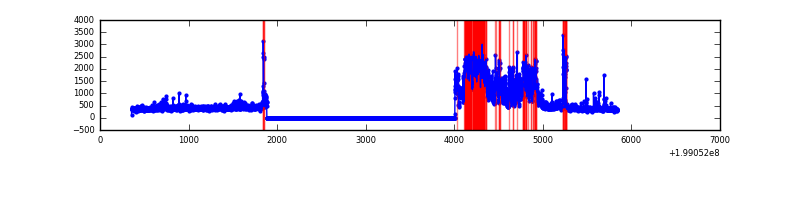

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5486 | 3363 | 2 | 2 | 0.04% | 0.06% |  |
| B | 5486 | 3363 | 1 | 1 | 0.02% | 0.03% |  |
| C | 5486 | 3363 | 9 | 9 | 0.16% | 0.27% |  |
| D | 5486 | 3363 | 215 | 215 | 3.92% | 6.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 42561 | 552.33 | 368 | 362 | 76.4 |
| A | 12 | 189 | 16831 | 215.56 | 368 | 362 | 76.4 |
| A | 8 | 15 | 16674 | 213.5 | 368 | 362 | 76.4 |
| B | 15 | 204 | 113286 | 1522.89 | 374 | 366 | 74.1 |
| B | 0 | 219 | 28282 | 376.49 | 374 | 366 | 74.1 |
| B | 4 | 81 | 14912 | 196.17 | 374 | 366 | 74.1 |
| C | 14 | 223 | 42512 | 491.8 | 359 | 363 | 85.7 |
| C | 6 | 80 | 24539 | 282.09 | 359 | 363 | 85.7 |
| C | 15 | 208 | 8575 | 95.82 | 359 | 363 | 85.7 |
| D | 13 | 114 | 932351 | 10881.97 | 350 | 341 | 85.6 |
| D | 10 | 85 | 79838 | 928.19 | 350 | 341 | 85.6 |
| D | 2 | 152 | 54266 | 629.62 | 350 | 341 | 85.6 |

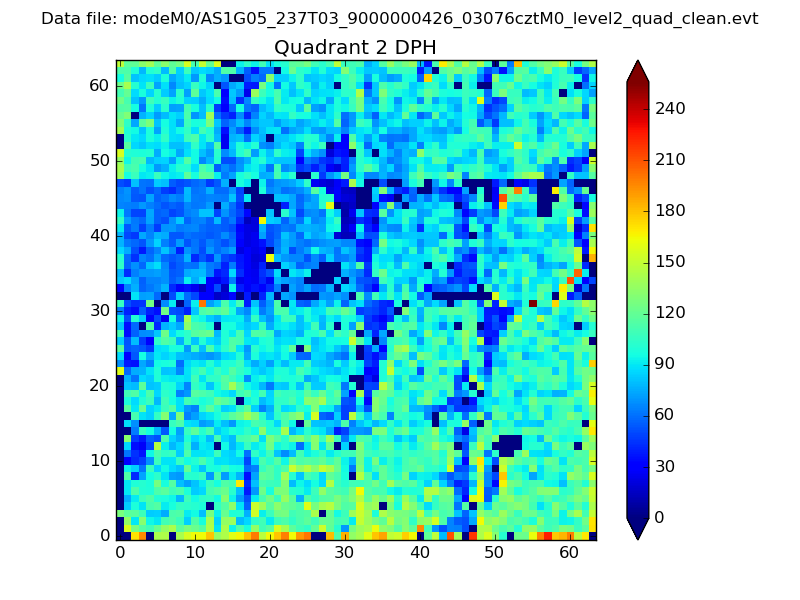

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

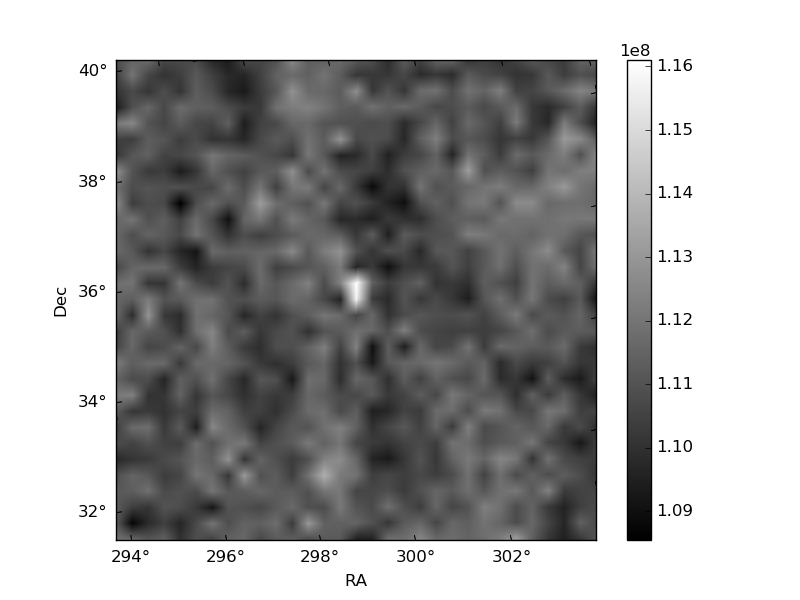

| Plot type | Count rate plots | Images |
|---|---|---|

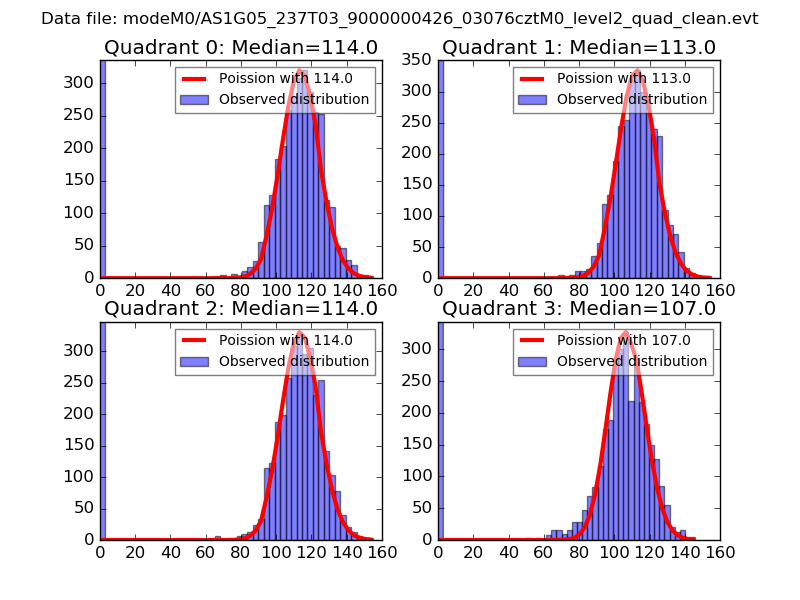

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

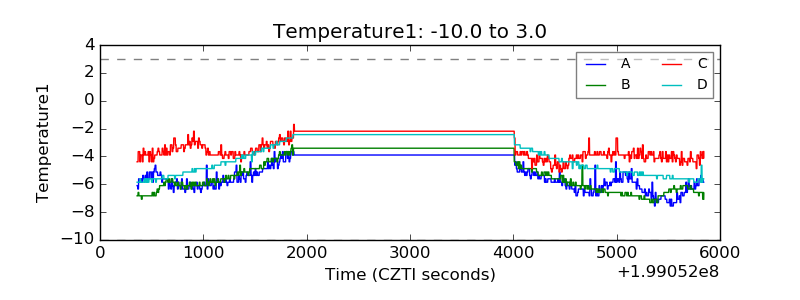

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

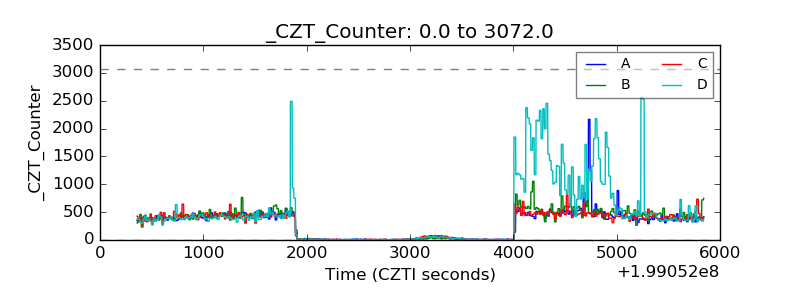

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

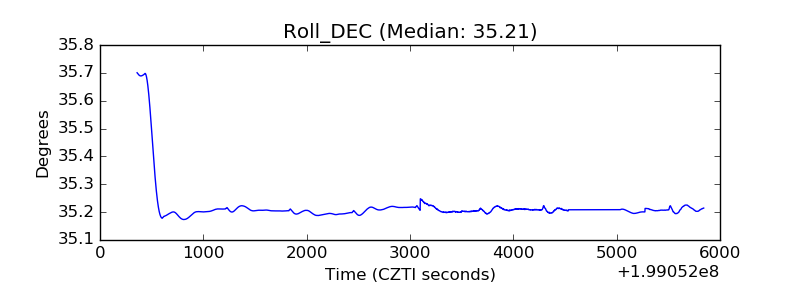

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
