| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T03_9000000426_03096cztM0_level2.evt | modeM0/AS1G05_237T03_9000000426_03096cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,168,640 | 83,079,360 |
| Size | 491.3 MB | 79.2 MB |
| Events in quadrant A | 3,709,865 | 528,671 |
| Events in quadrant B | 3,537,819 | 535,649 |
| Events in quadrant C | 4,487,710 | 504,886 |
| Events in quadrant D | 3,438,617 | 506,174 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14942 | 2 |
| B | 0 | 14603 | 1 |
| C | 0 | 17379 | 1 |
| D | 0 | 14686 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6318 | 169 | 2.674897% |
| B | 6318 | 93 | 1.471985% |
| C | 6318 | 371 | 5.872111% |
| D | 6318 | 72 | 1.139601% |

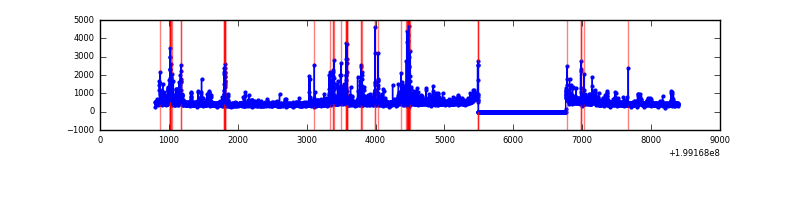

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7588 | 6319 | 142 | 142 | 1.87% | 2.25% |  |
| B | 7588 | 6319 | 59 | 59 | 0.78% | 0.93% |  |
| C | 7588 | 6319 | 301 | 301 | 3.97% | 4.76% |  |
| D | 7588 | 6319 | 62 | 62 | 0.82% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 249 | 507872 | 3393.21 | 739 | 725 | 149.5 |
| A | 8 | 15 | 314837 | 2101.65 | 739 | 725 | 149.5 |
| A | 0 | 117 | 11253 | 70.44 | 739 | 725 | 149.5 |
| B | 15 | 204 | 272202 | 1904.36 | 750 | 736 | 142.6 |
| B | 5 | 184 | 133555 | 931.74 | 750 | 736 | 142.6 |
| B | 0 | 219 | 59036 | 408.98 | 750 | 736 | 142.6 |
| C | 14 | 223 | 1318772 | 8170.42 | 699 | 705 | 161.3 |
| C | 1 | 192 | 278924 | 1724.62 | 699 | 705 | 161.3 |
| C | 1 | 16 | 75088 | 461.08 | 699 | 705 | 161.3 |
| D | 1 | 7 | 517569 | 3046.61 | 708 | 690 | 169.7 |
| D | 2 | 136 | 54102 | 314.82 | 708 | 690 | 169.7 |
| D | 2 | 107 | 45781 | 265.78 | 708 | 690 | 169.7 |

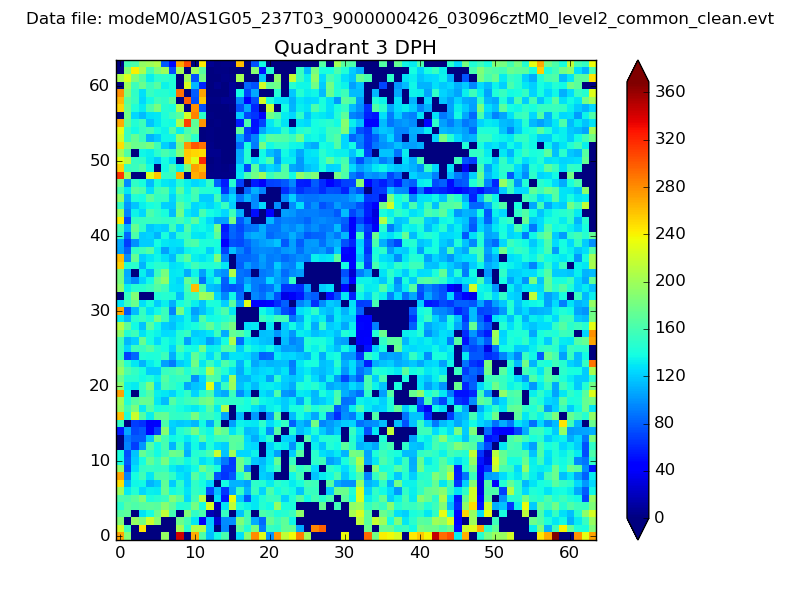

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

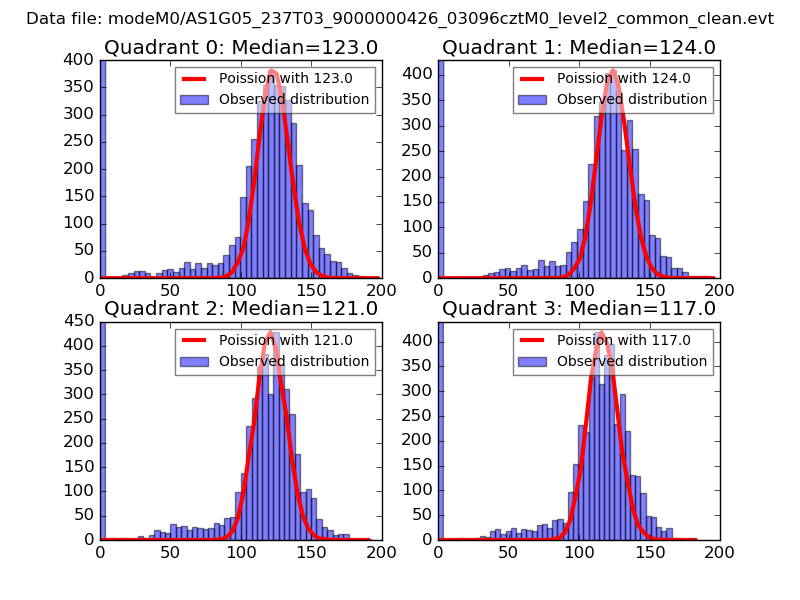

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

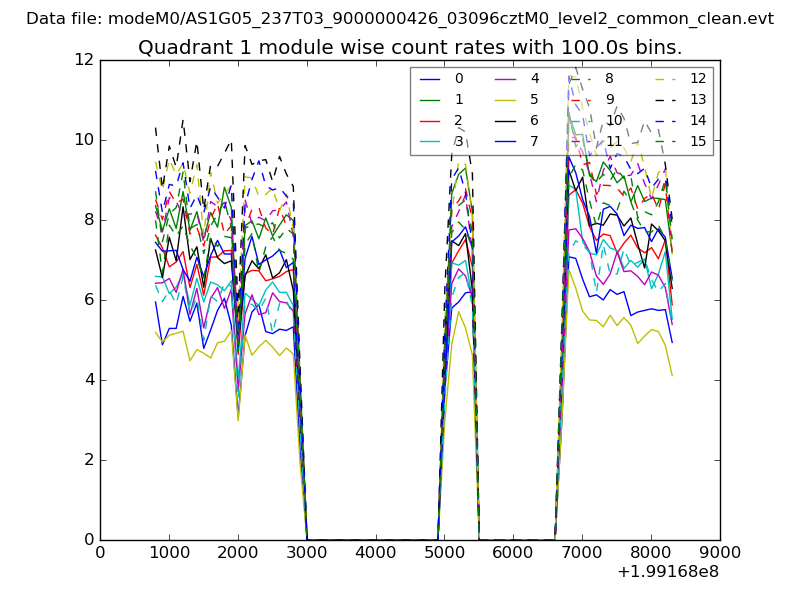

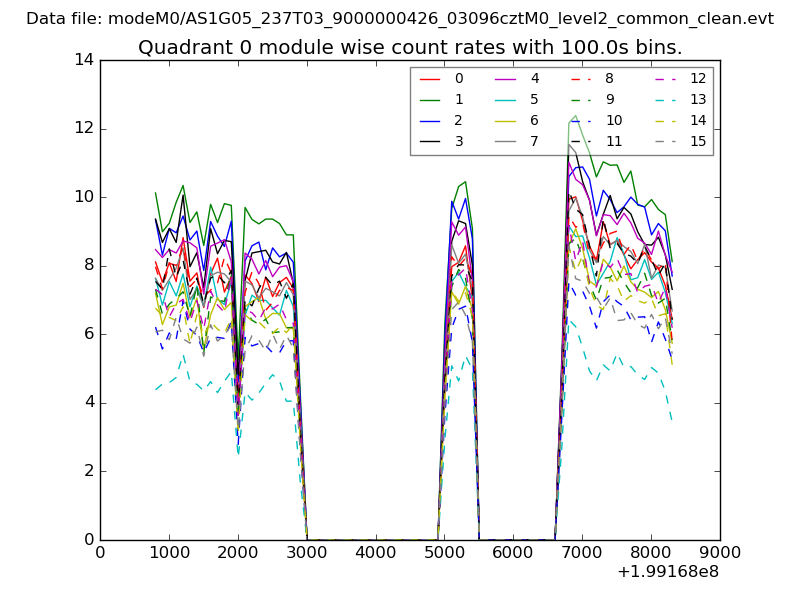

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

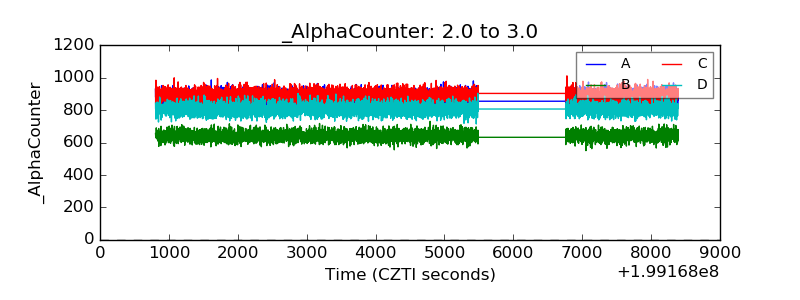

| Alpha Counter |  |

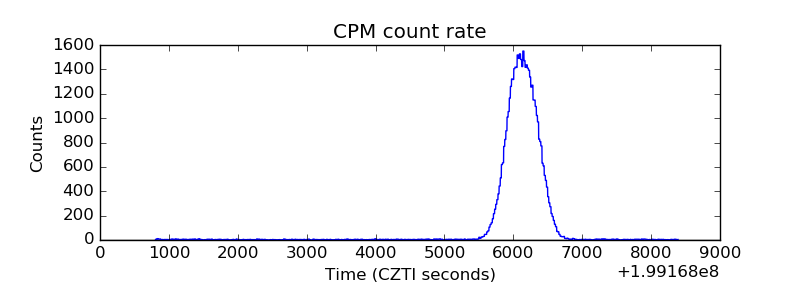

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| Veto Counter |  |
