| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T03_9000000426_03098cztM0_level2.evt | modeM0/AS1G05_237T03_9000000426_03098cztM0_level2_quad_clean.evt |
| Size (bytes) | 428,296,320 | 70,689,600 |
| Size | 408.5 MB | 67.4 MB |
| Events in quadrant A | 2,805,947 | 441,439 |
| Events in quadrant B | 3,190,392 | 442,498 |
| Events in quadrant C | 3,772,466 | 436,732 |
| Events in quadrant D | 2,818,250 | 424,561 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11785 | 2 |
| B | 0 | 12989 | 1 |
| C | 0 | 14860 | 1 |
| D | 0 | 12298 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5647 | 92 | 1.629184% |
| B | 5647 | 111 | 1.965645% |
| C | 5647 | 150 | 2.656278% |
| D | 5647 | 99 | 1.753143% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

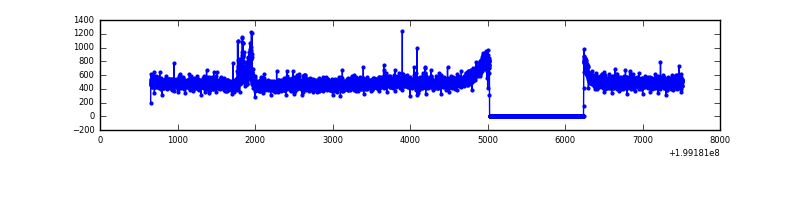

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6862 | 5648 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6862 | 5648 | 13 | 13 | 0.19% | 0.23% |  |
| C | 6862 | 5648 | 63 | 63 | 0.92% | 1.12% |  |
| D | 6862 | 5648 | 24 | 24 | 0.35% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 84371 | 603.41 | 688 | 677 | 138.7 |
| A | 0 | 50 | 49251 | 350.2 | 688 | 677 | 138.7 |
| A | 12 | 194 | 7783 | 51.23 | 688 | 677 | 138.7 |
| B | 15 | 204 | 249174 | 1876.01 | 690 | 677 | 132.5 |
| B | 0 | 219 | 94207 | 706.1 | 690 | 677 | 132.5 |
| B | 14 | 167 | 58880 | 439.4 | 690 | 677 | 132.5 |
| C | 1 | 192 | 892695 | 5844.63 | 653 | 656 | 152.6 |
| C | 5 | 250 | 130667 | 851.83 | 653 | 656 | 152.6 |
| C | 14 | 223 | 77124 | 501.02 | 653 | 656 | 152.6 |
| D | 13 | 46 | 87078 | 504.32 | 657 | 642 | 171.4 |
| D | 9 | 85 | 61008 | 352.21 | 657 | 642 | 171.4 |
| D | 1 | 7 | 37374 | 214.32 | 657 | 642 | 171.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

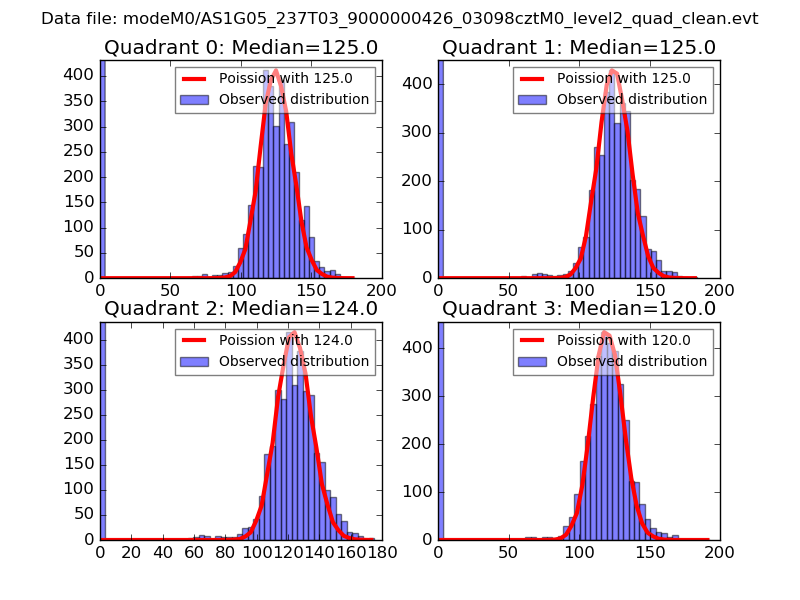

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

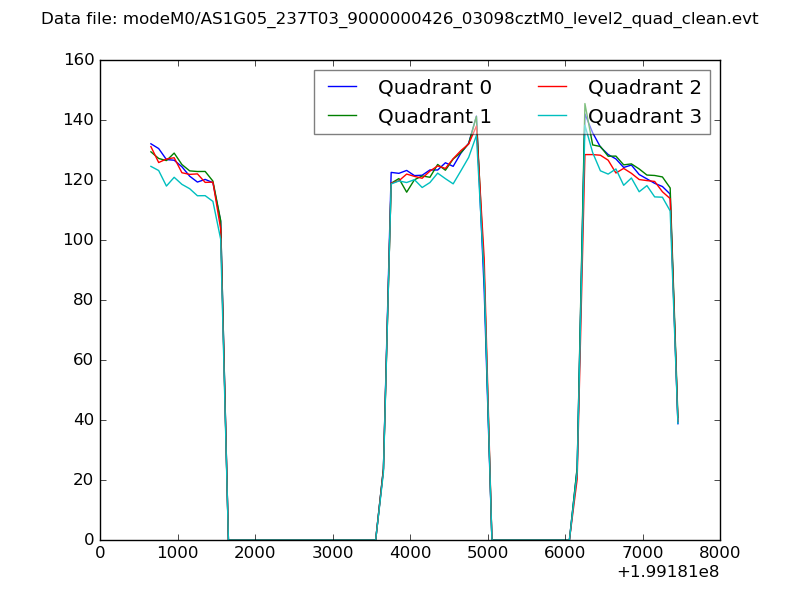

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

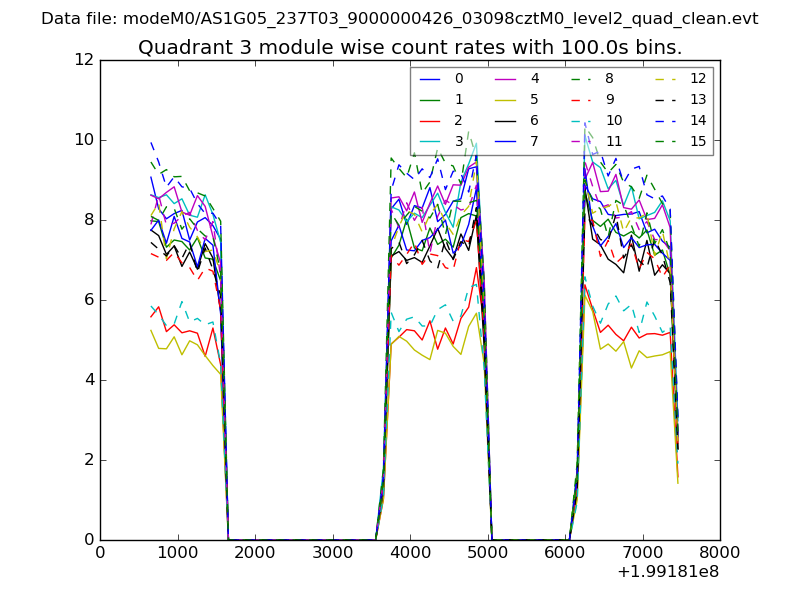

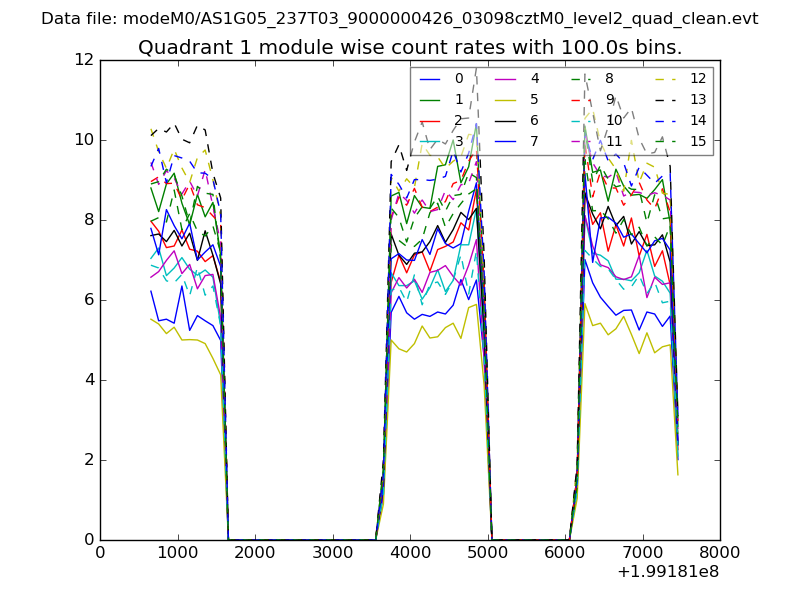

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

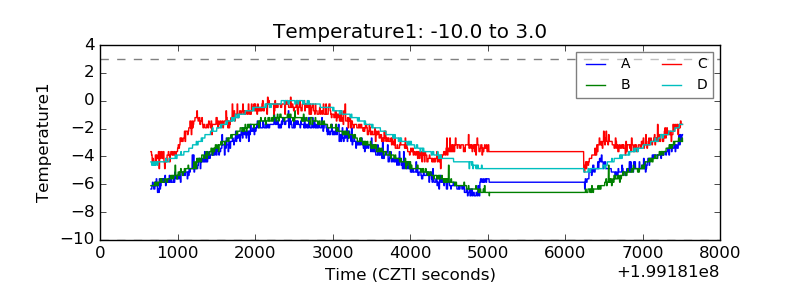

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

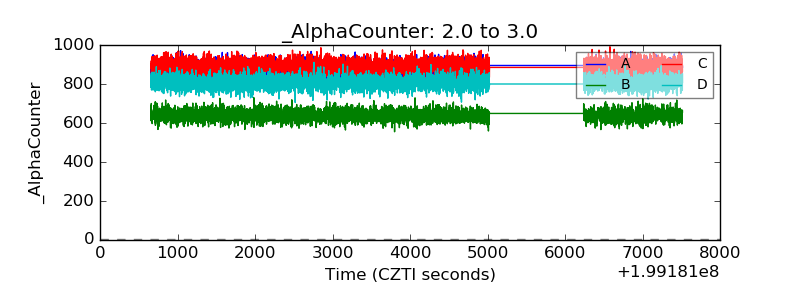

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

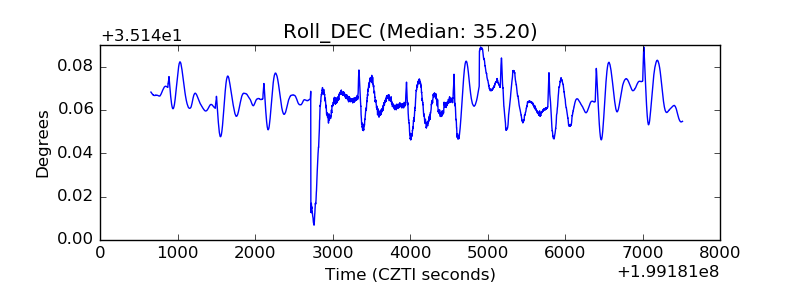

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
