| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T03_9000000426_03099cztM0_level2.evt | modeM0/AS1G05_237T03_9000000426_03099cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,413,120 | 67,155,840 |
| Size | 522.1 MB | 64.0 MB |
| Events in quadrant A | 3,013,345 | 414,855 |
| Events in quadrant B | 3,442,361 | 415,351 |
| Events in quadrant C | 6,346,231 | 373,798 |
| Events in quadrant D | 3,362,431 | 402,068 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12714 | 2 |
| B | 0 | 14020 | 1 |
| C | 0 | 23186 | 1 |
| D | 0 | 14335 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6111 | 148 | 2.421862% |
| B | 6111 | 184 | 3.010964% |
| C | 6111 | 800 | 13.091147% |
| D | 6111 | 197 | 3.223695% |

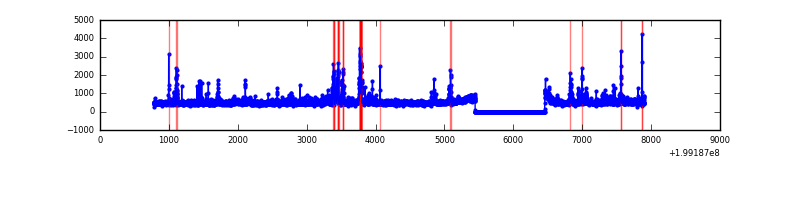

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7121 | 6112 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7121 | 6112 | 41 | 41 | 0.58% | 0.67% |  |
| C | 7121 | 6112 | 636 | 636 | 8.93% | 10.41% |  |
| D | 7121 | 6111 | 82 | 82 | 1.15% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 136340 | 910.45 | 730 | 715 | 149.0 |
| A | 12 | 247 | 32422 | 212.85 | 730 | 715 | 149.0 |
| A | 3 | 1 | 9645 | 59.95 | 730 | 715 | 149.0 |
| B | 0 | 219 | 152841 | 1069.63 | 732 | 716 | 142.2 |
| B | 15 | 204 | 123589 | 863.95 | 732 | 716 | 142.2 |
| B | 4 | 172 | 92487 | 645.27 | 732 | 716 | 142.2 |
| C | 1 | 192 | 3556287 | 22670.37 | 669 | 672 | 156.8 |
| C | 6 | 80 | 62834 | 396.34 | 669 | 672 | 156.8 |
| C | 15 | 208 | 40235 | 252.25 | 669 | 672 | 156.8 |
| D | 1 | 7 | 315632 | 1730.66 | 695 | 681 | 182.0 |
| D | 12 | 217 | 142051 | 776.83 | 695 | 681 | 182.0 |
| D | 13 | 114 | 77440 | 421.79 | 695 | 681 | 182.0 |

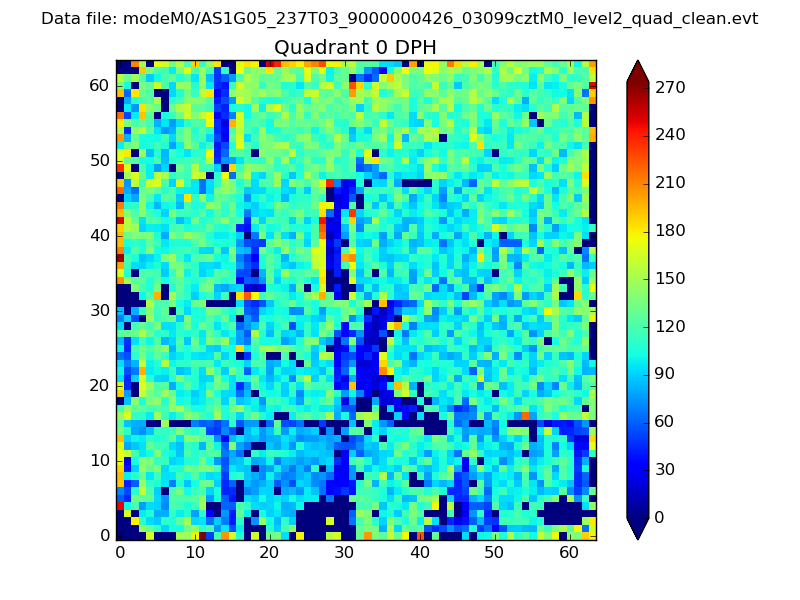

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

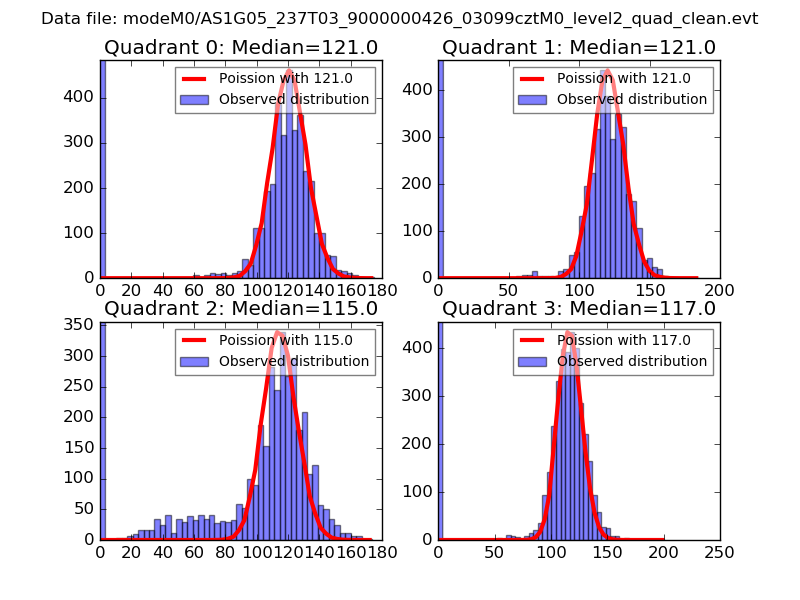

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

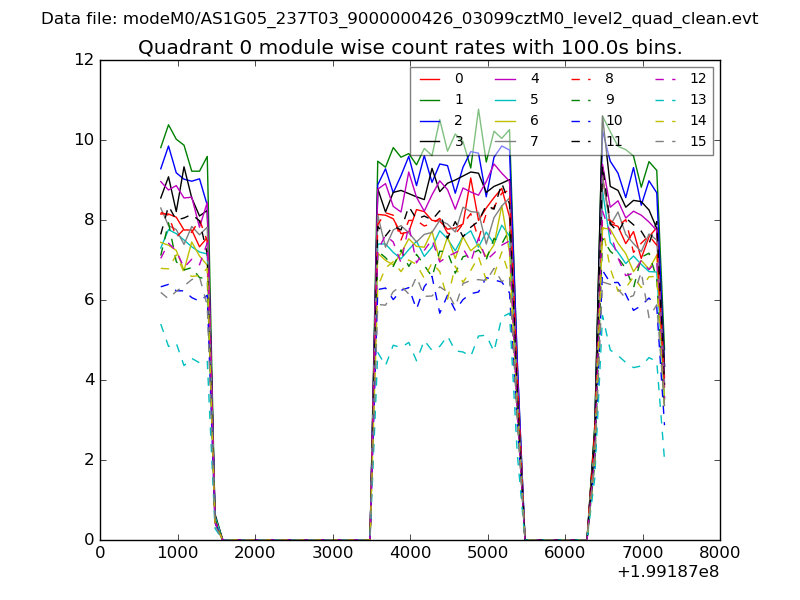

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

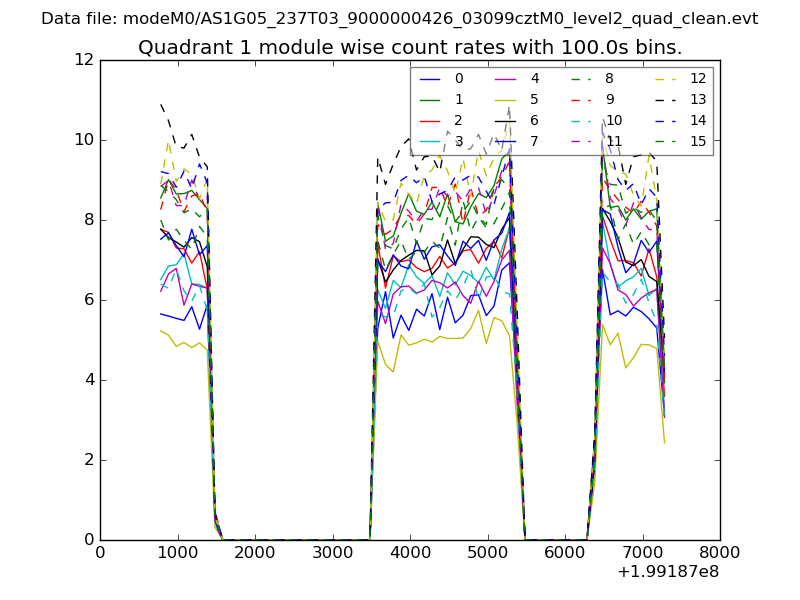

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

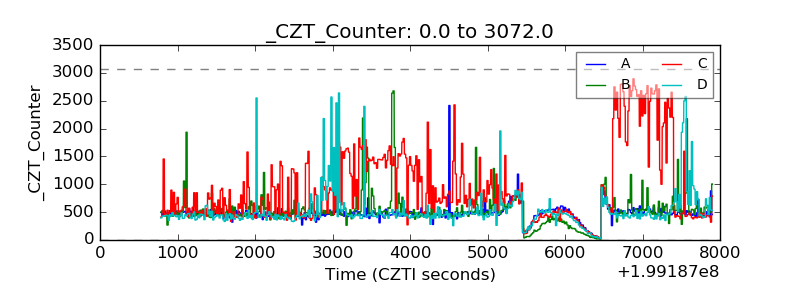

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

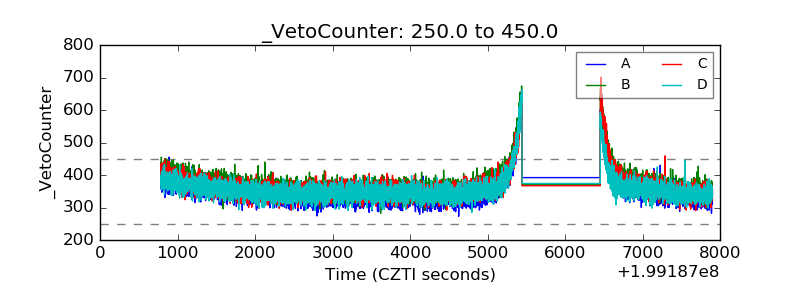

| Veto Counter |  |
