| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T03_9000000426_03102cztM0_level2.evt | modeM0/AS1G05_237T03_9000000426_03102cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,999,680 | 77,388,480 |
| Size | 536.9 MB | 73.8 MB |
| Events in quadrant A | 3,996,910 | 451,395 |
| Events in quadrant B | 4,523,990 | 450,205 |
| Events in quadrant C | 4,110,641 | 450,031 |
| Events in quadrant D | 3,881,264 | 440,894 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17027 | 2 |
| B | 0 | 18726 | 1 |
| C | 0 | 17612 | 1 |
| D | 0 | 17310 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7924 | 242 | 3.054013% |
| B | 7924 | 279 | 3.520949% |
| C | 7924 | 236 | 2.978294% |
| D | 7924 | 213 | 2.688036% |

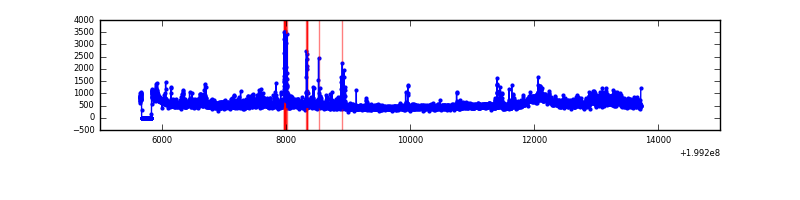

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8084 | 7925 | 16 | 16 | 0.20% | 0.20% |  |
| B | 8084 | 7925 | 19 | 19 | 0.24% | 0.24% |  |
| C | 8084 | 7925 | 30 | 30 | 0.37% | 0.38% |  |
| D | 8084 | 7925 | 28 | 28 | 0.35% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 149230 | 752.66 | 957 | 935 | 197.0 |
| A | 14 | 249 | 85831 | 430.89 | 957 | 935 | 197.0 |
| A | 12 | 247 | 41540 | 206.09 | 957 | 935 | 197.0 |
| B | 15 | 204 | 458127 | 2435.68 | 966 | 941 | 187.7 |
| B | 0 | 219 | 91159 | 480.64 | 966 | 941 | 187.7 |
| B | 2 | 249 | 73997 | 389.21 | 966 | 941 | 187.7 |
| C | 14 | 223 | 183975 | 850.03 | 922 | 924 | 215.3 |
| C | 1 | 192 | 112265 | 517.03 | 922 | 924 | 215.3 |
| C | 6 | 80 | 67433 | 308.85 | 922 | 924 | 215.3 |
| D | 10 | 85 | 105093 | 421.65 | 925 | 898 | 247.1 |
| D | 13 | 29 | 70049 | 279.84 | 925 | 898 | 247.1 |
| D | 2 | 136 | 53172 | 211.54 | 925 | 898 | 247.1 |

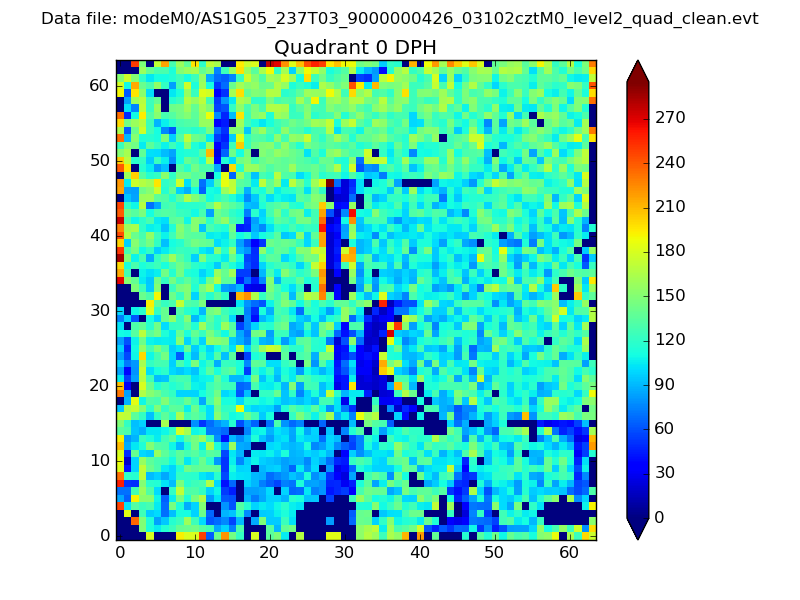

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

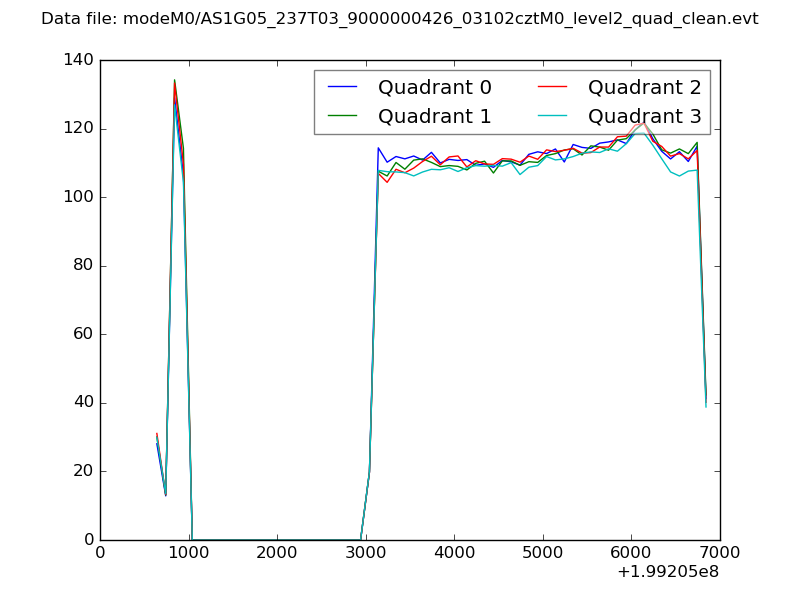

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

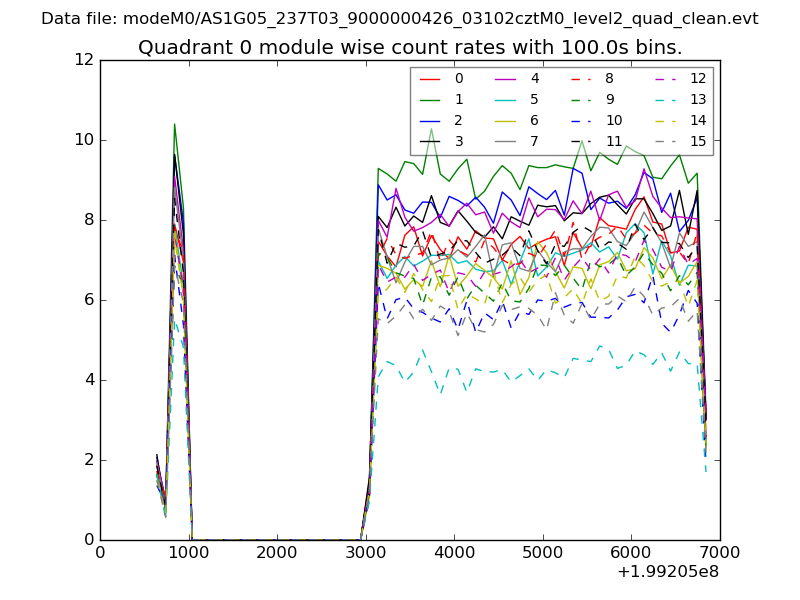

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

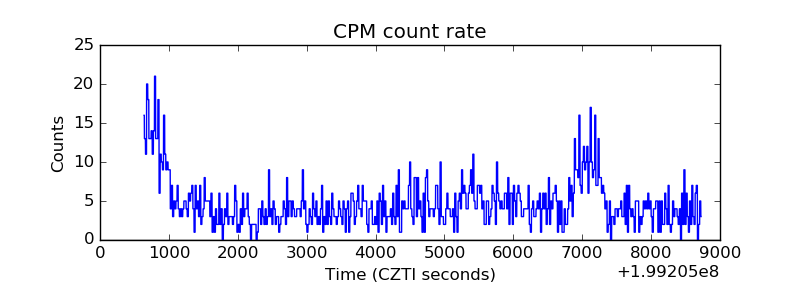

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

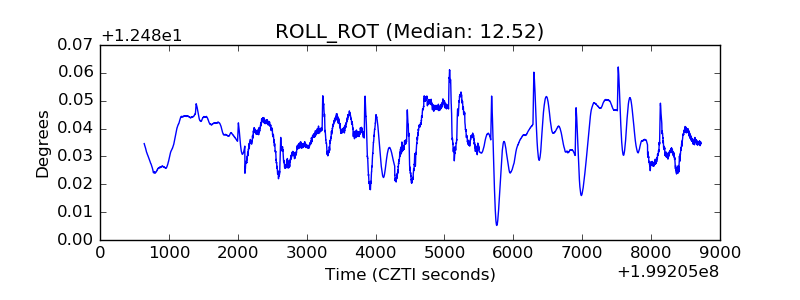

| _ROLL_ROT |  |

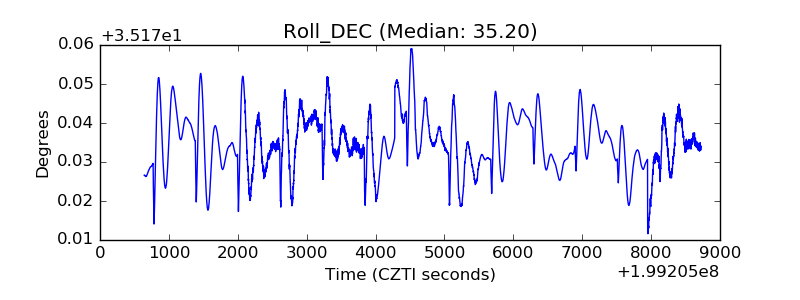

| _Roll_DEC |  |
| _Roll_RA |  |

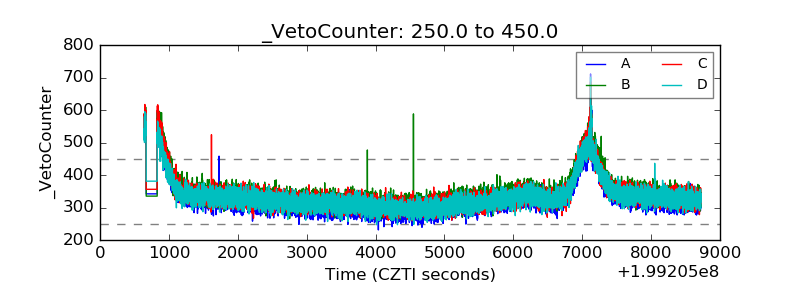

| Veto Counter |  |
