| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T03_9000000426_03109cztM0_level2.evt | modeM0/AS1G05_237T03_9000000426_03109cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,262,080 | 85,861,440 |
| Size | 463.7 MB | 81.9 MB |
| Events in quadrant A | 3,088,521 | 541,196 |
| Events in quadrant B | 3,347,161 | 546,197 |
| Events in quadrant C | 3,724,216 | 542,789 |
| Events in quadrant D | 4,123,326 | 514,680 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13705 | 3 |
| B | 0 | 14342 | 2 |
| C | 0 | 15611 | 2 |
| D | 0 | 17029 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6521 | 36 | 0.552063% |
| B | 6521 | 46 | 0.705413% |
| C | 6521 | 224 | 3.435056% |
| D | 6521 | 289 | 4.431836% |

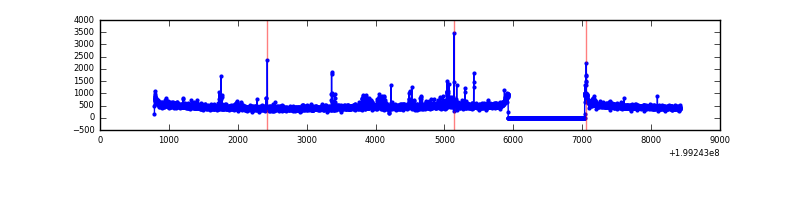

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7632 | 6523 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7632 | 6523 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7632 | 6523 | 163 | 163 | 2.14% | 2.50% |  |
| D | 7632 | 6523 | 198 | 198 | 2.59% | 3.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 78509 | 503.94 | 752 | 737 | 154.3 |
| A | 0 | 31 | 36387 | 231.0 | 752 | 737 | 154.3 |
| A | 13 | 14 | 24833 | 156.13 | 752 | 737 | 154.3 |
| B | 15 | 204 | 121930 | 821.98 | 768 | 753 | 147.4 |
| B | 0 | 219 | 71432 | 479.44 | 768 | 753 | 147.4 |
| B | 1 | 223 | 47018 | 313.83 | 768 | 753 | 147.4 |
| C | 0 | 219 | 640402 | 3807.18 | 724 | 729 | 168.0 |
| C | 6 | 80 | 104578 | 618.08 | 724 | 729 | 168.0 |
| C | 1 | 16 | 64569 | 379.96 | 724 | 729 | 168.0 |
| D | 13 | 120 | 952918 | 5054.35 | 706 | 688 | 188.4 |
| D | 13 | 239 | 150958 | 797.62 | 706 | 688 | 188.4 |
| D | 13 | 223 | 134185 | 708.59 | 706 | 688 | 188.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

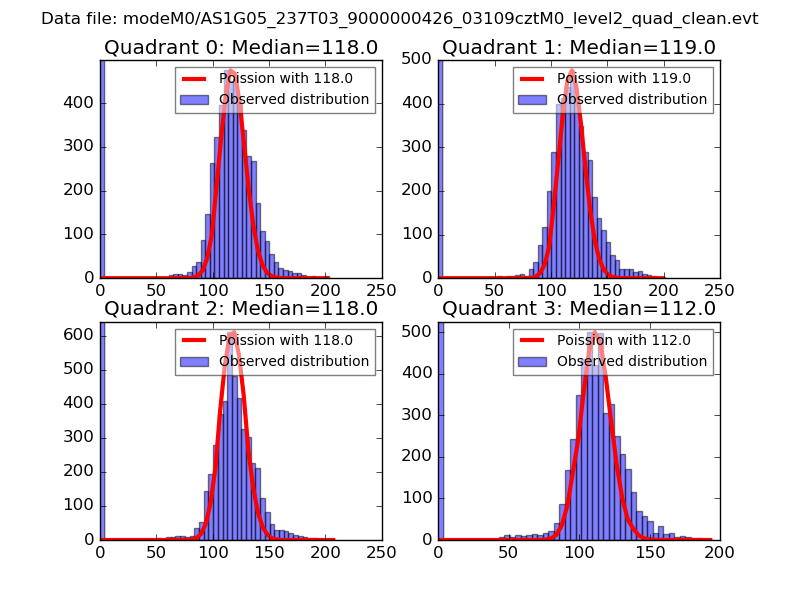

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

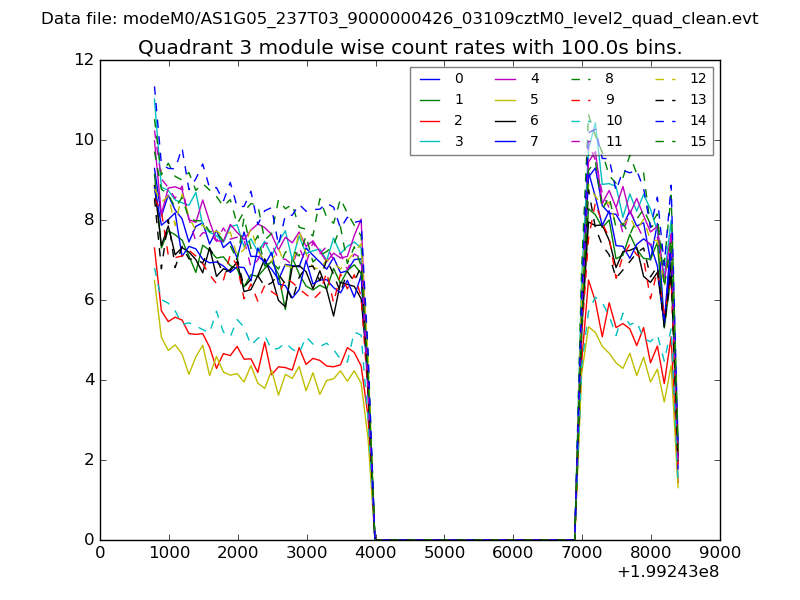

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

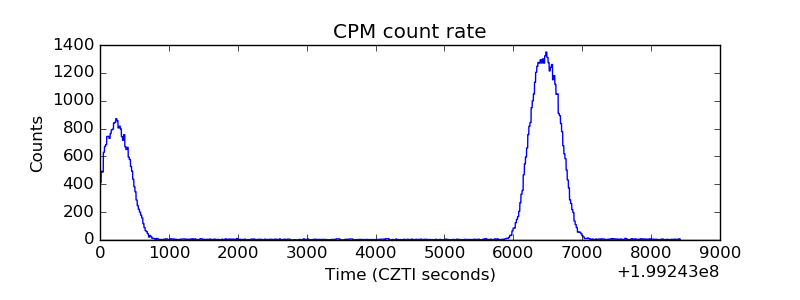

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

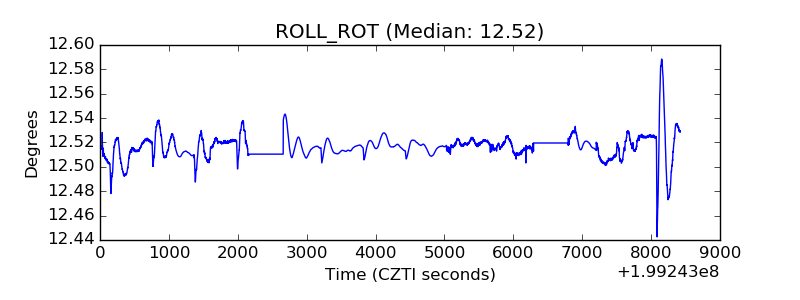

| _ROLL_ROT |  |

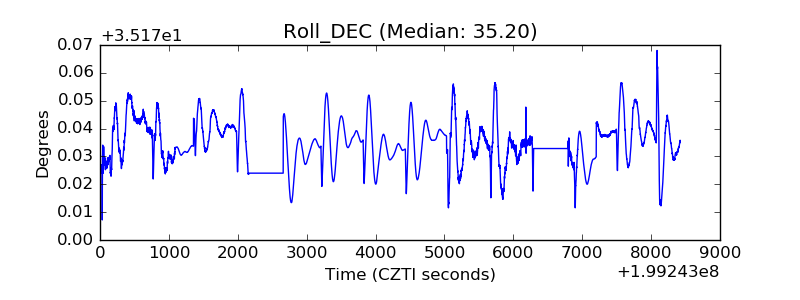

| _Roll_DEC |  |
| _Roll_RA |  |

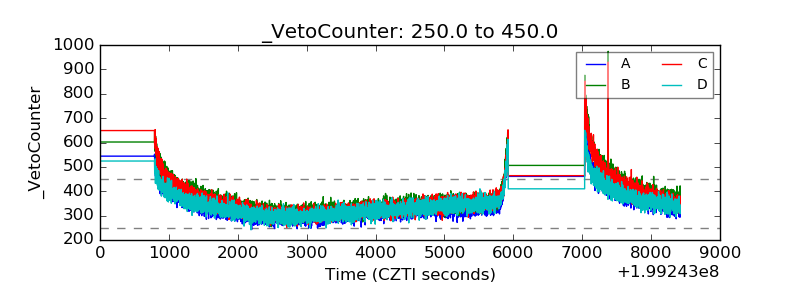

| Veto Counter |  |
