| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000428cztM0_level2.fits | modeM0/AS1G05_214T01_9000000428cztM0_level2_quad_clean.evt |
| Size (bytes) | 337,927,680 | 281,430,720 |
| Size | 322.3 MB | 268.4 MB |
| Events in quadrant A | 1,566,048 | 1,087,089 |
| Events in quadrant B | 1,501,072 | 1,084,919 |
| Events in quadrant C | 1,437,242 | 997,030 |
| Events in quadrant D | 1,320,400 | 948,440 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166946 | 0 |
| B | 0 | 147819 | 0 |
| C | 0 | 201312 | 0 |
| D | 0 | 158060 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1495 | 0 |
| B | 0 | 1495 | 0 |
| C | 0 | 1497 | 0 |
| D | 0 | 1492 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 113 | 0 |
| B | 0 | 113 | 0 |
| C | 0 | 113 | 0 |
| D | 0 | 113 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 68991 | 3621 | 5.248511% |
| B | 69360 | 1124 | 1.620531% |
| C | 69270 | 4678 | 6.753284% |
| D | 69364 | 1754 | 2.528689% |

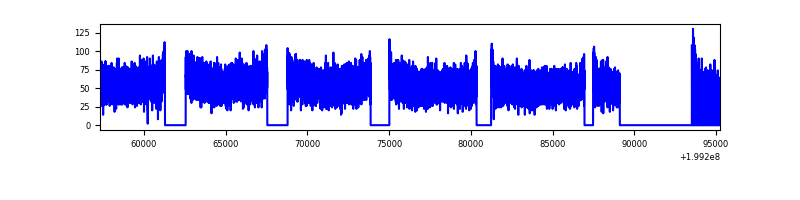

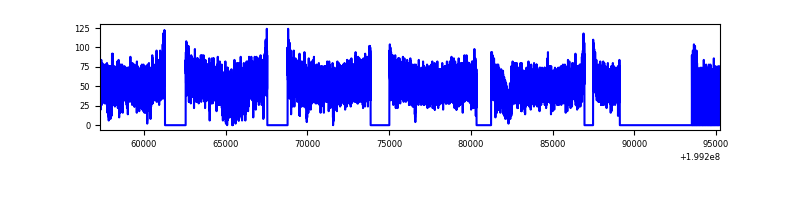

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 37933 | 27593 | 0 | 0 | 0.00% | 0.00% |  |
| B | 37933 | 27592 | 0 | 0 | 0.00% | 0.00% |  |
| C | 37933 | 27602 | 0 | 0 | 0.00% | 0.00% |  |
| D | 37933 | 27577 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 110 | 1421 | 9.86 | 407 | 378 | 105.8 |
| A | 0 | 29 | 1338 | 9.07 | 407 | 378 | 105.8 |
| A | 9 | 19 | 1196 | 7.73 | 407 | 378 | 105.8 |
| B | 2 | 9 | 1284 | 11.19 | 396 | 377 | 81.1 |
| B | 12 | 226 | 1166 | 9.73 | 396 | 377 | 81.1 |
| B | 5 | 128 | 1126 | 9.24 | 396 | 377 | 81.1 |
| C | 1 | 80 | 1071 | 6.94 | 380 | 350 | 103.9 |
| C | 1 | 81 | 1061 | 6.84 | 380 | 350 | 103.9 |
| C | 9 | 188 | 1019 | 6.44 | 380 | 350 | 103.9 |
| D | 11 | 82 | 1159 | 7.94 | 376 | 339 | 103.3 |
| D | 3 | 14 | 1008 | 6.48 | 376 | 339 | 103.3 |
| D | 7 | 5 | 979 | 6.2 | 376 | 339 | 103.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

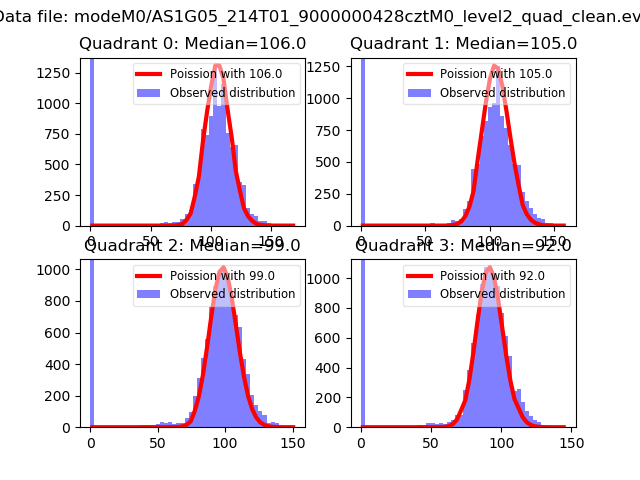

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

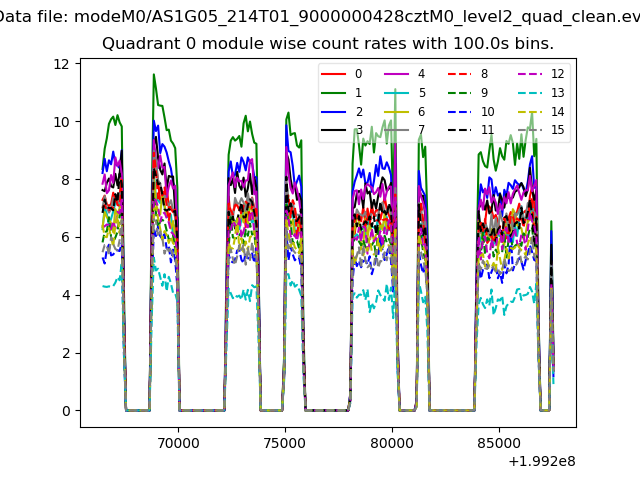

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

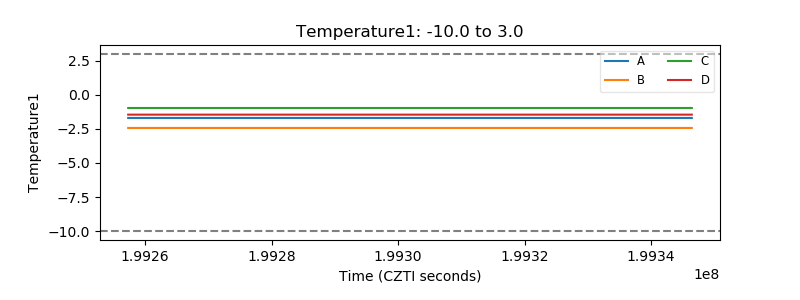

| Temperature 1 |  |

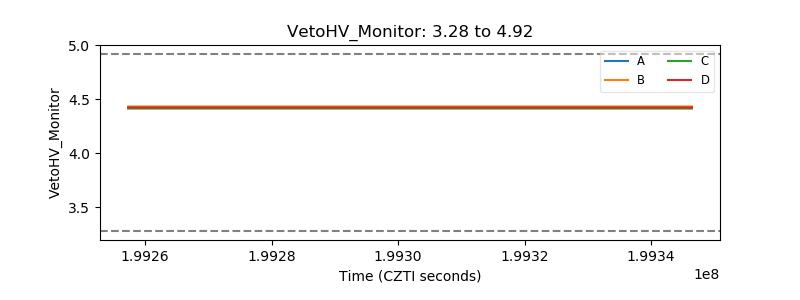

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

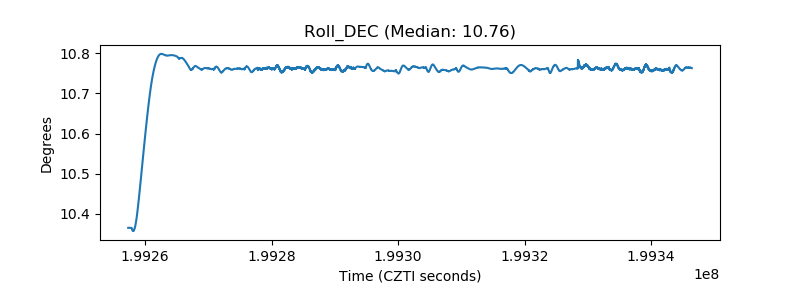

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
