| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000428_03114cztM0_level2.evt | modeM0/AS1G05_214T01_9000000428_03114cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,529,600 | 65,053,440 |
| Size | 537.4 MB | 62.0 MB |
| Events in quadrant A | 3,200,268 | 387,445 |
| Events in quadrant B | 3,408,046 | 390,057 |
| Events in quadrant C | 6,363,771 | 370,693 |
| Events in quadrant D | 3,651,930 | 366,145 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13855 | 0 |
| B | 0 | 14154 | 0 |
| C | 0 | 23163 | 0 |
| D | 0 | 15436 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6519 | 150 | 2.300966% |
| B | 6519 | 130 | 1.994171% |
| C | 6519 | 958 | 14.695505% |
| D | 6519 | 279 | 4.279798% |

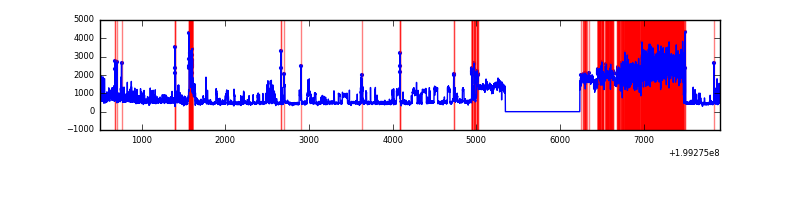

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7409 | 6520 | 25 | 25 | 0.34% | 0.38% |  |
| B | 7409 | 6519 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7409 | 6520 | 717 | 717 | 9.68% | 11.00% |  |
| D | 7409 | 6520 | 158 | 158 | 2.13% | 2.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 249 | 114175 | 719.38 | 770 | 753 | 157.7 |
| A | 0 | 149 | 34554 | 214.38 | 770 | 753 | 157.7 |
| A | 12 | 247 | 21189 | 129.62 | 770 | 753 | 157.7 |
| B | 15 | 204 | 227218 | 1486.7 | 779 | 761 | 152.3 |
| B | 4 | 81 | 88810 | 578.05 | 779 | 761 | 152.3 |
| B | 2 | 249 | 21588 | 136.73 | 779 | 761 | 152.3 |
| C | 0 | 219 | 3424611 | 20596.11 | 709 | 712 | 166.2 |
| C | 14 | 223 | 77476 | 461.77 | 709 | 712 | 166.2 |
| C | 6 | 80 | 44041 | 260.64 | 709 | 712 | 166.2 |
| D | 13 | 120 | 477774 | 2672.56 | 735 | 712 | 178.5 |
| D | 2 | 206 | 114151 | 635.5 | 735 | 712 | 178.5 |
| D | 10 | 85 | 72874 | 404.26 | 735 | 712 | 178.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

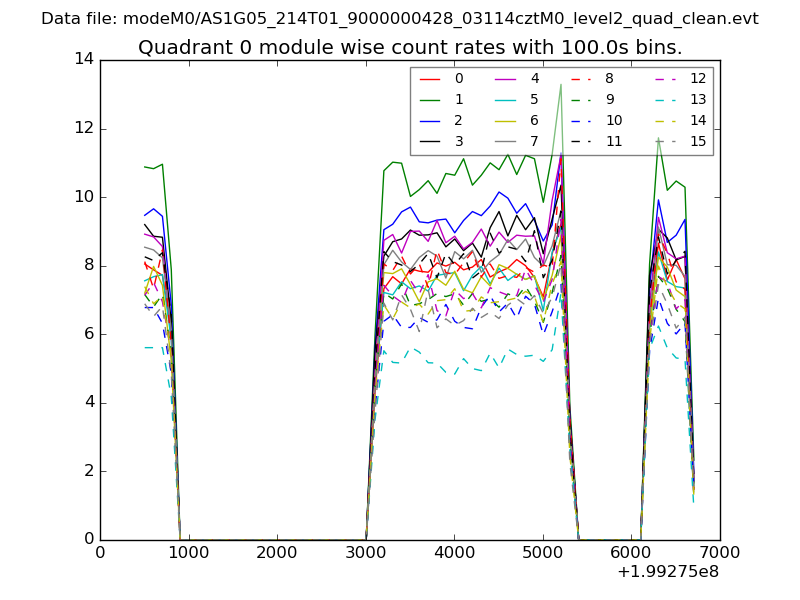

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

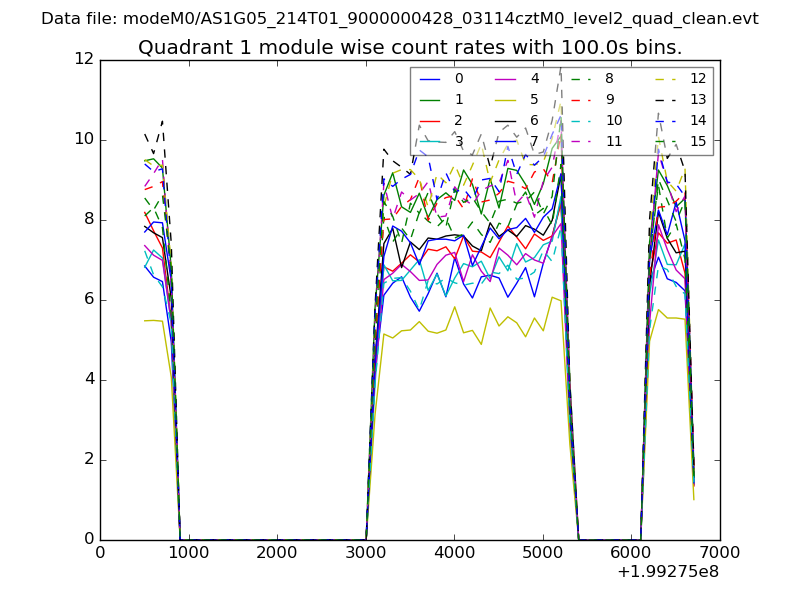

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

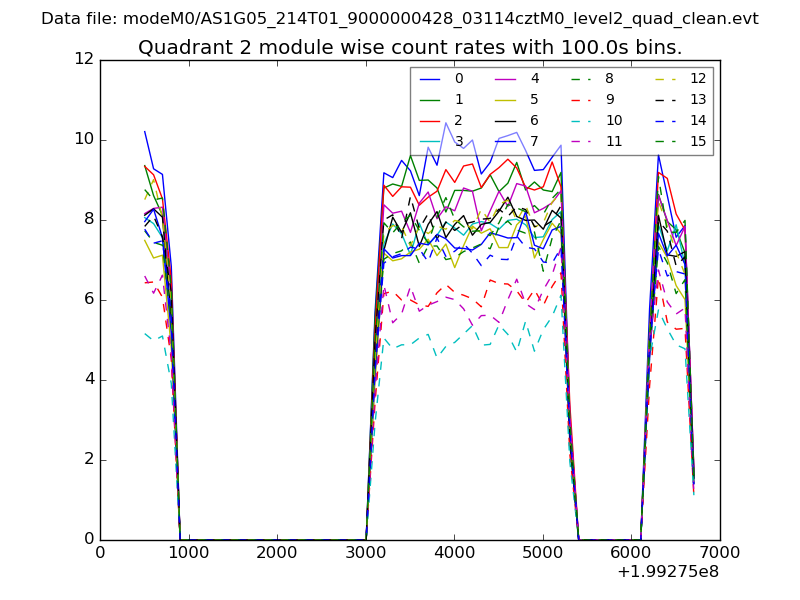

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

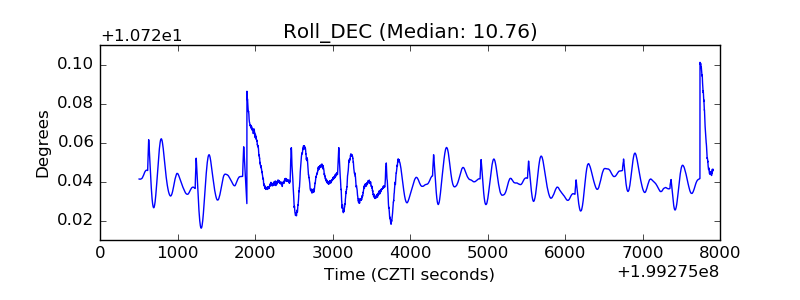

| _Roll_DEC |  |
| _Roll_RA |  |

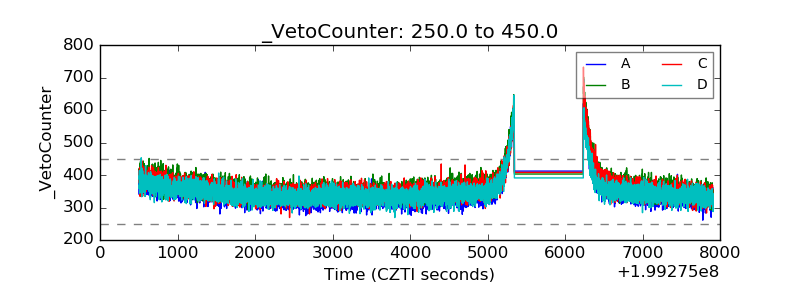

| Veto Counter |  |
