| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000428_03115cztM0_level2.evt | modeM0/AS1G05_214T01_9000000428_03115cztM0_level2_quad_clean.evt |
| Size (bytes) | 612,270,720 | 72,432,000 |
| Size | 583.9 MB | 69.1 MB |
| Events in quadrant A | 3,545,362 | 431,229 |
| Events in quadrant B | 3,705,052 | 430,741 |
| Events in quadrant C | 6,881,723 | 418,723 |
| Events in quadrant D | 3,915,034 | 403,283 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15489 | 0 |
| B | 0 | 15736 | 0 |
| C | 0 | 25294 | 0 |
| D | 0 | 17002 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7305 | 116 | 1.587953% |
| B | 7305 | 101 | 1.382615% |
| C | 7305 | 841 | 11.512663% |
| D | 7305 | 223 | 3.052704% |

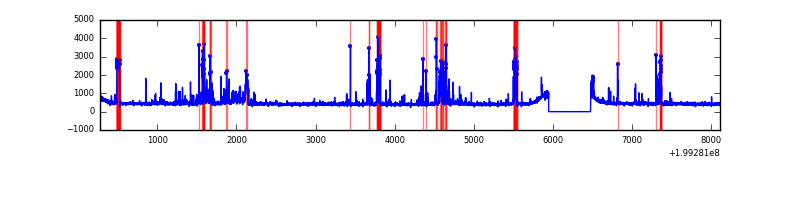

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7835 | 7306 | 18 | 18 | 0.23% | 0.25% |  |
| B | 7835 | 7306 | 12 | 12 | 0.15% | 0.16% |  |
| C | 7835 | 7306 | 675 | 675 | 8.62% | 9.24% |  |
| D | 7835 | 7306 | 128 | 128 | 1.63% | 1.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 91421 | 515.14 | 860 | 840 | 175.8 |
| A | 14 | 249 | 48029 | 268.37 | 860 | 840 | 175.8 |
| A | 0 | 149 | 31178 | 172.53 | 860 | 840 | 175.8 |
| B | 15 | 204 | 176618 | 1024.13 | 868 | 848 | 171.6 |
| B | 4 | 81 | 81617 | 470.6 | 868 | 848 | 171.6 |
| B | 0 | 187 | 18434 | 102.46 | 868 | 848 | 171.6 |
| C | 0 | 219 | 3481488 | 18345.31 | 803 | 806 | 189.7 |
| C | 14 | 223 | 188006 | 986.66 | 803 | 806 | 189.7 |
| C | 6 | 80 | 43430 | 224.65 | 803 | 806 | 189.7 |
| D | 13 | 223 | 176360 | 882.44 | 819 | 796 | 199.0 |
| D | 13 | 120 | 135823 | 678.69 | 819 | 796 | 199.0 |
| D | 10 | 85 | 111573 | 556.8 | 819 | 796 | 199.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

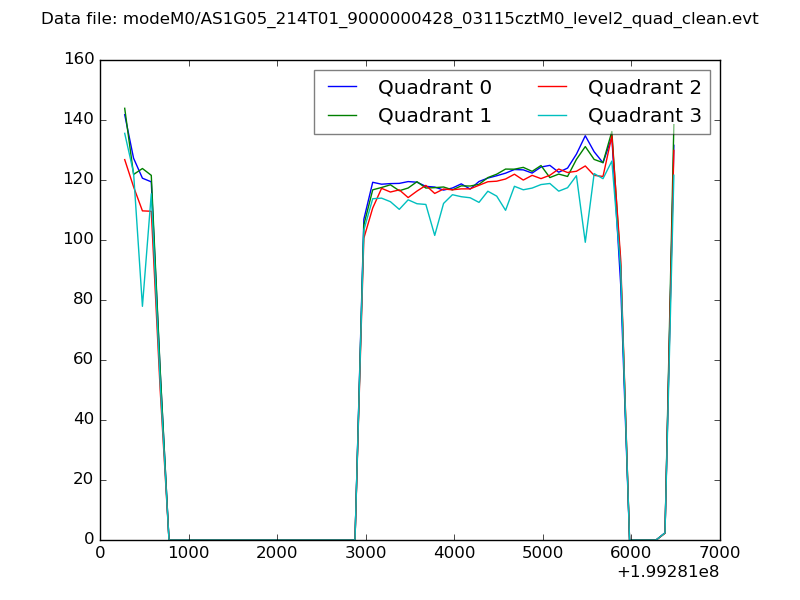

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

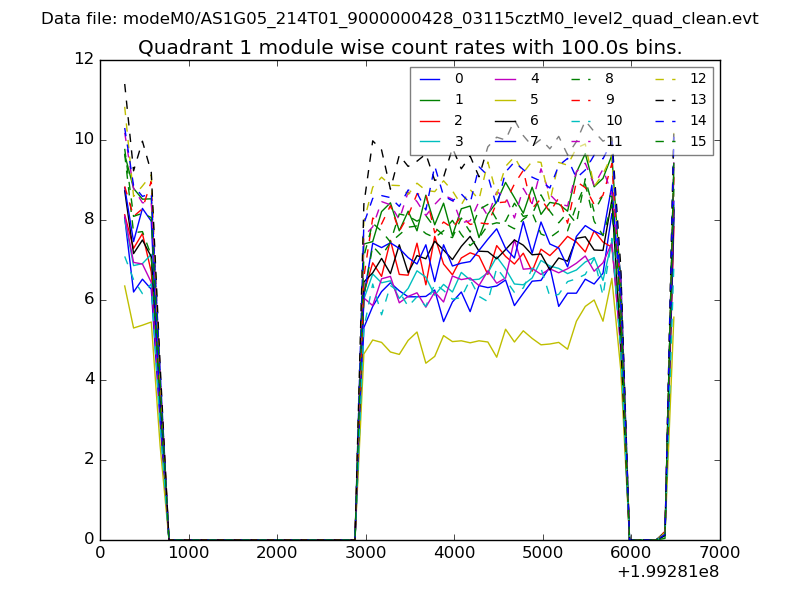

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

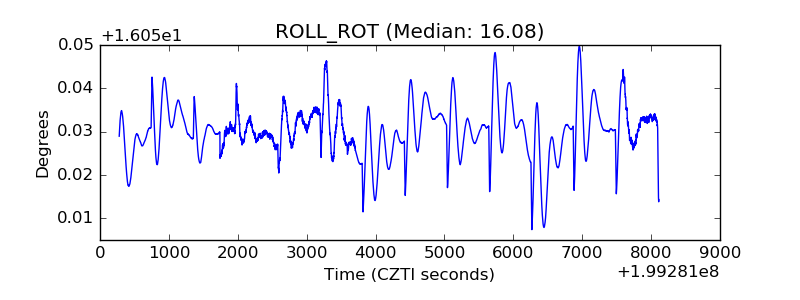

| _ROLL_ROT |  |

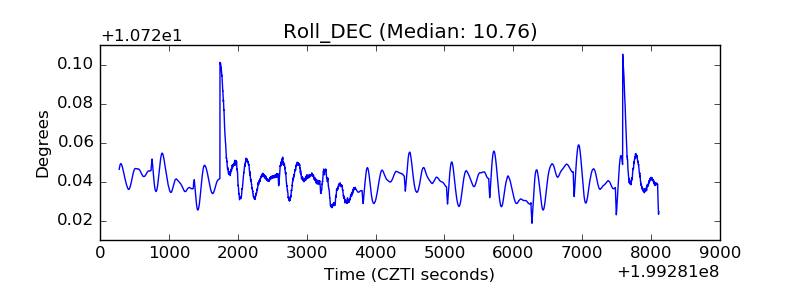

| _Roll_DEC |  |

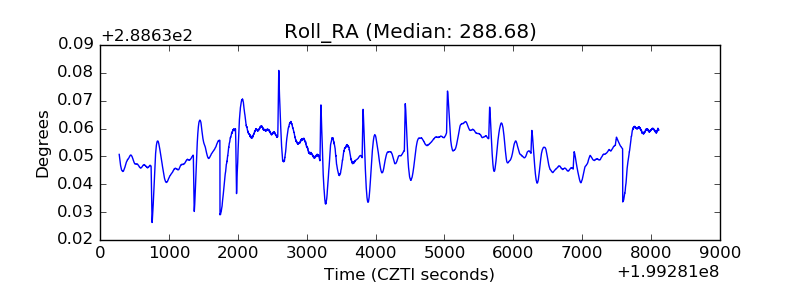

| _Roll_RA |  |
| Veto Counter |  |
