| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000428_03120cztM0_level2.evt | modeM0/AS1G05_214T01_9000000428_03120cztM0_level2_common_clean.evt |
| Size (bytes) | 1,486,589,760 | 199,932,480 |
| Size | 1.4 GB | 190.7 MB |
| Events in quadrant A | 12,543,350 | 1,190,560 |
| Events in quadrant B | 9,205,633 | 1,193,859 |
| Events in quadrant C | 12,343,807 | 1,183,487 |
| Events in quadrant D | 9,617,289 | 1,150,924 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50751 | 5 |
| B | 0 | 40666 | 4 |
| C | 0 | 50127 | 4 |
| D | 0 | 43131 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 396 | 0 |
| B | 0 | 396 | 0 |
| C | 0 | 396 | 0 |
| D | 0 | 396 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19412 | 1337 | 6.887492% |
| B | 19412 | 281 | 1.447558% |
| C | 19412 | 1035 | 5.331754% |
| D | 19412 | 362 | 1.864826% |

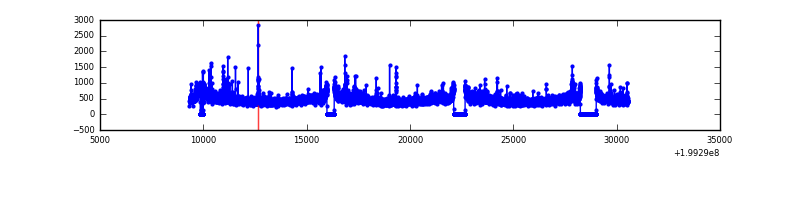

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21207 | 19418 | 793 | 793 | 3.74% | 4.08% |  |
| B | 21207 | 19418 | 2 | 2 | 0.01% | 0.01% |  |
| C | 21207 | 19418 | 655 | 655 | 3.09% | 3.37% |  |
| D | 21207 | 19418 | 99 | 99 | 0.47% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 3687178 | 8220.09 | 2187 | 2140 | 448.3 |
| A | 14 | 249 | 212037 | 468.21 | 2187 | 2140 | 448.3 |
| A | 0 | 31 | 63865 | 137.69 | 2187 | 2140 | 448.3 |
| B | 4 | 81 | 80243 | 177.46 | 2274 | 2218 | 439.7 |
| B | 15 | 85 | 64209 | 140.99 | 2274 | 2218 | 439.7 |
| B | 15 | 204 | 63149 | 138.58 | 2274 | 2218 | 439.7 |
| C | 14 | 223 | 3320153 | 6661.16 | 2134 | 2140 | 498.1 |
| C | 14 | 234 | 249780 | 497.16 | 2134 | 2140 | 498.1 |
| C | 1 | 192 | 167343 | 331.66 | 2134 | 2140 | 498.1 |
| D | 13 | 114 | 547932 | 1031.9 | 2158 | 2095 | 529.0 |
| D | 13 | 223 | 218110 | 408.38 | 2158 | 2095 | 529.0 |
| D | 13 | 120 | 216780 | 405.86 | 2158 | 2095 | 529.0 |

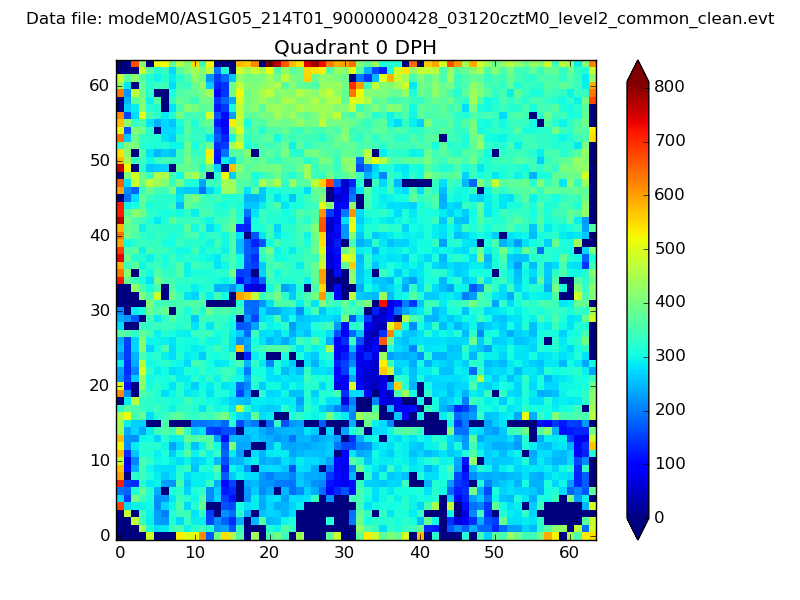

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

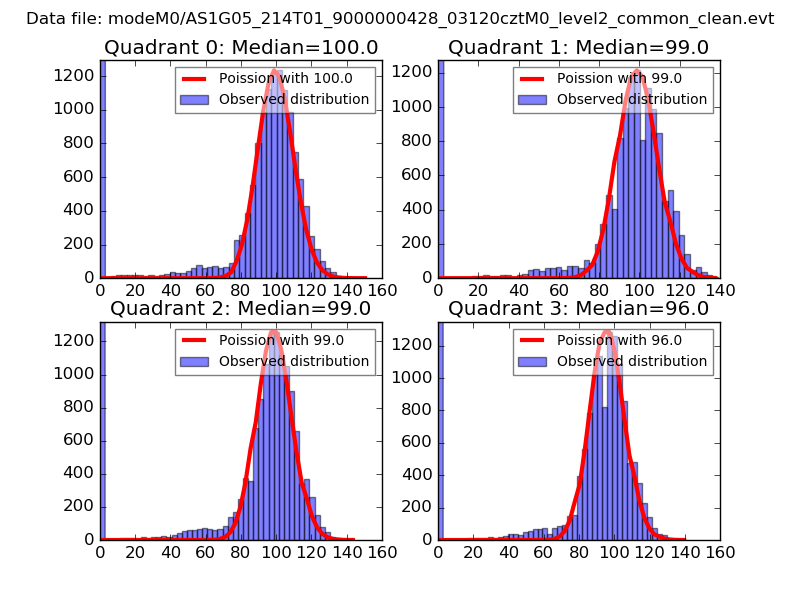

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

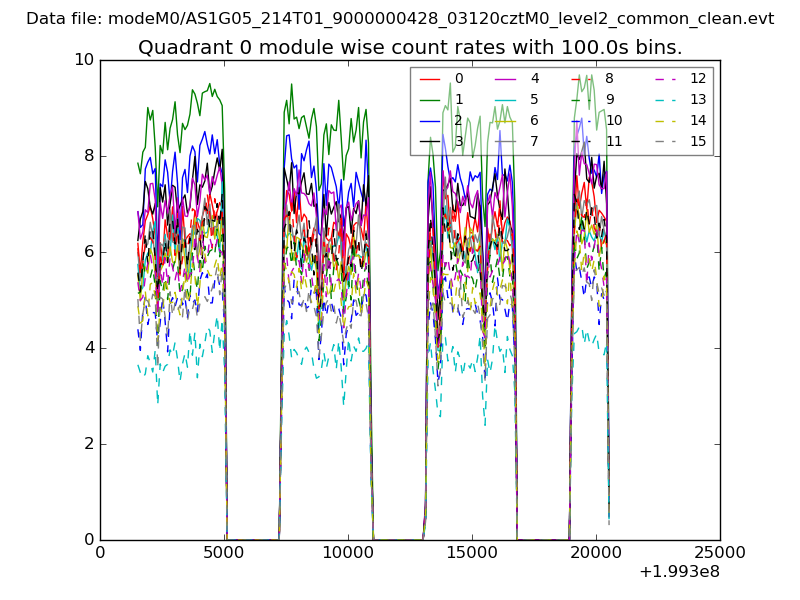

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

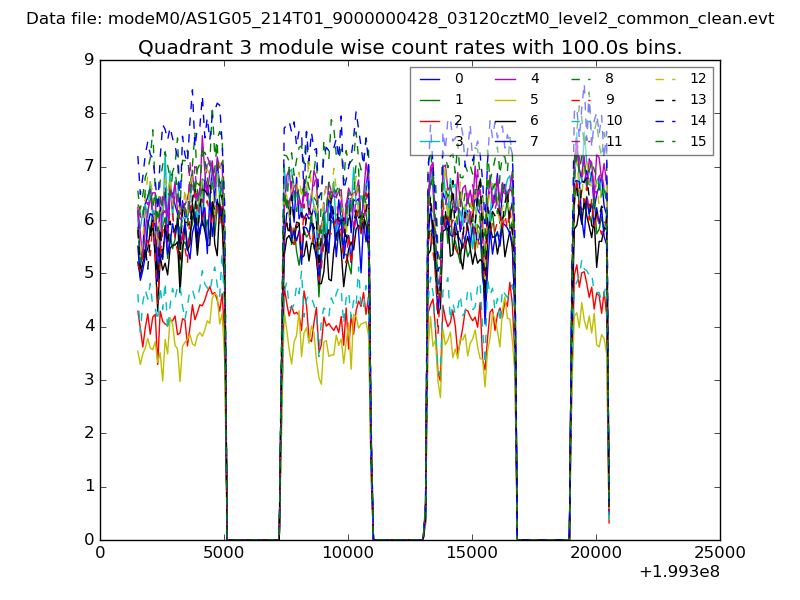

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

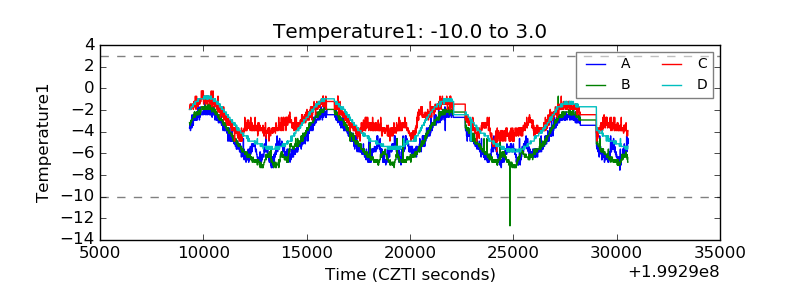

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

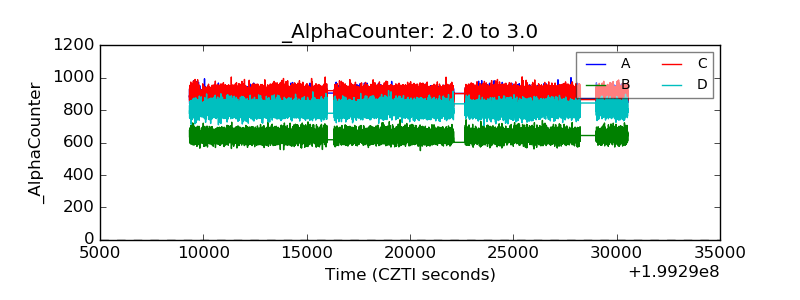

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

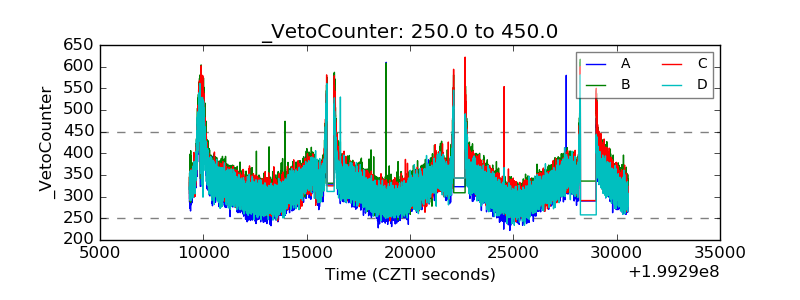

| Veto Counter |  |
