| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000428_03124cztM0_level2.evt | modeM0/AS1G05_214T01_9000000428_03124cztM0_level2_quad_clean.evt |
| Size (bytes) | 936,616,320 | 124,162,560 |
| Size | 893.2 MB | 118.4 MB |
| Events in quadrant A | 10,916,692 | 695,763 |
| Events in quadrant B | 5,042,376 | 798,708 |
| Events in quadrant C | 6,377,855 | 783,666 |
| Events in quadrant D | 5,306,074 | 742,069 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39750 | 0 |
| B | 0 | 22281 | 0 |
| C | 0 | 26429 | 0 |
| D | 0 | 23938 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 218 | 0 |
| B | 0 | 218 | 0 |
| C | 0 | 218 | 0 |
| D | 0 | 218 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10677 | 2479 | 23.218132% |
| B | 10677 | 88 | 0.824202% |
| C | 10677 | 392 | 3.671443% |
| D | 10677 | 203 | 1.901283% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12937 | 10678 | 1596 | 1596 | 12.34% | 14.95% |  |
| B | 12937 | 10679 | 19 | 19 | 0.15% | 0.18% |  |
| C | 12937 | 10679 | 314 | 314 | 2.43% | 2.94% |  |
| D | 12937 | 10679 | 147 | 147 | 1.14% | 1.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 6503280 | 29539.0 | 1081 | 1060 | 220.1 |
| A | 8 | 15 | 134671 | 606.98 | 1081 | 1060 | 220.1 |
| A | 12 | 247 | 93715 | 420.92 | 1081 | 1060 | 220.1 |
| B | 4 | 81 | 90925 | 377.35 | 1240 | 1214 | 237.7 |
| B | 14 | 167 | 36690 | 149.22 | 1240 | 1214 | 237.7 |
| B | 15 | 204 | 23440 | 93.49 | 1240 | 1214 | 237.7 |
| C | 14 | 223 | 1126736 | 4134.28 | 1164 | 1171 | 272.3 |
| C | 0 | 219 | 469202 | 1719.11 | 1164 | 1171 | 272.3 |
| C | 1 | 192 | 105331 | 382.59 | 1164 | 1171 | 272.3 |
| D | 13 | 223 | 519338 | 1831.53 | 1164 | 1130 | 282.9 |
| D | 13 | 120 | 281926 | 992.43 | 1164 | 1130 | 282.9 |
| D | 13 | 239 | 47310 | 163.22 | 1164 | 1130 | 282.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

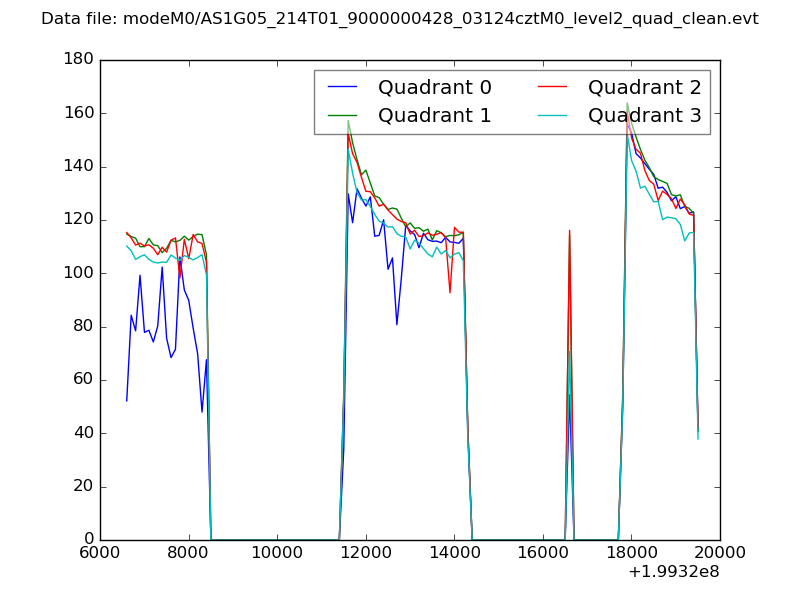

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

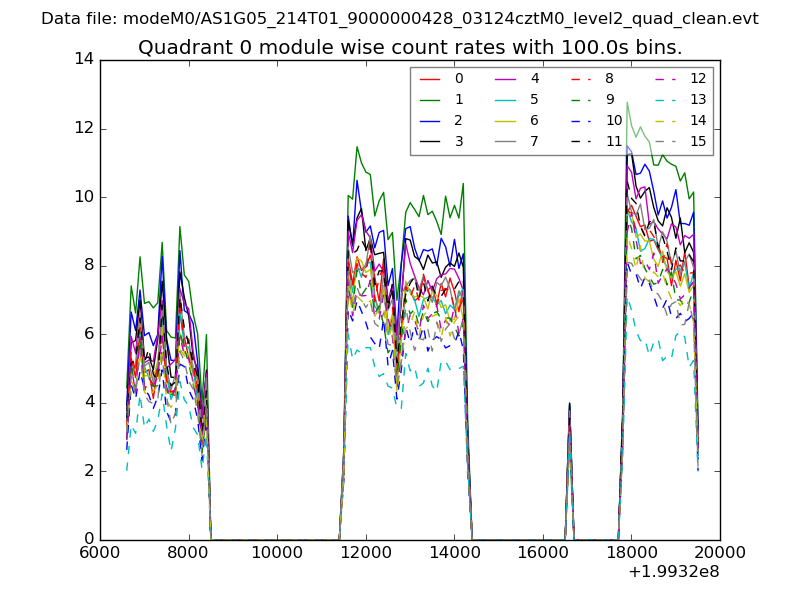

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

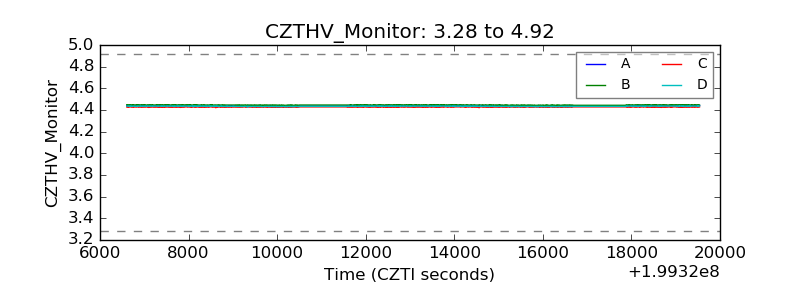

| CZT HV Monitor |  |
| D_VDD |  |

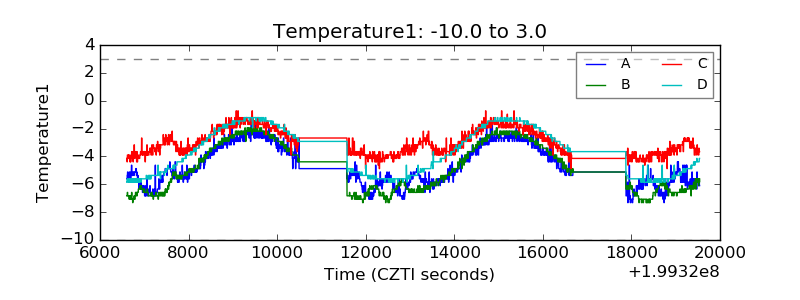

| Temperature 1 |  |

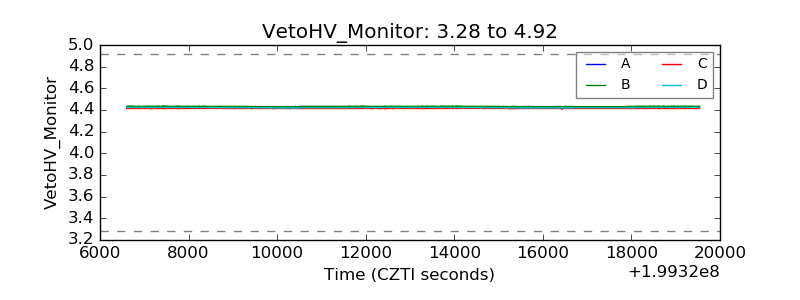

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

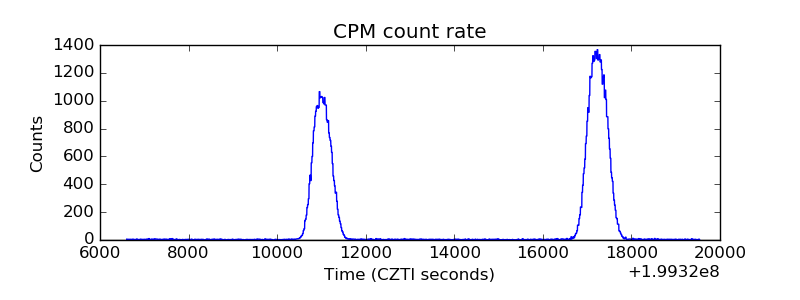

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

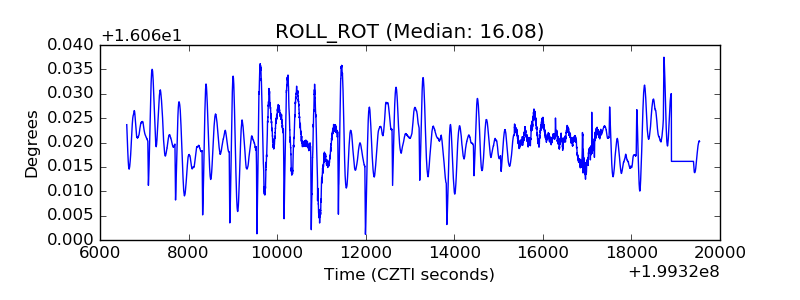

| _ROLL_ROT |  |

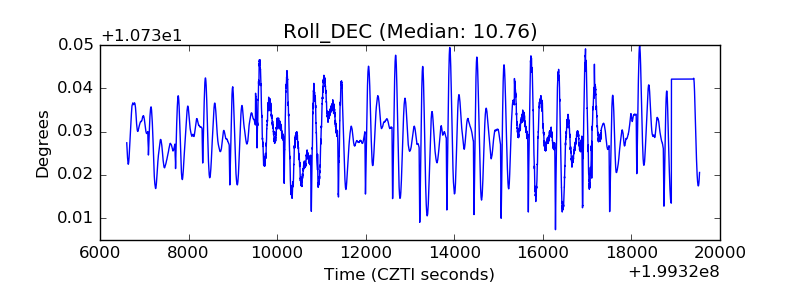

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
