| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_118T01_9000000430_03128cztM0_level2.evt | modeM0/AS1T01_118T01_9000000430_03128cztM0_level2_quad_clean.evt |
| Size (bytes) | 933,963,840 | 64,791,360 |
| Size | 890.7 MB | 61.8 MB |
| Events in quadrant A | 4,960,554 | 419,286 |
| Events in quadrant B | 3,481,579 | 431,565 |
| Events in quadrant C | 15,601,300 | 225,522 |
| Events in quadrant D | 3,775,579 | 403,225 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19321 | 3 |
| B | 0 | 14742 | 2 |
| C | 0 | 51079 | 2 |
| D | 0 | 15947 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6895 | 778 | 11.283539% |
| B | 6895 | 208 | 3.016679% |
| C | 6895 | 5910 | 85.714286% |
| D | 6895 | 245 | 3.553299% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

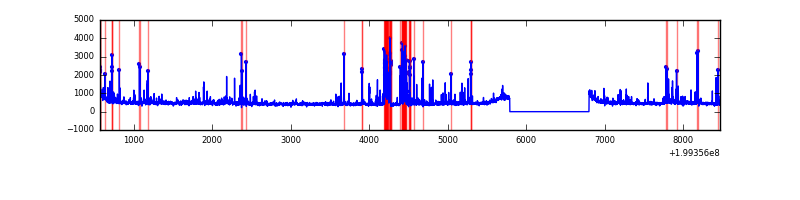

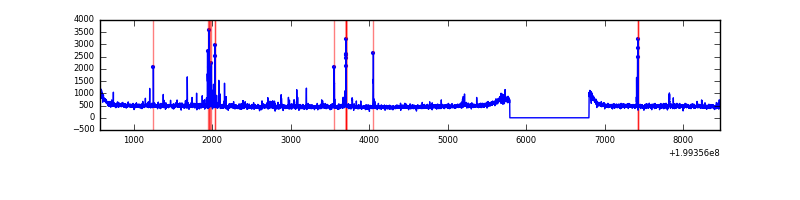

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7905 | 6895 | 449 | 449 | 5.68% | 6.51% |  |
| B | 7905 | 6895 | 18 | 18 | 0.23% | 0.26% |  |
| C | 7904 | 6894 | 4896 | 4896 | 61.94% | 71.02% |  |
| D | 7905 | 6895 | 99 | 99 | 1.25% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 247 | 1087026 | 6671.87 | 799 | 780 | 162.8 |
| A | 0 | 13 | 402443 | 2467.07 | 799 | 780 | 162.8 |
| A | 8 | 15 | 298166 | 1826.59 | 799 | 780 | 162.8 |
| B | 4 | 81 | 107905 | 651.61 | 844 | 824 | 164.3 |
| B | 2 | 249 | 25871 | 152.42 | 844 | 824 | 164.3 |
| B | 15 | 204 | 20326 | 118.67 | 844 | 824 | 164.3 |
| C | 0 | 219 | 12873803 | 124978.79 | 440 | 441 | 103.0 |
| C | 0 | 235 | 893912 | 8674.11 | 440 | 441 | 103.0 |
| C | 6 | 80 | 23984 | 228.56 | 440 | 441 | 103.0 |
| D | 13 | 223 | 215361 | 1020.34 | 801 | 783 | 210.3 |
| D | 12 | 233 | 176762 | 836.79 | 801 | 783 | 210.3 |
| D | 2 | 136 | 91744 | 432.53 | 801 | 783 | 210.3 |

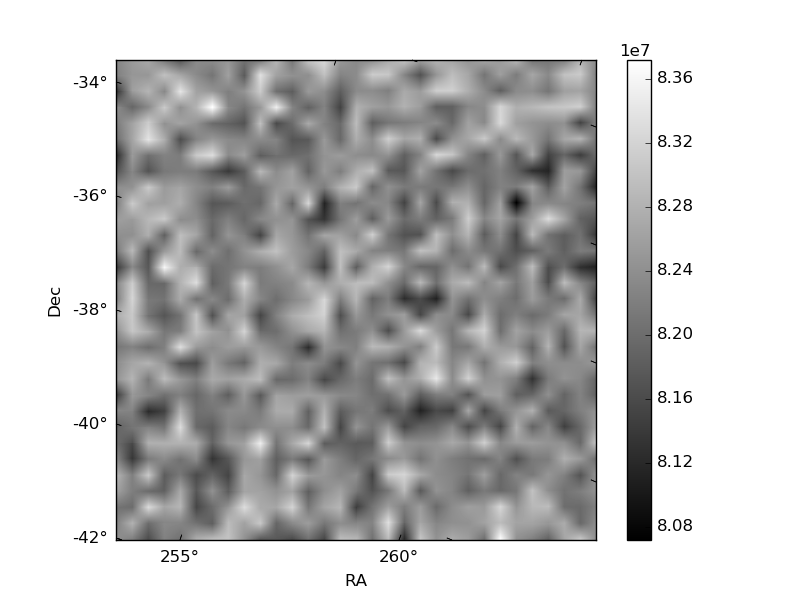

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

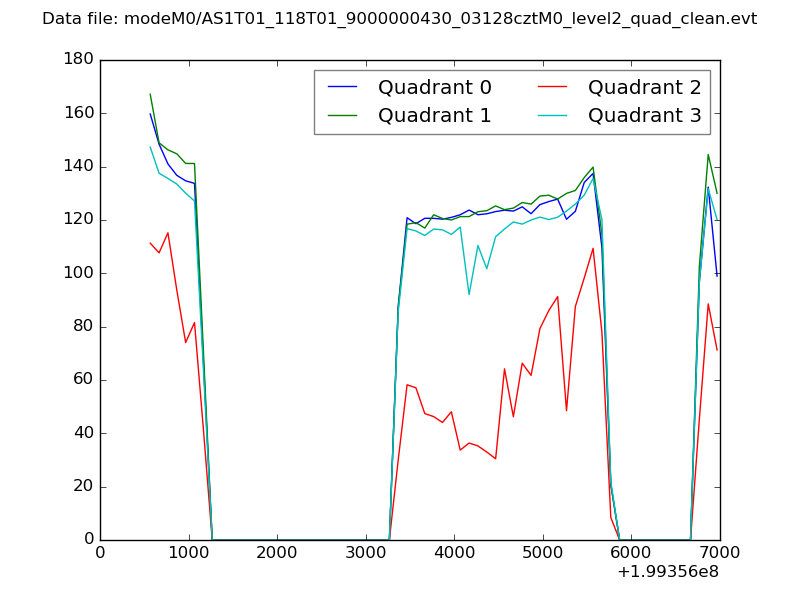

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

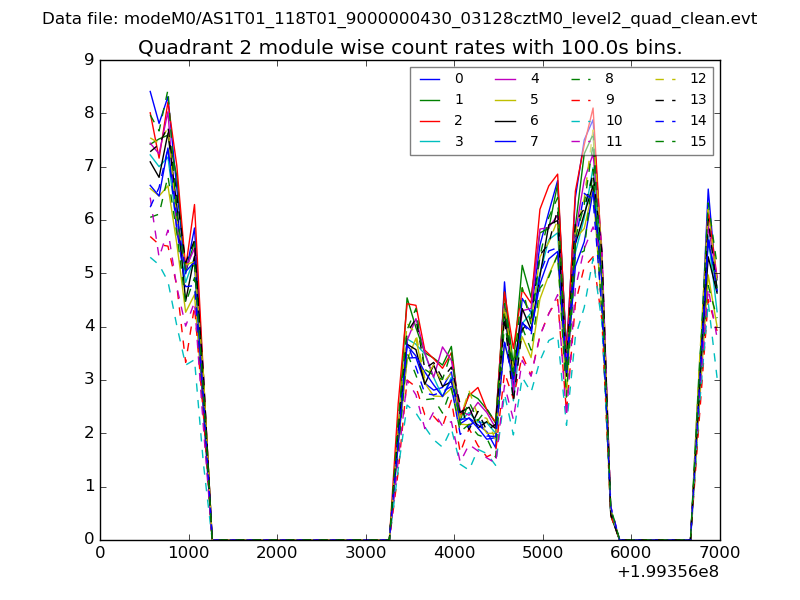

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

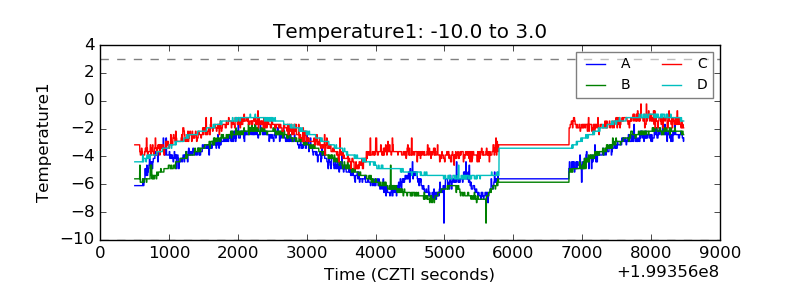

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

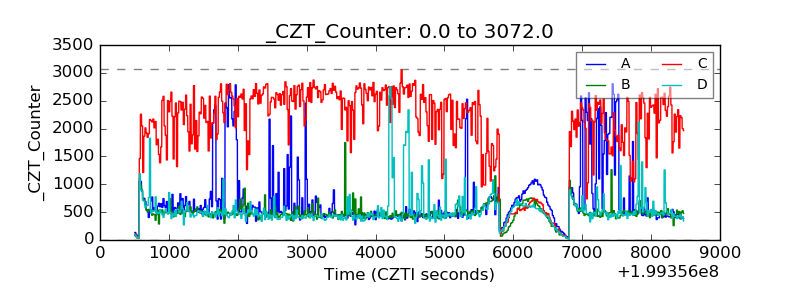

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

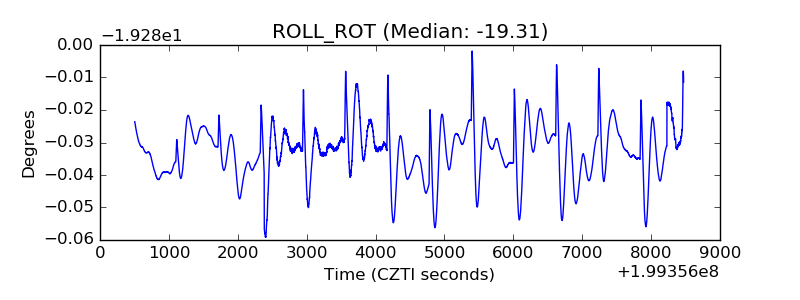

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
