| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_118T01_9000000430_03130cztM0_level2.evt | modeM0/AS1T01_118T01_9000000430_03130cztM0_level2_quad_clean.evt |
| Size (bytes) | 809,075,520 | 71,040,960 |
| Size | 771.6 MB | 67.7 MB |
| Events in quadrant A | 3,675,184 | 427,793 |
| Events in quadrant B | 3,671,753 | 431,843 |
| Events in quadrant C | 12,713,998 | 366,780 |
| Events in quadrant D | 3,941,350 | 408,327 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16148 | 2 |
| B | 0 | 15779 | 1 |
| C | 0 | 42862 | 1 |
| D | 0 | 17141 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7410 | 225 | 3.036437% |
| B | 7410 | 183 | 2.469636% |
| C | 7410 | 2813 | 37.962213% |
| D | 7410 | 215 | 2.901484% |

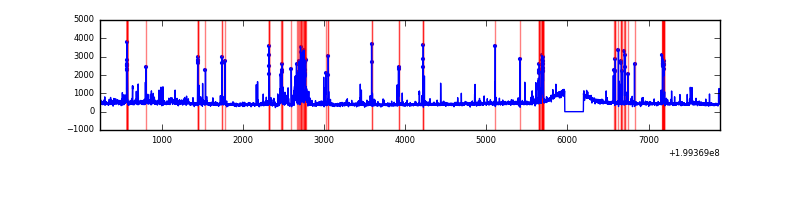

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7640 | 7411 | 41 | 41 | 0.54% | 0.55% |  |
| B | 7640 | 7410 | 6 | 6 | 0.08% | 0.08% |  |
| C | 7640 | 7411 | 2398 | 2398 | 31.39% | 32.36% |  |
| D | 7640 | 7411 | 106 | 106 | 1.39% | 1.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 247 | 225631 | 1263.6 | 863 | 843 | 177.9 |
| A | 0 | 50 | 64090 | 355.53 | 863 | 843 | 177.9 |
| A | 0 | 13 | 12850 | 67.49 | 863 | 843 | 177.9 |
| B | 15 | 204 | 116728 | 673.37 | 877 | 857 | 172.1 |
| B | 4 | 81 | 59447 | 340.49 | 877 | 857 | 172.1 |
| B | 2 | 249 | 30600 | 172.85 | 877 | 857 | 172.1 |
| C | 0 | 219 | 9589843 | 54906.63 | 746 | 749 | 174.6 |
| C | 6 | 80 | 59992 | 339.22 | 746 | 749 | 174.6 |
| C | 14 | 223 | 51664 | 291.54 | 746 | 749 | 174.6 |
| D | 12 | 233 | 217786 | 1067.73 | 836 | 812 | 203.2 |
| D | 13 | 223 | 163559 | 800.88 | 836 | 812 | 203.2 |
| D | 13 | 120 | 104163 | 508.59 | 836 | 812 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

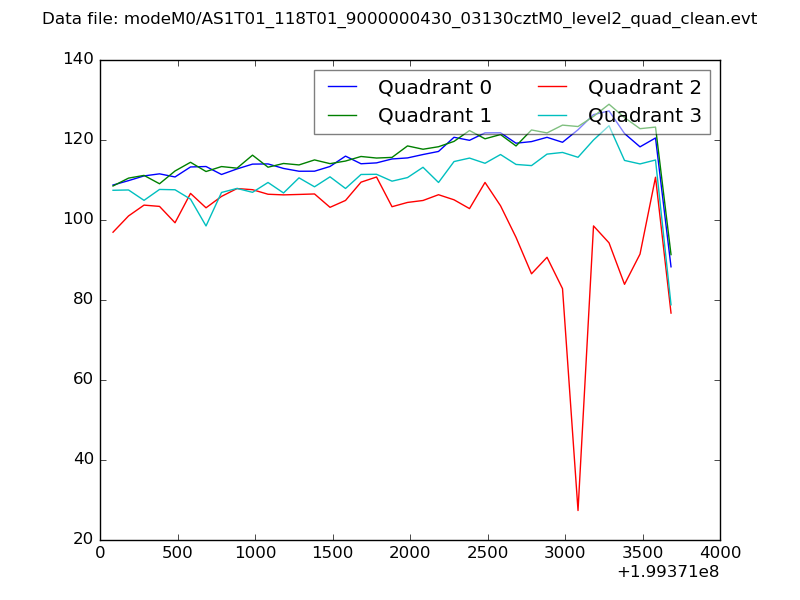

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

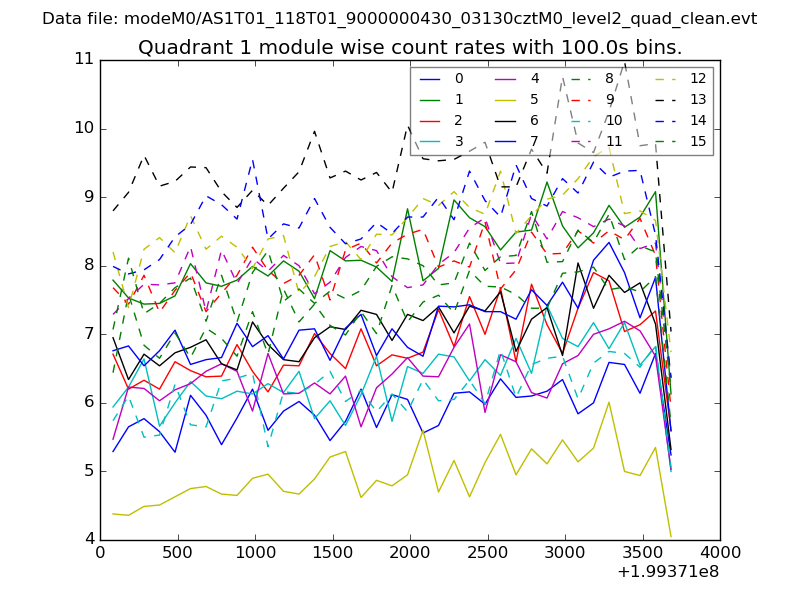

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

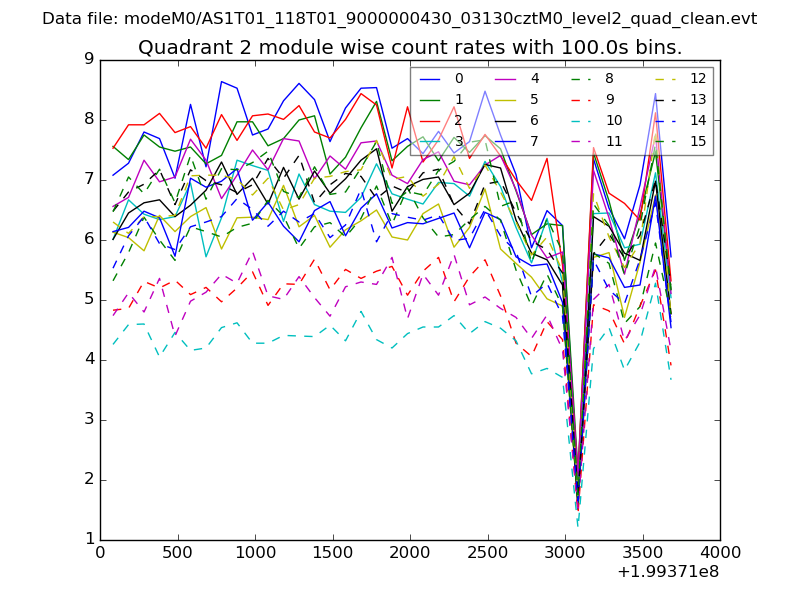

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

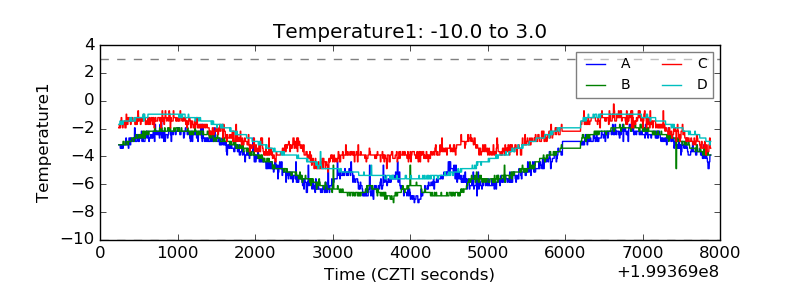

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

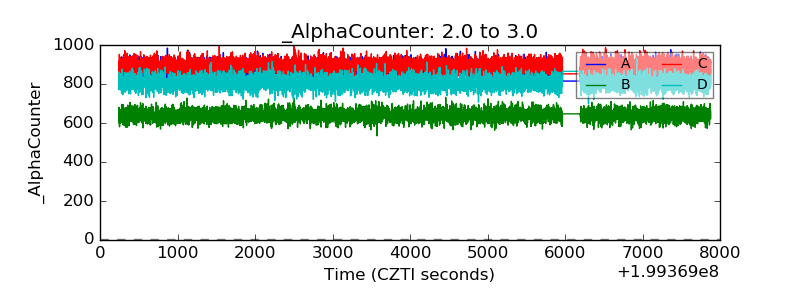

| Alpha Counter |  |
| _CPM_Rate |  |

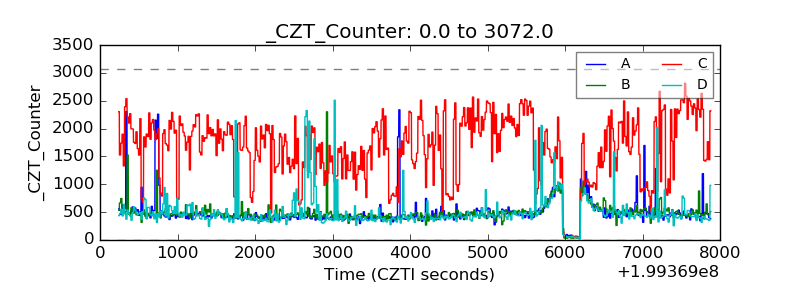

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
