| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_118T01_9000000430_03138cztM0_level2.evt | modeM0/AS1T01_118T01_9000000430_03138cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,124,480 | 90,408,960 |
| Size | 436.9 MB | 86.2 MB |
| Events in quadrant A | 3,108,011 | 568,152 |
| Events in quadrant B | 3,597,371 | 581,224 |
| Events in quadrant C | 3,484,272 | 576,574 |
| Events in quadrant D | 3,230,556 | 545,962 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13713 | 3 |
| B | 0 | 14843 | 2 |
| C | 0 | 14740 | 2 |
| D | 0 | 14443 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6684 | 18 | 0.269300% |
| B | 6684 | 46 | 0.688211% |
| C | 6684 | 66 | 0.987433% |
| D | 6684 | 62 | 0.927588% |

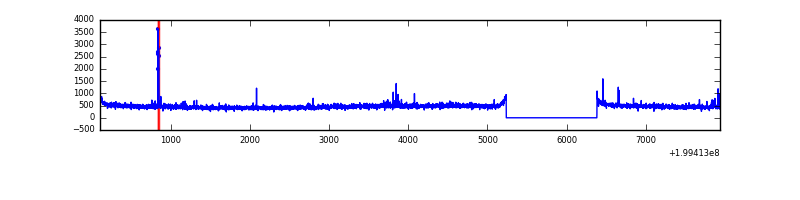

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7829 | 6685 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7829 | 6685 | 21 | 21 | 0.27% | 0.31% |  |
| C | 7829 | 6685 | 31 | 31 | 0.40% | 0.46% |  |
| D | 7829 | 6685 | 48 | 48 | 0.61% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 105074 | 659.7 | 772 | 755 | 158.1 |
| A | 14 | 249 | 22009 | 134.41 | 772 | 755 | 158.1 |
| A | 12 | 194 | 8388 | 48.27 | 772 | 755 | 158.1 |
| B | 15 | 204 | 221596 | 1461.26 | 786 | 767 | 151.1 |
| B | 4 | 81 | 119378 | 784.87 | 786 | 767 | 151.1 |
| B | 2 | 249 | 94061 | 617.34 | 786 | 767 | 151.1 |
| C | 1 | 192 | 130625 | 730.66 | 764 | 770 | 177.7 |
| C | 12 | 4 | 113571 | 634.7 | 764 | 770 | 177.7 |
| C | 6 | 80 | 78220 | 435.79 | 764 | 770 | 177.7 |
| D | 13 | 239 | 122554 | 668.97 | 753 | 733 | 182.1 |
| D | 5 | 233 | 66181 | 359.4 | 753 | 733 | 182.1 |
| D | 13 | 223 | 66010 | 358.46 | 753 | 733 | 182.1 |

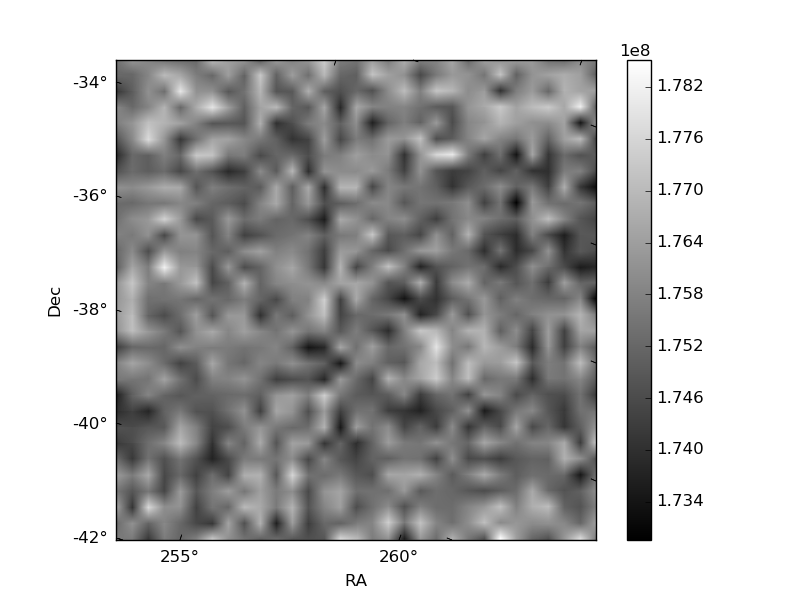

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

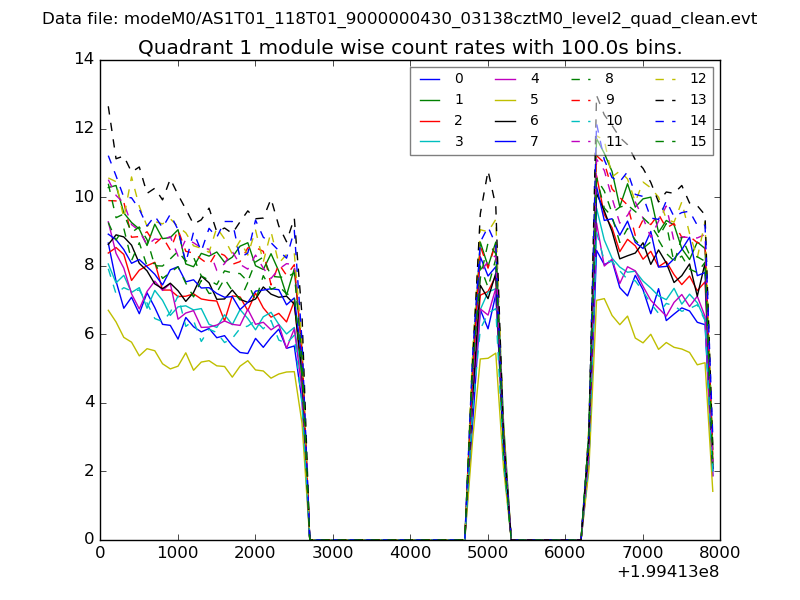

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

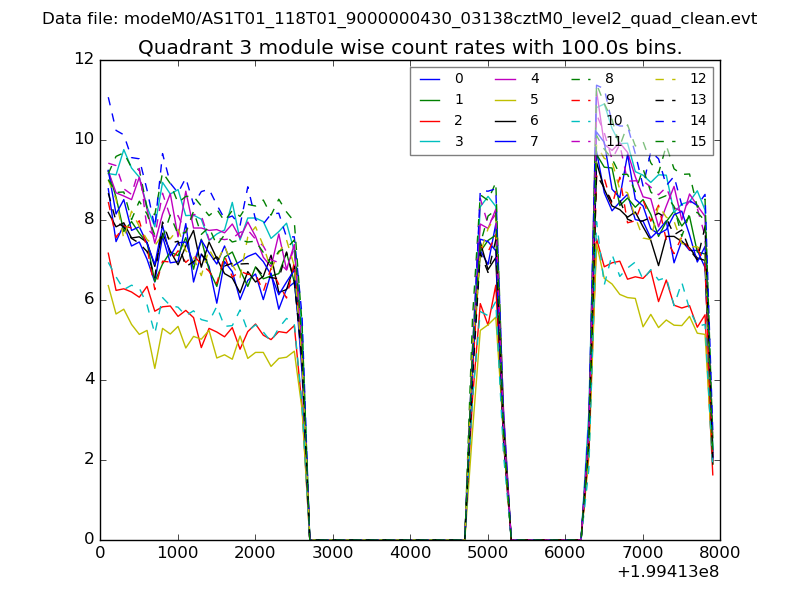

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

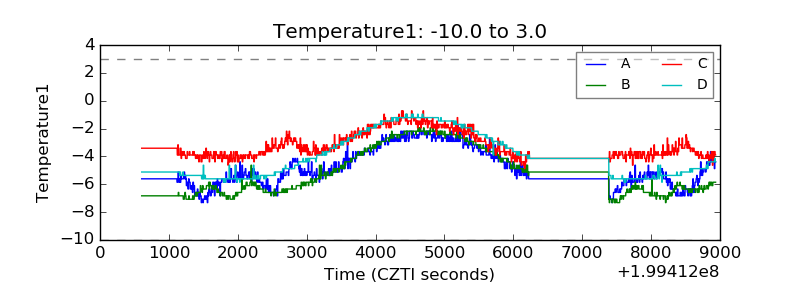

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

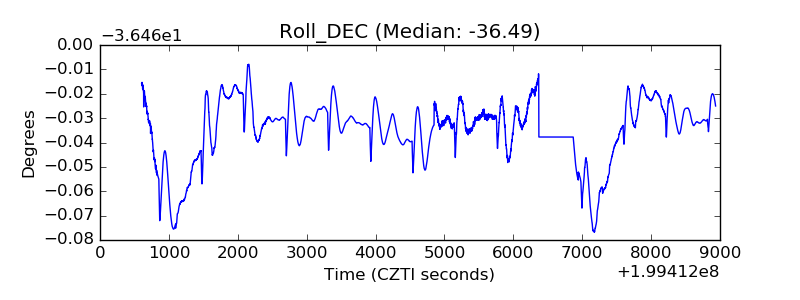

| _Roll_DEC |  |

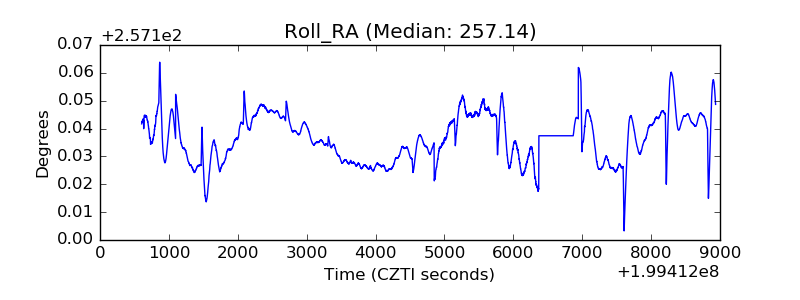

| _Roll_RA |  |

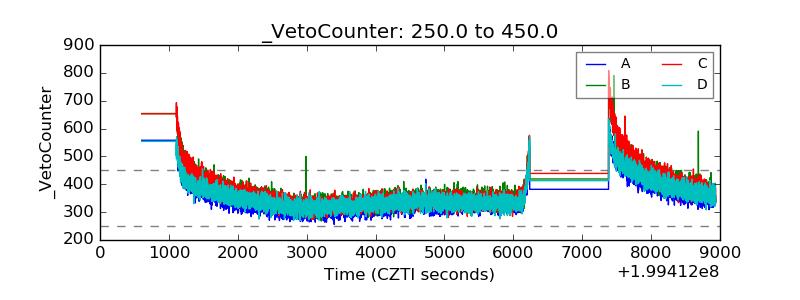

| Veto Counter |  |
