| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_118T01_9000000430_03141cztM0_level2.evt | modeM0/AS1T01_118T01_9000000430_03141cztM0_level2_quad_clean.evt |
| Size (bytes) | 404,205,120 | 64,134,720 |
| Size | 385.5 MB | 61.2 MB |
| Events in quadrant A | 2,813,694 | 391,021 |
| Events in quadrant B | 2,885,557 | 395,283 |
| Events in quadrant C | 3,111,944 | 388,671 |
| Events in quadrant D | 3,044,682 | 370,407 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11933 | 2 |
| B | 0 | 12030 | 1 |
| C | 0 | 12747 | 1 |
| D | 0 | 12817 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5666 | 100 | 1.764914% |
| B | 5666 | 79 | 1.394282% |
| C | 5666 | 91 | 1.606071% |
| D | 5666 | 135 | 2.382633% |

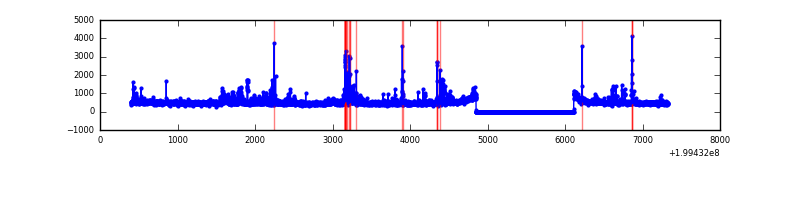

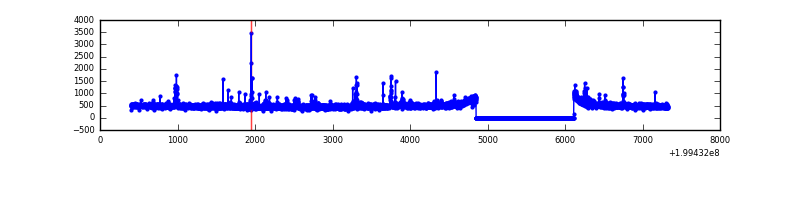

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6926 | 5667 | 7 | 7 | 0.10% | 0.12% |  |
| B | 6926 | 5666 | 2 | 2 | 0.03% | 0.04% |  |
| C | 6926 | 5667 | 25 | 25 | 0.36% | 0.44% |  |
| D | 6926 | 5666 | 63 | 63 | 0.91% | 1.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 31 | 55798 | 386.07 | 702 | 688 | 142.7 |
| A | 12 | 247 | 43071 | 296.91 | 702 | 688 | 142.7 |
| A | 12 | 194 | 7684 | 49.01 | 702 | 688 | 142.7 |
| B | 2 | 249 | 53419 | 390.18 | 706 | 691 | 135.1 |
| B | 4 | 81 | 38830 | 282.22 | 706 | 691 | 135.1 |
| B | 12 | 0 | 36795 | 267.17 | 706 | 691 | 135.1 |
| C | 0 | 219 | 186729 | 1174.4 | 684 | 690 | 158.4 |
| C | 14 | 223 | 122695 | 770.17 | 684 | 690 | 158.4 |
| C | 1 | 16 | 64270 | 401.36 | 684 | 690 | 158.4 |
| D | 13 | 223 | 232687 | 1435.36 | 680 | 660 | 161.7 |
| D | 2 | 136 | 103489 | 636.12 | 680 | 660 | 161.7 |
| D | 5 | 233 | 46170 | 281.53 | 680 | 660 | 161.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

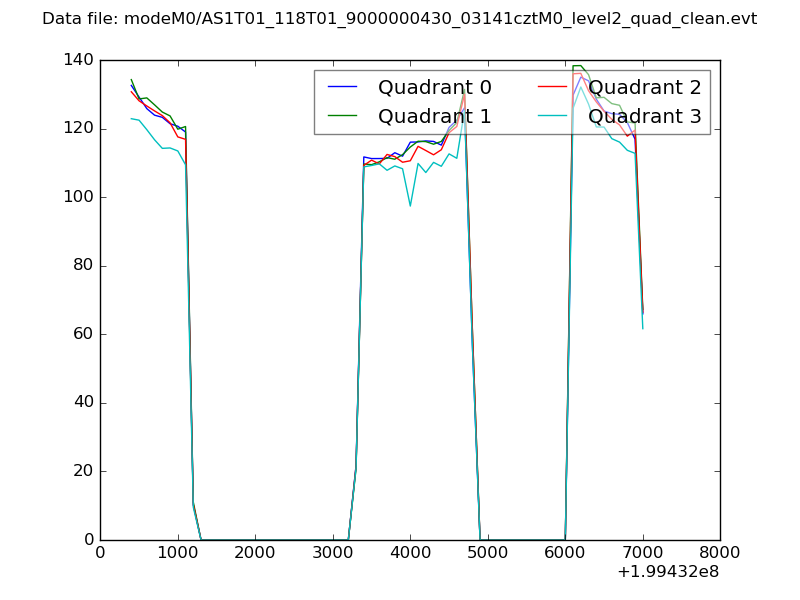

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

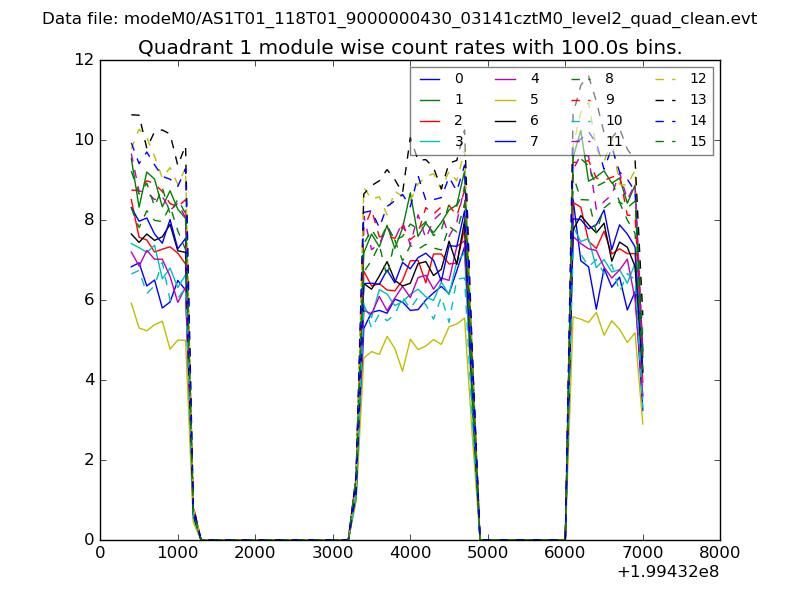

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

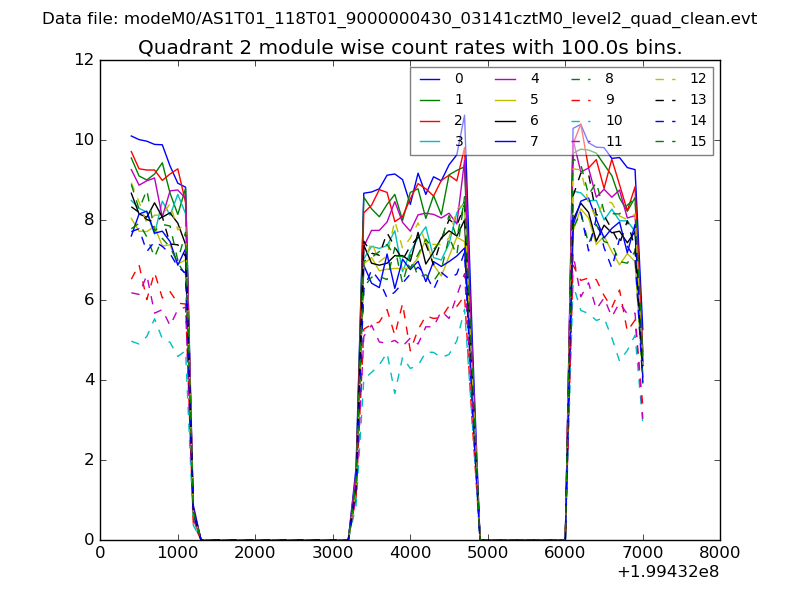

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

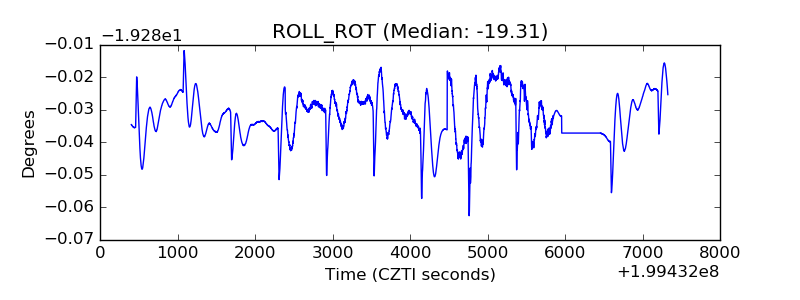

| _ROLL_ROT |  |

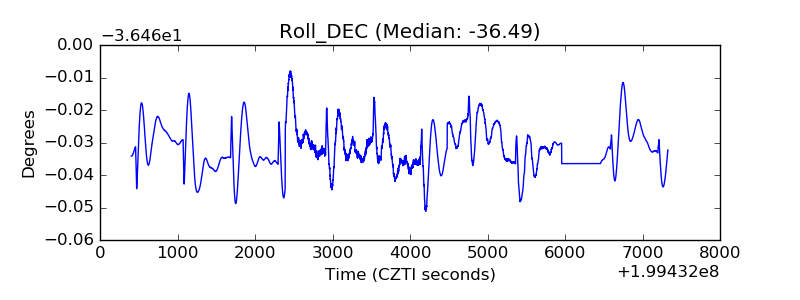

| _Roll_DEC |  |

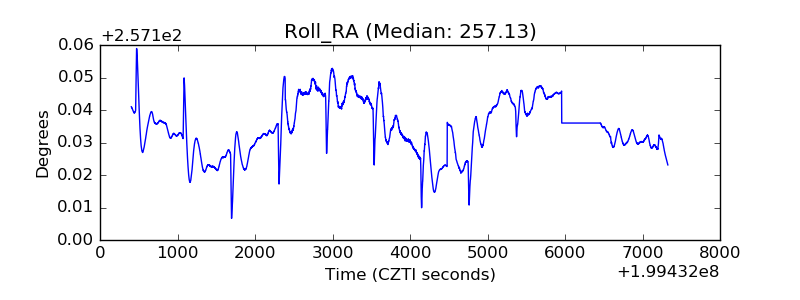

| _Roll_RA |  |
| Veto Counter |  |
