| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_118T01_9000000430_03144cztM0_level2.evt | modeM0/AS1T01_118T01_9000000430_03144cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,806,080 | 66,755,520 |
| Size | 580.6 MB | 63.7 MB |
| Events in quadrant A | 3,546,122 | 385,845 |
| Events in quadrant B | 5,200,501 | 362,701 |
| Events in quadrant C | 5,421,313 | 375,536 |
| Events in quadrant D | 3,758,752 | 372,429 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15857 | 3 |
| B | 0 | 20577 | 2 |
| C | 0 | 21299 | 2 |
| D | 0 | 16654 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7528 | 225 | 2.988842% |
| B | 7528 | 762 | 10.122210% |
| C | 7528 | 548 | 7.279490% |
| D | 7528 | 178 | 2.364506% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7983 | 7528 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7983 | 7529 | 515 | 515 | 6.45% | 6.84% |  |
| C | 7983 | 7529 | 390 | 390 | 4.89% | 5.18% |  |
| D | 7983 | 7529 | 30 | 30 | 0.38% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 31 | 36961 | 194.45 | 897 | 875 | 185.6 |
| A | 14 | 238 | 27693 | 144.51 | 897 | 875 | 185.6 |
| A | 14 | 249 | 10425 | 51.46 | 897 | 875 | 185.6 |
| B | 3 | 0 | 1320017 | 7648.92 | 889 | 866 | 172.5 |
| B | 15 | 201 | 132330 | 762.27 | 889 | 866 | 172.5 |
| B | 4 | 81 | 115978 | 667.46 | 889 | 866 | 172.5 |
| C | 1 | 192 | 949335 | 4725.9 | 857 | 864 | 200.7 |
| C | 14 | 223 | 739849 | 3682.1 | 857 | 864 | 200.7 |
| C | 14 | 234 | 324441 | 1612.27 | 857 | 864 | 200.7 |
| D | 2 | 136 | 147707 | 691.21 | 873 | 848 | 212.5 |
| D | 13 | 223 | 80922 | 376.88 | 873 | 848 | 212.5 |
| D | 5 | 233 | 49445 | 228.73 | 873 | 848 | 212.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

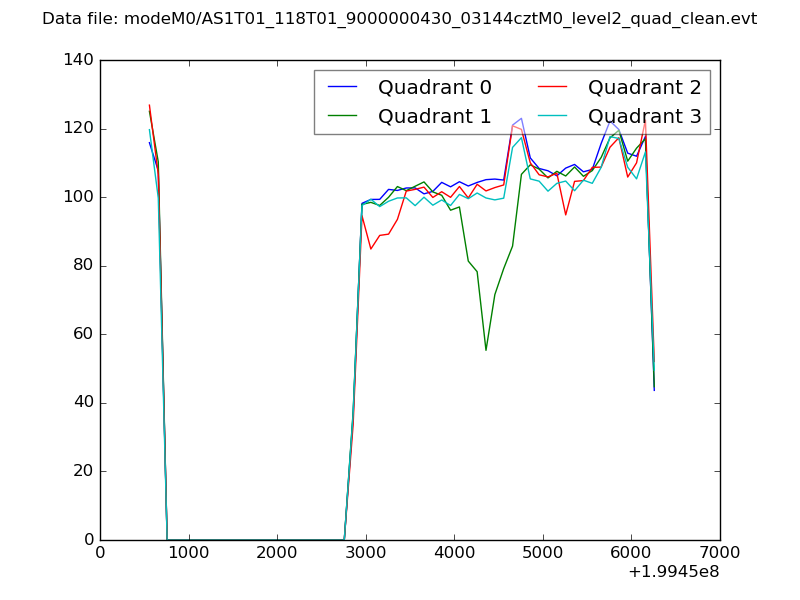

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

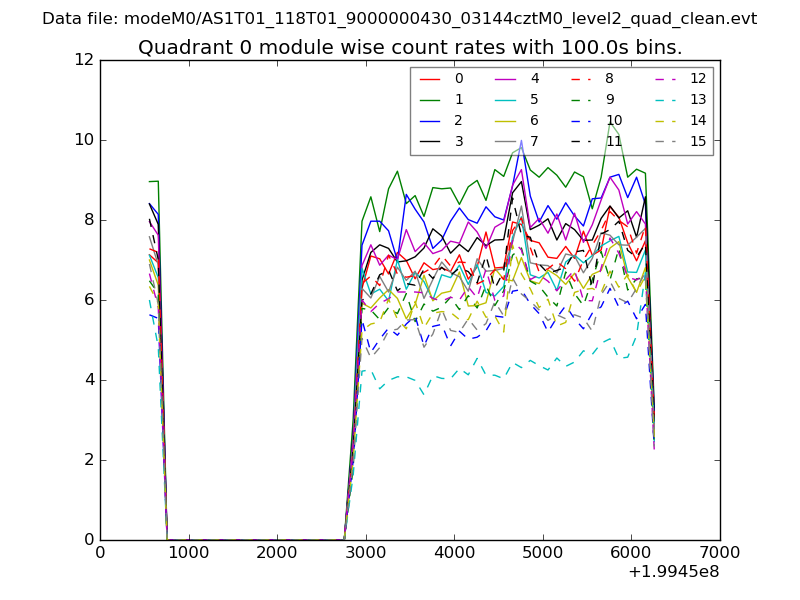

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

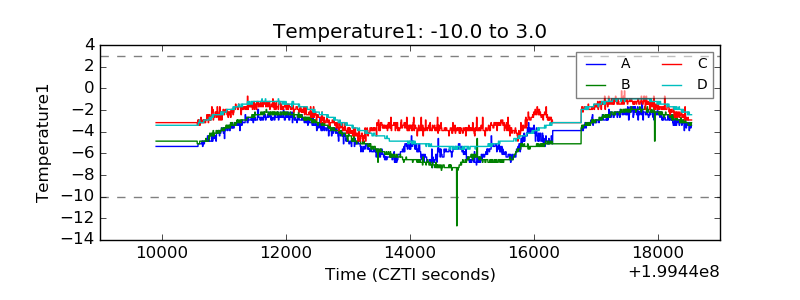

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

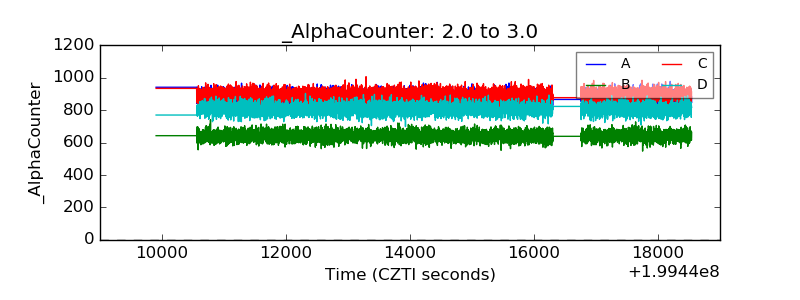

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

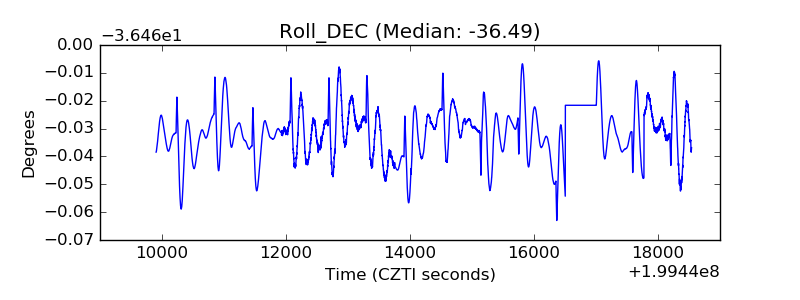

| _Roll_DEC |  |

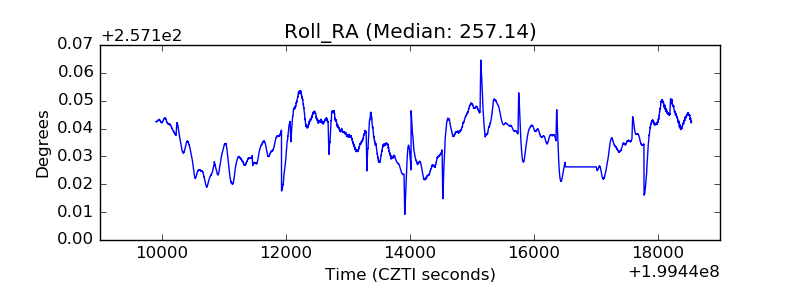

| _Roll_RA |  |
| Veto Counter |  |
