| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_118T01_9000000430_03145cztM0_level2.evt | modeM0/AS1T01_118T01_9000000430_03145cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,060,800 | 69,811,200 |
| Size | 510.3 MB | 66.6 MB |
| Events in quadrant A | 3,487,478 | 401,729 |
| Events in quadrant B | 3,746,297 | 401,784 |
| Events in quadrant C | 4,806,797 | 393,160 |
| Events in quadrant D | 3,645,967 | 386,467 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15761 | 2 |
| B | 0 | 16184 | 1 |
| C | 0 | 19568 | 1 |
| D | 0 | 16487 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7628 | 135 | 1.769795% |
| B | 7628 | 145 | 1.900891% |
| C | 7628 | 289 | 3.788673% |
| D | 7628 | 76 | 0.996329% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7743 | 7630 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7743 | 7630 | 7 | 7 | 0.09% | 0.09% |  |
| C | 7743 | 7630 | 190 | 190 | 2.45% | 2.49% |  |
| D | 7743 | 7630 | 24 | 24 | 0.31% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 12305 | 61.9 | 893 | 872 | 184.7 |
| A | 0 | 226 | 10027 | 49.56 | 893 | 872 | 184.7 |
| A | 14 | 249 | 10000 | 49.42 | 893 | 872 | 184.7 |
| B | 4 | 81 | 94742 | 531.46 | 905 | 881 | 176.6 |
| B | 15 | 85 | 44332 | 246.03 | 905 | 881 | 176.6 |
| B | 2 | 249 | 33688 | 185.76 | 905 | 881 | 176.6 |
| C | 14 | 223 | 894562 | 4438.46 | 860 | 863 | 201.4 |
| C | 1 | 192 | 317623 | 1573.15 | 860 | 863 | 201.4 |
| C | 14 | 234 | 192284 | 950.67 | 860 | 863 | 201.4 |
| D | 5 | 233 | 80890 | 379.66 | 865 | 840 | 210.8 |
| D | 13 | 223 | 79659 | 373.82 | 865 | 840 | 210.8 |
| D | 2 | 136 | 58129 | 271.71 | 865 | 840 | 210.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

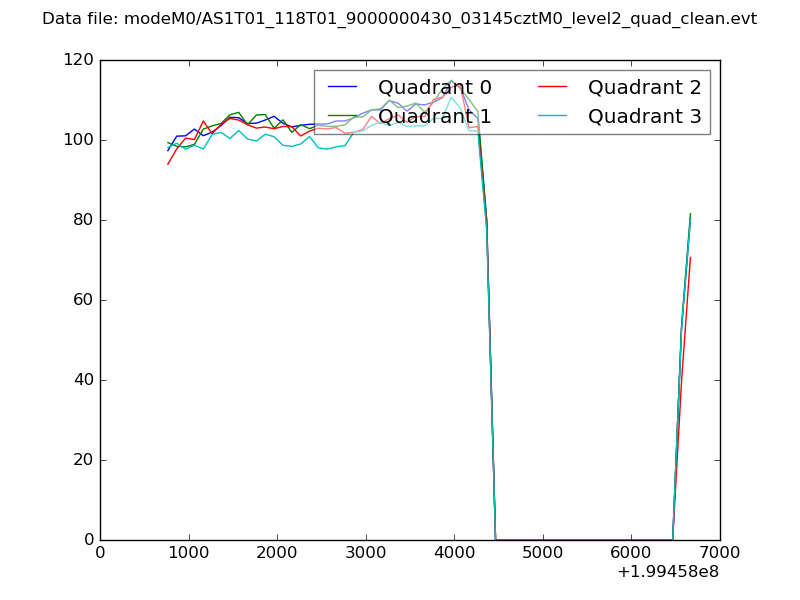

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

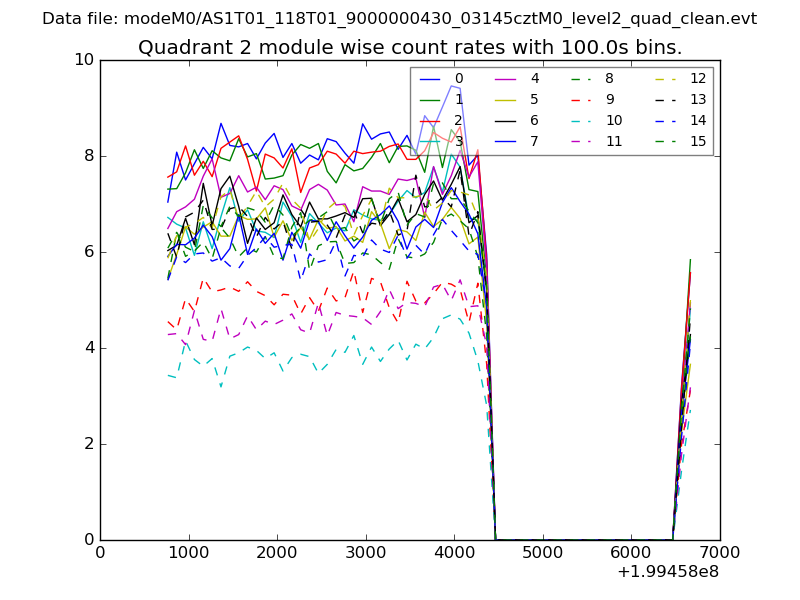

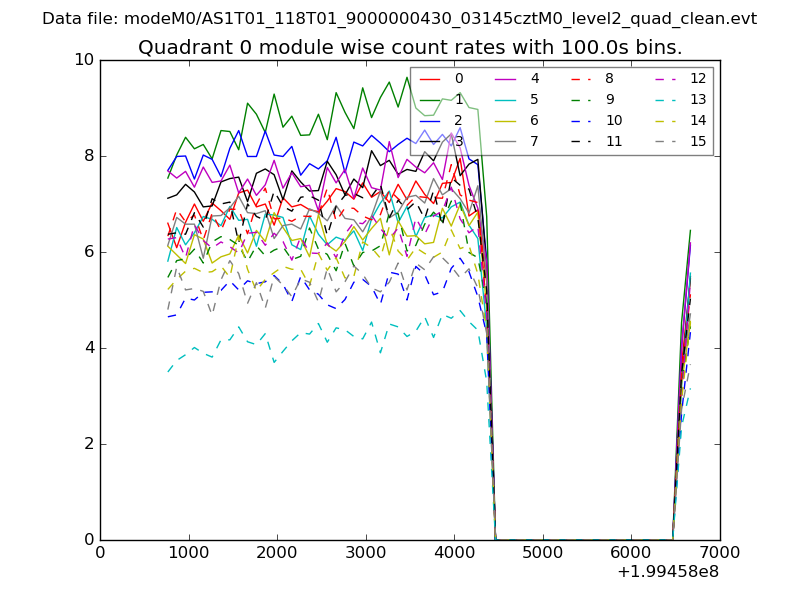

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

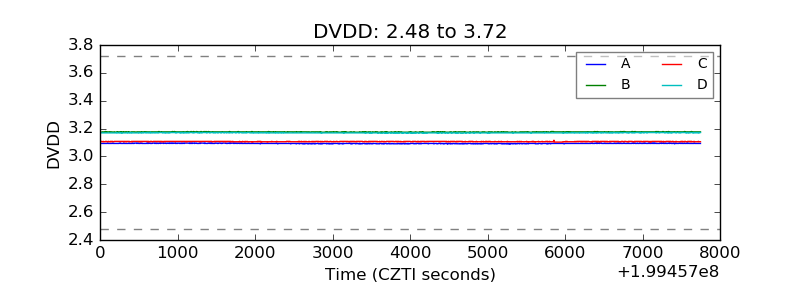

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

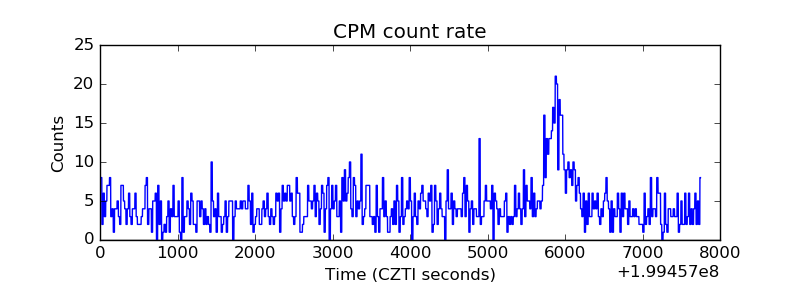

| _CPM_Rate |  |

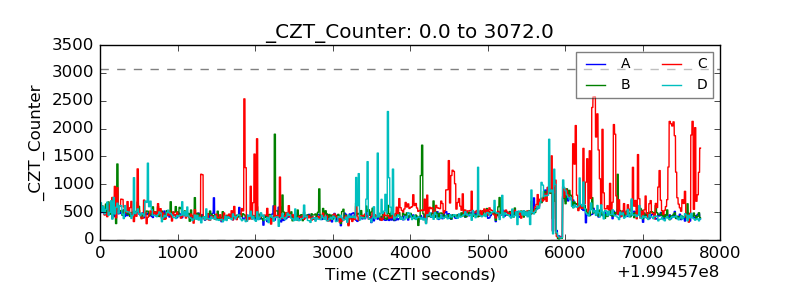

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

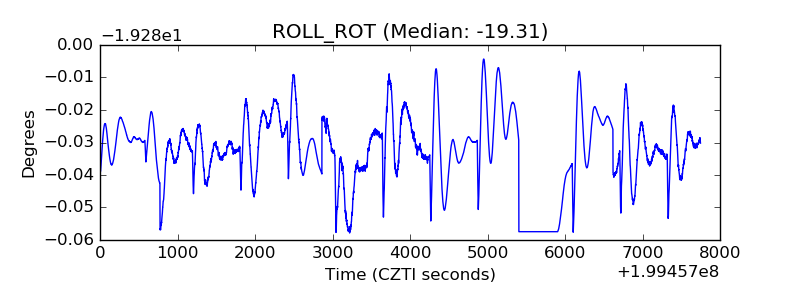

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
