| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_118T01_9000000430_03149cztM0_level2.evt | modeM0/AS1T01_118T01_9000000430_03149cztM0_level2_quad_clean.evt |
| Size (bytes) | 371,514,240 | 44,596,800 |
| Size | 354.3 MB | 42.5 MB |
| Events in quadrant A | 1,912,031 | 280,463 |
| Events in quadrant B | 2,109,438 | 280,952 |
| Events in quadrant C | 2,313,835 | 273,234 |
| Events in quadrant D | 4,633,092 | 222,654 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8806 | 1 |
| B | 0 | 9234 | 1 |
| C | 0 | 9905 | 1 |
| D | 0 | 16683 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4150 | 158 | 3.807229% |
| B | 4150 | 193 | 4.650602% |
| C | 4150 | 201 | 4.843373% |
| D | 4150 | 937 | 22.578313% |

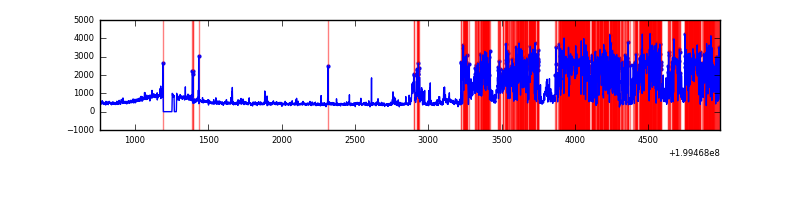

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4225 | 4152 | 3 | 3 | 0.07% | 0.07% |  |
| B | 4225 | 4152 | 8 | 8 | 0.19% | 0.19% |  |
| C | 4225 | 4152 | 105 | 105 | 2.49% | 2.53% |  |
| D | 4224 | 4151 | 861 | 861 | 20.38% | 20.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 247 | 20749 | 200.76 | 481 | 471 | 101.0 |
| A | 14 | 249 | 14867 | 142.52 | 481 | 471 | 101.0 |
| A | 0 | 128 | 14835 | 142.21 | 481 | 471 | 101.0 |
| B | 4 | 81 | 173994 | 1799.47 | 488 | 476 | 96.4 |
| B | 2 | 249 | 14930 | 149.9 | 488 | 476 | 96.4 |
| B | 5 | 184 | 11077 | 109.94 | 488 | 476 | 96.4 |
| C | 14 | 234 | 206202 | 1866.21 | 462 | 463 | 110.2 |
| C | 14 | 223 | 178248 | 1612.65 | 462 | 463 | 110.2 |
| C | 1 | 192 | 52232 | 469.58 | 462 | 463 | 110.2 |
| D | 12 | 233 | 2747931 | 25893.43 | 429 | 414 | 106.1 |
| D | 2 | 136 | 79947 | 749.54 | 429 | 414 | 106.1 |
| D | 13 | 120 | 49272 | 460.45 | 429 | 414 | 106.1 |

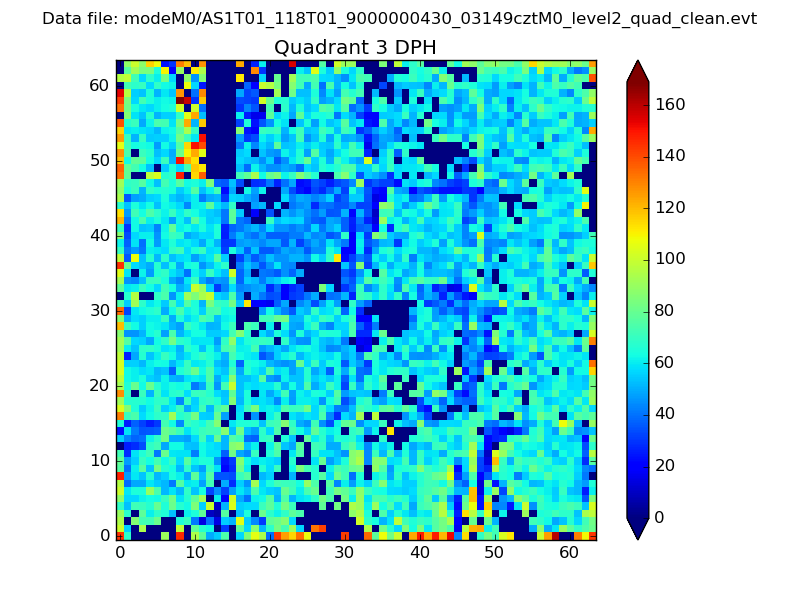

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

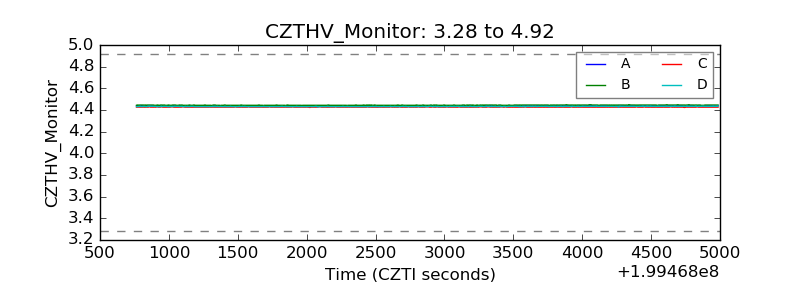

| CZT HV Monitor |  |
| D_VDD |  |

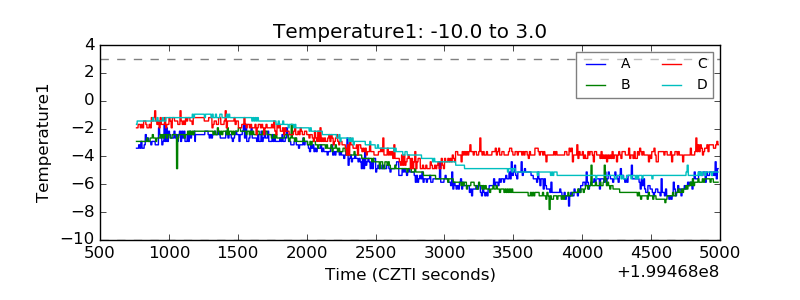

| Temperature 1 |  |

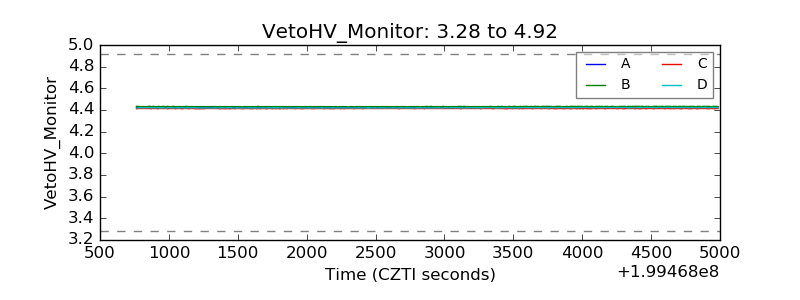

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

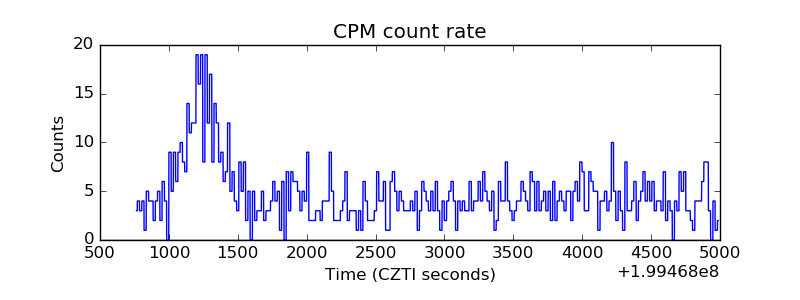

| _CPM_Rate |  |

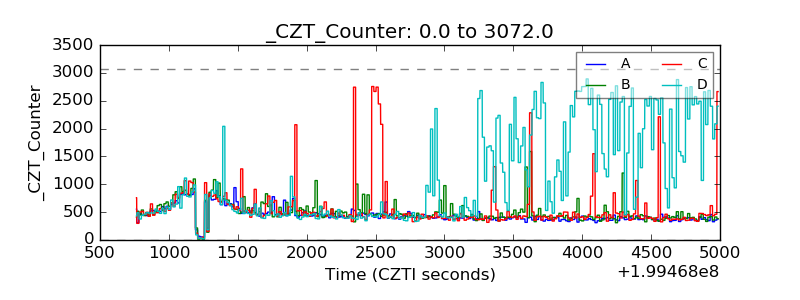

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
