| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T02_9000000434_03157cztM0_level2.evt | modeM0/AS1G05_218T02_9000000434_03157cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,741,760 | 95,584,320 |
| Size | 414.6 MB | 91.2 MB |
| Events in quadrant A | 2,974,861 | 624,970 |
| Events in quadrant B | 2,992,168 | 637,208 |
| Events in quadrant C | 3,783,511 | 602,669 |
| Events in quadrant D | 2,994,048 | 597,045 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13107 | 2 |
| B | 0 | 13118 | 1 |
| C | 0 | 15638 | 1 |
| D | 0 | 13458 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6204 | 115 | 1.853643% |
| B | 6204 | 105 | 1.692456% |
| C | 6204 | 334 | 5.383623% |
| D | 6204 | 120 | 1.934236% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7289 | 6204 | 21 | 21 | 0.29% | 0.34% |  |
| B | 7289 | 6205 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7289 | 6205 | 221 | 221 | 3.03% | 3.56% |  |
| D | 7289 | 6205 | 46 | 46 | 0.63% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 199 | 117928 | 803.44 | 713 | 697 | 145.9 |
| A | 0 | 149 | 30845 | 206.62 | 713 | 697 | 145.9 |
| A | 14 | 249 | 28828 | 192.8 | 713 | 697 | 145.9 |
| B | 15 | 85 | 69070 | 496.32 | 724 | 708 | 137.7 |
| B | 5 | 175 | 42369 | 302.47 | 724 | 708 | 137.7 |
| B | 0 | 187 | 28963 | 205.14 | 724 | 708 | 137.7 |
| C | 14 | 223 | 989775 | 6343.32 | 674 | 675 | 155.9 |
| C | 14 | 234 | 65330 | 414.65 | 674 | 675 | 155.9 |
| C | 6 | 80 | 61054 | 387.22 | 674 | 675 | 155.9 |
| D | 2 | 136 | 159778 | 969.18 | 686 | 663 | 164.2 |
| D | 5 | 233 | 66893 | 403.41 | 686 | 663 | 164.2 |
| D | 13 | 223 | 35287 | 210.9 | 686 | 663 | 164.2 |

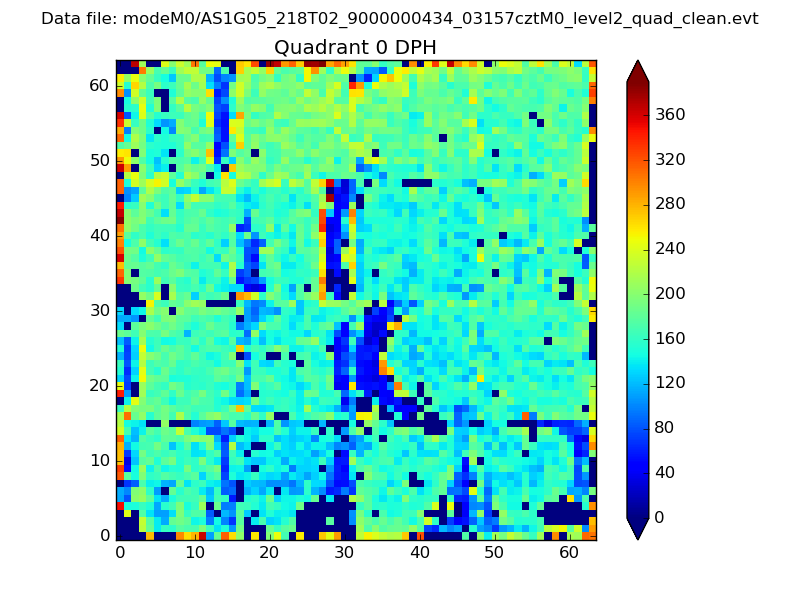

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

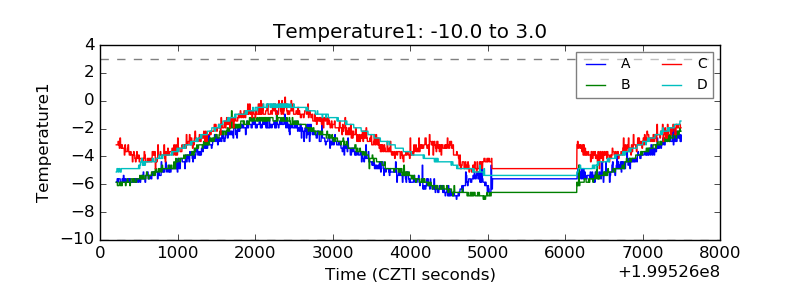

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

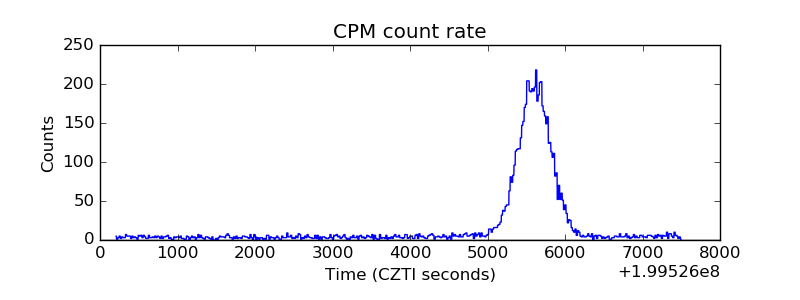

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

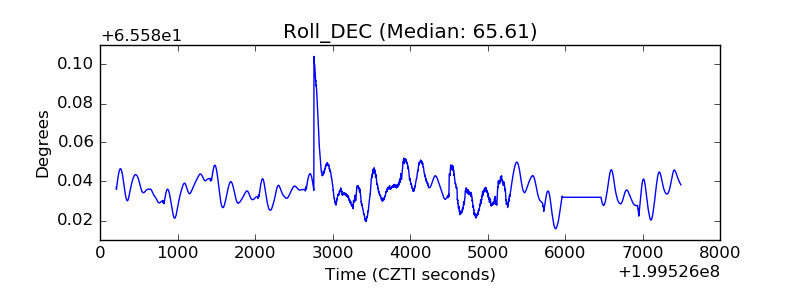

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
