| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T02_9000000434_03168cztM0_level2.evt | modeM0/AS1G05_218T02_9000000434_03168cztM0_level2_quad_clean.evt |
| Size (bytes) | 384,333,120 | 73,235,520 |
| Size | 366.5 MB | 69.8 MB |
| Events in quadrant A | 2,695,801 | 452,864 |
| Events in quadrant B | 2,919,263 | 462,505 |
| Events in quadrant C | 2,692,803 | 448,664 |
| Events in quadrant D | 2,918,709 | 429,975 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12353 | 2 |
| B | 0 | 12812 | 1 |
| C | 0 | 12371 | 1 |
| D | 0 | 13116 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6056 | 7 | 0.115588% |
| B | 6056 | 28 | 0.462351% |
| C | 6056 | 7 | 0.115588% |
| D | 6056 | 33 | 0.544914% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7326 | 6057 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7326 | 6057 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7326 | 6057 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7326 | 6057 | 24 | 24 | 0.33% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 247 | 27174 | 190.44 | 685 | 671 | 139.2 |
| A | 8 | 15 | 9880 | 66.17 | 685 | 671 | 139.2 |
| A | 12 | 194 | 7467 | 48.83 | 685 | 671 | 139.2 |
| B | 4 | 80 | 53225 | 400.91 | 699 | 685 | 131.1 |
| B | 0 | 219 | 32787 | 244.96 | 699 | 685 | 131.1 |
| B | 15 | 85 | 27136 | 201.84 | 699 | 685 | 131.1 |
| C | 14 | 223 | 26672 | 169.9 | 662 | 663 | 153.1 |
| C | 6 | 80 | 16327 | 102.32 | 662 | 663 | 153.1 |
| C | 15 | 208 | 12685 | 78.53 | 662 | 663 | 153.1 |
| D | 5 | 233 | 102704 | 644.41 | 654 | 634 | 158.4 |
| D | 2 | 136 | 94060 | 589.83 | 654 | 634 | 158.4 |
| D | 13 | 120 | 69127 | 432.42 | 654 | 634 | 158.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

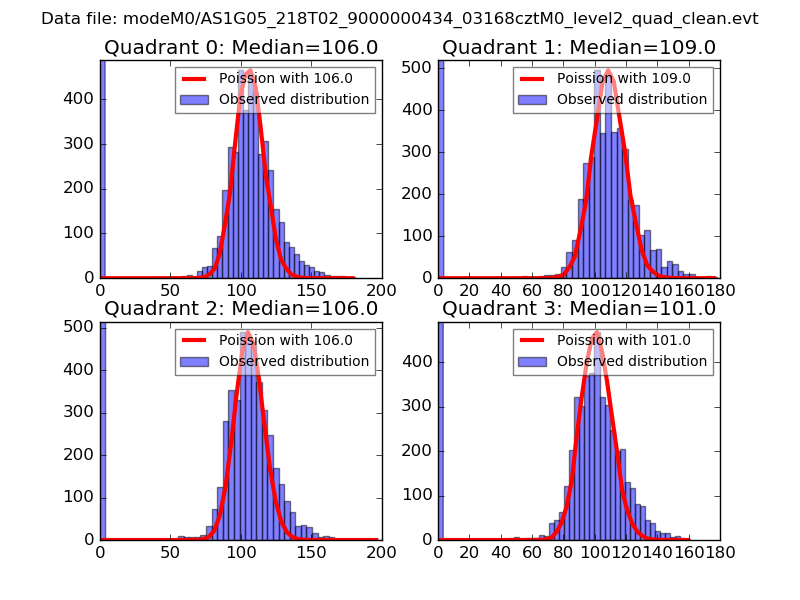

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

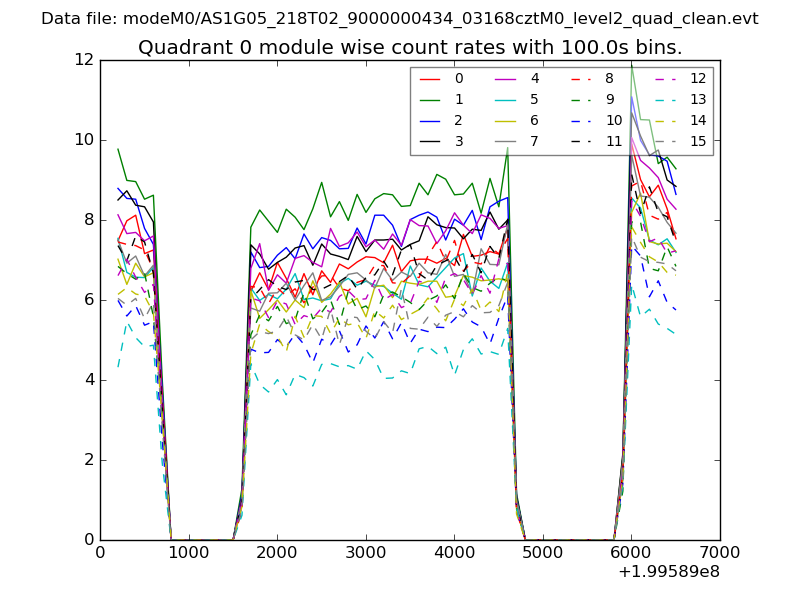

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

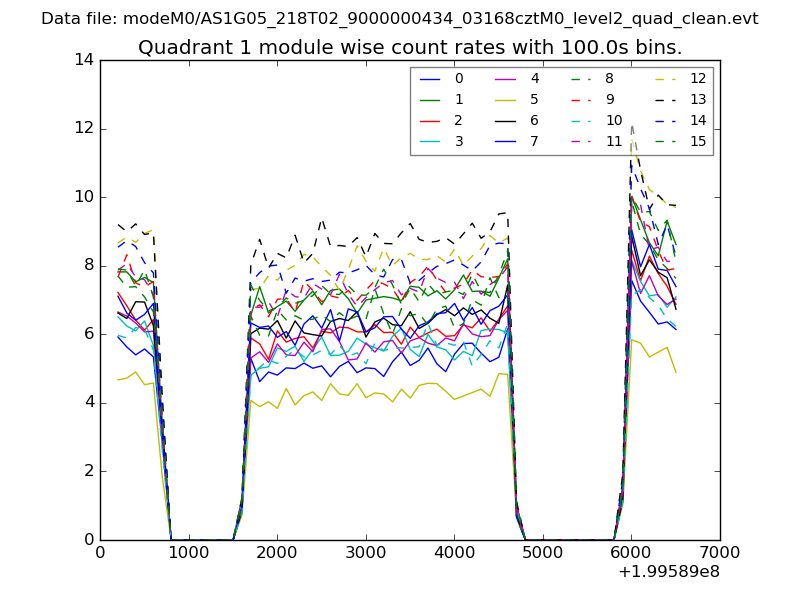

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

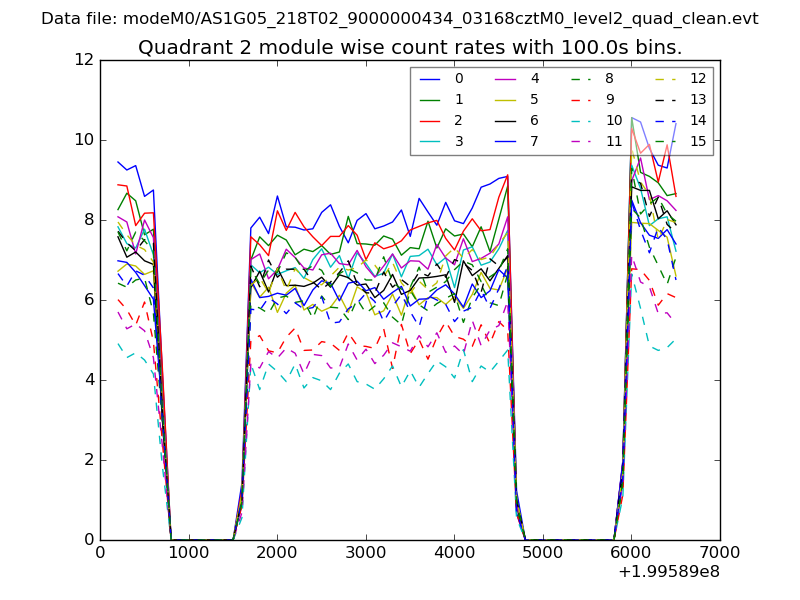

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

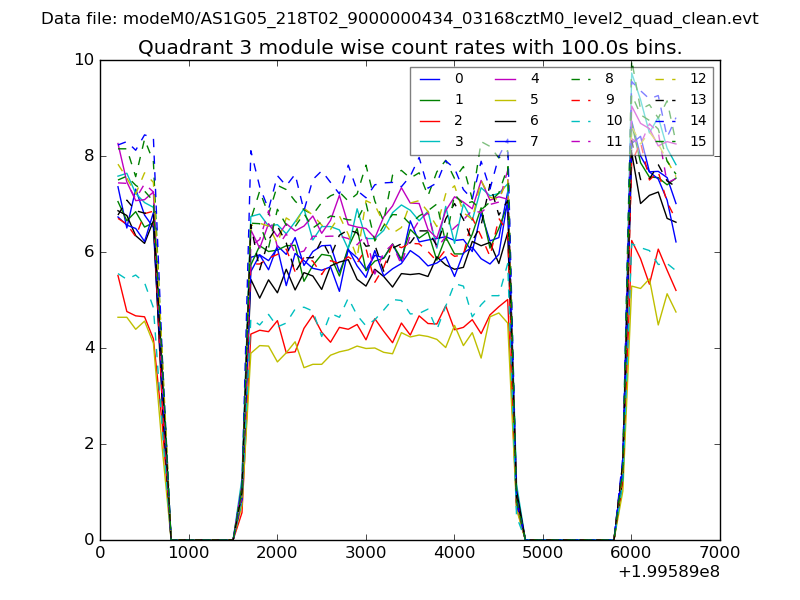

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

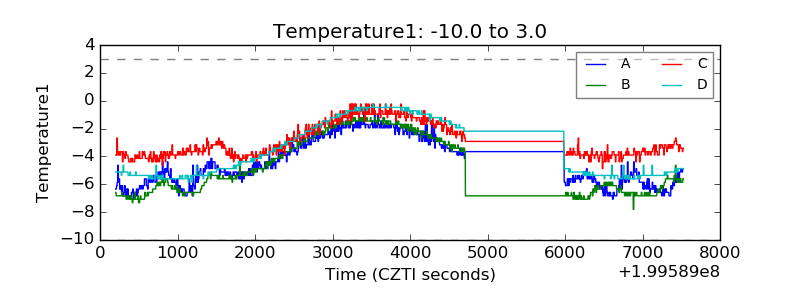

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

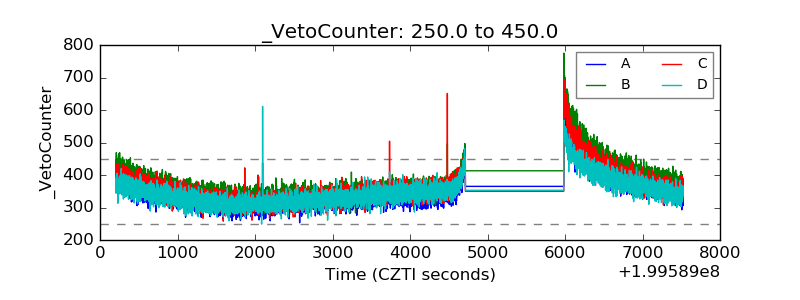

| Veto Counter |  |
