| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_127T01_9000000436_03182cztM0_level2.evt | modeM0/AS1G05_127T01_9000000436_03182cztM0_level2_quad_clean.evt |
| Size (bytes) | 812,448,000 | 80,899,200 |
| Size | 774.8 MB | 77.2 MB |
| Events in quadrant A | 2,966,010 | 580,118 |
| Events in quadrant B | 3,295,663 | 589,750 |
| Events in quadrant C | 14,791,376 | 280,156 |
| Events in quadrant D | 3,117,707 | 550,424 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13261 | 3 |
| B | 0 | 14156 | 2 |
| C | 0 | 48176 | 2 |
| D | 0 | 13884 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6416 | 27 | 0.420823% |
| B | 6416 | 54 | 0.841646% |
| C | 6416 | 5236 | 81.608479% |
| D | 6416 | 30 | 0.467581% |

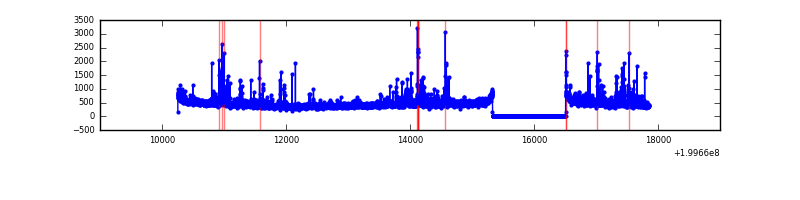

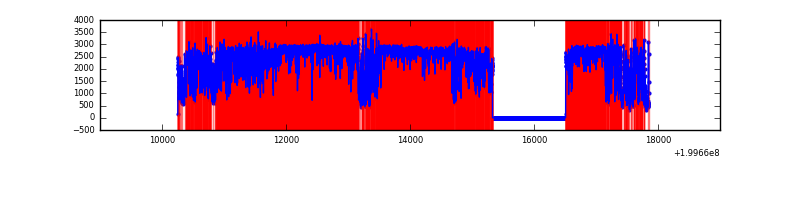

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7596 | 6417 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7596 | 6417 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7595 | 6415 | 4813 | 4813 | 63.37% | 75.03% |  |
| D | 7596 | 6417 | 14 | 14 | 0.18% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 21705 | 135.17 | 760 | 745 | 155.1 |
| A | 12 | 194 | 7997 | 46.77 | 760 | 745 | 155.1 |
| A | 0 | 226 | 7729 | 45.04 | 760 | 745 | 155.1 |
| B | 4 | 80 | 91747 | 613.47 | 778 | 762 | 148.3 |
| B | 4 | 81 | 81196 | 542.33 | 778 | 762 | 148.3 |
| B | 2 | 249 | 47424 | 314.62 | 778 | 762 | 148.3 |
| C | 12 | 206 | 13166946 | 163480.91 | 345 | 348 | 80.5 |
| C | 1 | 192 | 202709 | 2512.58 | 345 | 348 | 80.5 |
| C | 6 | 80 | 49650 | 612.15 | 345 | 348 | 80.5 |
| D | 12 | 233 | 98133 | 553.86 | 728 | 710 | 175.9 |
| D | 2 | 136 | 70548 | 397.04 | 728 | 710 | 175.9 |
| D | 13 | 223 | 65123 | 366.19 | 728 | 710 | 175.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

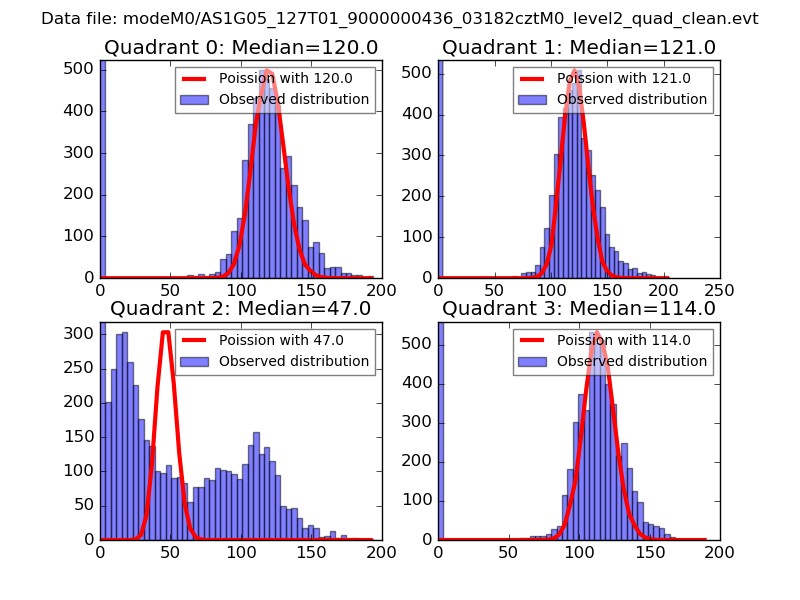

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

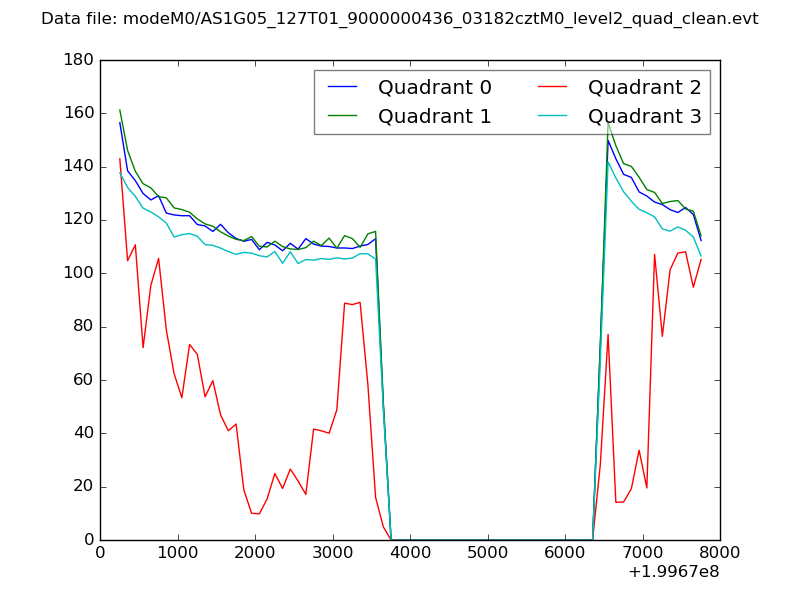

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

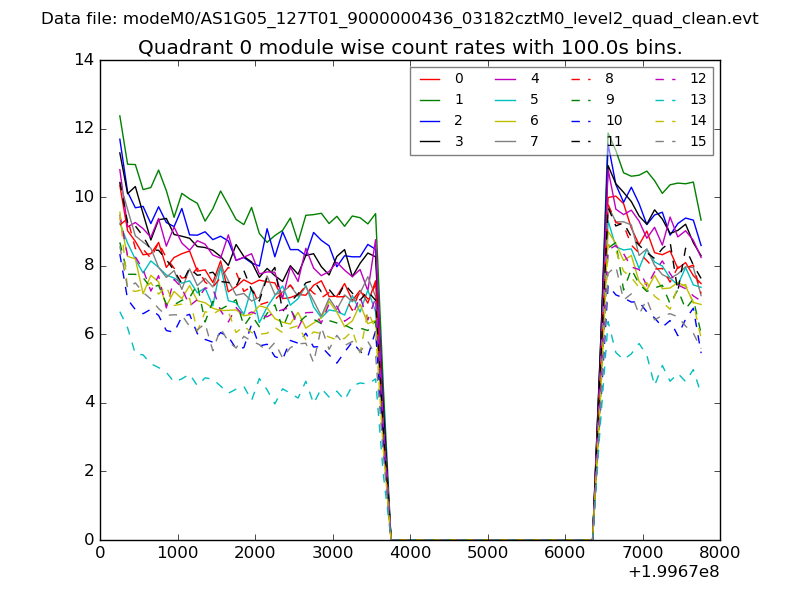

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
