| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_127T01_9000000436_03192cztM0_level2.evt | modeM0/AS1G05_127T01_9000000436_03192cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,100,980,800 | 144,794,880 |
| Size | 1.0 GB | 138.1 MB |
| Events in quadrant A | 6,175,910 | 899,701 |
| Events in quadrant B | 6,655,408 | 884,381 |
| Events in quadrant C | 13,180,823 | 845,956 |
| Events in quadrant D | 6,456,255 | 858,909 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 264 | 0 |
| B | 0 | 264 | 0 |
| C | 0 | 264 | 0 |
| D | 0 | 264 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27262 | 4 |
| B | 0 | 28392 | 3 |
| C | 0 | 48319 | 3 |
| D | 0 | 28396 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12968 | 168 | 1.295497% |
| B | 12968 | 281 | 2.166872% |
| C | 12968 | 1274 | 9.824183% |
| D | 12968 | 216 | 1.665638% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14493 | 12970 | 43 | 43 | 0.30% | 0.33% |  |
| B | 14493 | 12969 | 115 | 115 | 0.79% | 0.89% |  |
| C | 14492 | 12968 | 1043 | 1043 | 7.20% | 8.04% |  |
| D | 14492 | 12968 | 113 | 113 | 0.78% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 233423 | 753.53 | 1513 | 1483 | 307.8 |
| A | 0 | 226 | 40719 | 127.47 | 1513 | 1483 | 307.8 |
| A | 0 | 199 | 29068 | 89.62 | 1513 | 1483 | 307.8 |
| B | 4 | 80 | 567472 | 1931.61 | 1527 | 1490 | 293.0 |
| B | 0 | 244 | 36552 | 119.66 | 1527 | 1490 | 293.0 |
| B | 4 | 81 | 31133 | 101.17 | 1527 | 1490 | 293.0 |
| C | 12 | 206 | 6663497 | 20178.53 | 1421 | 1436 | 330.2 |
| C | 1 | 192 | 487752 | 1472.99 | 1421 | 1436 | 330.2 |
| C | 14 | 223 | 267677 | 806.41 | 1421 | 1436 | 330.2 |
| D | 13 | 223 | 226841 | 640.92 | 1460 | 1418 | 351.7 |
| D | 12 | 233 | 178779 | 504.27 | 1460 | 1418 | 351.7 |
| D | 5 | 233 | 141824 | 399.2 | 1460 | 1418 | 351.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

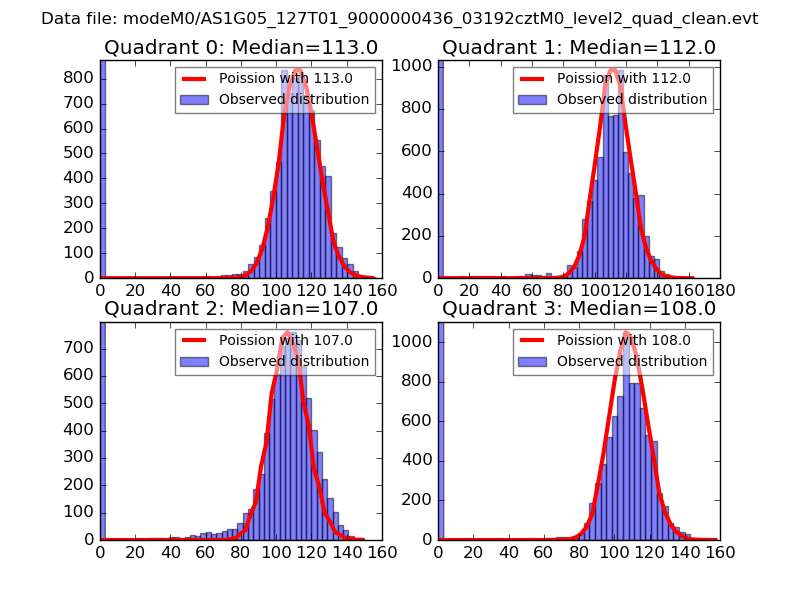

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

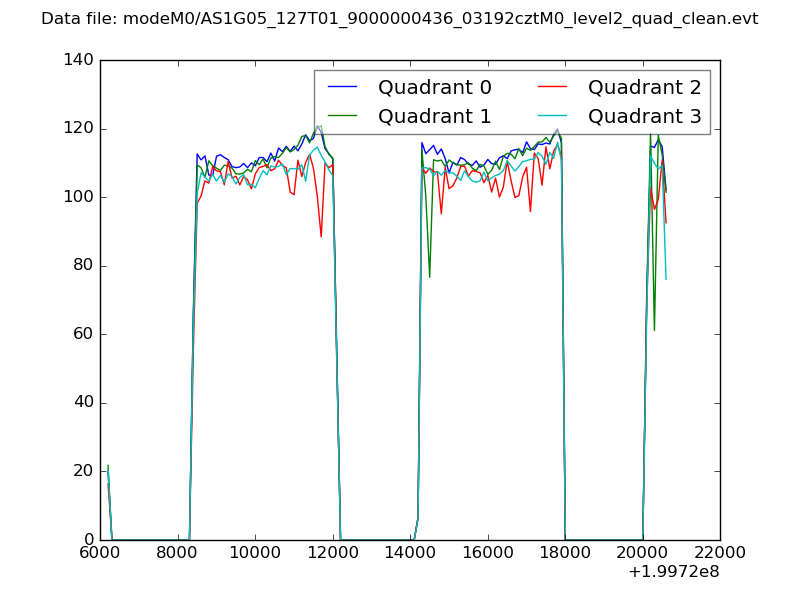

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

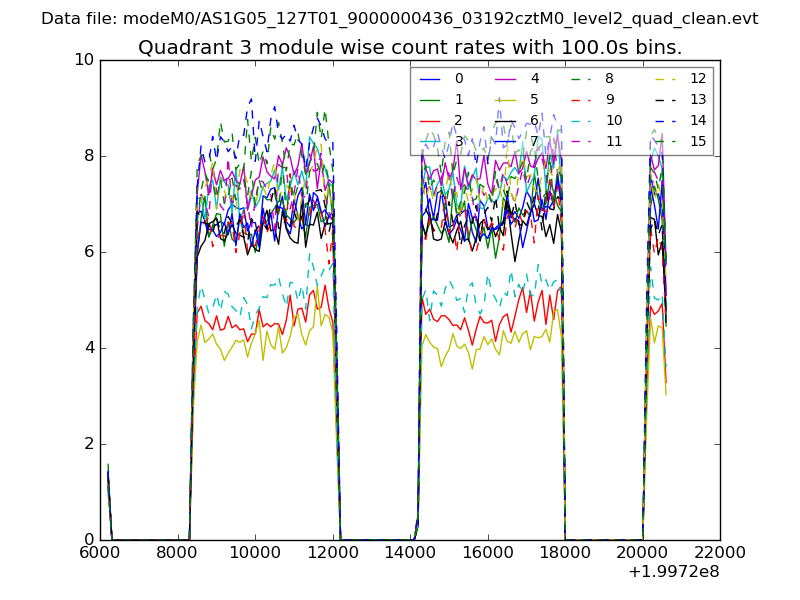

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

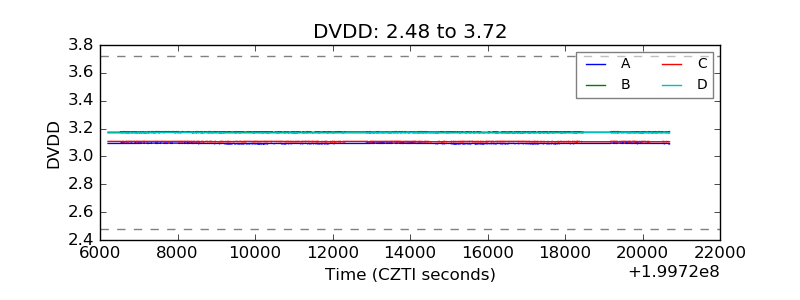

| D_VDD |  |

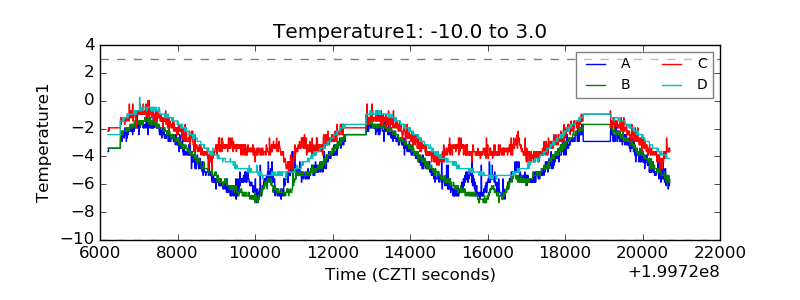

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

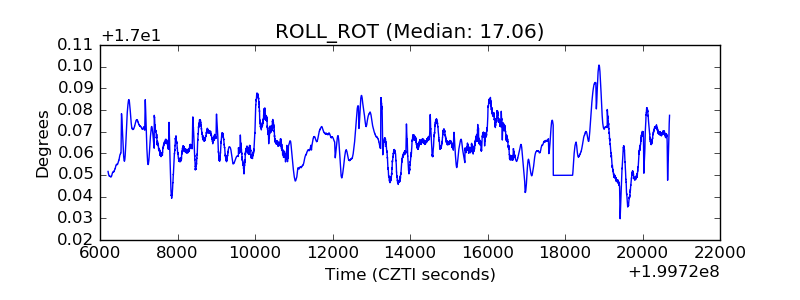

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
