| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_127T01_9000000436_03193cztM0_level2.evt | modeM0/AS1G05_127T01_9000000436_03193cztM0_level2_quad_clean.evt |
| Size (bytes) | 741,813,120 | 80,847,360 |
| Size | 707.4 MB | 77.1 MB |
| Events in quadrant A | 3,339,937 | 520,169 |
| Events in quadrant B | 3,716,629 | 512,781 |
| Events in quadrant C | 11,065,529 | 421,362 |
| Events in quadrant D | 3,859,982 | 495,287 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14760 | 3 |
| B | 0 | 15914 | 2 |
| C | 0 | 37881 | 2 |
| D | 0 | 16469 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7145 | 65 | 0.909727% |
| B | 7145 | 152 | 2.127362% |
| C | 7145 | 2692 | 37.676697% |
| D | 7145 | 184 | 2.575227% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8705 | 7147 | 7 | 7 | 0.08% | 0.10% |  |
| B | 8705 | 7146 | 57 | 57 | 0.65% | 0.80% |  |
| C | 8705 | 7146 | 2512 | 2512 | 28.86% | 35.15% |  |
| D | 8705 | 7146 | 125 | 125 | 1.44% | 1.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 52067 | 296.57 | 843 | 826 | 172.8 |
| A | 0 | 226 | 14918 | 81.56 | 843 | 826 | 172.8 |
| A | 0 | 199 | 14144 | 77.08 | 843 | 826 | 172.8 |
| B | 4 | 80 | 298206 | 1813.74 | 849 | 827 | 164.0 |
| B | 0 | 244 | 36214 | 215.83 | 849 | 827 | 164.0 |
| B | 15 | 54 | 24203 | 142.57 | 849 | 827 | 164.0 |
| C | 12 | 206 | 8108315 | 51817.86 | 673 | 681 | 156.5 |
| C | 1 | 192 | 271142 | 1728.58 | 673 | 681 | 156.5 |
| C | 6 | 80 | 42368 | 266.43 | 673 | 681 | 156.5 |
| D | 13 | 223 | 278059 | 1410.67 | 811 | 791 | 196.6 |
| D | 3 | 247 | 124770 | 630.77 | 811 | 791 | 196.6 |
| D | 12 | 233 | 116278 | 587.57 | 811 | 791 | 196.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

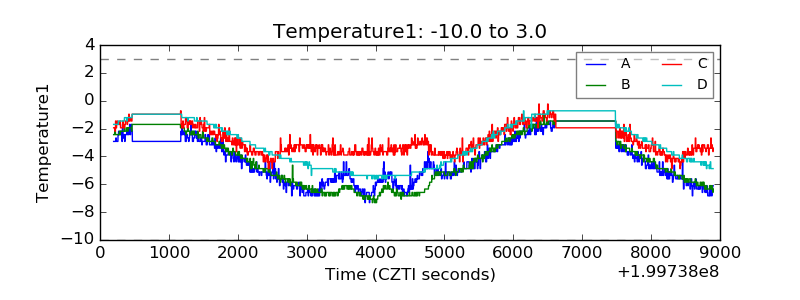

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

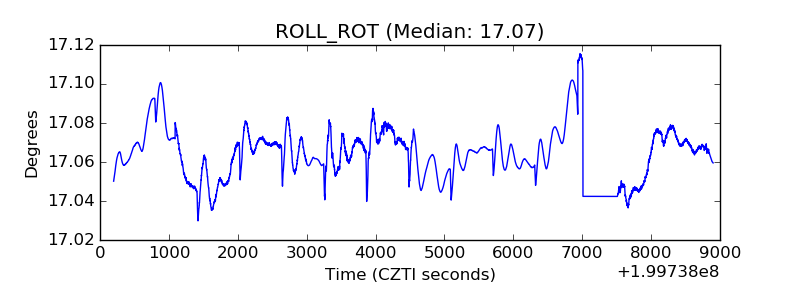

| _ROLL_ROT |  |

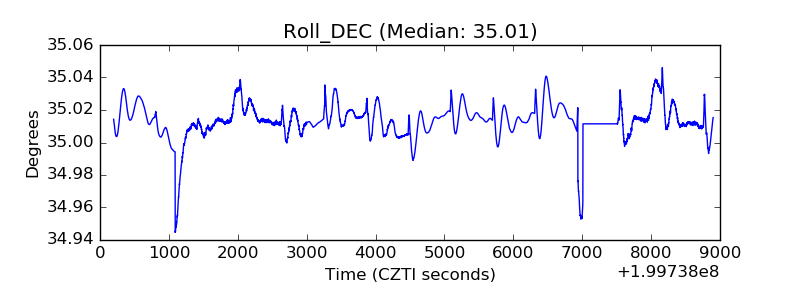

| _Roll_DEC |  |

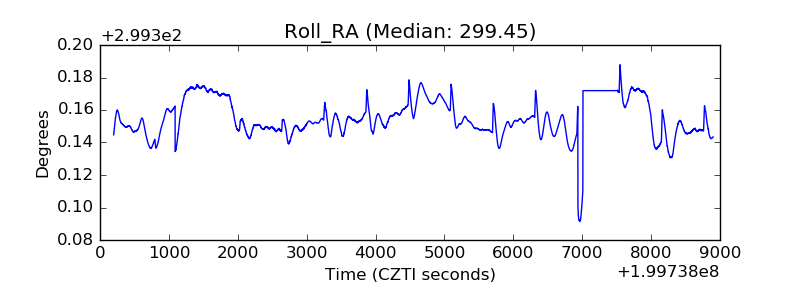

| _Roll_RA |  |

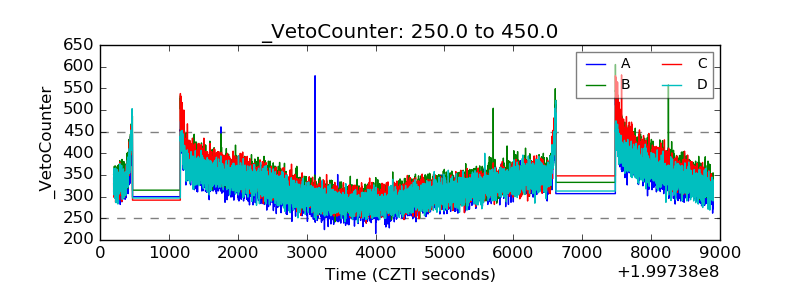

| Veto Counter |  |
