| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_221T01_9000000438_03215cztM0_level2.evt | modeM0/AS1G05_221T01_9000000438_03215cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,805,760 | 61,548,480 |
| Size | 491.0 MB | 58.7 MB |
| Events in quadrant A | 2,830,371 | 360,825 |
| Events in quadrant B | 3,943,250 | 358,528 |
| Events in quadrant C | 5,315,330 | 358,025 |
| Events in quadrant D | 3,079,943 | 352,040 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12814 | 2 |
| B | 0 | 15675 | 1 |
| C | 0 | 20165 | 2 |
| D | 0 | 13648 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6264 | 104 | 1.660281% |
| B | 6264 | 143 | 2.282886% |
| C | 6211 | 955 | 15.375946% |
| D | 6113 | 132 | 2.159333% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7284 | 6264 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7284 | 6264 | 23 | 23 | 0.32% | 0.37% |  |
| C | 7284 | 6212 | 860 | 860 | 11.81% | 13.84% |  |
| D | 7284 | 6114 | 46 | 46 | 0.63% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 12335 | 78.03 | 725 | 708 | 149.0 |
| A | 0 | 226 | 8837 | 54.56 | 725 | 708 | 149.0 |
| A | 8 | 15 | 8164 | 50.04 | 725 | 708 | 149.0 |
| B | 15 | 204 | 1013526 | 7236.02 | 737 | 718 | 140.0 |
| B | 1 | 223 | 19292 | 132.7 | 737 | 718 | 140.0 |
| B | 2 | 249 | 16393 | 111.99 | 737 | 718 | 140.0 |
| C | 12 | 206 | 2444453 | 15946.26 | 666 | 667 | 153.3 |
| C | 15 | 208 | 103052 | 668.08 | 666 | 667 | 153.3 |
| C | 1 | 192 | 49467 | 318.43 | 666 | 667 | 153.3 |
| D | 13 | 120 | 113740 | 683.27 | 687 | 665 | 165.5 |
| D | 13 | 223 | 86153 | 516.57 | 687 | 665 | 165.5 |
| D | 7 | 39 | 70713 | 423.28 | 687 | 665 | 165.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

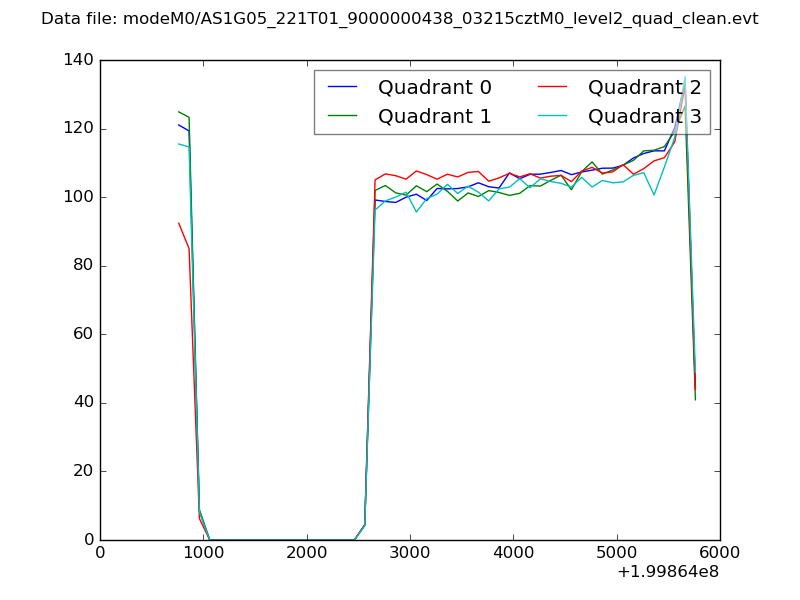

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

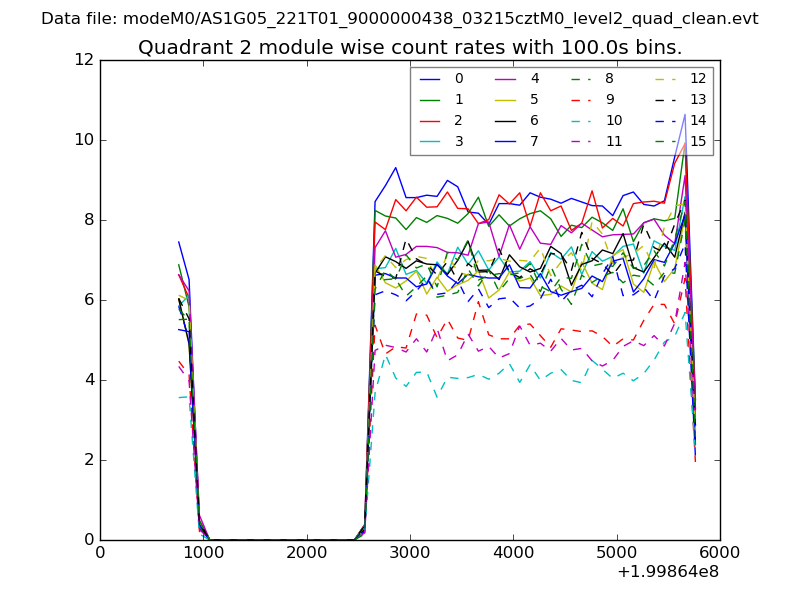

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

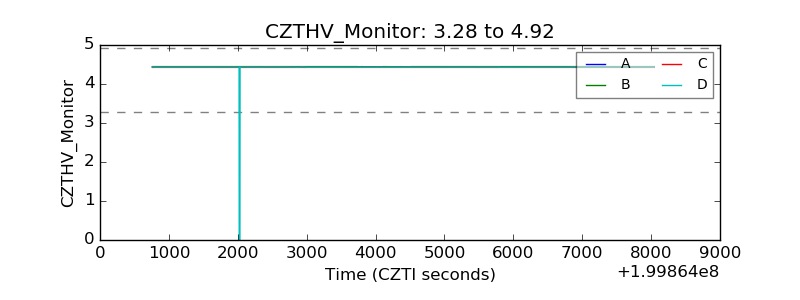

| CZT HV Monitor |  |
| D_VDD |  |

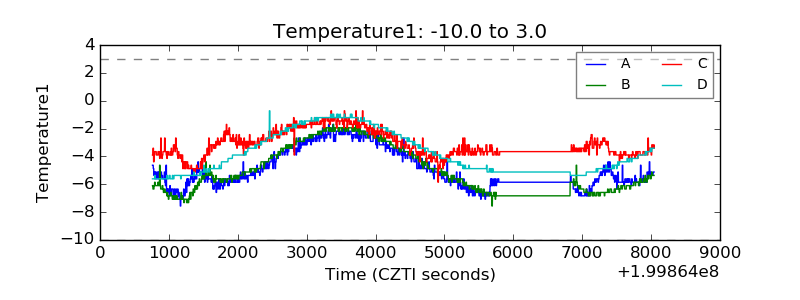

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

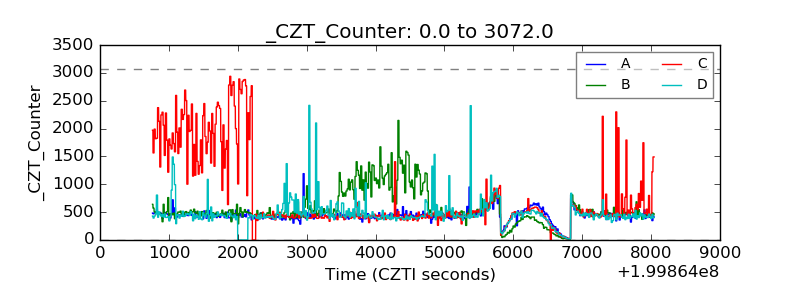

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
