| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_221T01_9000000438_03225cztM0_level2.evt | modeM0/AS1G05_221T01_9000000438_03225cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,513,280 | 87,998,400 |
| Size | 463.0 MB | 83.9 MB |
| Events in quadrant A | 4,506,642 | 540,546 |
| Events in quadrant B | 3,310,911 | 570,155 |
| Events in quadrant C | 3,398,524 | 558,125 |
| Events in quadrant D | 3,037,798 | 533,914 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17773 | 3 |
| B | 0 | 14197 | 2 |
| C | 0 | 14562 | 2 |
| D | 0 | 13950 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6620 | 351 | 5.302115% |
| B | 6620 | 22 | 0.332326% |
| C | 6620 | 51 | 0.770393% |
| D | 6620 | 20 | 0.302115% |

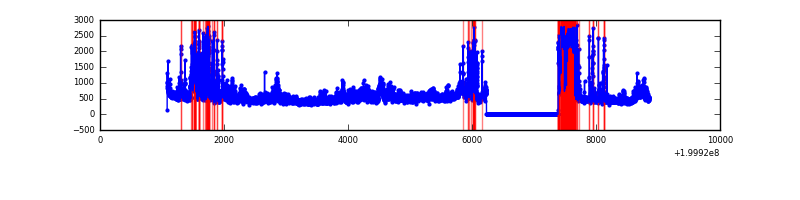

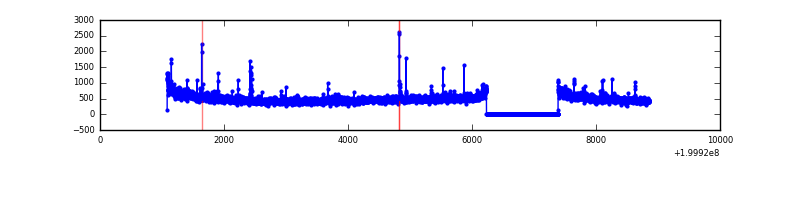

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7775 | 6621 | 304 | 304 | 3.91% | 4.59% |  |
| B | 7775 | 6620 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7775 | 6620 | 44 | 44 | 0.57% | 0.66% |  |
| D | 7775 | 6621 | 20 | 20 | 0.26% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 199 | 1206201 | 7979.26 | 729 | 715 | 151.1 |
| A | 0 | 118 | 301126 | 1988.46 | 729 | 715 | 151.1 |
| A | 0 | 226 | 151559 | 998.45 | 729 | 715 | 151.1 |
| B | 15 | 204 | 240081 | 1601.53 | 774 | 757 | 149.4 |
| B | 2 | 249 | 41944 | 275.62 | 774 | 757 | 149.4 |
| B | 12 | 111 | 9658 | 59.56 | 774 | 757 | 149.4 |
| C | 14 | 223 | 326286 | 1888.12 | 733 | 739 | 172.4 |
| C | 6 | 80 | 106315 | 612.32 | 733 | 739 | 172.4 |
| C | 1 | 192 | 52418 | 299.73 | 733 | 739 | 172.4 |
| D | 13 | 223 | 132755 | 745.25 | 723 | 702 | 177.2 |
| D | 13 | 239 | 61856 | 345.13 | 723 | 702 | 177.2 |
| D | 13 | 120 | 55669 | 310.21 | 723 | 702 | 177.2 |

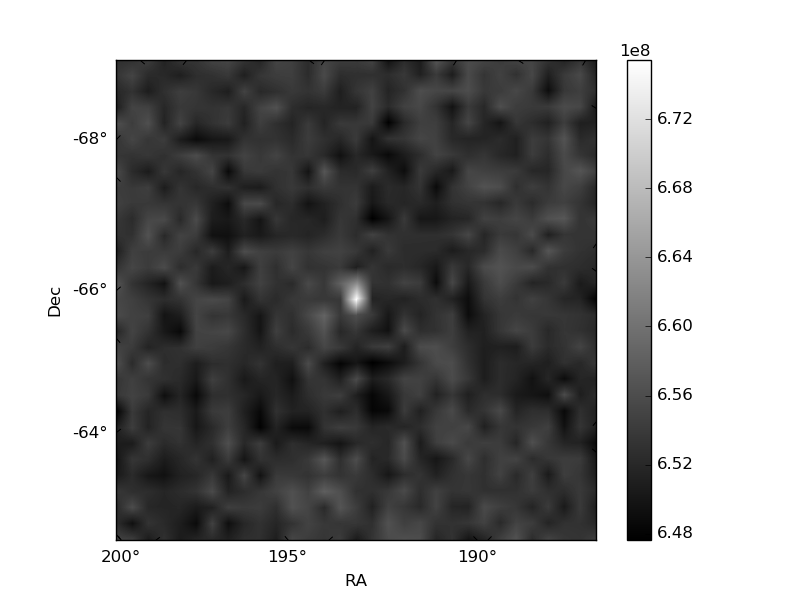

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

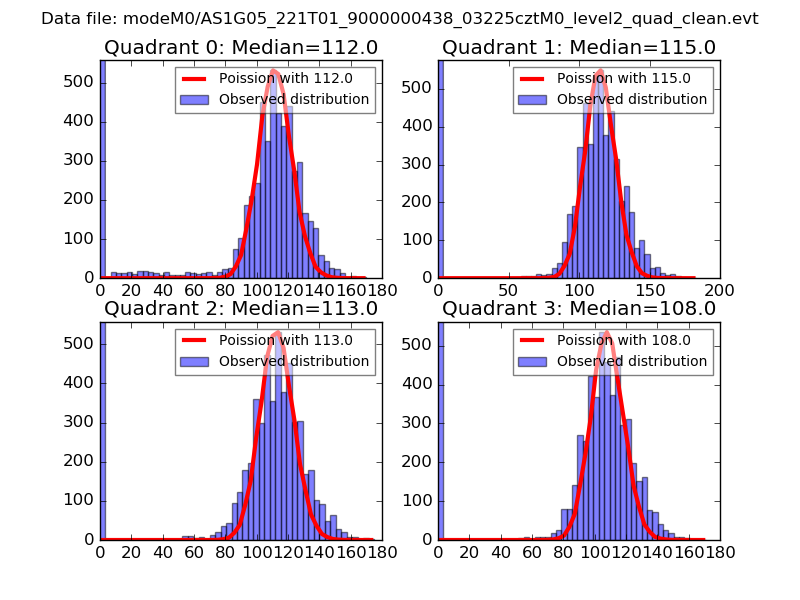

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

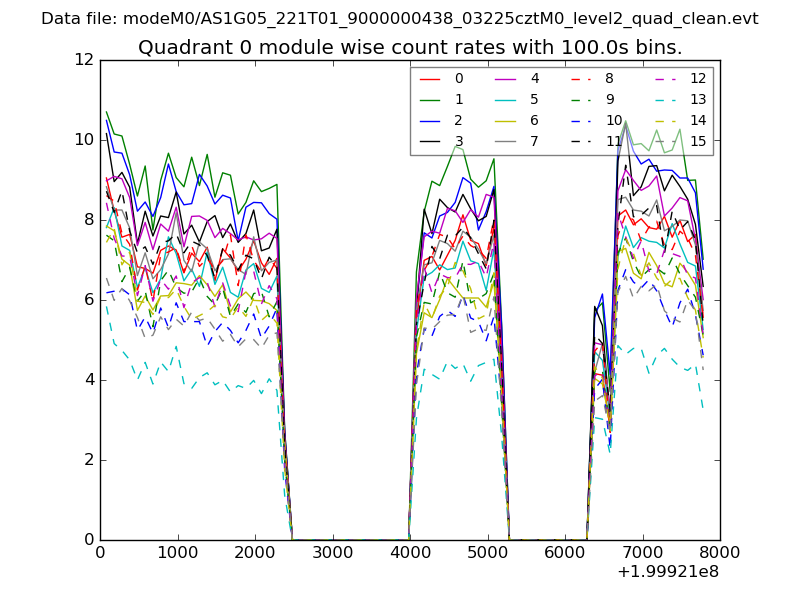

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

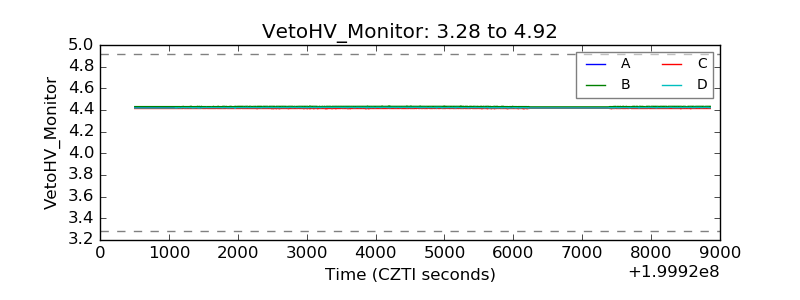

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

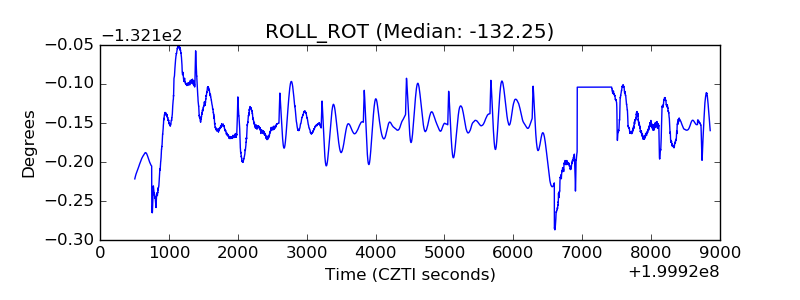

| _ROLL_ROT |  |

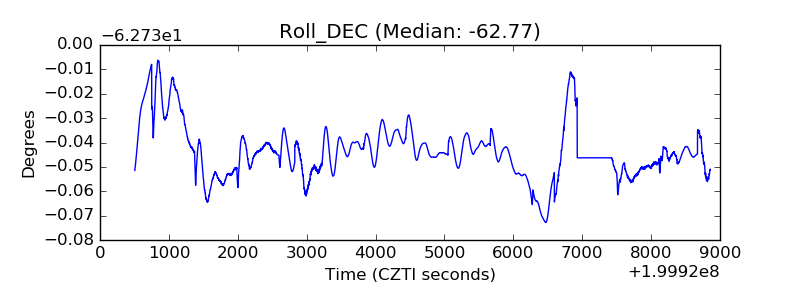

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
