| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_104T01_9000000440_03246cztM0_level2.evt | modeM0/AS1G05_104T01_9000000440_03246cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,175,040 | 82,368,000 |
| Size | 533.3 MB | 78.6 MB |
| Events in quadrant A | 4,102,830 | 494,341 |
| Events in quadrant B | 4,225,909 | 495,220 |
| Events in quadrant C | 3,903,689 | 493,700 |
| Events in quadrant D | 4,176,698 | 472,800 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17671 | 4 |
| B | 0 | 17240 | 3 |
| C | 0 | 17058 | 3 |
| D | 0 | 18000 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7740 | 488 | 6.304910% |
| B | 7740 | 374 | 4.832041% |
| C | 7740 | 339 | 4.379845% |
| D | 7740 | 358 | 4.625323% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7860 | 7742 | 99 | 99 | 1.26% | 1.28% |  |
| B | 7860 | 7742 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7860 | 7742 | 20 | 20 | 0.25% | 0.26% |  |
| D | 7860 | 7742 | 56 | 56 | 0.71% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 262007 | 1391.8 | 908 | 886 | 187.6 |
| A | 0 | 118 | 151088 | 800.59 | 908 | 886 | 187.6 |
| A | 0 | 149 | 133606 | 707.41 | 908 | 886 | 187.6 |
| B | 15 | 204 | 541676 | 2995.51 | 927 | 904 | 180.5 |
| B | 2 | 249 | 84334 | 462.15 | 927 | 904 | 180.5 |
| B | 0 | 229 | 13561 | 70.11 | 927 | 904 | 180.5 |
| C | 14 | 223 | 174056 | 827.25 | 894 | 896 | 209.3 |
| C | 14 | 48 | 88790 | 419.9 | 894 | 896 | 209.3 |
| C | 6 | 80 | 51058 | 239.64 | 894 | 896 | 209.3 |
| D | 13 | 114 | 594345 | 2754.96 | 891 | 862 | 215.4 |
| D | 13 | 223 | 104572 | 481.42 | 891 | 862 | 215.4 |
| D | 13 | 239 | 42176 | 191.78 | 891 | 862 | 215.4 |

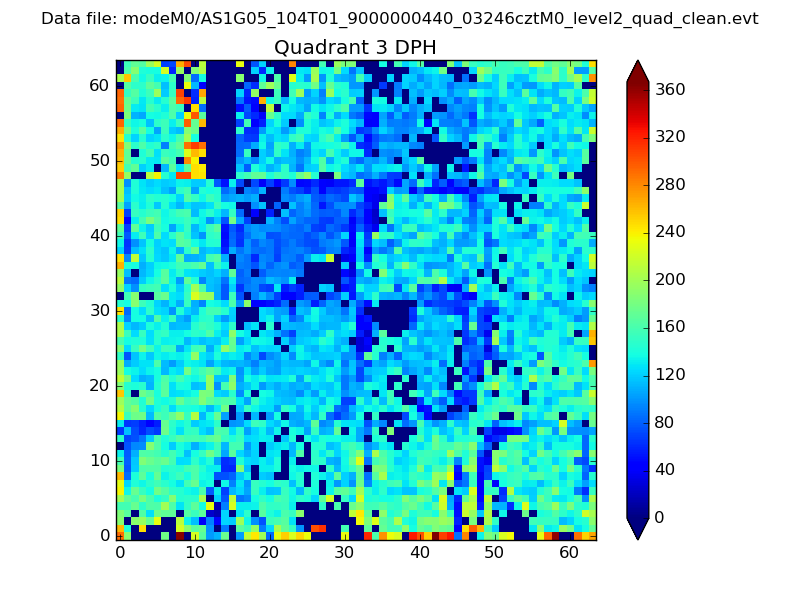

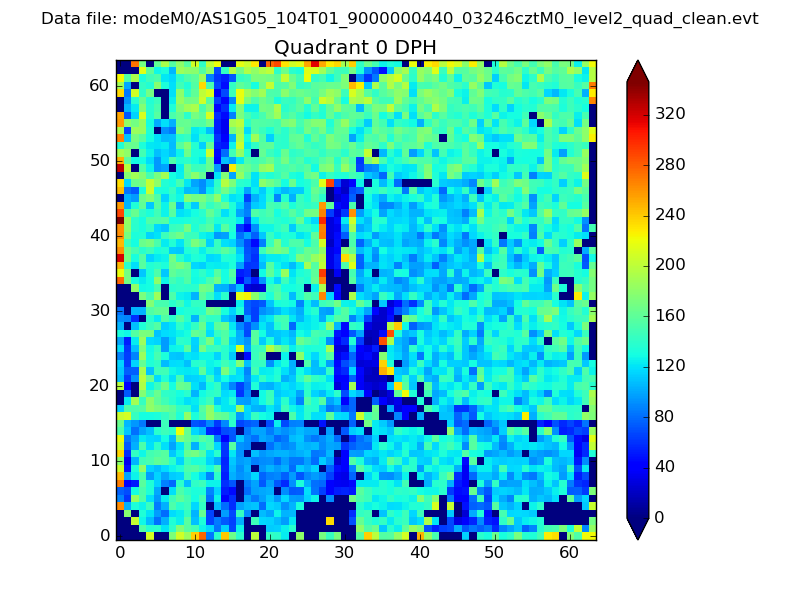

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

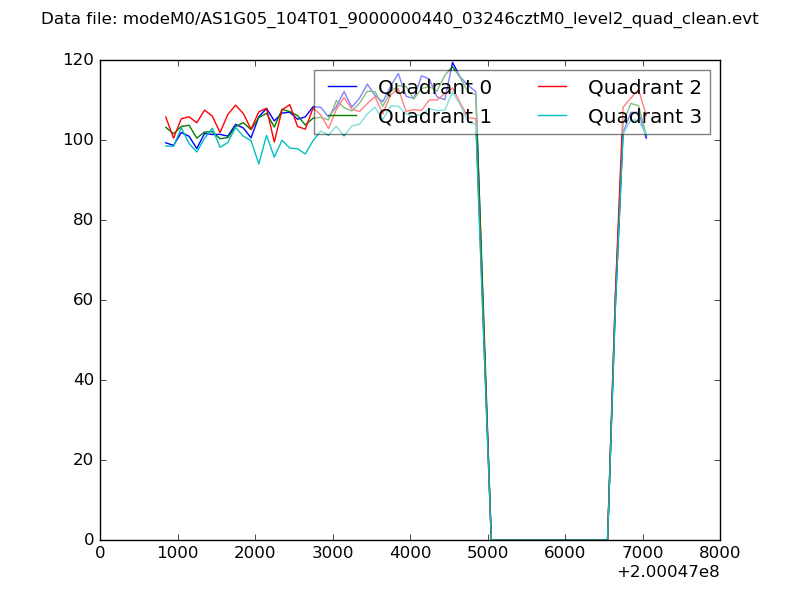

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

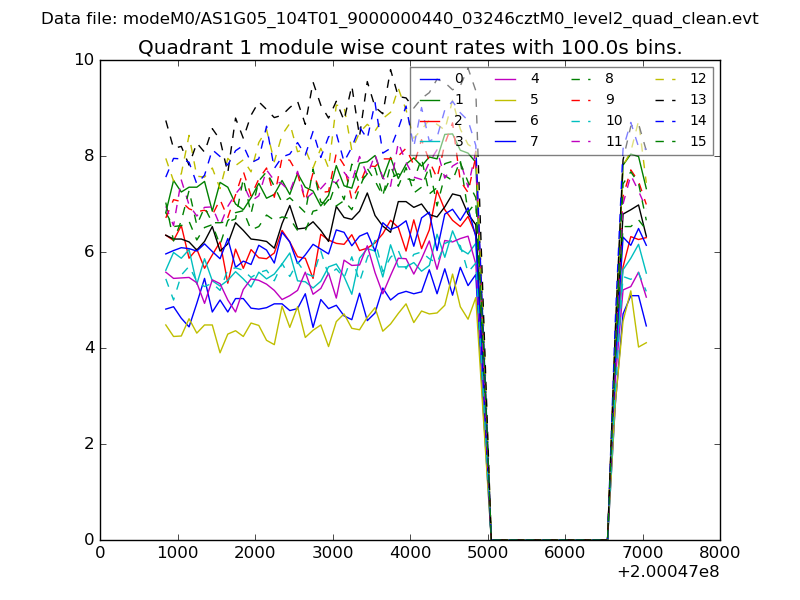

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

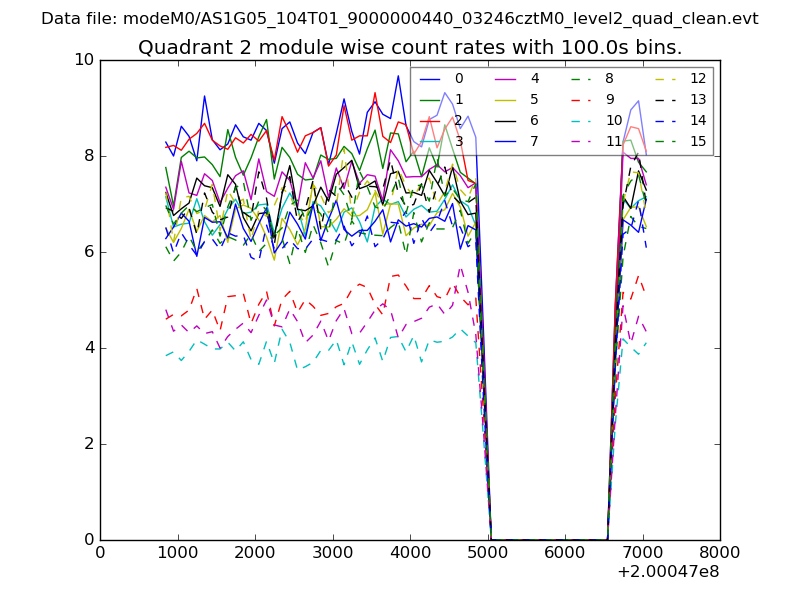

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

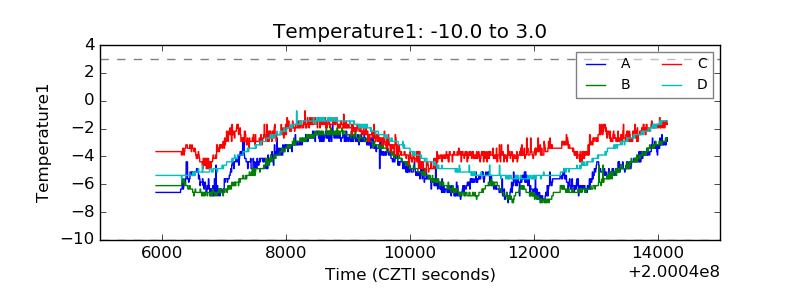

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

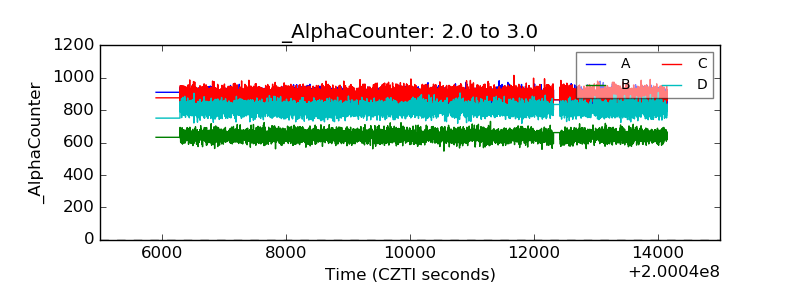

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
