| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_221T01_9000000442_03266cztM0_level2.evt | modeM0/AS1G05_221T01_9000000442_03266cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,595,520 | 83,203,200 |
| Size | 447.8 MB | 79.3 MB |
| Events in quadrant A | 3,192,552 | 523,417 |
| Events in quadrant B | 4,183,567 | 523,917 |
| Events in quadrant C | 3,264,648 | 510,349 |
| Events in quadrant D | 3,128,646 | 497,573 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14203 | 3 |
| B | 0 | 17095 | 2 |
| C | 0 | 14638 | 2 |
| D | 0 | 14372 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6663 | 65 | 0.975537% |
| B | 6663 | 86 | 1.290710% |
| C | 6663 | 63 | 0.945520% |
| D | 6663 | 86 | 1.290710% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7623 | 6664 | 33 | 33 | 0.43% | 0.50% |  |
| B | 7623 | 6664 | 26 | 26 | 0.34% | 0.39% |  |
| C | 7623 | 6664 | 40 | 40 | 0.52% | 0.60% |  |
| D | 7623 | 6664 | 71 | 71 | 0.93% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 31 | 96656 | 619.39 | 750 | 733 | 154.9 |
| A | 0 | 118 | 84307 | 539.65 | 750 | 733 | 154.9 |
| A | 3 | 1 | 61642 | 393.3 | 750 | 733 | 154.9 |
| B | 15 | 204 | 1032899 | 6926.7 | 763 | 747 | 149.0 |
| B | 5 | 200 | 157000 | 1048.6 | 763 | 747 | 149.0 |
| B | 2 | 249 | 38087 | 250.59 | 763 | 747 | 149.0 |
| C | 14 | 223 | 368715 | 2171.43 | 721 | 725 | 169.5 |
| C | 1 | 192 | 23548 | 134.67 | 721 | 725 | 169.5 |
| C | 6 | 80 | 19710 | 112.03 | 721 | 725 | 169.5 |
| D | 13 | 223 | 182287 | 1049.11 | 714 | 694 | 173.1 |
| D | 1 | 193 | 88180 | 505.43 | 714 | 694 | 173.1 |
| D | 2 | 248 | 39177 | 222.33 | 714 | 694 | 173.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

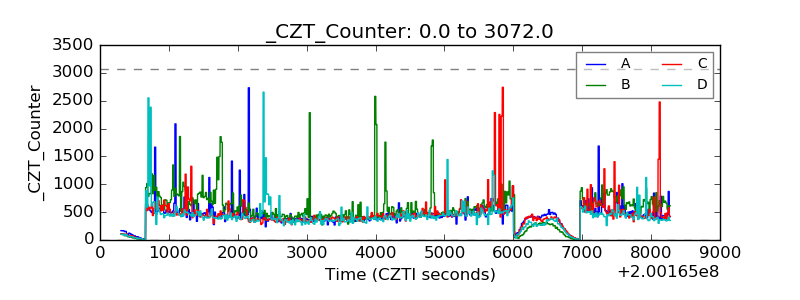

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

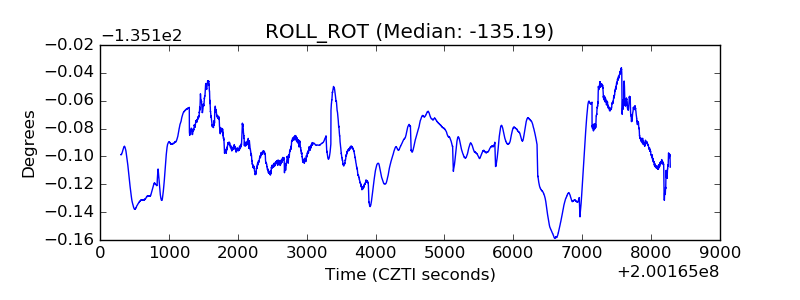

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
