| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_002T02_9000000444_03271cztM0_level2.evt | modeM0/AS1G05_002T02_9000000444_03271cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,960,320 | 74,488,320 |
| Size | 471.1 MB | 71.0 MB |
| Events in quadrant A | 3,076,489 | 452,304 |
| Events in quadrant B | 3,940,839 | 460,612 |
| Events in quadrant C | 3,866,468 | 448,031 |
| Events in quadrant D | 3,626,788 | 433,276 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13678 | 3 |
| B | 0 | 16008 | 2 |
| C | 0 | 15840 | 2 |
| D | 0 | 15465 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6616 | 49 | 0.740629% |
| B | 6616 | 84 | 1.269649% |
| C | 6616 | 195 | 2.947400% |
| D | 6616 | 131 | 1.980048% |

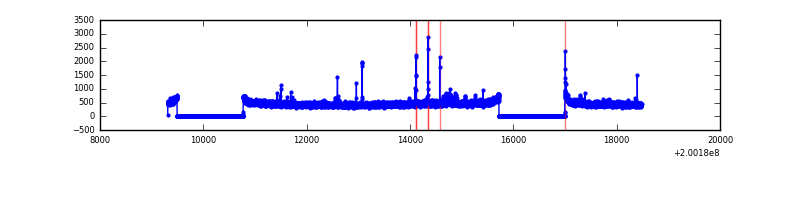

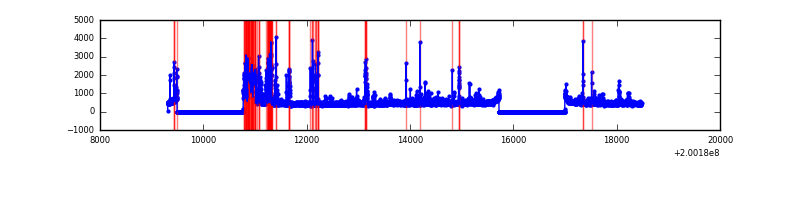

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

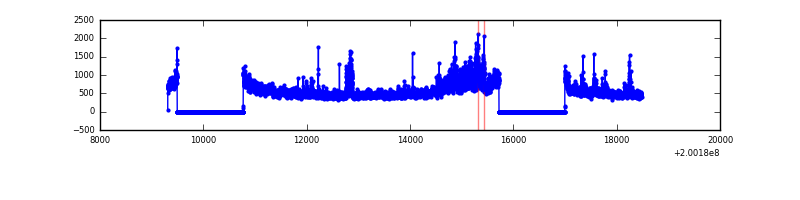

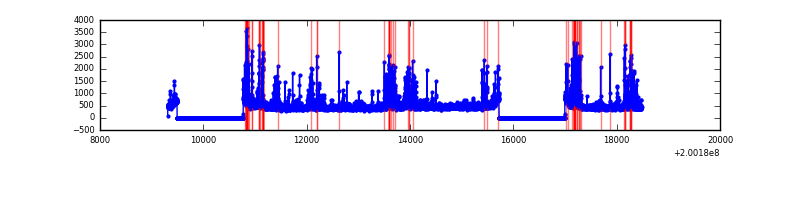

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9171 | 6618 | 6 | 6 | 0.07% | 0.09% |  |
| B | 9171 | 6618 | 2 | 2 | 0.02% | 0.03% |  |
| C | 9171 | 6618 | 135 | 135 | 1.47% | 2.04% |  |
| D | 9171 | 6618 | 81 | 81 | 0.88% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 249 | 31715 | 197.83 | 778 | 761 | 156.5 |
| A | 0 | 118 | 20362 | 125.27 | 778 | 761 | 156.5 |
| A | 0 | 149 | 11796 | 70.53 | 778 | 761 | 156.5 |
| B | 15 | 204 | 728224 | 4858.47 | 797 | 778 | 149.7 |
| B | 5 | 200 | 76035 | 502.63 | 797 | 778 | 149.7 |
| B | 2 | 249 | 41975 | 275.15 | 797 | 778 | 149.7 |
| C | 14 | 223 | 777225 | 4477.23 | 756 | 756 | 173.4 |
| C | 1 | 16 | 44314 | 251.16 | 756 | 756 | 173.4 |
| C | 14 | 48 | 43138 | 244.38 | 756 | 756 | 173.4 |
| D | 13 | 223 | 388940 | 2169.48 | 749 | 728 | 178.9 |
| D | 13 | 239 | 116129 | 644.9 | 749 | 728 | 178.9 |
| D | 2 | 107 | 102703 | 569.88 | 749 | 728 | 178.9 |

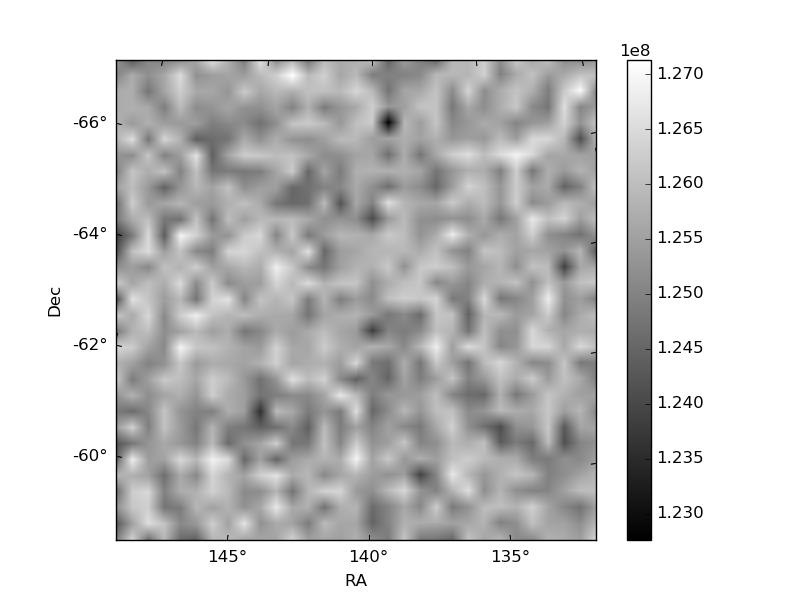

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

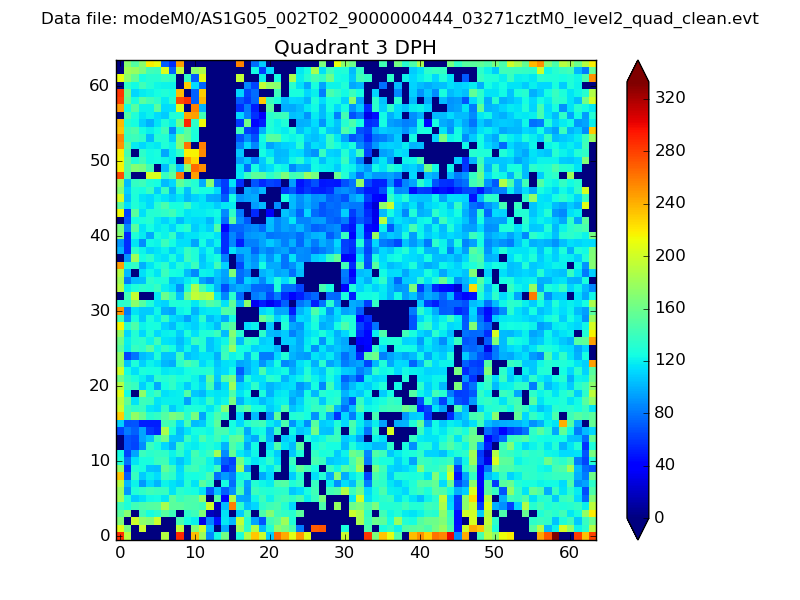

Quadrant C |

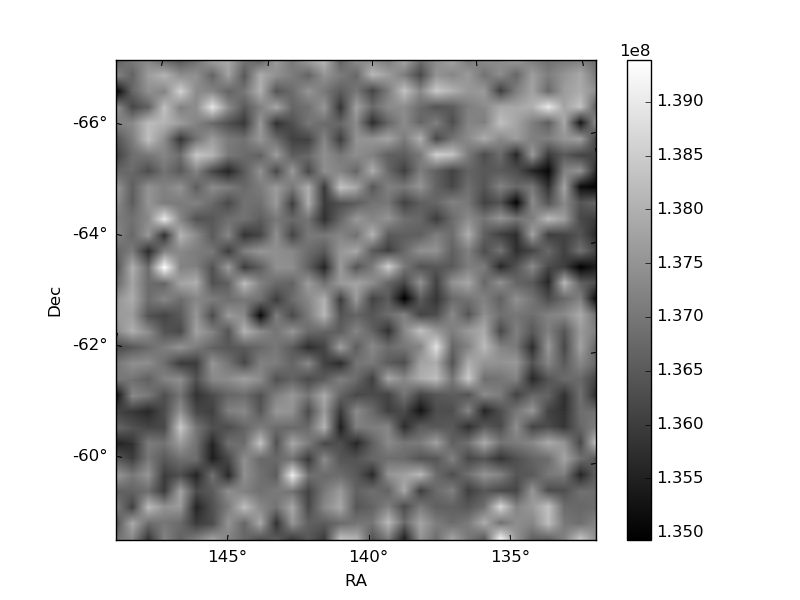

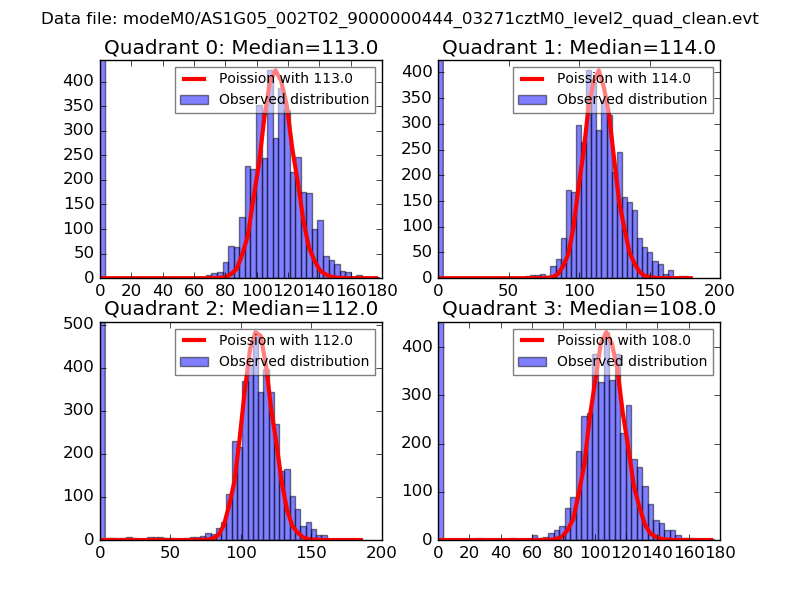

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

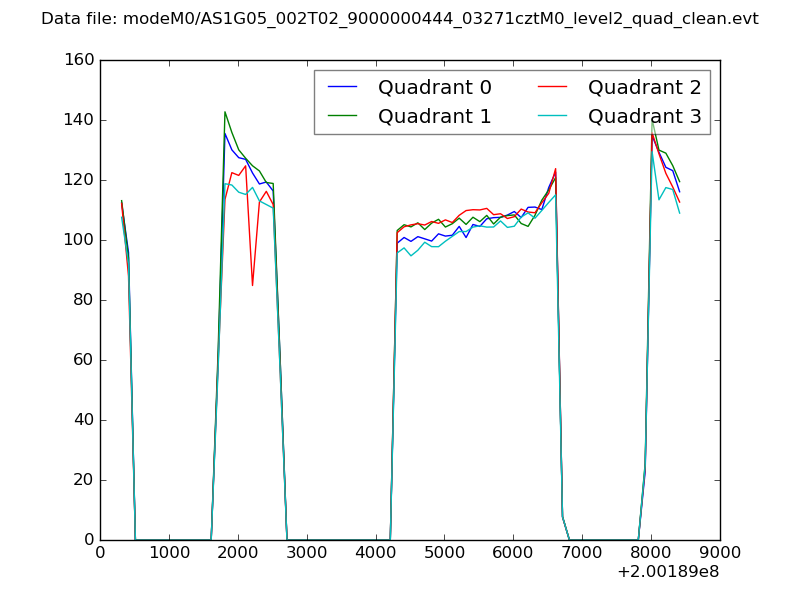

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

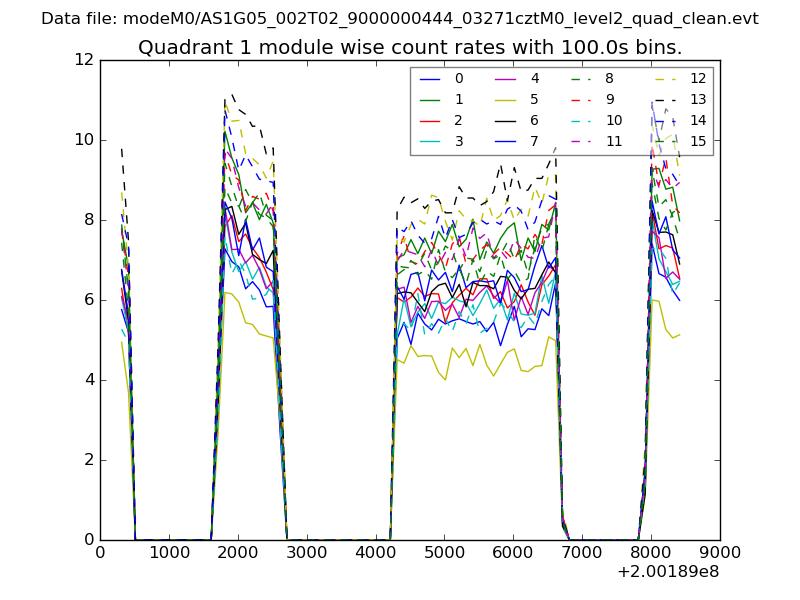

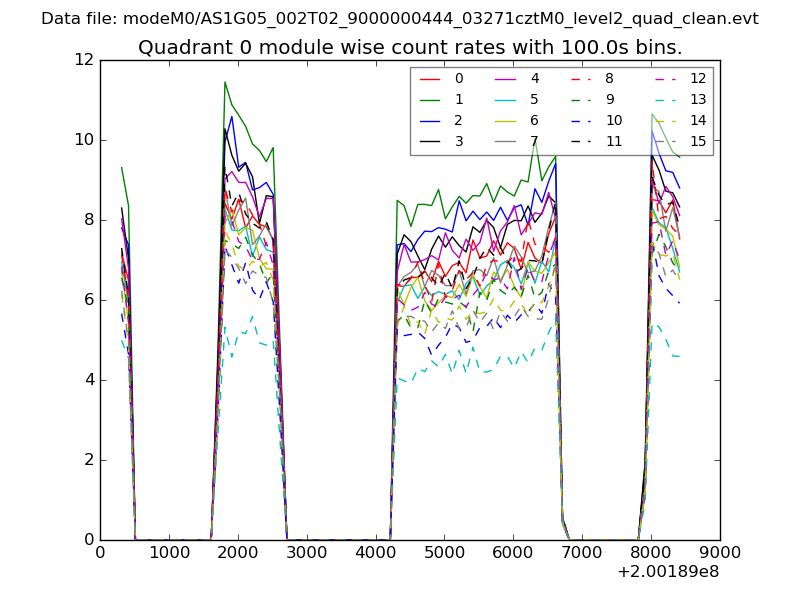

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

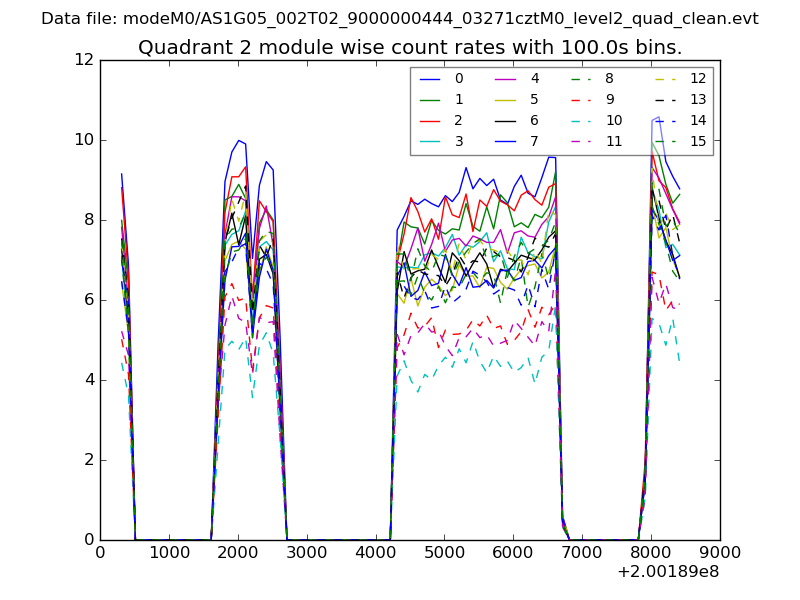

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

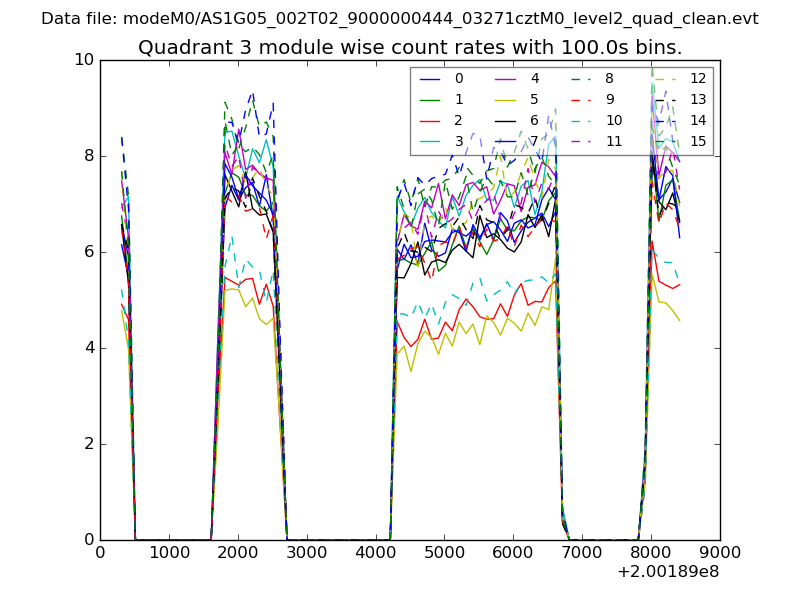

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

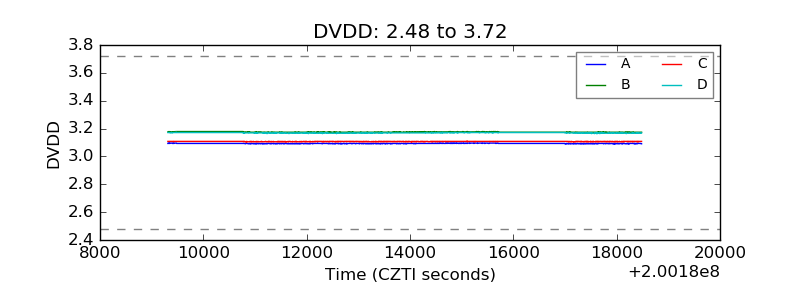

| D_VDD |  |

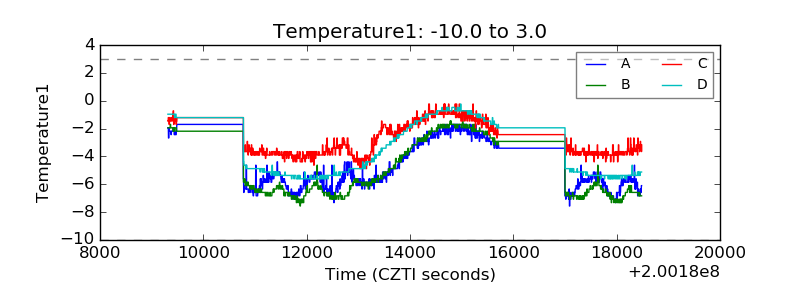

| Temperature 1 |  |

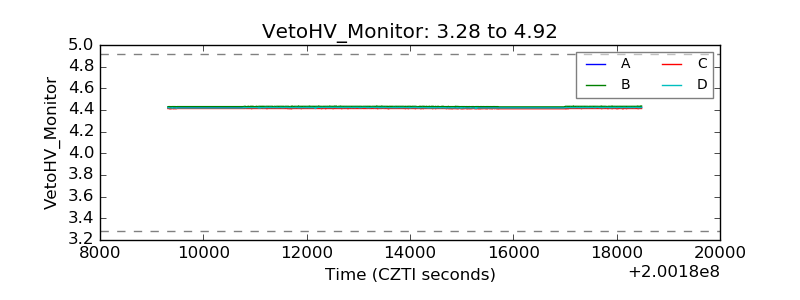

| Veto HV Monitor |  |
| Veto LLD |  |

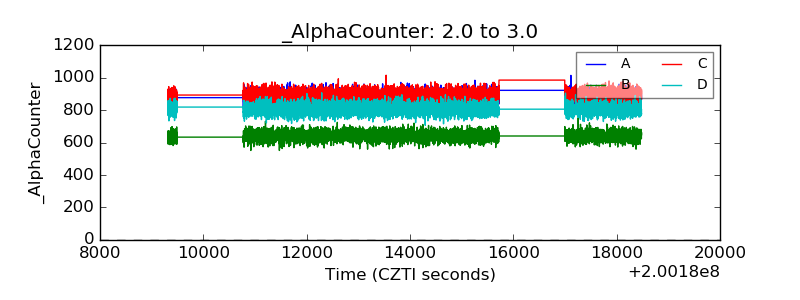

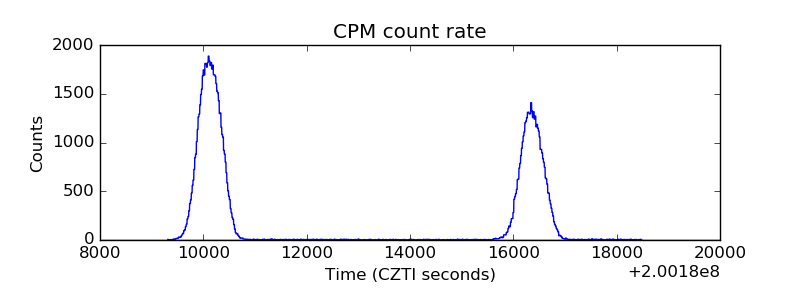

| Alpha Counter |  |
| _CPM_Rate |  |

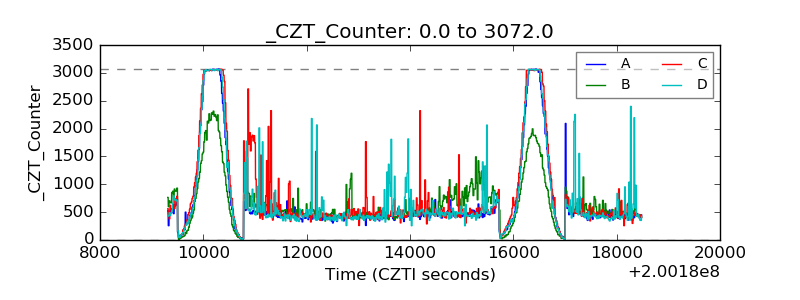

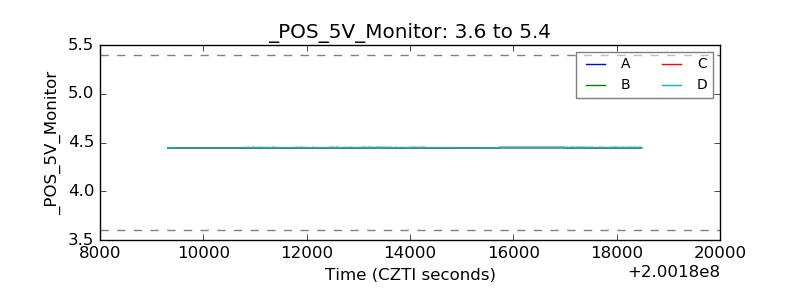

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

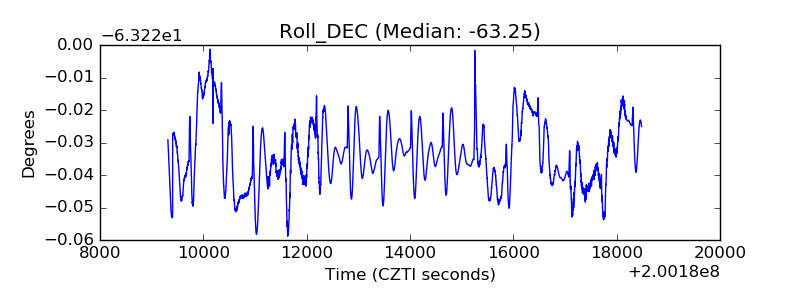

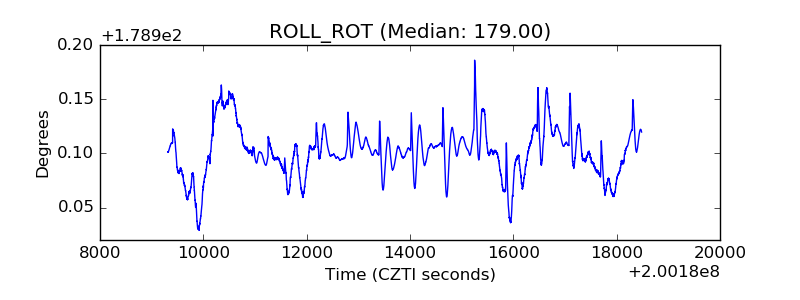

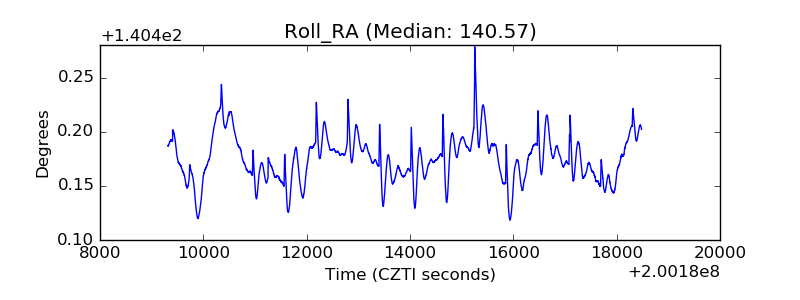

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

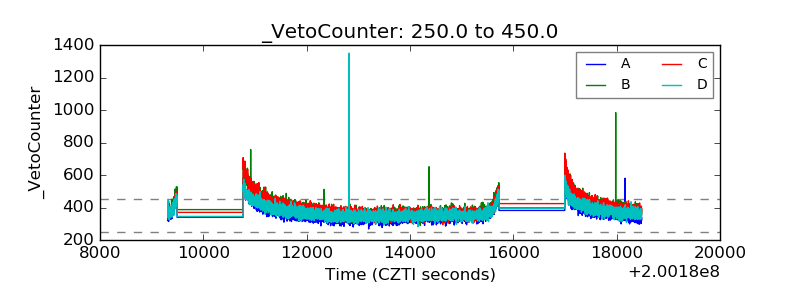

| Veto Counter |  |
