| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_002T02_9000000444_03274cztM0_level2.evt | modeM0/AS1G05_002T02_9000000444_03274cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,381,120 | 77,768,640 |
| Size | 475.3 MB | 74.2 MB |
| Events in quadrant A | 3,640,612 | 461,717 |
| Events in quadrant B | 4,375,885 | 469,508 |
| Events in quadrant C | 3,327,331 | 472,175 |
| Events in quadrant D | 3,268,293 | 458,080 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15962 | 3 |
| B | 0 | 17796 | 2 |
| C | 0 | 14990 | 2 |
| D | 0 | 15036 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7089 | 313 | 4.415291% |
| B | 7089 | 210 | 2.962336% |
| C | 7089 | 174 | 2.454507% |
| D | 7089 | 158 | 2.228805% |

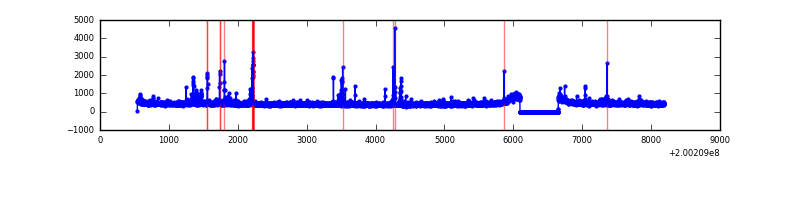

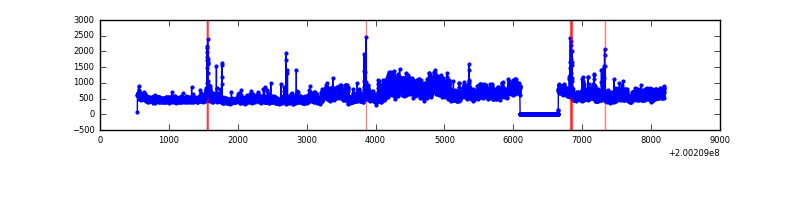

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7645 | 7090 | 147 | 147 | 1.92% | 2.07% |  |
| B | 7645 | 7090 | 10 | 10 | 0.13% | 0.14% |  |
| C | 7645 | 7090 | 21 | 21 | 0.27% | 0.30% |  |
| D | 7645 | 7090 | 17 | 17 | 0.22% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 483515 | 2935.27 | 800 | 779 | 164.5 |
| A | 0 | 118 | 39535 | 235.66 | 800 | 779 | 164.5 |
| A | 14 | 249 | 18519 | 107.87 | 800 | 779 | 164.5 |
| B | 15 | 204 | 1079526 | 6822.76 | 819 | 798 | 158.1 |
| B | 2 | 249 | 106549 | 668.86 | 819 | 798 | 158.1 |
| B | 5 | 200 | 13432 | 79.91 | 819 | 798 | 158.1 |
| C | 14 | 48 | 71319 | 388.12 | 788 | 790 | 181.7 |
| C | 1 | 16 | 62507 | 339.63 | 788 | 790 | 181.7 |
| C | 6 | 80 | 61827 | 335.88 | 788 | 790 | 181.7 |
| D | 13 | 114 | 108172 | 568.26 | 782 | 757 | 189.0 |
| D | 13 | 223 | 86454 | 453.37 | 782 | 757 | 189.0 |
| D | 2 | 31 | 42482 | 220.74 | 782 | 757 | 189.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

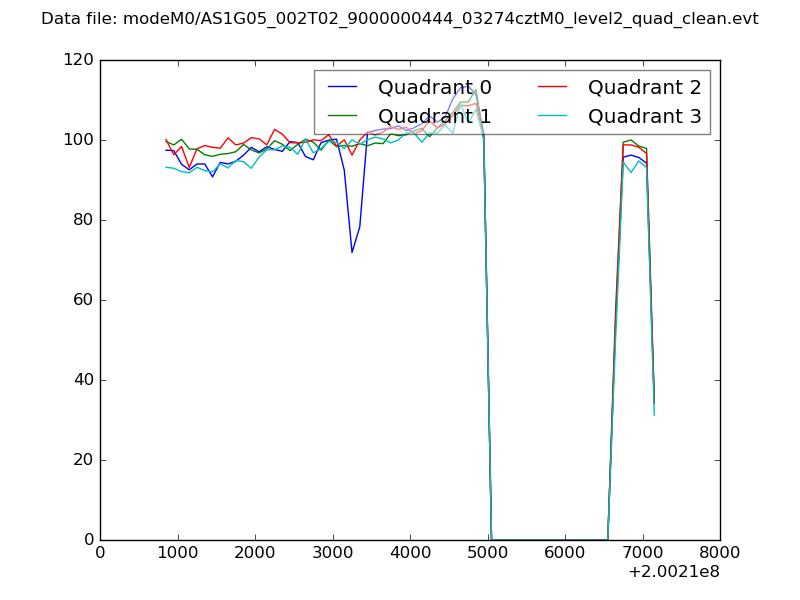

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

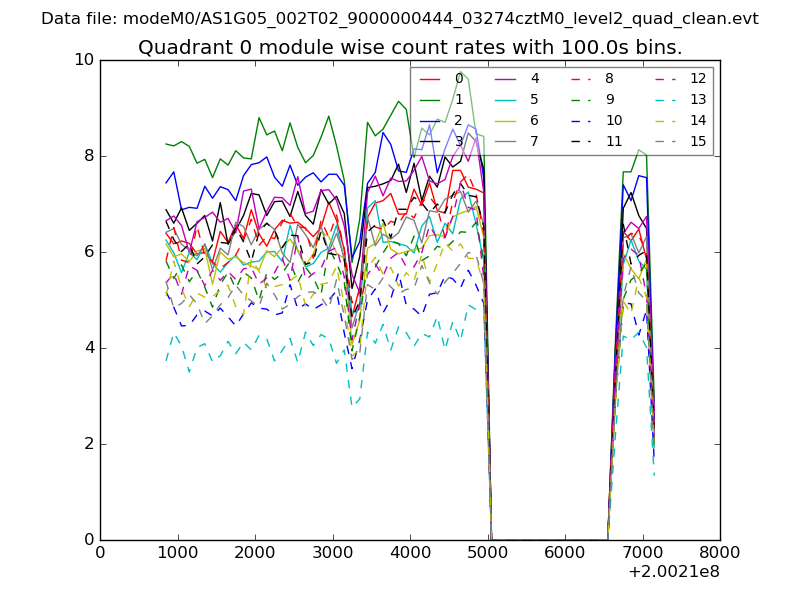

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

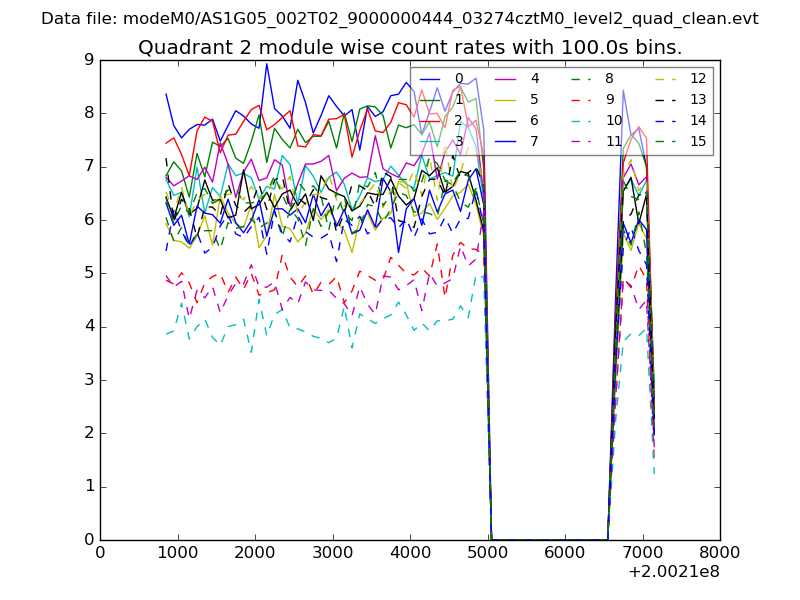

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

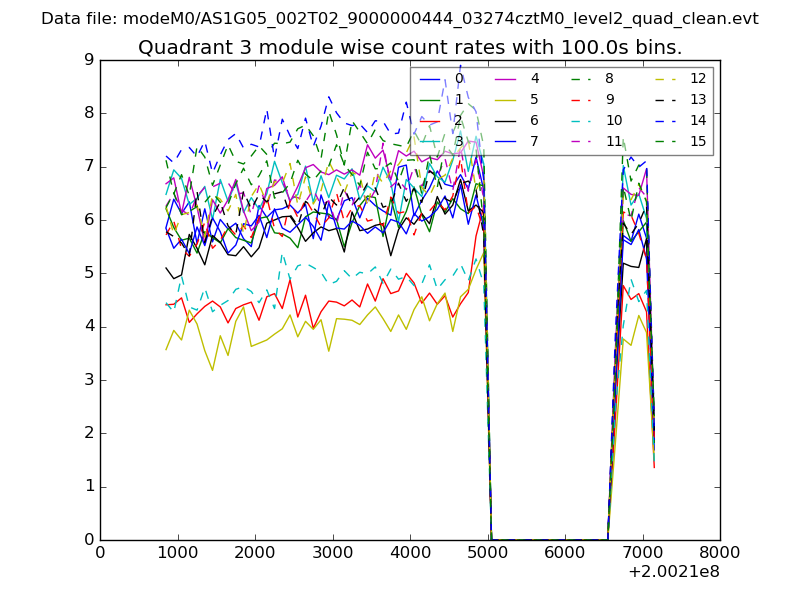

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

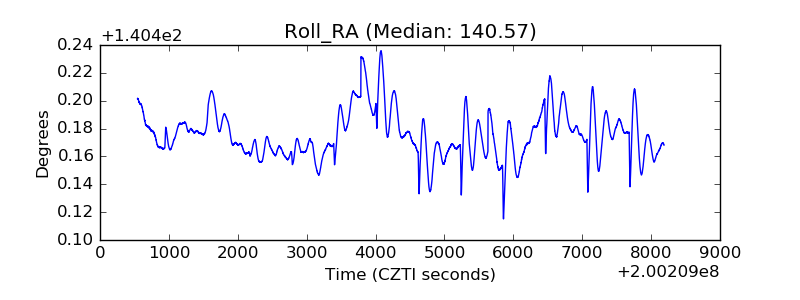

| _Roll_RA |  |
| Veto Counter |  |
