| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_002T02_9000000444_03280cztM0_level2.evt | modeM0/AS1G05_002T02_9000000444_03280cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,881,280 | 77,558,400 |
| Size | 472.9 MB | 74.0 MB |
| Events in quadrant A | 4,030,106 | 462,186 |
| Events in quadrant B | 4,223,336 | 482,039 |
| Events in quadrant C | 3,396,478 | 479,695 |
| Events in quadrant D | 2,927,313 | 471,789 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16584 | 2 |
| B | 0 | 16921 | 1 |
| C | 0 | 14855 | 1 |
| D | 0 | 13650 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6489 | 425 | 6.549545% |
| B | 6489 | 48 | 0.739713% |
| C | 6489 | 63 | 0.970874% |
| D | 6489 | 37 | 0.570196% |

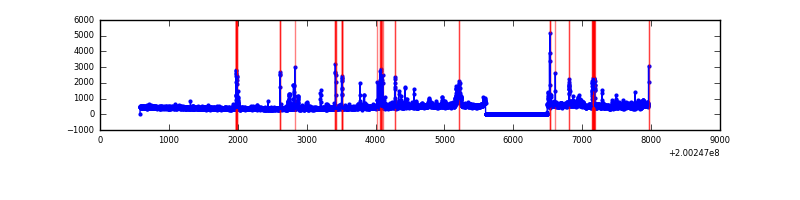

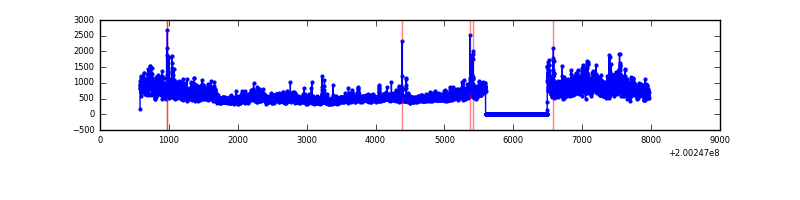

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7384 | 6490 | 295 | 295 | 4.00% | 4.55% |  |
| B | 7384 | 6490 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7384 | 6490 | 62 | 62 | 0.84% | 0.96% |  |
| D | 7384 | 6490 | 29 | 29 | 0.39% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 715040 | 4949.22 | 694 | 676 | 144.3 |
| A | 14 | 249 | 370923 | 2565.13 | 694 | 676 | 144.3 |
| A | 0 | 118 | 235657 | 1627.98 | 694 | 676 | 144.3 |
| B | 15 | 204 | 1234277 | 8682.43 | 731 | 714 | 142.1 |
| B | 2 | 249 | 67653 | 471.15 | 731 | 714 | 142.1 |
| B | 5 | 200 | 35906 | 247.7 | 731 | 714 | 142.1 |
| C | 14 | 223 | 371618 | 2293.71 | 690 | 692 | 161.7 |
| C | 14 | 234 | 97493 | 598.59 | 690 | 692 | 161.7 |
| C | 6 | 80 | 86372 | 529.82 | 690 | 692 | 161.7 |
| D | 13 | 223 | 140006 | 835.43 | 688 | 667 | 166.8 |
| D | 13 | 239 | 59857 | 354.88 | 688 | 667 | 166.8 |
| D | 4 | 160 | 34944 | 205.51 | 688 | 667 | 166.8 |

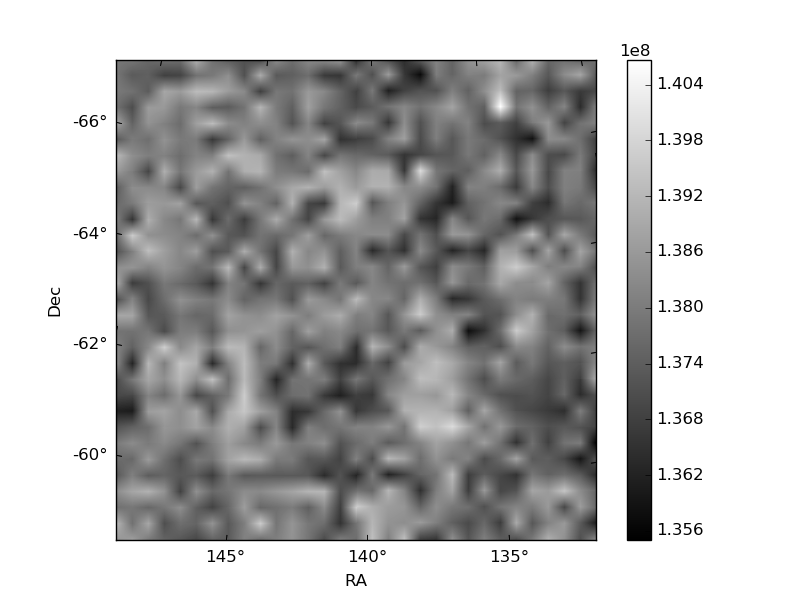

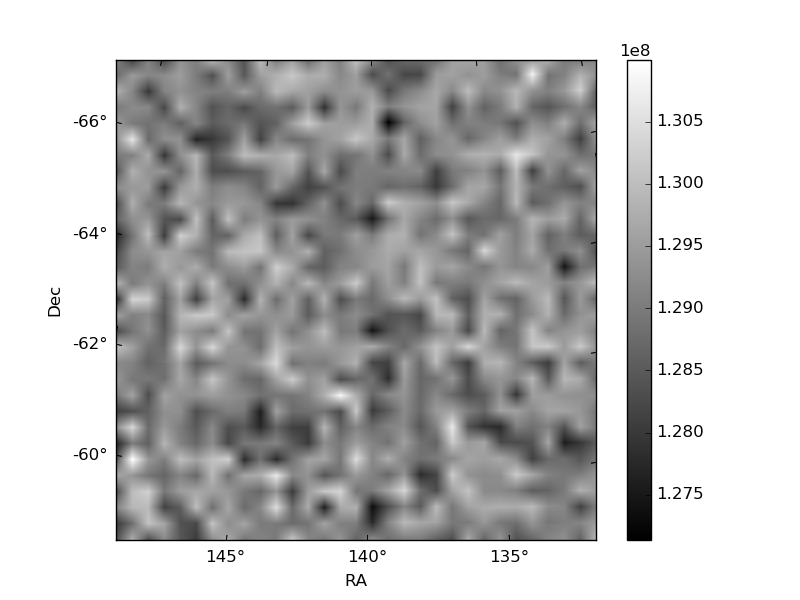

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

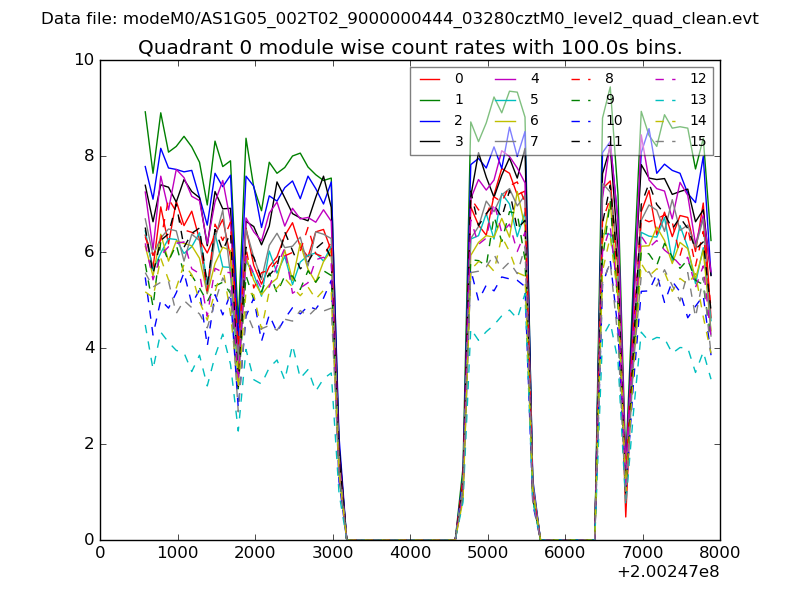

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

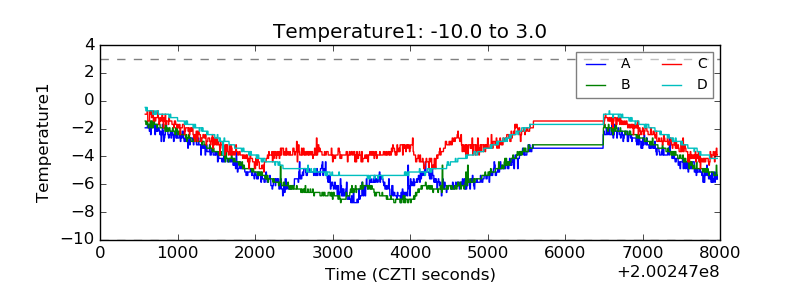

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

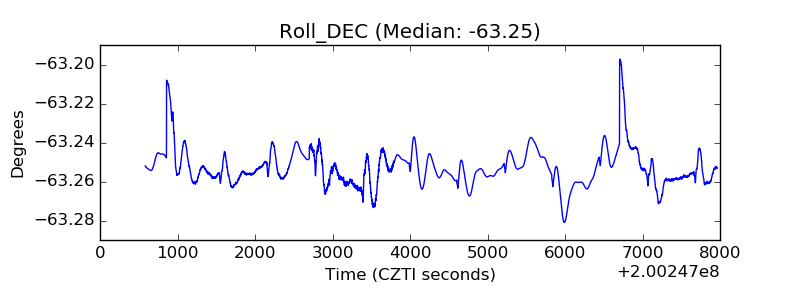

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

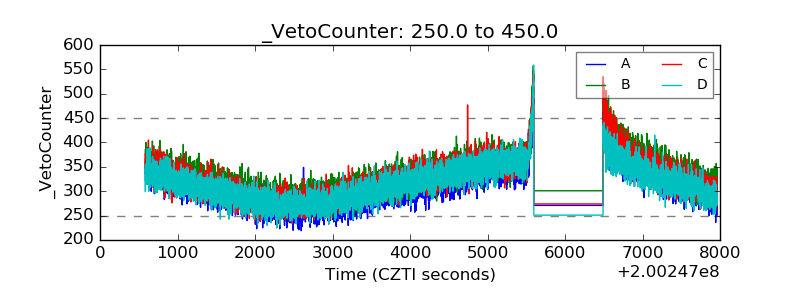

| Veto Counter |  |
