| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_228T02_9000000446_03288cztM0_level2.evt | modeM0/AS1G05_228T02_9000000446_03288cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,698,560 | 69,480,000 |
| Size | 466.1 MB | 66.3 MB |
| Events in quadrant A | 3,251,425 | 406,581 |
| Events in quadrant B | 4,047,345 | 407,490 |
| Events in quadrant C | 3,799,502 | 408,961 |
| Events in quadrant D | 3,233,385 | 399,900 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14422 | 3 |
| B | 0 | 16383 | 2 |
| C | 0 | 16072 | 2 |
| D | 0 | 14622 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6899 | 146 | 2.116249% |
| B | 6899 | 167 | 2.420641% |
| C | 6899 | 181 | 2.623569% |
| D | 6899 | 137 | 1.985795% |

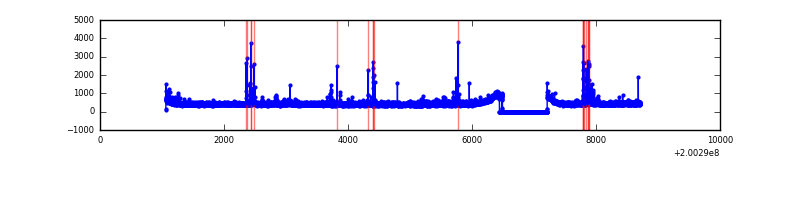

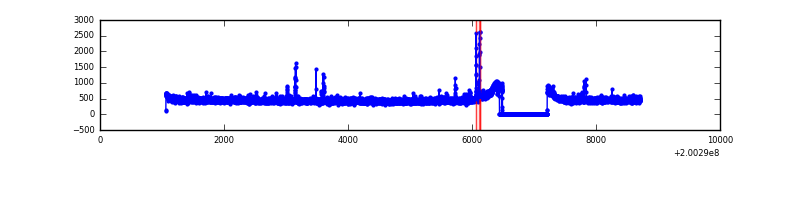

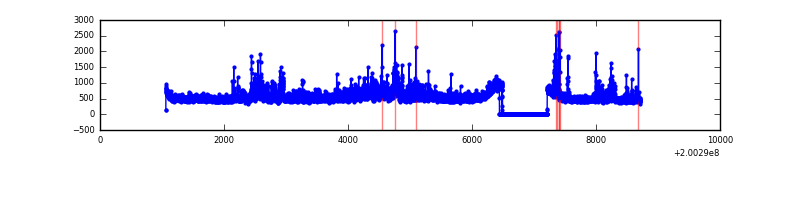

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7654 | 6901 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7654 | 6901 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7654 | 6901 | 38 | 38 | 0.50% | 0.55% |  |
| D | 7654 | 6901 | 20 | 20 | 0.26% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 44296 | 257.06 | 822 | 803 | 169.2 |
| A | 0 | 50 | 29453 | 169.33 | 822 | 803 | 169.2 |
| A | 0 | 226 | 12379 | 68.42 | 822 | 803 | 169.2 |
| B | 15 | 204 | 568647 | 3483.65 | 830 | 809 | 163.0 |
| B | 2 | 249 | 164951 | 1007.0 | 830 | 809 | 163.0 |
| B | 14 | 167 | 52623 | 317.88 | 830 | 809 | 163.0 |
| C | 12 | 175 | 275747 | 1449.33 | 801 | 801 | 189.7 |
| C | 6 | 80 | 191652 | 1006.04 | 801 | 801 | 189.7 |
| C | 14 | 223 | 174067 | 913.34 | 801 | 801 | 189.7 |
| D | 13 | 239 | 81617 | 414.8 | 798 | 773 | 194.9 |
| D | 13 | 223 | 43207 | 217.72 | 798 | 773 | 194.9 |
| D | 10 | 34 | 34562 | 173.37 | 798 | 773 | 194.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

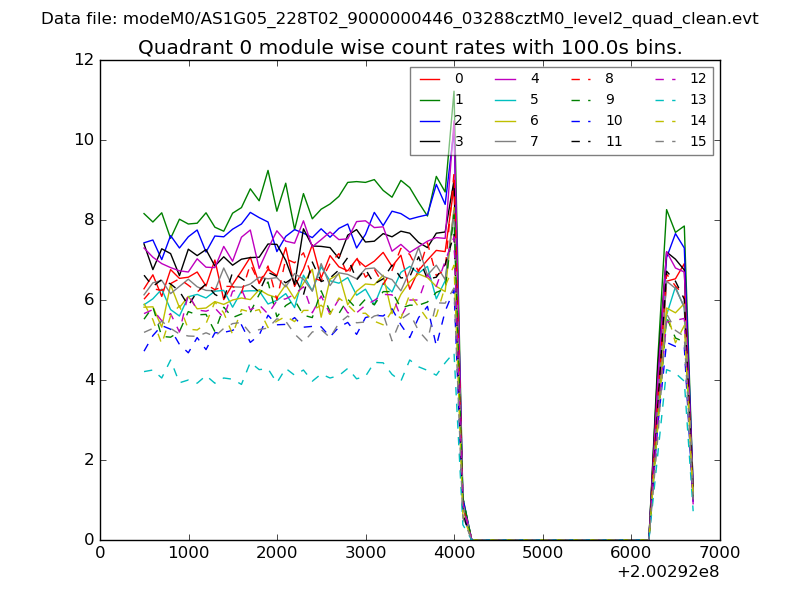

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

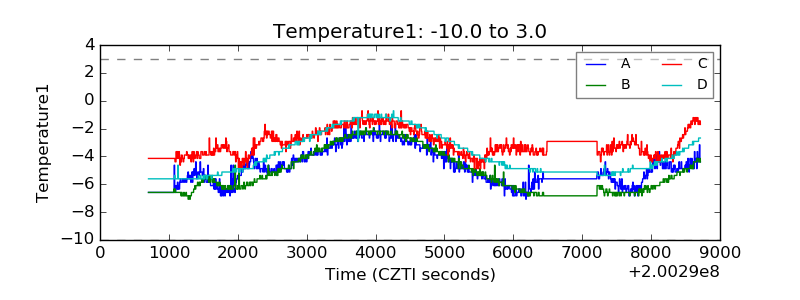

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

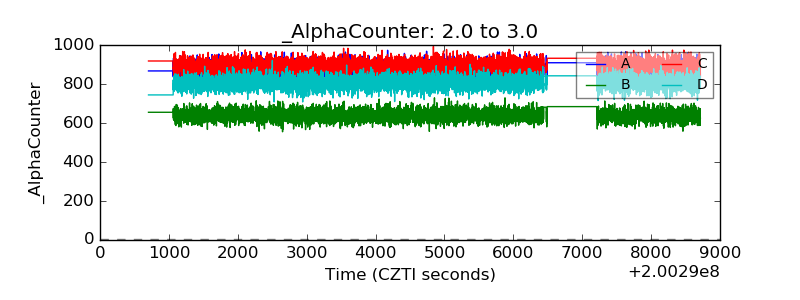

| Alpha Counter |  |

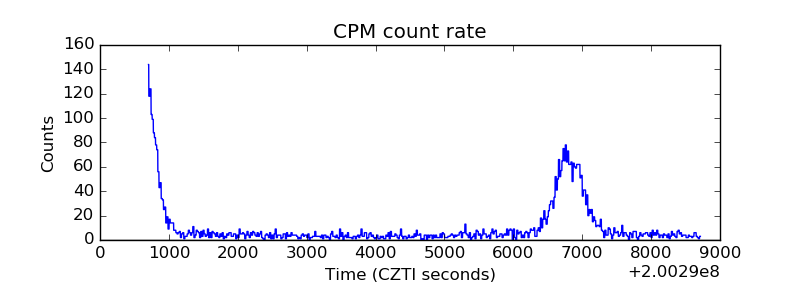

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

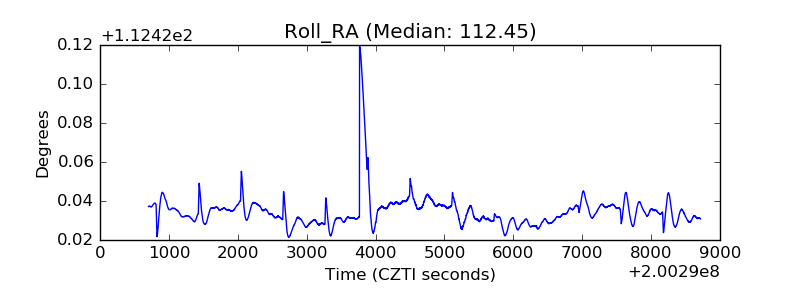

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
