| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_241T02_9000000448_03312cztM0_level2.evt | modeM0/AS1G05_241T02_9000000448_03312cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,088,000 | 85,677,120 |
| Size | 482.6 MB | 81.7 MB |
| Events in quadrant A | 3,401,583 | 526,517 |
| Events in quadrant B | 4,577,869 | 535,147 |
| Events in quadrant C | 3,441,453 | 534,574 |
| Events in quadrant D | 3,427,440 | 506,978 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15058 | 3 |
| B | 0 | 18355 | 2 |
| C | 0 | 14955 | 2 |
| D | 0 | 15293 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7049 | 50 | 0.709320% |
| B | 7049 | 96 | 1.361895% |
| C | 7049 | 31 | 0.439779% |
| D | 7049 | 64 | 0.907930% |

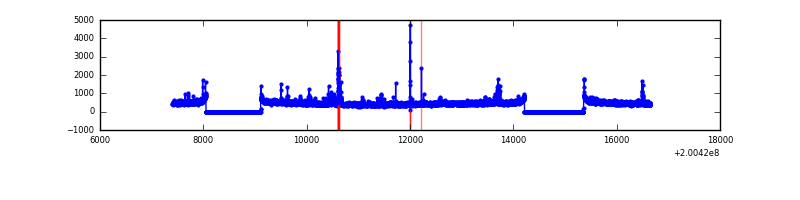

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9253 | 7050 | 11 | 11 | 0.12% | 0.16% |  |
| B | 9253 | 7050 | 3 | 3 | 0.03% | 0.04% |  |
| C | 9253 | 7050 | 13 | 13 | 0.14% | 0.18% |  |
| D | 9253 | 7050 | 45 | 45 | 0.49% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 74427 | 430.63 | 835 | 814 | 170.9 |
| A | 0 | 50 | 69783 | 403.46 | 835 | 814 | 170.9 |
| A | 0 | 118 | 24480 | 138.44 | 835 | 814 | 170.9 |
| B | 15 | 204 | 1183087 | 7194.28 | 850 | 830 | 164.3 |
| B | 3 | 0 | 25737 | 151.56 | 850 | 830 | 164.3 |
| B | 15 | 85 | 23674 | 139.01 | 850 | 830 | 164.3 |
| C | 1 | 192 | 83430 | 423.31 | 821 | 827 | 195.1 |
| C | 6 | 80 | 50458 | 254.34 | 821 | 827 | 195.1 |
| C | 14 | 223 | 22831 | 112.76 | 821 | 827 | 195.1 |
| D | 13 | 223 | 101605 | 509.69 | 808 | 783 | 197.8 |
| D | 12 | 233 | 70590 | 352.9 | 808 | 783 | 197.8 |
| D | 13 | 239 | 62052 | 309.74 | 808 | 783 | 197.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

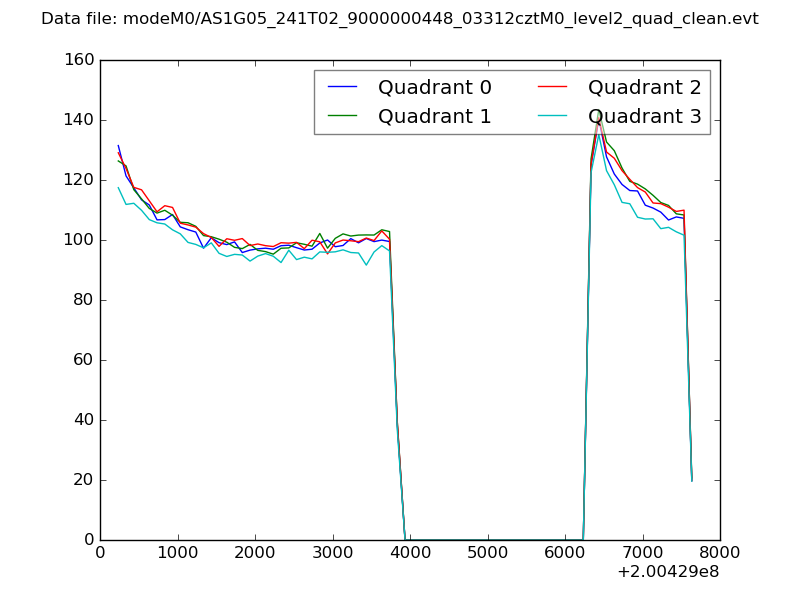

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

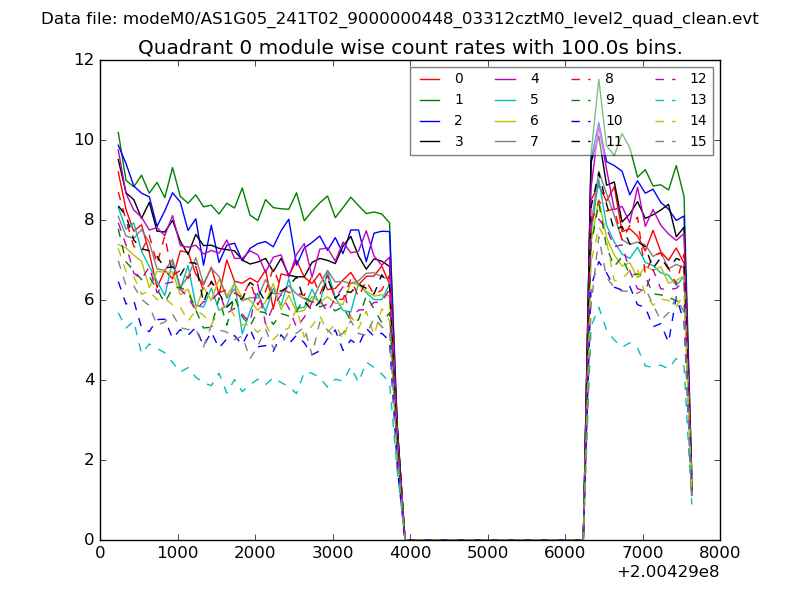

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

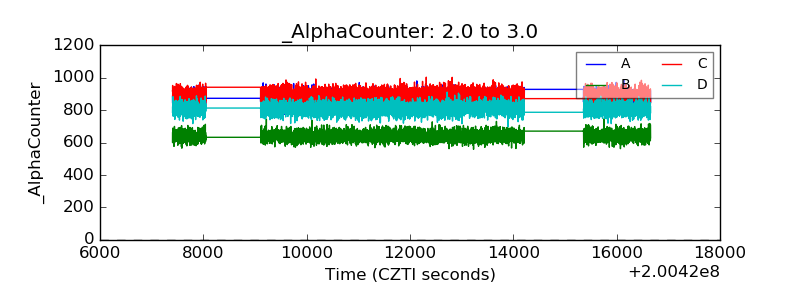

| Alpha Counter |  |
| _CPM_Rate |  |

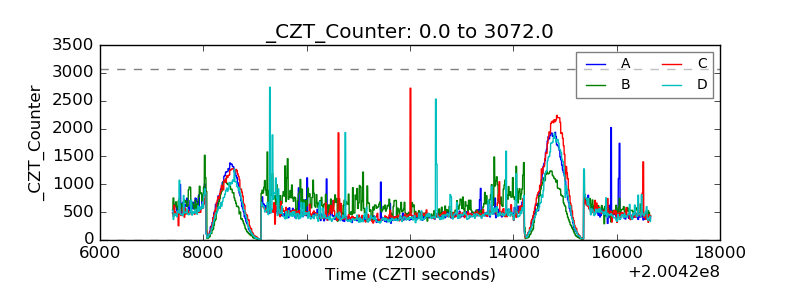

| CZT Counter |  |

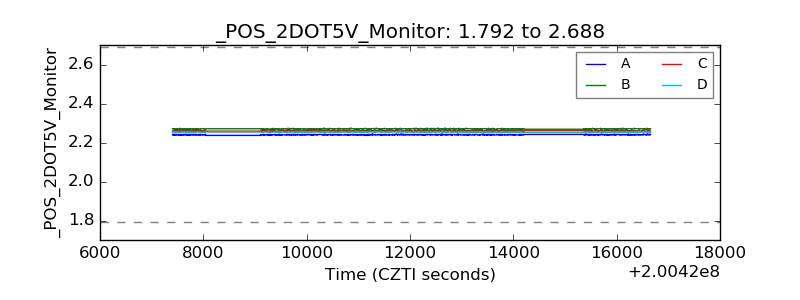

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
