| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_241T02_9000000448_03318cztM0_level2.evt | modeM0/AS1G05_241T02_9000000448_03318cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,496,960 | 85,766,400 |
| Size | 534.5 MB | 81.8 MB |
| Events in quadrant A | 3,546,960 | 517,680 |
| Events in quadrant B | 5,630,252 | 516,387 |
| Events in quadrant C | 3,704,333 | 523,713 |
| Events in quadrant D | 3,571,289 | 504,498 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16072 | 5 |
| B | 0 | 21865 | 4 |
| C | 0 | 16396 | 4 |
| D | 0 | 16389 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7681 | 365 | 4.751985% |
| B | 7681 | 506 | 6.587684% |
| C | 7681 | 303 | 3.944799% |
| D | 7681 | 323 | 4.205182% |

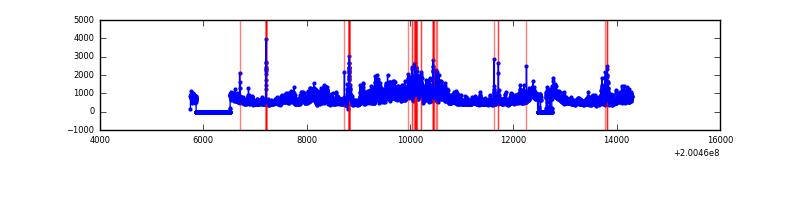

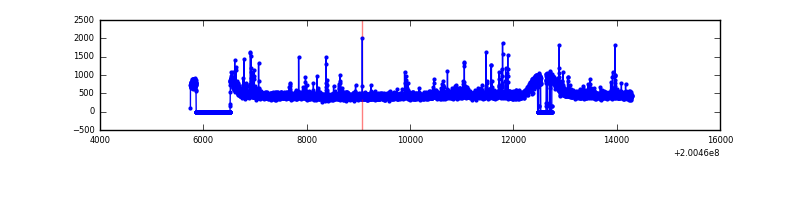

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8541 | 7686 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8541 | 7686 | 53 | 53 | 0.62% | 0.69% |  |
| C | 8541 | 7686 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8541 | 7686 | 9 | 9 | 0.11% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 14869 | 73.13 | 914 | 887 | 191.2 |
| A | 0 | 226 | 10745 | 51.56 | 914 | 887 | 191.2 |
| A | 12 | 194 | 9917 | 47.23 | 914 | 887 | 191.2 |
| B | 15 | 204 | 1783361 | 9809.23 | 915 | 891 | 181.7 |
| B | 2 | 249 | 164728 | 901.62 | 915 | 891 | 181.7 |
| B | 15 | 85 | 69456 | 377.32 | 915 | 891 | 181.7 |
| C | 1 | 16 | 89123 | 414.48 | 899 | 901 | 212.9 |
| C | 1 | 192 | 41493 | 190.71 | 899 | 901 | 212.9 |
| C | 12 | 4 | 34701 | 158.8 | 899 | 901 | 212.9 |
| D | 13 | 223 | 81701 | 366.69 | 897 | 868 | 220.4 |
| D | 5 | 233 | 40762 | 180.98 | 897 | 868 | 220.4 |
| D | 13 | 239 | 24927 | 109.14 | 897 | 868 | 220.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

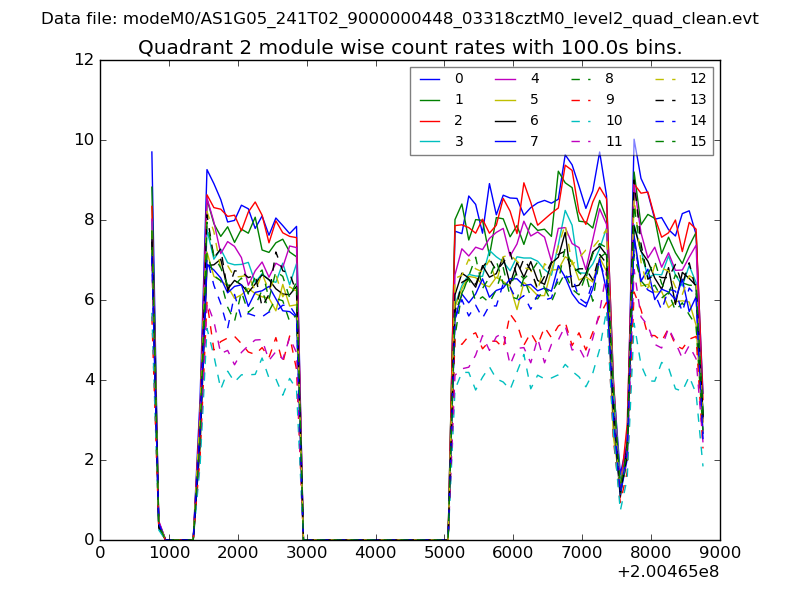

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

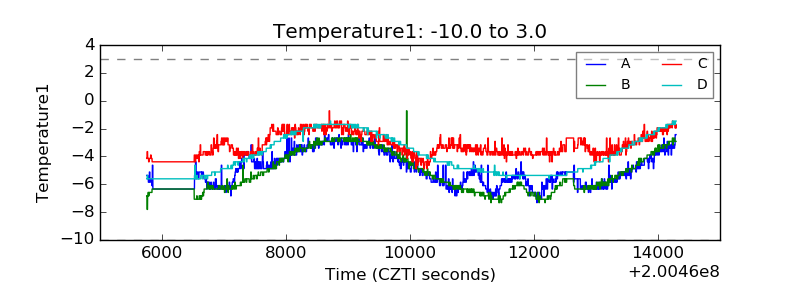

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

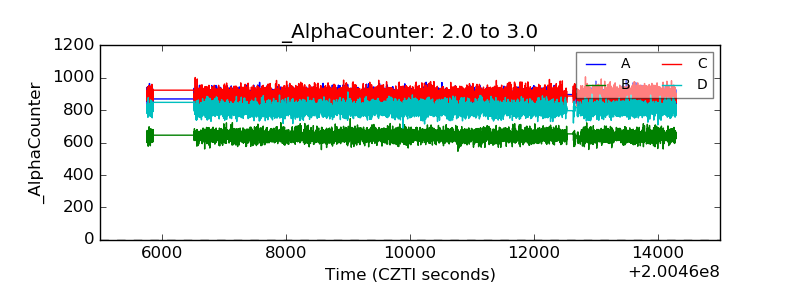

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

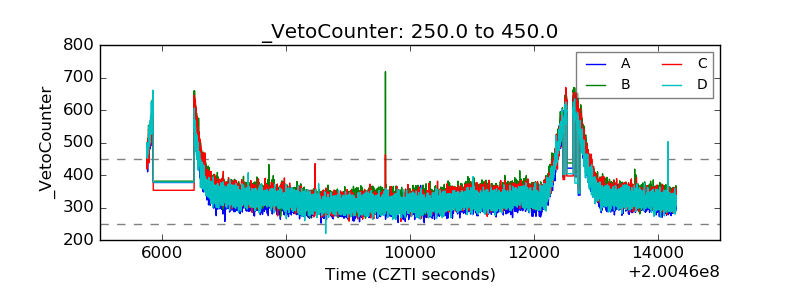

| Veto Counter |  |
