| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T01_9000000450_03328cztM0_level2.evt | modeM0/AS1G05_246T01_9000000450_03328cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,547,520 | 82,572,480 |
| Size | 416.3 MB | 78.7 MB |
| Events in quadrant A | 2,864,815 | 512,981 |
| Events in quadrant B | 3,654,643 | 530,529 |
| Events in quadrant C | 2,999,426 | 526,017 |
| Events in quadrant D | 3,277,911 | 495,539 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12766 | 3 |
| B | 0 | 14988 | 2 |
| C | 0 | 13023 | 2 |
| D | 0 | 14035 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6233 | 15 | 0.240655% |
| B | 6233 | 97 | 1.556233% |
| C | 6233 | 24 | 0.385047% |
| D | 6233 | 57 | 0.914487% |

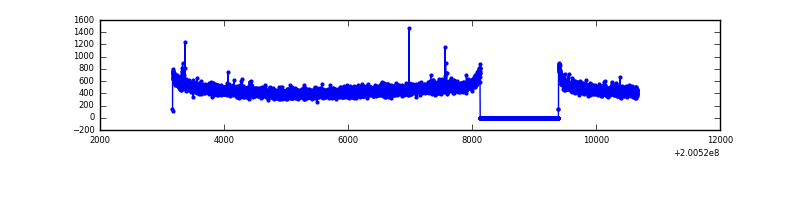

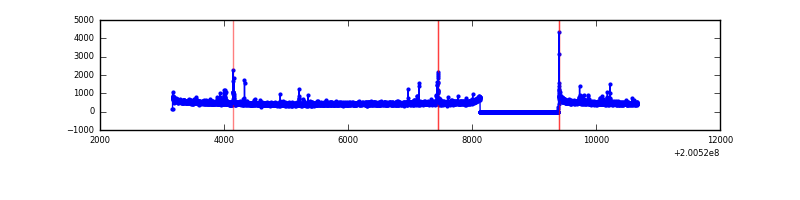

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7498 | 6234 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7498 | 6234 | 60 | 60 | 0.80% | 0.96% |  |
| C | 7498 | 6234 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7498 | 6234 | 36 | 36 | 0.48% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8322 | 50.5 | 738 | 722 | 150.5 |
| A | 0 | 118 | 7939 | 47.96 | 738 | 722 | 150.5 |
| A | 12 | 194 | 7721 | 46.51 | 738 | 722 | 150.5 |
| B | 15 | 204 | 450467 | 3100.19 | 758 | 740 | 145.1 |
| B | 6 | 203 | 221724 | 1523.35 | 758 | 740 | 145.1 |
| B | 0 | 229 | 40065 | 271.08 | 758 | 740 | 145.1 |
| C | 9 | 54 | 44013 | 251.12 | 736 | 743 | 172.3 |
| C | 1 | 16 | 40758 | 232.23 | 736 | 743 | 172.3 |
| C | 1 | 192 | 15242 | 84.15 | 736 | 743 | 172.3 |
| D | 12 | 246 | 250606 | 1420.45 | 719 | 698 | 175.9 |
| D | 13 | 239 | 113267 | 639.83 | 719 | 698 | 175.9 |
| D | 5 | 233 | 87139 | 491.32 | 719 | 698 | 175.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

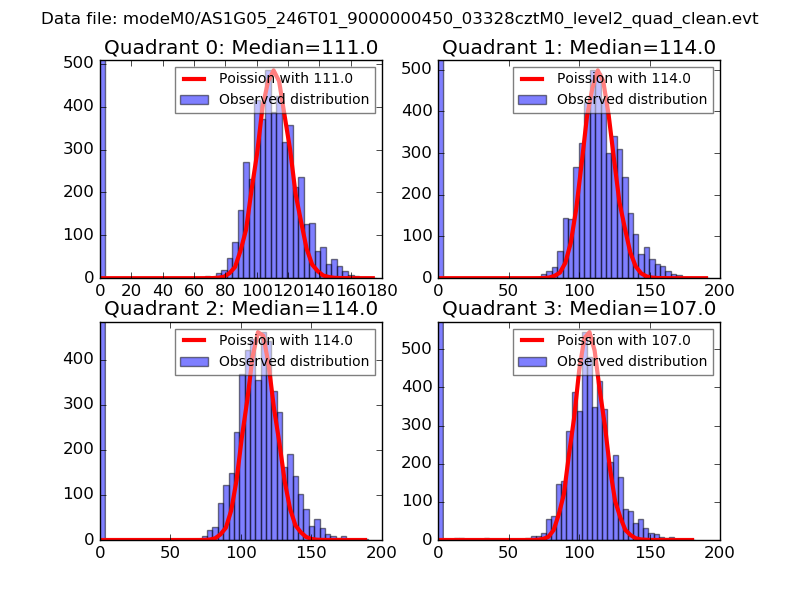

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

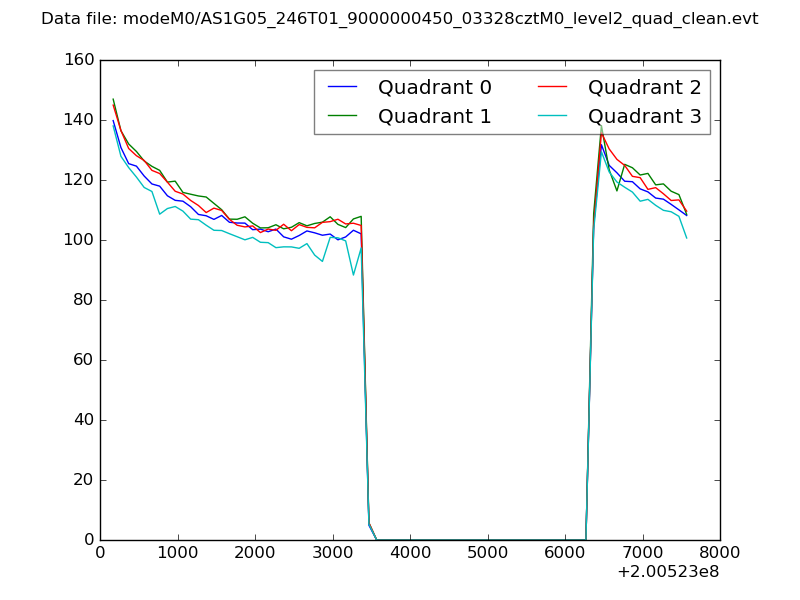

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

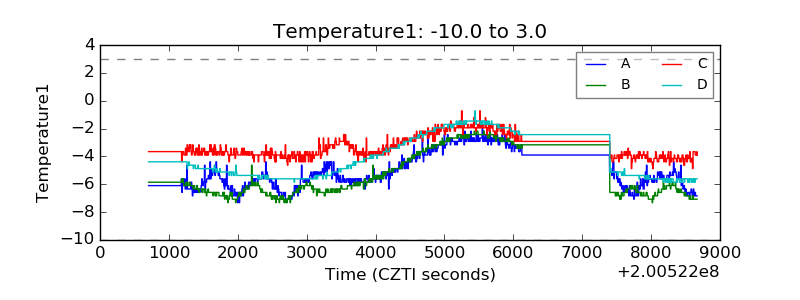

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

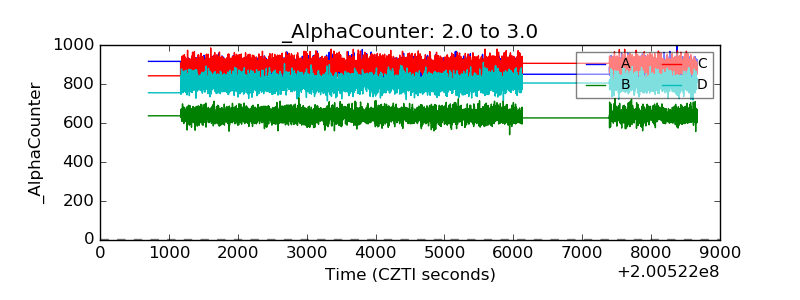

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

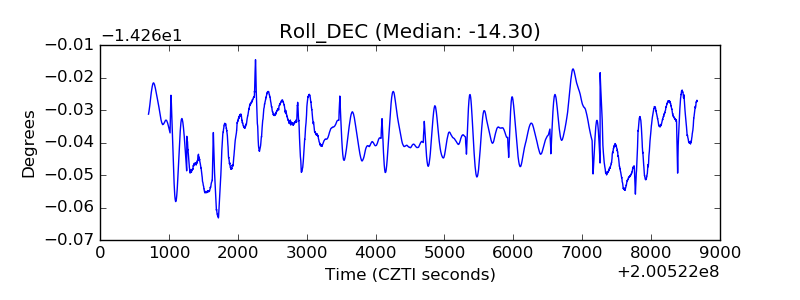

| _Roll_DEC |  |

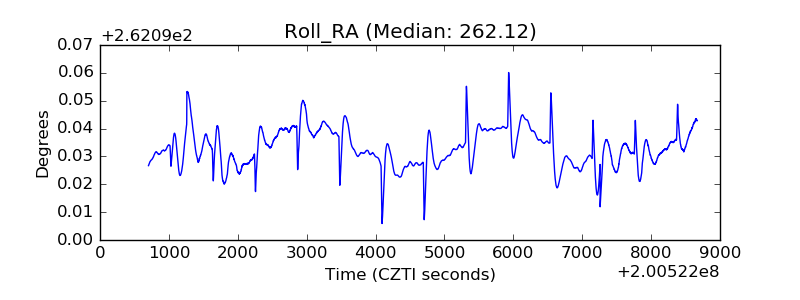

| _Roll_RA |  |
| Veto Counter |  |
