| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T01_9000000450_03330cztM0_level2.evt | modeM0/AS1G05_246T01_9000000450_03330cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,960,320 | 82,229,760 |
| Size | 479.7 MB | 78.4 MB |
| Events in quadrant A | 3,132,806 | 503,509 |
| Events in quadrant B | 3,561,053 | 516,622 |
| Events in quadrant C | 3,790,190 | 506,385 |
| Events in quadrant D | 4,280,505 | 483,381 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14182 | 3 |
| B | 0 | 15207 | 2 |
| C | 0 | 15981 | 2 |
| D | 0 | 17357 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6890 | 24 | 0.348331% |
| B | 6890 | 46 | 0.667634% |
| C | 6890 | 107 | 1.552975% |
| D | 6890 | 121 | 1.756168% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

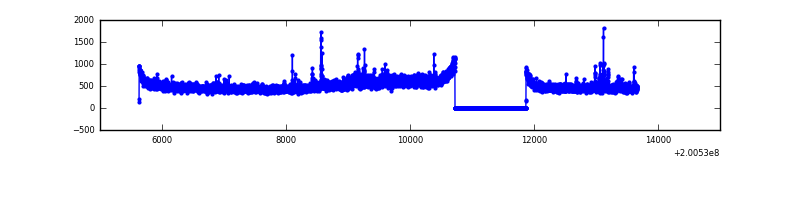

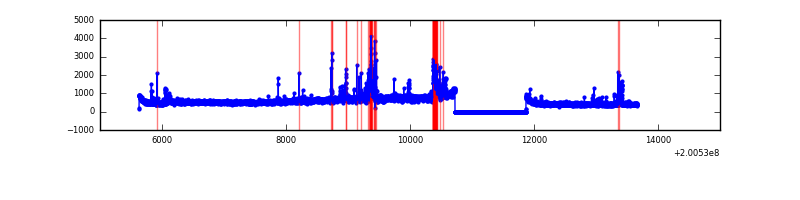

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8035 | 6891 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8035 | 6891 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8035 | 6891 | 89 | 89 | 1.11% | 1.29% |  |
| D | 8035 | 6891 | 68 | 68 | 0.85% | 0.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 8757 | 47.71 | 811 | 793 | 166.9 |
| A | 0 | 226 | 8546 | 46.45 | 811 | 793 | 166.9 |
| A | 8 | 15 | 4209 | 20.46 | 811 | 793 | 166.9 |
| B | 15 | 204 | 254044 | 1577.41 | 826 | 807 | 160.5 |
| B | 0 | 229 | 68949 | 424.45 | 826 | 807 | 160.5 |
| B | 14 | 167 | 57532 | 353.34 | 826 | 807 | 160.5 |
| C | 14 | 223 | 656684 | 3542.56 | 791 | 796 | 185.1 |
| C | 9 | 54 | 12877 | 65.25 | 791 | 796 | 185.1 |
| C | 1 | 192 | 9681 | 47.99 | 791 | 796 | 185.1 |
| D | 12 | 246 | 933065 | 4844.3 | 787 | 765 | 192.5 |
| D | 13 | 223 | 237426 | 1229.71 | 787 | 765 | 192.5 |
| D | 13 | 137 | 31643 | 160.44 | 787 | 765 | 192.5 |

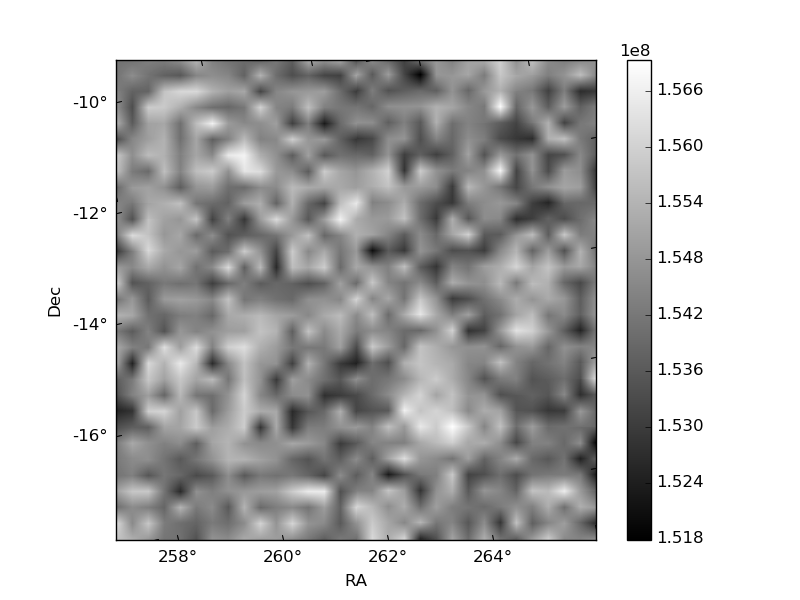

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

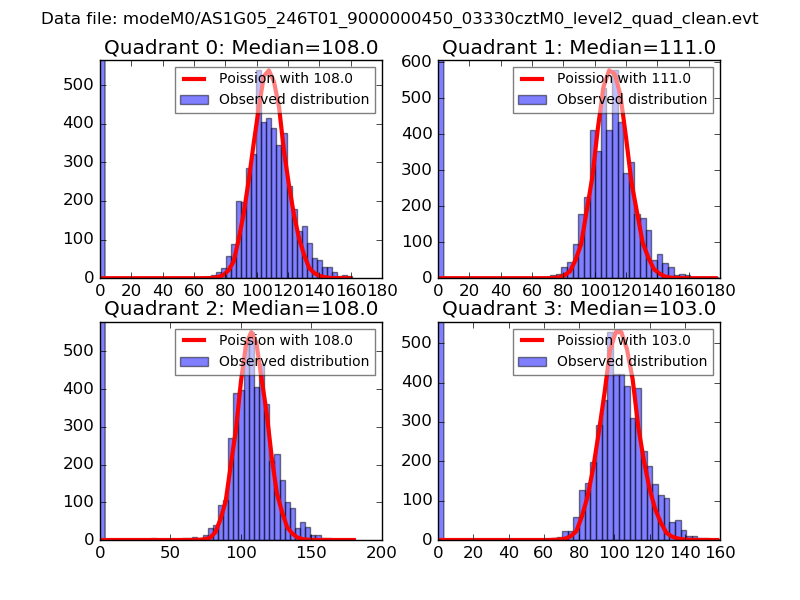

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

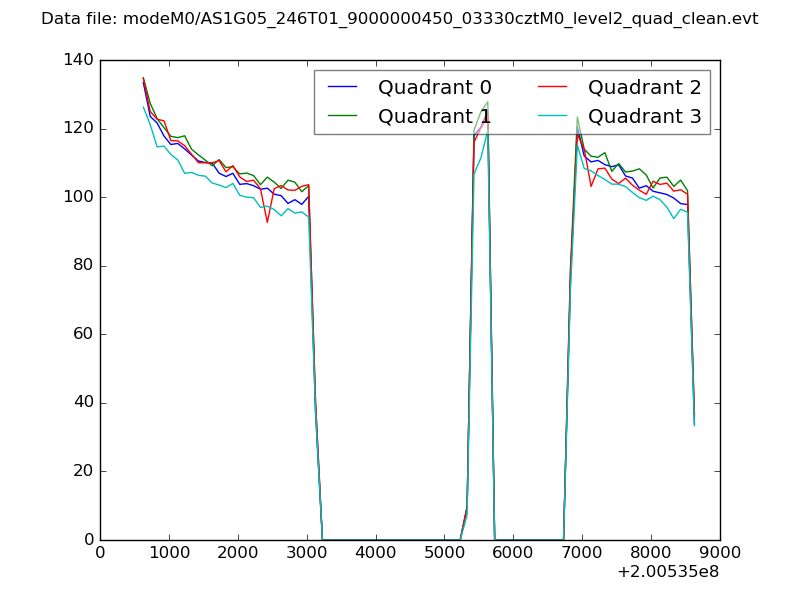

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

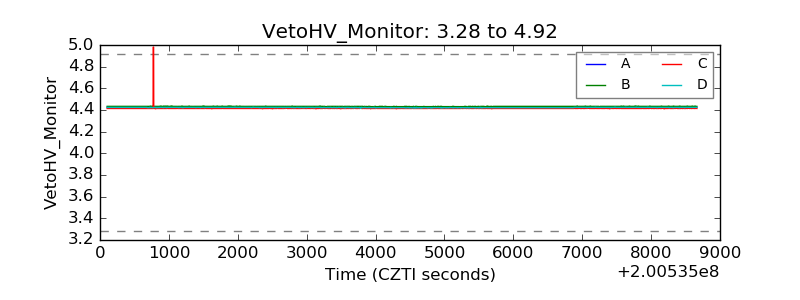

| CZT HV Monitor |  |
| D_VDD |  |

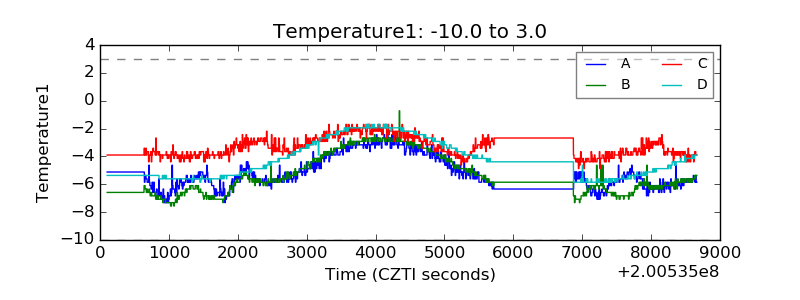

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
