| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T01_9000000450_03337cztM0_level2.evt | modeM0/AS1G05_246T01_9000000450_03337cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,225,209,600 | 179,953,920 |
| Size | 1.1 GB | 171.6 MB |
| Events in quadrant A | 7,947,681 | 1,074,638 |
| Events in quadrant B | 9,661,739 | 1,082,555 |
| Events in quadrant C | 9,461,332 | 1,066,641 |
| Events in quadrant D | 8,863,829 | 1,032,277 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38740 | 2749 |
| B | 0 | 43450 | 3518 |
| C | 0 | 43058 | 3229 |
| D | 0 | 42695 | 3364 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 31 |
| B | 0 | 383 | 23 |
| C | 0 | 379 | 23 |
| D | 0 | 381 | 33 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 3 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17340 | 484 | 2.791234% |
| B | 17272 | 566 | 3.276980% |
| C | 17299 | 520 | 3.005954% |
| D | 17310 | 648 | 3.743501% |

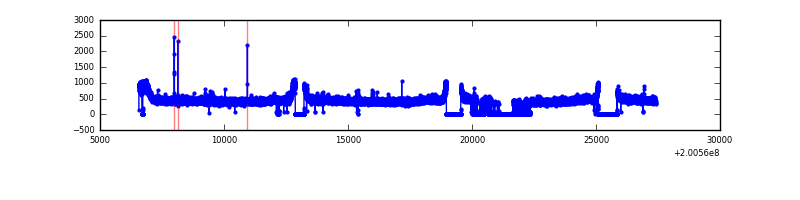

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20836 | 17579 | 3 | 3 | 0.01% | 0.02% |  |
| B | 20836 | 17519 | 46 | 46 | 0.22% | 0.26% |  |
| C | 20836 | 17548 | 139 | 139 | 0.67% | 0.79% |  |
| D | 20836 | 17556 | 200 | 200 | 0.96% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 42637 | 95.89 | 2043 | 1990 | 423.9 |
| A | 0 | 226 | 22852 | 49.21 | 2043 | 1990 | 423.9 |
| A | 0 | 118 | 22681 | 48.81 | 2043 | 1990 | 423.9 |
| B | 15 | 204 | 1080500 | 2658.5 | 2056 | 2004 | 405.7 |
| B | 0 | 229 | 260049 | 636.08 | 2056 | 2004 | 405.7 |
| B | 14 | 167 | 200395 | 489.04 | 2056 | 2004 | 405.7 |
| C | 14 | 223 | 1185017 | 2535.4 | 1986 | 1998 | 466.6 |
| C | 8 | 208 | 232516 | 494.04 | 1986 | 1998 | 466.6 |
| C | 9 | 144 | 130894 | 276.24 | 1986 | 1998 | 466.6 |
| D | 13 | 223 | 756160 | 1535.71 | 1981 | 1918 | 491.1 |
| D | 2 | 216 | 261564 | 528.66 | 1981 | 1918 | 491.1 |
| D | 3 | 247 | 137302 | 275.65 | 1981 | 1918 | 491.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

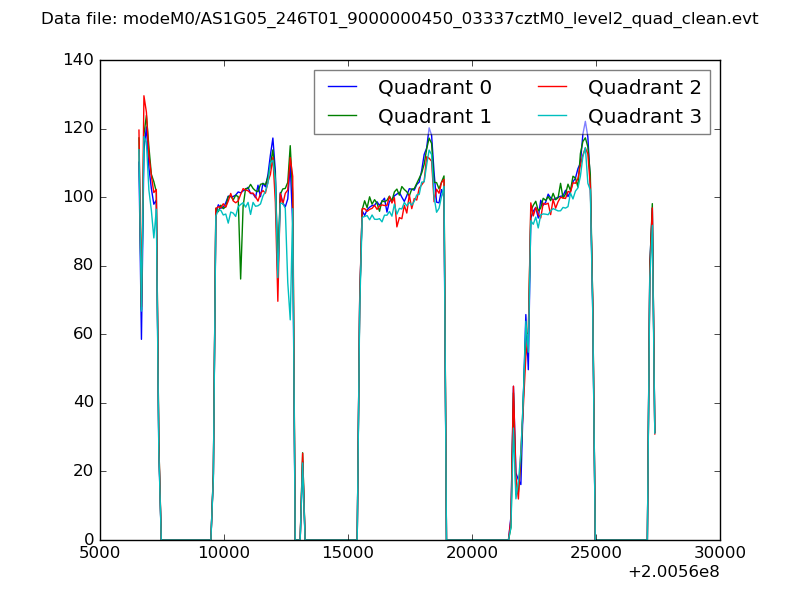

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

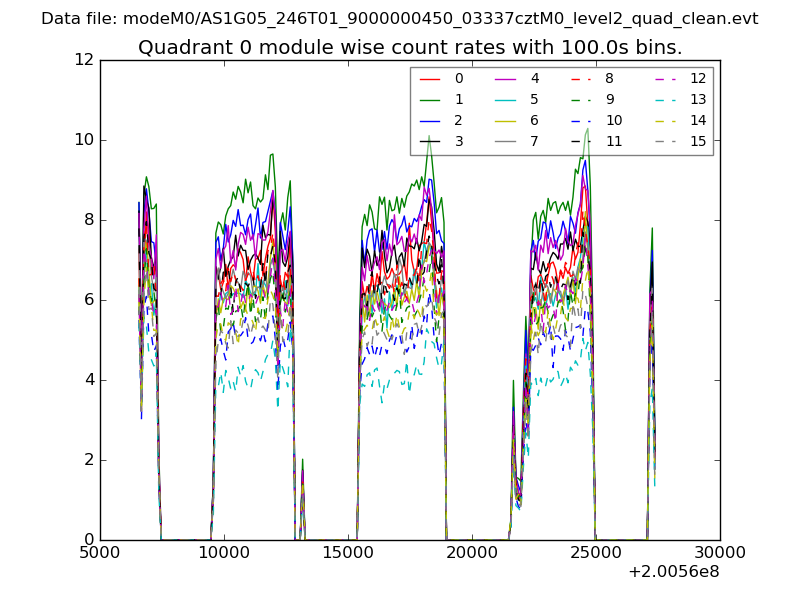

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

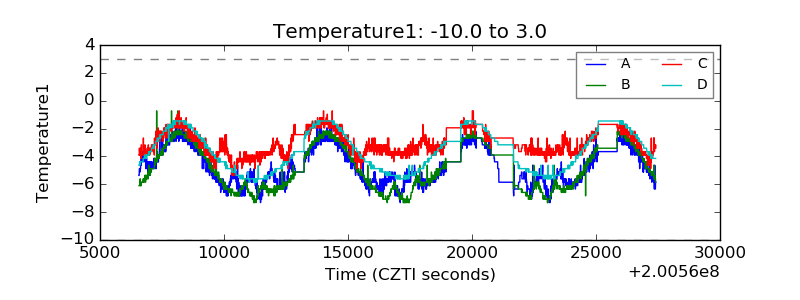

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

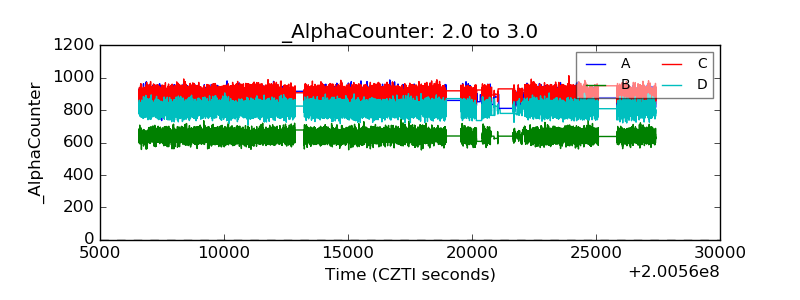

| Alpha Counter |  |
| _CPM_Rate |  |

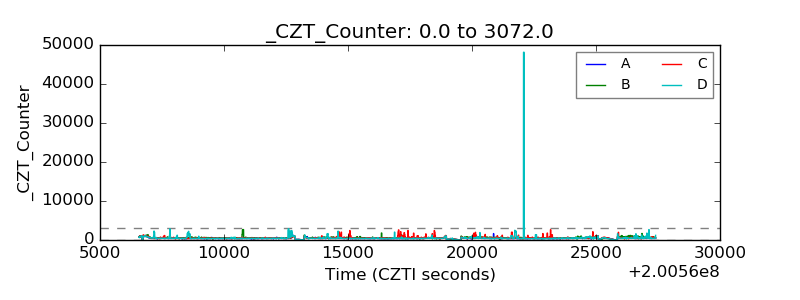

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

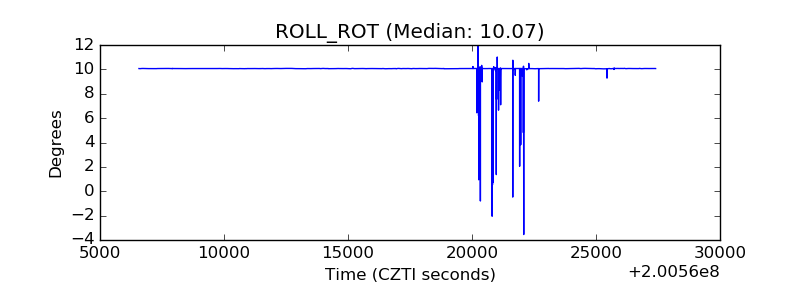

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

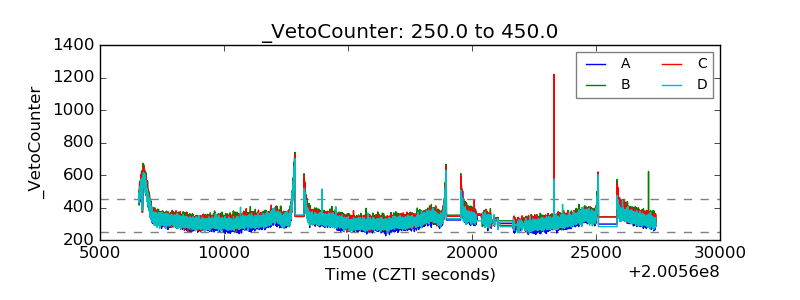

| Veto Counter |  |
