| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T01_9000000450_03339cztM0_level2.evt | modeM0/AS1G05_246T01_9000000450_03339cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,463,040 | 75,176,640 |
| Size | 490.6 MB | 71.7 MB |
| Events in quadrant A | 3,024,014 | 454,227 |
| Events in quadrant B | 4,165,390 | 459,258 |
| Events in quadrant C | 4,639,817 | 457,702 |
| Events in quadrant D | 3,305,847 | 446,875 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13562 | 3 |
| B | 0 | 16797 | 2 |
| C | 0 | 18290 | 2 |
| D | 0 | 14522 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6576 | 45 | 0.684307% |
| B | 6576 | 107 | 1.627129% |
| C | 6576 | 77 | 1.170925% |
| D | 6576 | 50 | 0.760341% |

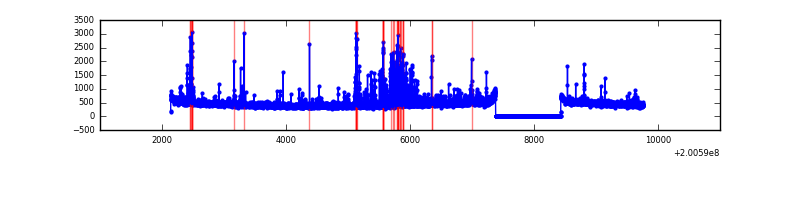

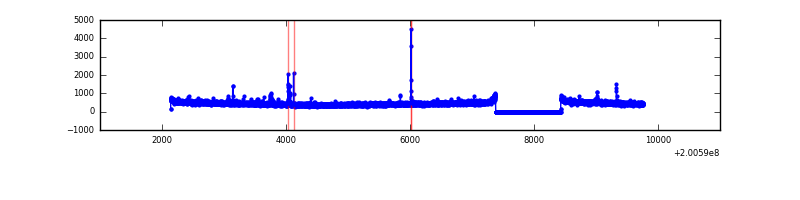

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7627 | 6577 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7627 | 6577 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7627 | 6577 | 10 | 10 | 0.13% | 0.15% |  |
| D | 7627 | 6577 | 39 | 39 | 0.51% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 249 | 41534 | 257.48 | 767 | 748 | 158.4 |
| A | 8 | 15 | 11089 | 65.28 | 767 | 748 | 158.4 |
| A | 0 | 50 | 9570 | 55.69 | 767 | 748 | 158.4 |
| B | 15 | 204 | 471471 | 3100.51 | 780 | 761 | 151.8 |
| B | 14 | 167 | 337006 | 2214.81 | 780 | 761 | 151.8 |
| B | 6 | 203 | 113722 | 744.06 | 780 | 761 | 151.8 |
| C | 8 | 208 | 1116871 | 6277.08 | 752 | 755 | 177.8 |
| C | 1 | 192 | 461447 | 2590.95 | 752 | 755 | 177.8 |
| C | 14 | 223 | 81089 | 451.8 | 752 | 755 | 177.8 |
| D | 8 | 195 | 323562 | 1736.88 | 750 | 728 | 185.9 |
| D | 13 | 223 | 66186 | 352.17 | 750 | 728 | 185.9 |
| D | 5 | 233 | 35093 | 184.89 | 750 | 728 | 185.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

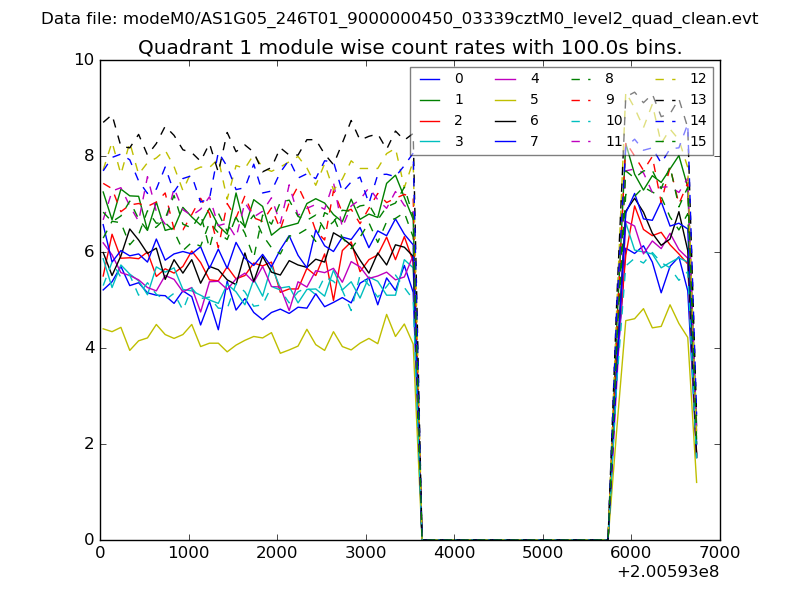

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

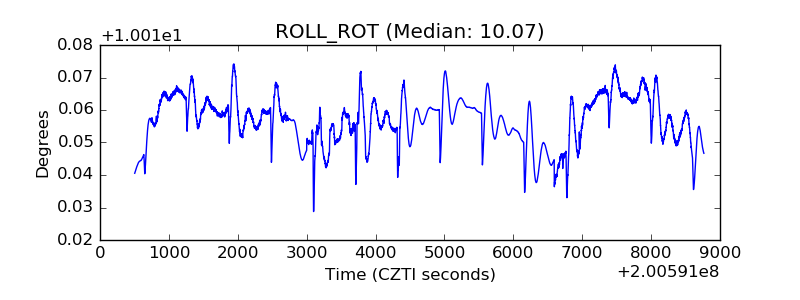

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
