| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T01_9000000450_03344cztM0_level2.evt | modeM0/AS1G05_246T01_9000000450_03344cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,906,880 | 82,241,280 |
| Size | 520.6 MB | 78.4 MB |
| Events in quadrant A | 3,387,320 | 502,182 |
| Events in quadrant B | 3,945,739 | 516,984 |
| Events in quadrant C | 5,469,475 | 504,792 |
| Events in quadrant D | 3,267,621 | 490,744 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14781 | 4 |
| B | 0 | 16148 | 3 |
| C | 0 | 21082 | 3 |
| D | 0 | 14738 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6820 | 74 | 1.085044% |
| B | 6820 | 96 | 1.407625% |
| C | 6820 | 318 | 4.662757% |
| D | 6820 | 80 | 1.173021% |

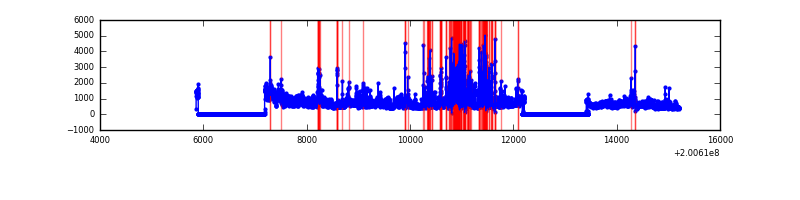

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9345 | 6824 | 26 | 26 | 0.28% | 0.38% |  |
| B | 9345 | 6824 | 20 | 20 | 0.21% | 0.29% |  |
| C | 9345 | 6824 | 208 | 208 | 2.23% | 3.05% |  |
| D | 9345 | 6824 | 53 | 53 | 0.57% | 0.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 211051 | 1287.82 | 805 | 789 | 163.3 |
| A | 0 | 118 | 35424 | 212.13 | 805 | 789 | 163.3 |
| A | 8 | 15 | 25743 | 152.84 | 805 | 789 | 163.3 |
| B | 15 | 204 | 441703 | 2754.69 | 824 | 803 | 160.1 |
| B | 0 | 229 | 199458 | 1241.17 | 824 | 803 | 160.1 |
| B | 14 | 167 | 71181 | 439.71 | 824 | 803 | 160.1 |
| C | 8 | 208 | 1361739 | 7427.62 | 780 | 785 | 183.2 |
| C | 14 | 223 | 921479 | 5024.83 | 780 | 785 | 183.2 |
| C | 12 | 175 | 60678 | 326.88 | 780 | 785 | 183.2 |
| D | 13 | 223 | 176054 | 913.75 | 784 | 762 | 191.8 |
| D | 9 | 85 | 59885 | 308.19 | 784 | 762 | 191.8 |
| D | 13 | 239 | 38802 | 198.29 | 784 | 762 | 191.8 |

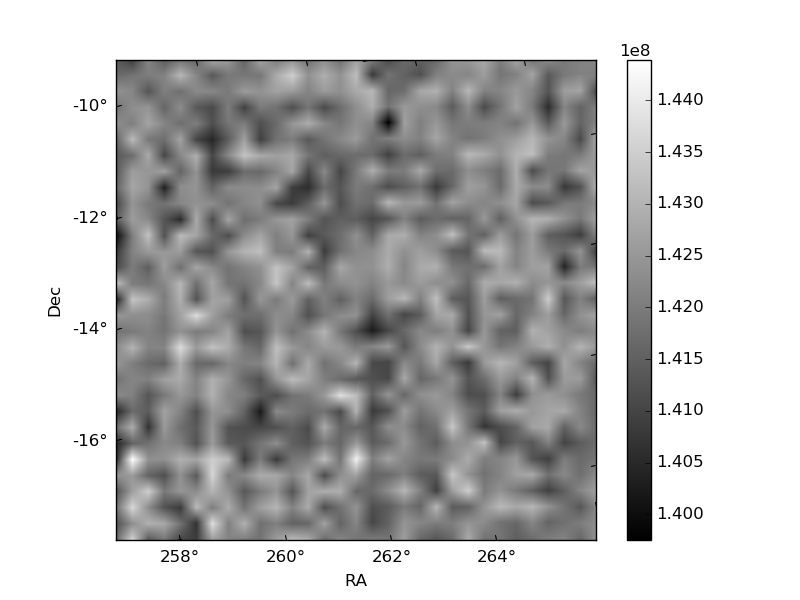

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

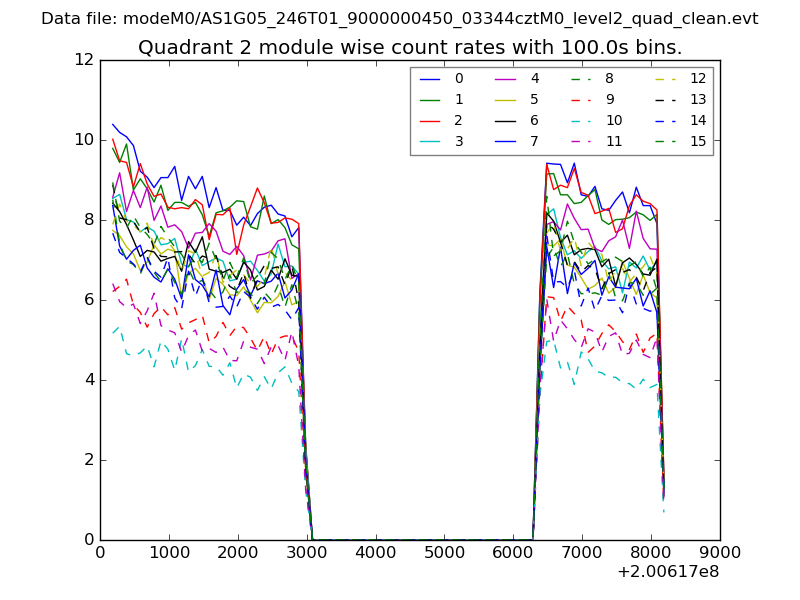

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

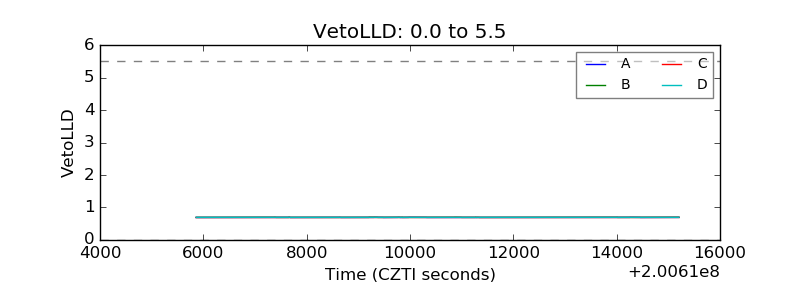

| Veto LLD |  |
| Alpha Counter |  |

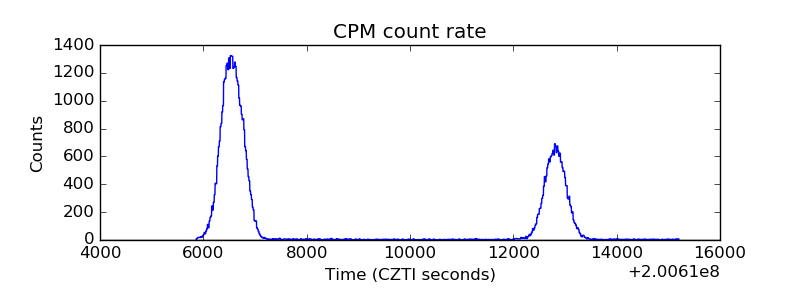

| _CPM_Rate |  |

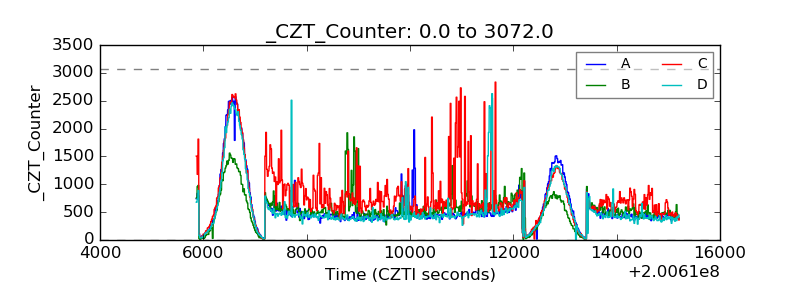

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

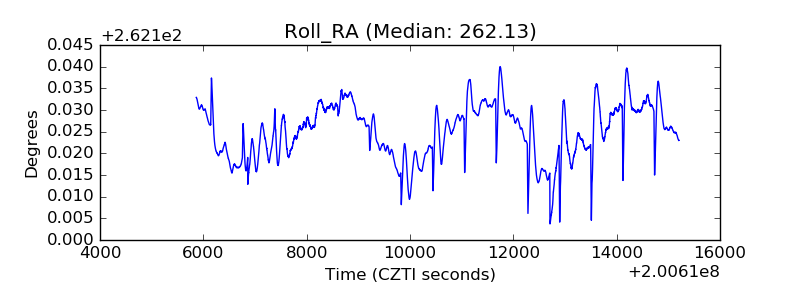

| _Roll_RA |  |

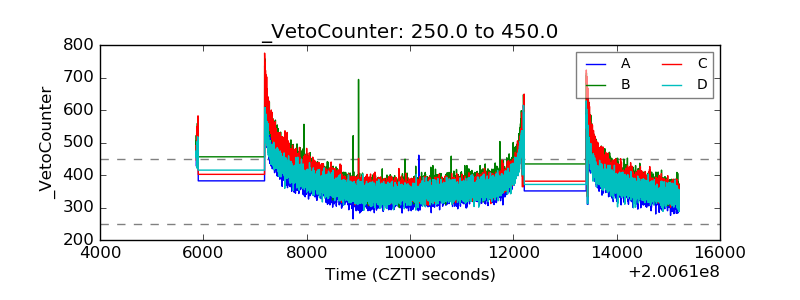

| Veto Counter |  |
