| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T01_9000000450_03346cztM0_level2.evt | modeM0/AS1G05_246T01_9000000450_03346cztM0_level2_quad_clean.evt |
| Size (bytes) | 243,918,720 | 46,653,120 |
| Size | 232.6 MB | 44.5 MB |
| Events in quadrant A | 1,467,538 | 302,610 |
| Events in quadrant B | 1,534,116 | 311,912 |
| Events in quadrant C | 2,753,917 | 287,938 |
| Events in quadrant D | 1,423,849 | 294,063 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7084 | 670 |
| B | 0 | 7199 | 732 |
| C | 0 | 10883 | 743 |
| D | 0 | 7139 | 703 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 69 | 5 |
| B | 0 | 71 | 7 |
| C | 0 | 69 | 5 |
| D | 0 | 70 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 1 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3029 | 148 | 4.886101% |
| B | 3025 | 131 | 4.330579% |
| C | 3002 | 445 | 14.823451% |
| D | 3014 | 120 | 3.981420% |

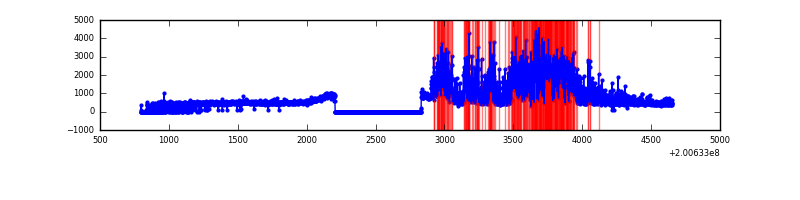

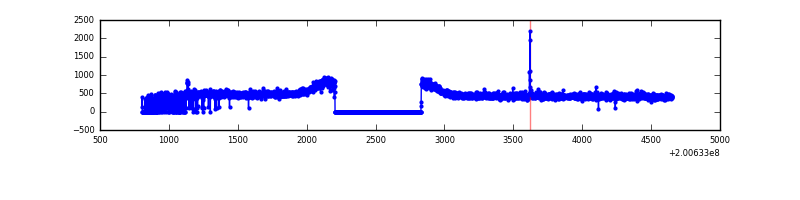

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3848 | 3121 | 1 | 1 | 0.03% | 0.03% |  |
| B | 3823 | 3124 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3857 | 3104 | 302 | 302 | 7.83% | 9.73% |  |
| D | 3818 | 3118 | 4 | 4 | 0.10% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 249 | 16670 | 206.98 | 373 | 363 | 78.8 |
| A | 0 | 50 | 11015 | 135.2 | 373 | 363 | 78.8 |
| A | 12 | 194 | 3976 | 45.86 | 373 | 363 | 78.8 |
| B | 15 | 204 | 44388 | 574.44 | 380 | 369 | 76.6 |
| B | 14 | 167 | 17617 | 225.08 | 380 | 369 | 76.6 |
| B | 12 | 111 | 5701 | 69.58 | 380 | 369 | 76.6 |
| C | 8 | 208 | 1280942 | 15168.43 | 351 | 351 | 84.4 |
| C | 5 | 250 | 29650 | 347.04 | 351 | 351 | 84.4 |
| C | 1 | 192 | 29070 | 340.17 | 351 | 351 | 84.4 |
| D | 13 | 223 | 20942 | 226.88 | 365 | 354 | 90.7 |
| D | 4 | 160 | 9134 | 96.76 | 365 | 354 | 90.7 |
| D | 2 | 206 | 7196 | 75.4 | 365 | 354 | 90.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

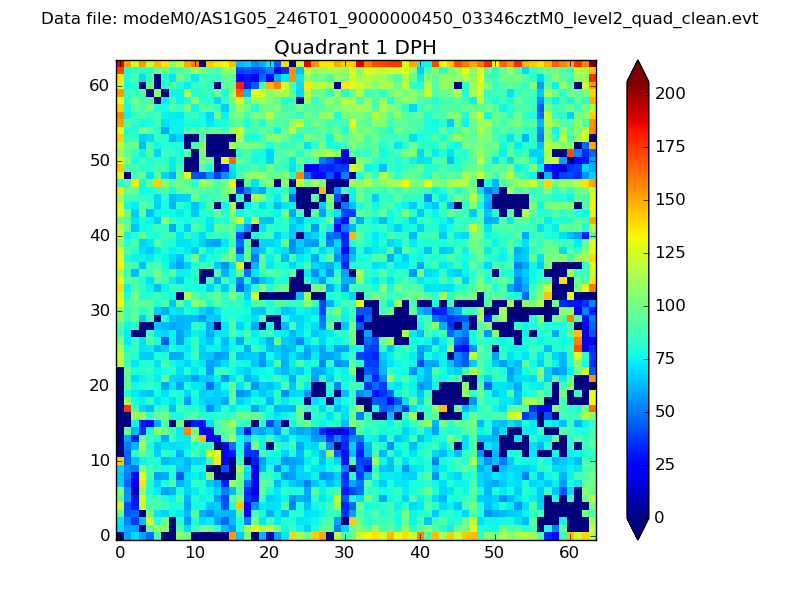

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

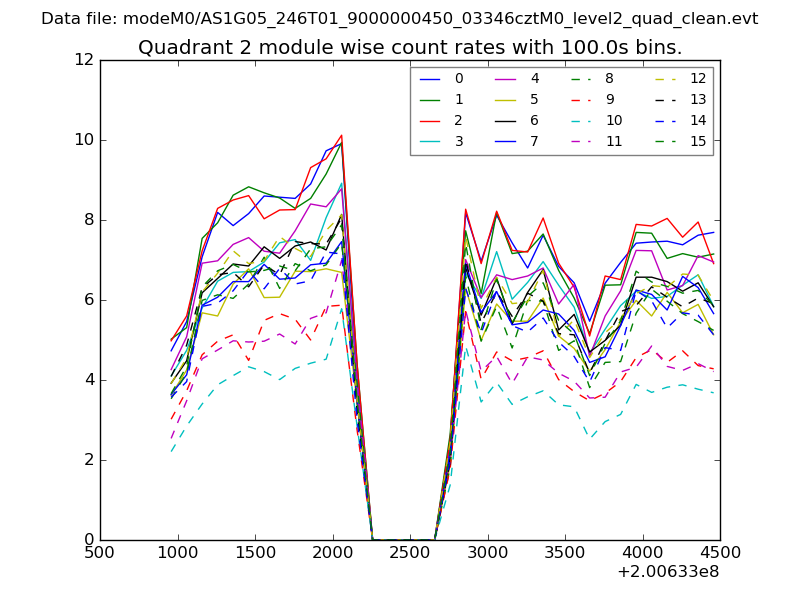

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

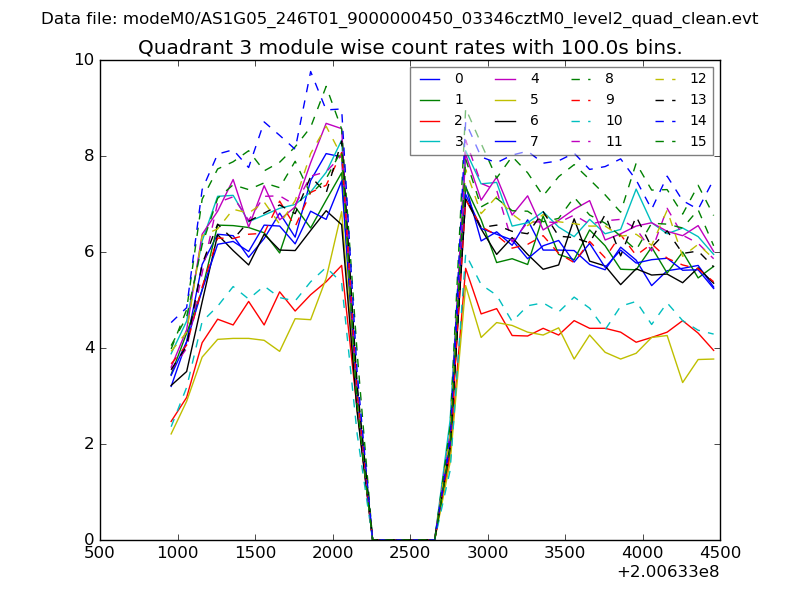

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

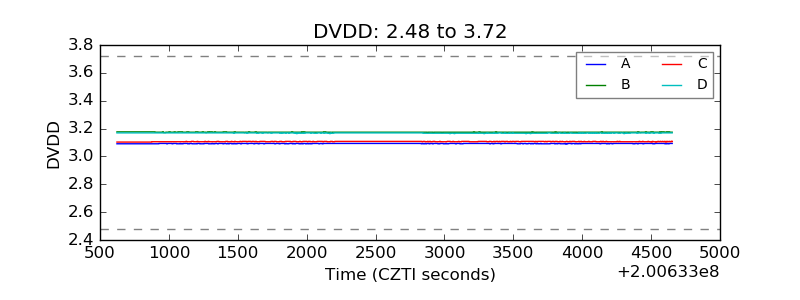

| D_VDD |  |

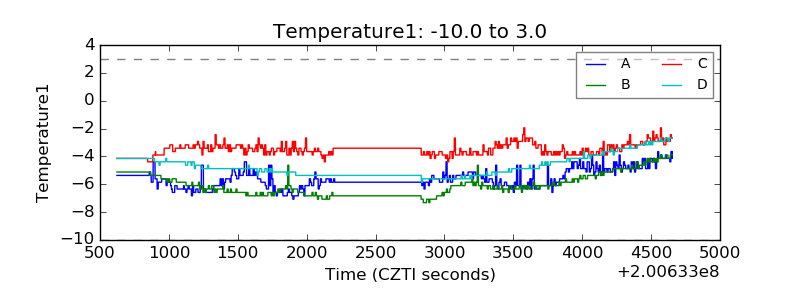

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

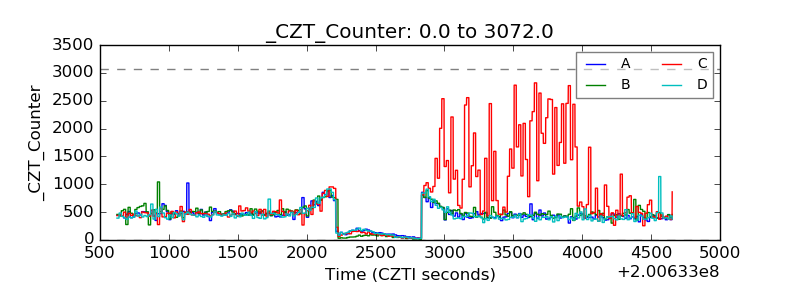

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
