| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03356cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03356cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,392,320 | 83,805,120 |
| Size | 394.2 MB | 79.9 MB |
| Events in quadrant A | 2,727,492 | 536,659 |
| Events in quadrant B | 3,681,458 | 539,374 |
| Events in quadrant C | 3,008,474 | 535,789 |
| Events in quadrant D | 2,701,988 | 514,686 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12125 | 2 |
| B | 0 | 14785 | 1 |
| C | 0 | 12847 | 1 |
| D | 0 | 12283 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5884 | 20 | 0.339905% |
| B | 5884 | 70 | 1.189667% |
| C | 5884 | 29 | 0.492862% |
| D | 5884 | 15 | 0.254929% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7099 | 5885 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7099 | 5885 | 4 | 4 | 0.06% | 0.07% |  |
| C | 7099 | 5885 | 16 | 16 | 0.23% | 0.27% |  |
| D | 7099 | 5885 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 35629 | 246.82 | 694 | 679 | 141.6 |
| A | 14 | 249 | 9122 | 59.62 | 694 | 679 | 141.6 |
| A | 0 | 118 | 8803 | 57.37 | 694 | 679 | 141.6 |
| B | 15 | 204 | 886634 | 6496.06 | 709 | 693 | 136.4 |
| B | 4 | 81 | 17004 | 119.6 | 709 | 693 | 136.4 |
| B | 2 | 249 | 12310 | 85.18 | 709 | 693 | 136.4 |
| C | 14 | 223 | 278771 | 1729.61 | 687 | 691 | 160.8 |
| C | 1 | 16 | 21901 | 131.92 | 687 | 691 | 160.8 |
| C | 12 | 175 | 9523 | 54.93 | 687 | 691 | 160.8 |
| D | 13 | 223 | 53080 | 320.2 | 676 | 658 | 163.7 |
| D | 4 | 160 | 30153 | 180.16 | 676 | 658 | 163.7 |
| D | 5 | 233 | 22444 | 133.07 | 676 | 658 | 163.7 |

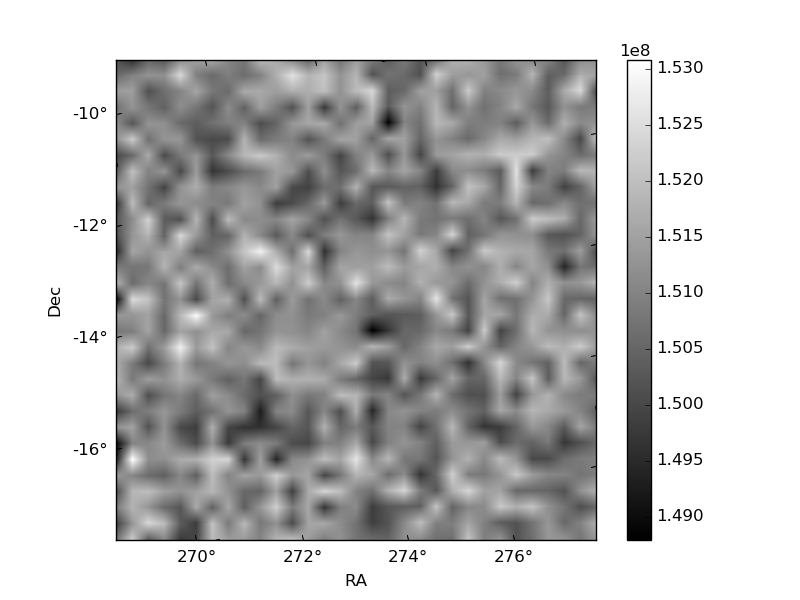

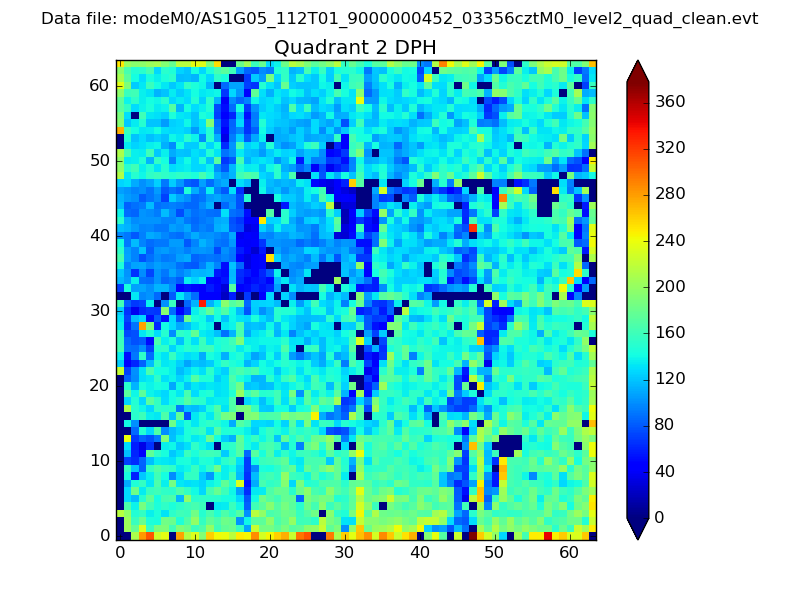

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

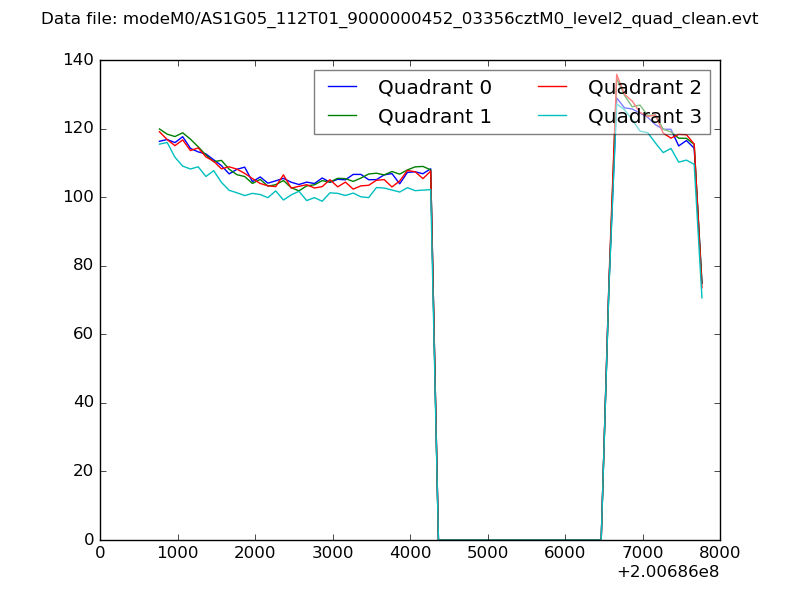

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

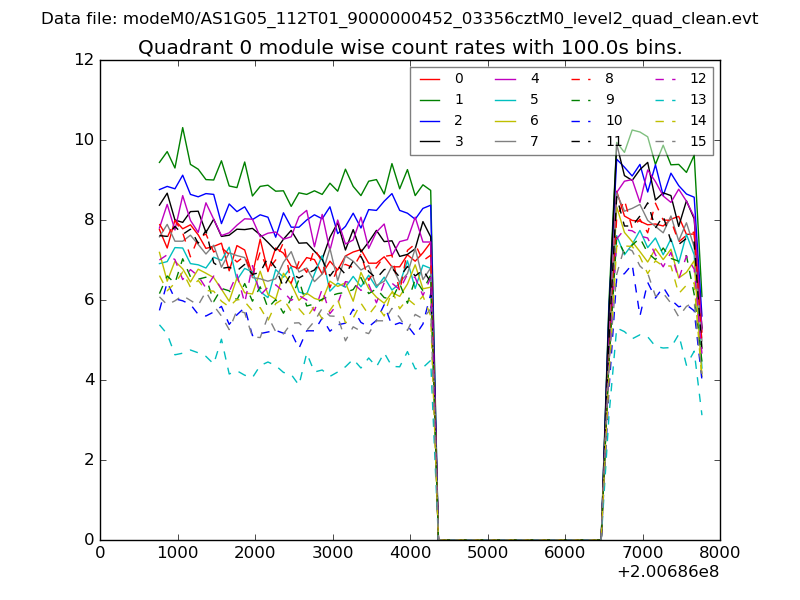

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

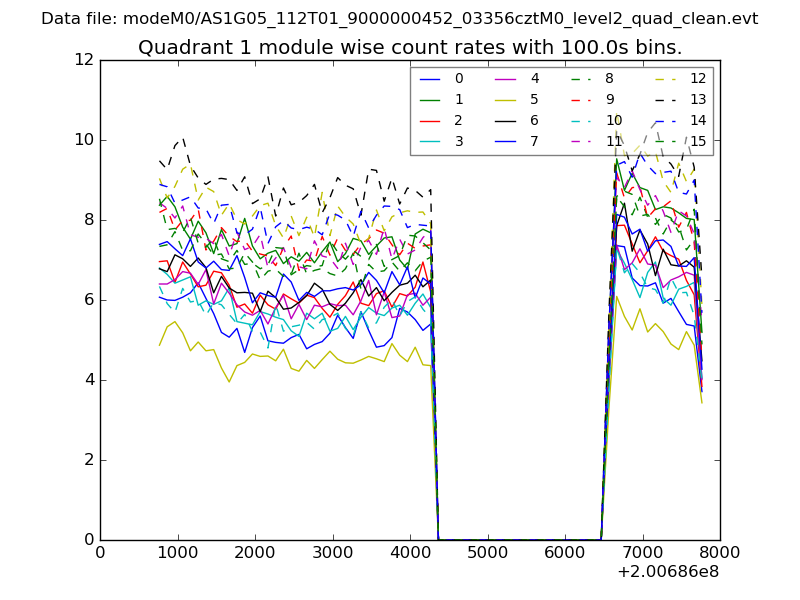

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

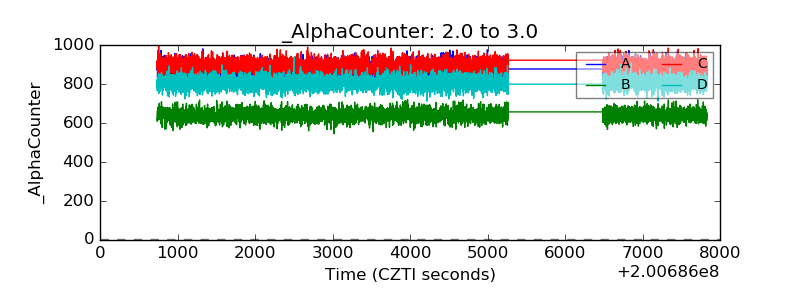

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

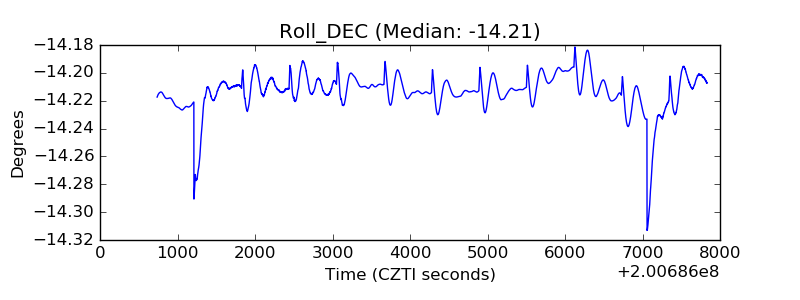

| _Roll_DEC |  |
| _Roll_RA |  |

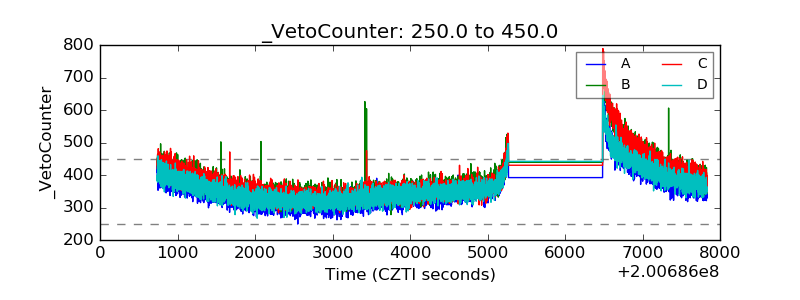

| Veto Counter |  |
