| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03357cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03357cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,837,760 | 88,277,760 |
| Size | 443.3 MB | 84.2 MB |
| Events in quadrant A | 2,942,519 | 562,510 |
| Events in quadrant B | 4,753,190 | 566,756 |
| Events in quadrant C | 3,014,753 | 568,245 |
| Events in quadrant D | 2,941,029 | 537,841 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12974 | 3 |
| B | 0 | 18621 | 2 |
| C | 0 | 13081 | 2 |
| D | 0 | 13189 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6272 | 24 | 0.382653% |
| B | 6272 | 174 | 2.774235% |
| C | 6272 | 20 | 0.318878% |
| D | 6272 | 24 | 0.382653% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7567 | 6273 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7567 | 6273 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7567 | 6273 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7567 | 6273 | 15 | 15 | 0.20% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 18244 | 113.1 | 755 | 740 | 154.8 |
| A | 0 | 226 | 9487 | 56.52 | 755 | 740 | 154.8 |
| A | 14 | 249 | 7780 | 45.49 | 755 | 740 | 154.8 |
| B | 15 | 204 | 1510973 | 10255.57 | 769 | 752 | 147.3 |
| B | 14 | 167 | 132738 | 896.29 | 769 | 752 | 147.3 |
| B | 2 | 249 | 47793 | 319.44 | 769 | 752 | 147.3 |
| C | 1 | 16 | 42638 | 240.79 | 750 | 755 | 173.9 |
| C | 14 | 223 | 19688 | 108.85 | 750 | 755 | 173.9 |
| C | 9 | 54 | 9412 | 49.77 | 750 | 755 | 173.9 |
| D | 13 | 223 | 77083 | 427.88 | 736 | 716 | 178.5 |
| D | 4 | 160 | 21611 | 117.07 | 736 | 716 | 178.5 |
| D | 13 | 239 | 18249 | 98.24 | 736 | 716 | 178.5 |

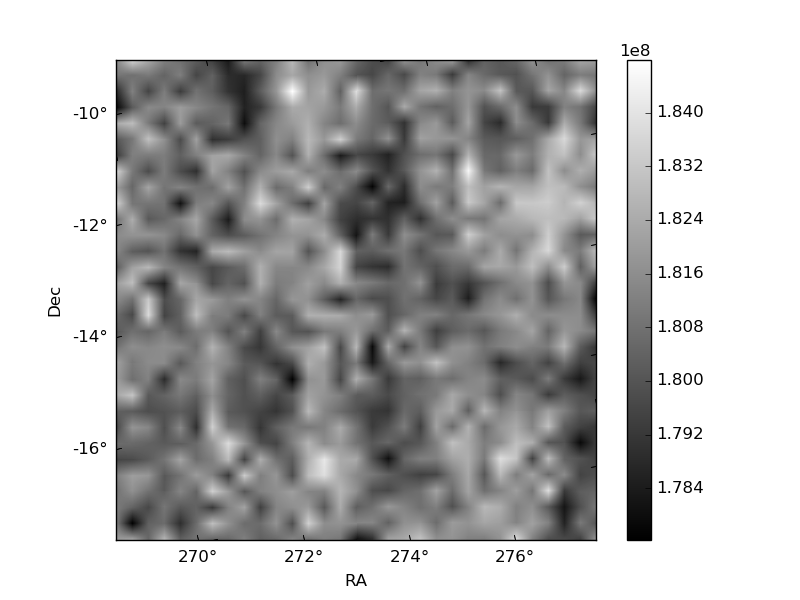

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

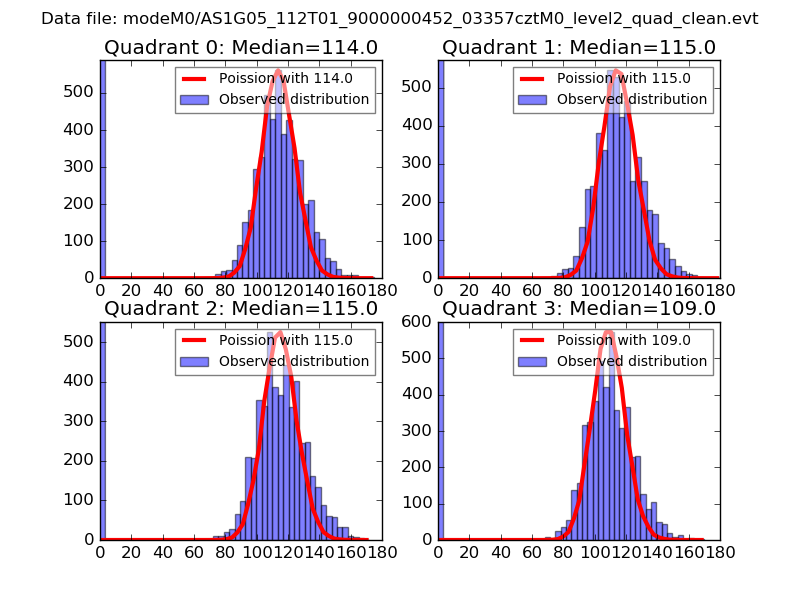

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

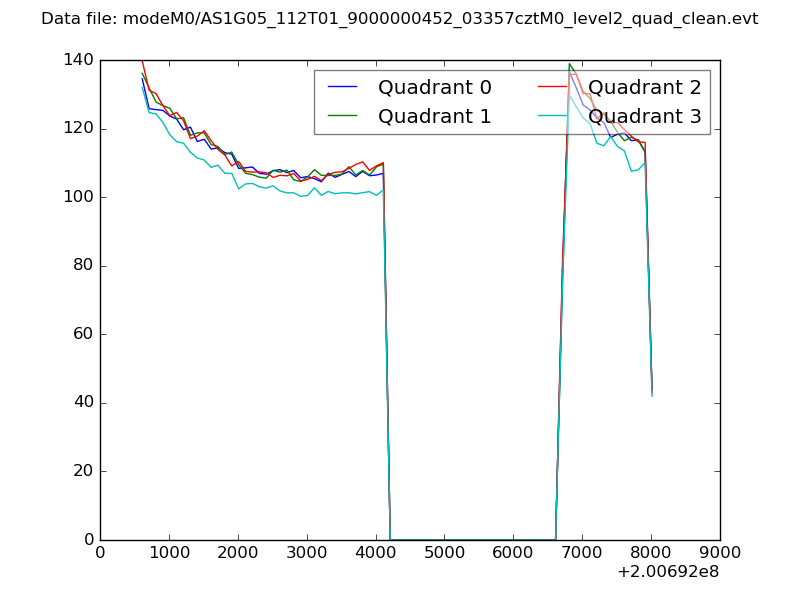

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

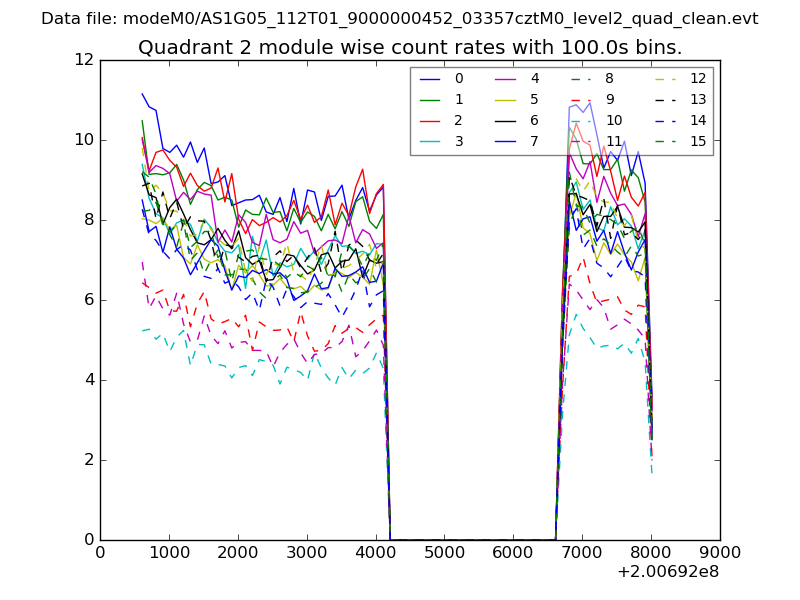

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

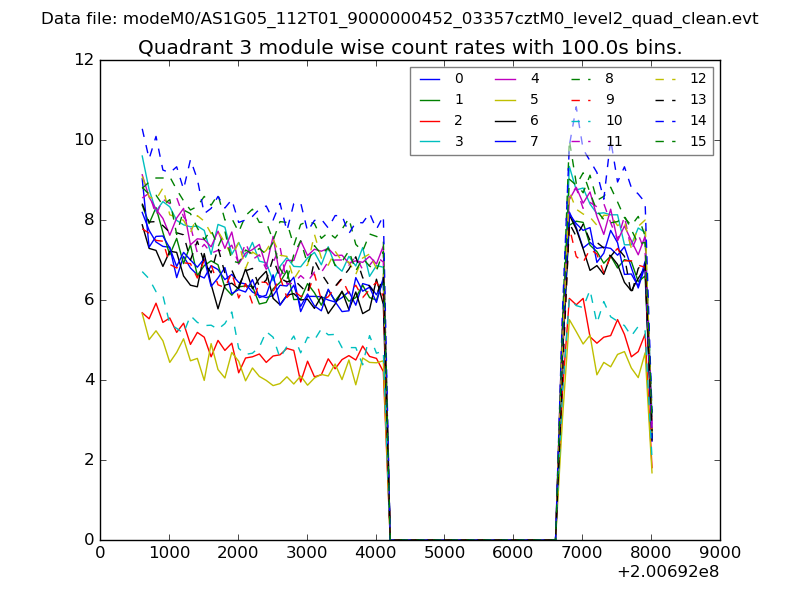

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

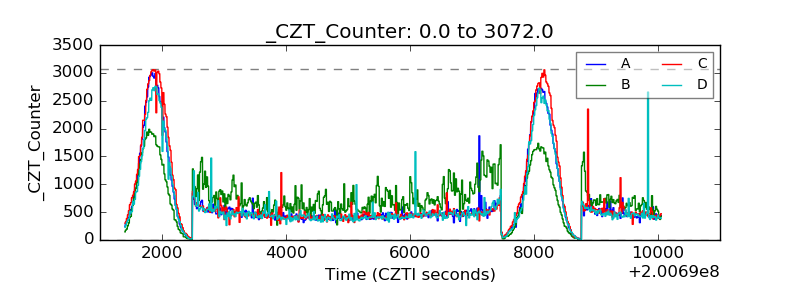

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
