| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03358cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03358cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,654,400 | 84,585,600 |
| Size | 428.8 MB | 80.7 MB |
| Events in quadrant A | 2,944,640 | 535,466 |
| Events in quadrant B | 4,182,670 | 531,929 |
| Events in quadrant C | 3,054,778 | 541,058 |
| Events in quadrant D | 3,004,912 | 510,479 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13070 | 3 |
| B | 0 | 16639 | 2 |
| C | 0 | 13298 | 2 |
| D | 0 | 13402 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6335 | 31 | 0.489345% |
| B | 6335 | 197 | 3.109708% |
| C | 6335 | 21 | 0.331492% |
| D | 6335 | 35 | 0.552486% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 6336 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7575 | 6336 | 92 | 92 | 1.21% | 1.45% |  |
| C | 7575 | 6336 | 10 | 10 | 0.13% | 0.16% |  |
| D | 7575 | 6336 | 24 | 24 | 0.32% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8041 | 47.32 | 761 | 745 | 154.2 |
| A | 12 | 194 | 7869 | 46.21 | 761 | 745 | 154.2 |
| A | 0 | 31 | 6308 | 36.08 | 761 | 745 | 154.2 |
| B | 15 | 204 | 706121 | 4769.99 | 769 | 753 | 147.9 |
| B | 5 | 70 | 214855 | 1447.85 | 769 | 753 | 147.9 |
| B | 14 | 167 | 127760 | 858.87 | 769 | 753 | 147.9 |
| C | 14 | 223 | 37454 | 207.56 | 755 | 760 | 176.8 |
| C | 1 | 16 | 35953 | 199.07 | 755 | 760 | 176.8 |
| C | 6 | 80 | 11237 | 59.26 | 755 | 760 | 176.8 |
| D | 13 | 223 | 117810 | 648.13 | 741 | 721 | 180.7 |
| D | 5 | 233 | 26369 | 141.97 | 741 | 721 | 180.7 |
| D | 13 | 174 | 17093 | 90.63 | 741 | 721 | 180.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

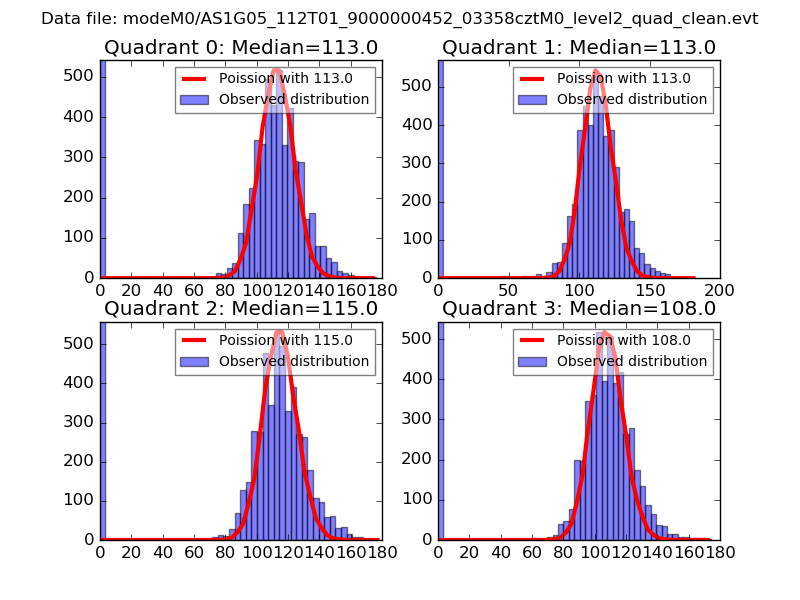

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

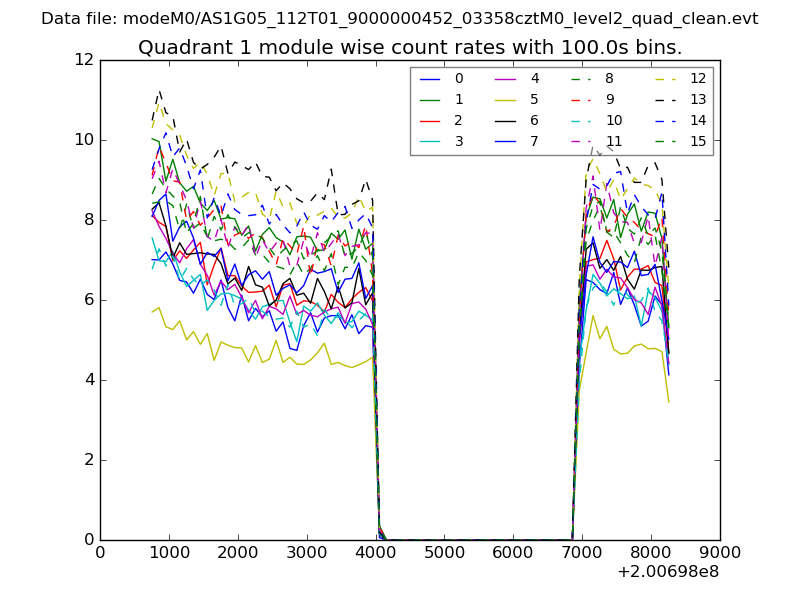

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

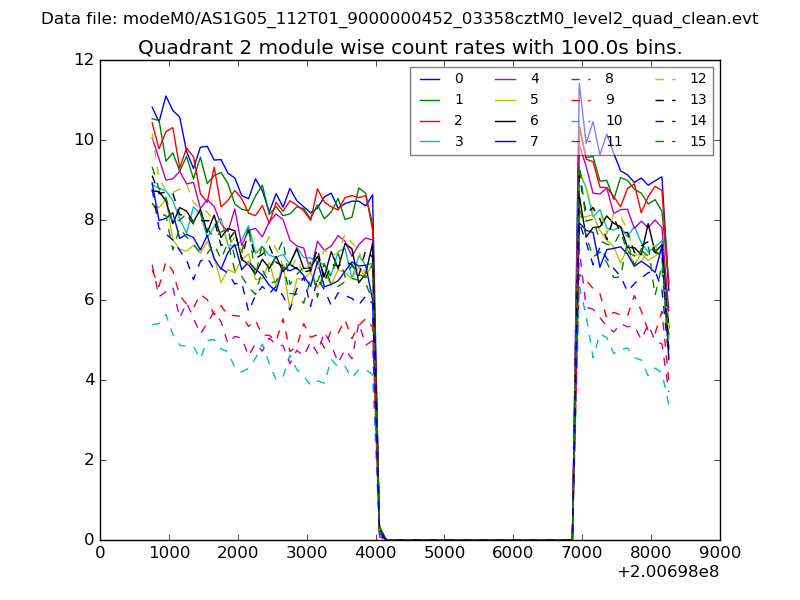

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

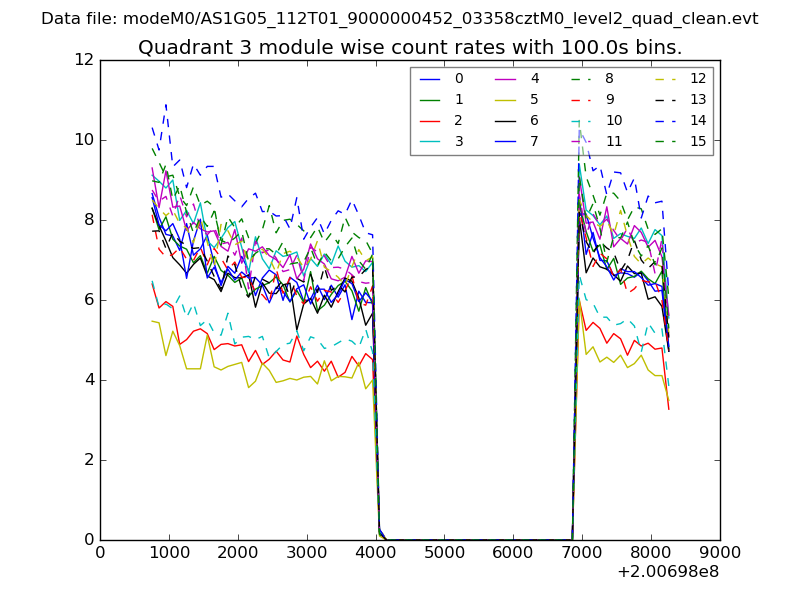

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

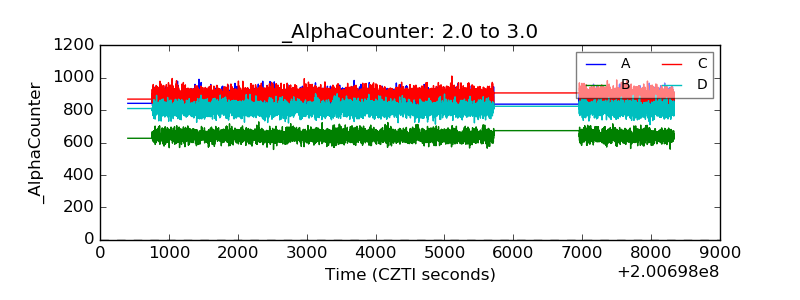

| Alpha Counter |  |

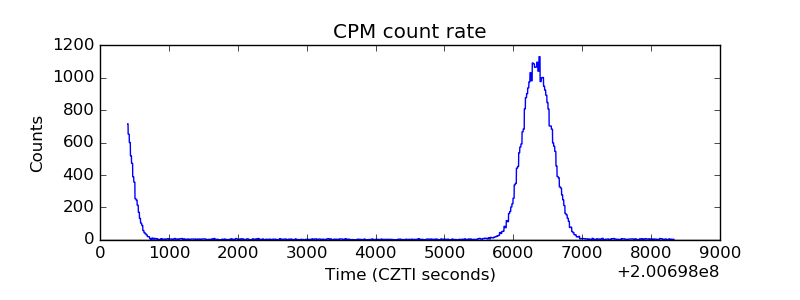

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

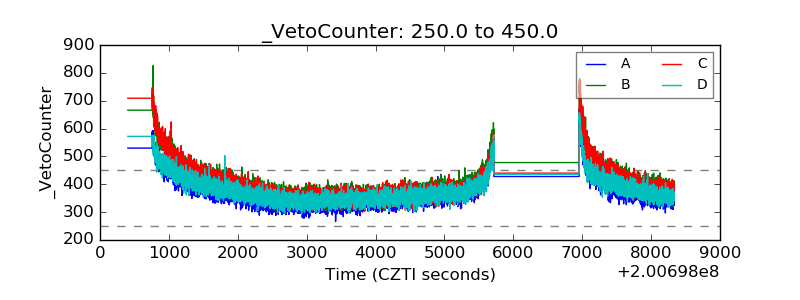

| Veto Counter |  |
