| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03359cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03359cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,507,200 | 79,064,640 |
| Size | 416.3 MB | 75.4 MB |
| Events in quadrant A | 3,074,662 | 485,899 |
| Events in quadrant B | 3,559,109 | 488,568 |
| Events in quadrant C | 3,092,933 | 489,083 |
| Events in quadrant D | 3,040,428 | 466,623 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13828 | 2 |
| B | 0 | 15067 | 1 |
| C | 0 | 13767 | 1 |
| D | 0 | 13983 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6651 | 42 | 0.631484% |
| B | 6651 | 87 | 1.308074% |
| C | 6651 | 22 | 0.330777% |
| D | 6651 | 54 | 0.811908% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

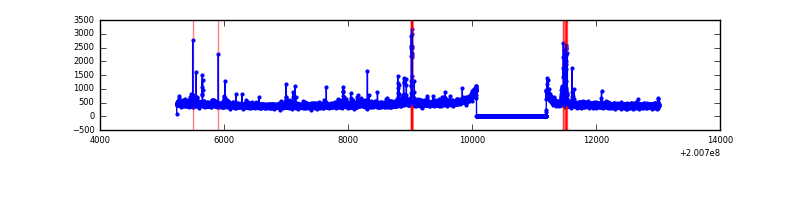

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7776 | 6652 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7776 | 6652 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7776 | 6652 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7776 | 6652 | 24 | 24 | 0.31% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 249 | 46890 | 287.35 | 781 | 767 | 160.5 |
| A | 0 | 50 | 10522 | 60.78 | 781 | 767 | 160.5 |
| A | 0 | 226 | 8423 | 47.7 | 781 | 767 | 160.5 |
| B | 15 | 204 | 195172 | 1266.31 | 792 | 773 | 153.5 |
| B | 14 | 167 | 178640 | 1158.62 | 792 | 773 | 153.5 |
| B | 4 | 170 | 63348 | 407.61 | 792 | 773 | 153.5 |
| C | 1 | 16 | 35260 | 191.4 | 769 | 774 | 180.2 |
| C | 12 | 4 | 18773 | 99.89 | 769 | 774 | 180.2 |
| C | 15 | 208 | 13914 | 72.93 | 769 | 774 | 180.2 |
| D | 13 | 223 | 127197 | 683.67 | 759 | 739 | 185.0 |
| D | 5 | 233 | 19885 | 103.51 | 759 | 739 | 185.0 |
| D | 13 | 239 | 13915 | 71.23 | 759 | 739 | 185.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

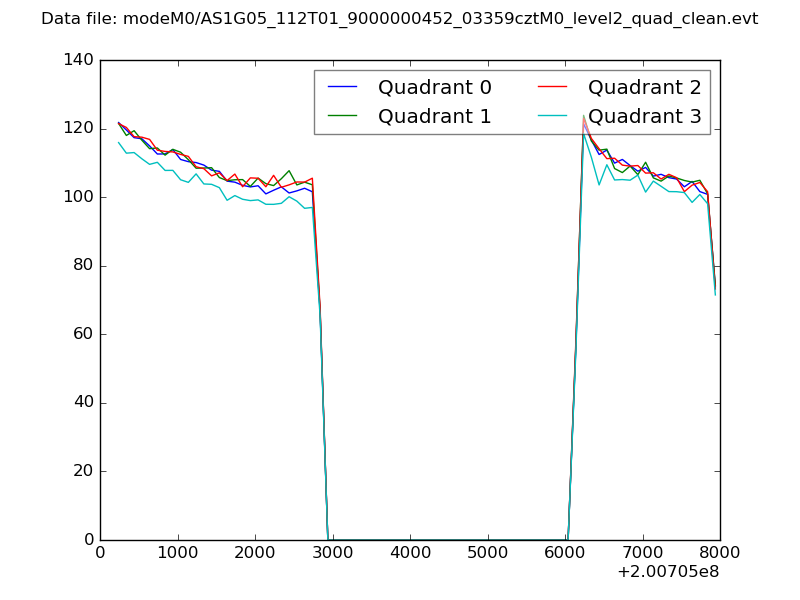

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

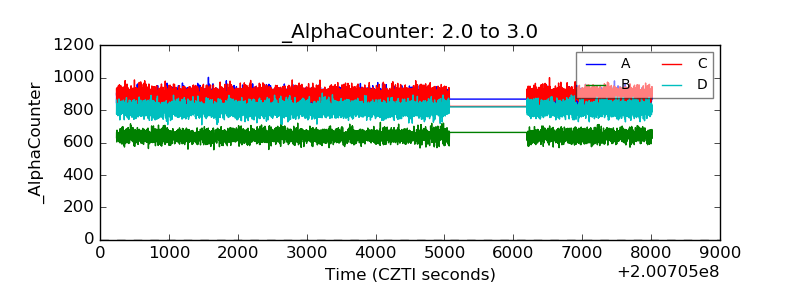

| Alpha Counter |  |

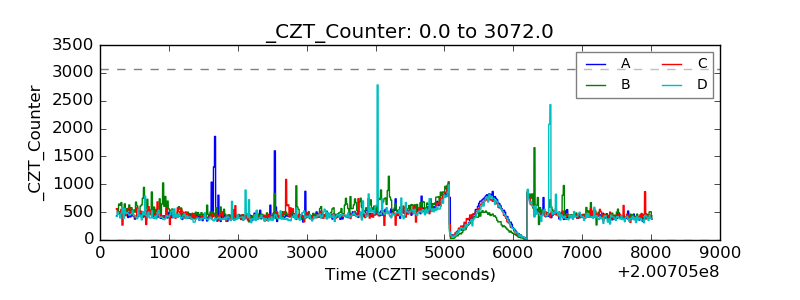

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

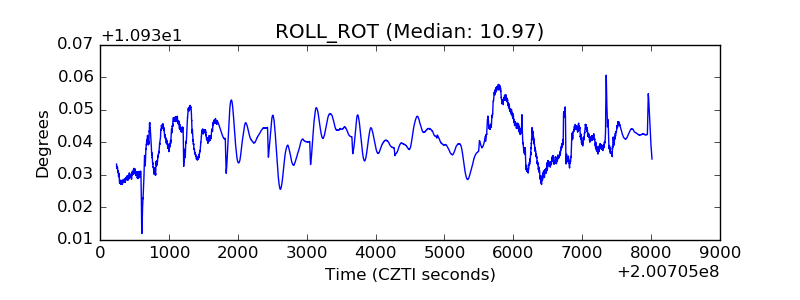

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

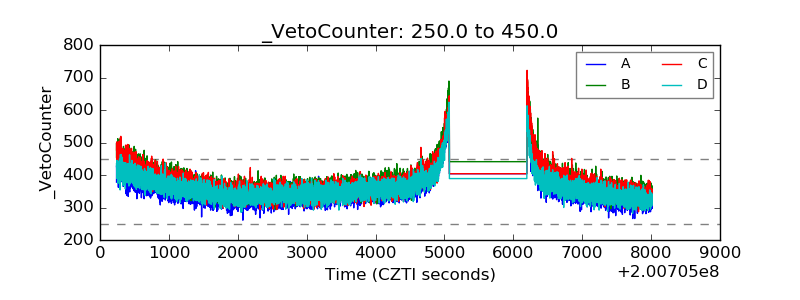

| Veto Counter |  |
