| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03366cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03366cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,205,827,200 | 177,289,920 |
| Size | 1.1 GB | 169.1 MB |
| Events in quadrant A | 8,338,381 | 1,049,925 |
| Events in quadrant B | 9,980,649 | 1,033,762 |
| Events in quadrant C | 8,255,924 | 1,032,694 |
| Events in quadrant D | 8,706,077 | 992,267 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 372 | 0 |
| B | 0 | 372 | 0 |
| C | 0 | 372 | 0 |
| D | 0 | 372 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37688 | 4 |
| B | 0 | 41442 | 3 |
| C | 0 | 37567 | 3 |
| D | 0 | 39673 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18282 | 253 | 1.383875% |
| B | 18282 | 441 | 2.412209% |
| C | 18282 | 186 | 1.017394% |
| D | 18282 | 430 | 2.352040% |

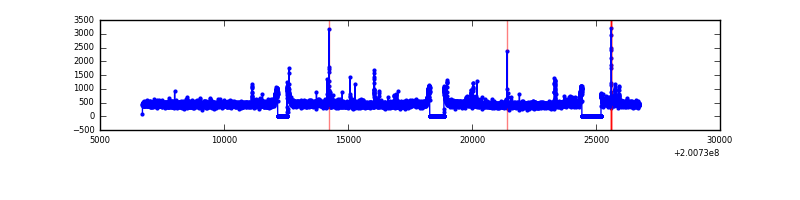

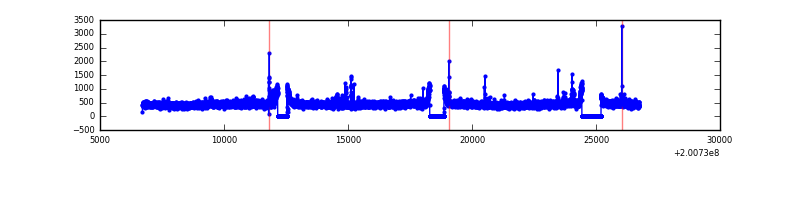

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20017 | 18285 | 7 | 7 | 0.03% | 0.04% |  |
| B | 20017 | 18285 | 126 | 126 | 0.63% | 0.69% |  |
| C | 20017 | 18285 | 3 | 3 | 0.01% | 0.02% |  |
| D | 20017 | 18285 | 197 | 197 | 0.98% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 59497 | 132.65 | 2112 | 2066 | 433.0 |
| A | 15 | 174 | 42415 | 93.19 | 2112 | 2066 | 433.0 |
| A | 10 | 220 | 33342 | 72.24 | 2112 | 2066 | 433.0 |
| B | 14 | 167 | 965286 | 2345.12 | 2124 | 2073 | 410.7 |
| B | 15 | 204 | 491357 | 1191.25 | 2124 | 2073 | 410.7 |
| B | 6 | 203 | 128930 | 308.86 | 2124 | 2073 | 410.7 |
| C | 15 | 208 | 35181 | 68.73 | 2058 | 2069 | 481.8 |
| C | 1 | 16 | 28738 | 55.36 | 2058 | 2069 | 481.8 |
| C | 12 | 175 | 27713 | 53.23 | 2058 | 2069 | 481.8 |
| D | 13 | 223 | 813230 | 1628.67 | 2042 | 1981 | 498.1 |
| D | 10 | 34 | 35361 | 67.01 | 2042 | 1981 | 498.1 |
| D | 13 | 239 | 34945 | 66.18 | 2042 | 1981 | 498.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

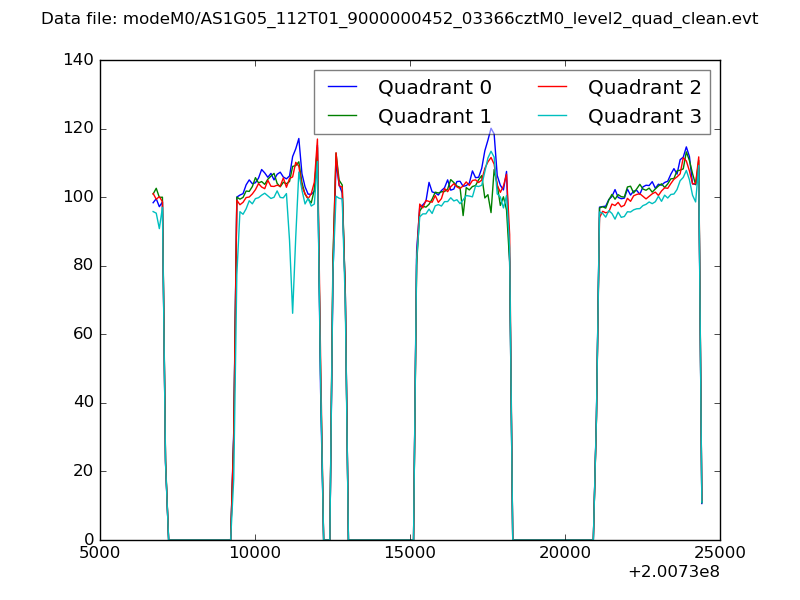

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

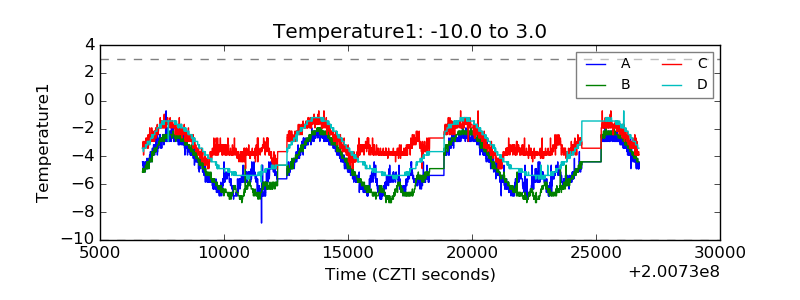

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

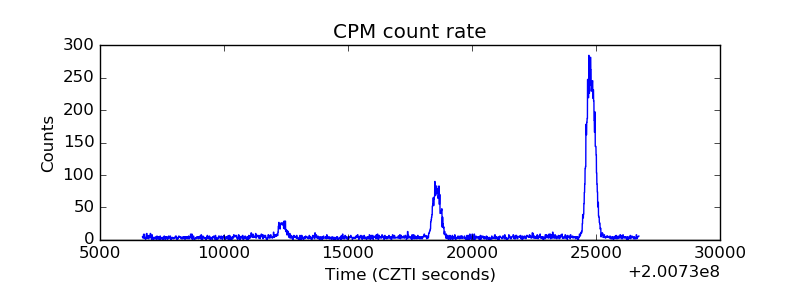

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

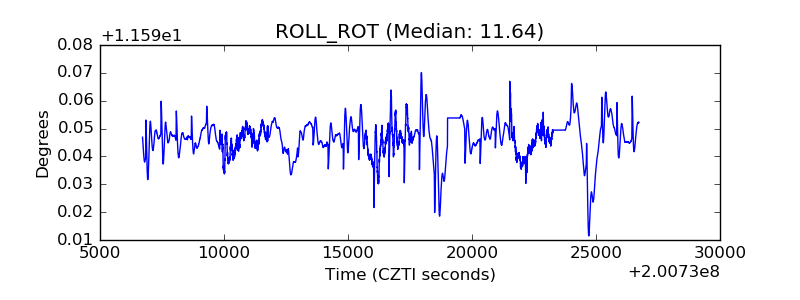

| _ROLL_ROT |  |

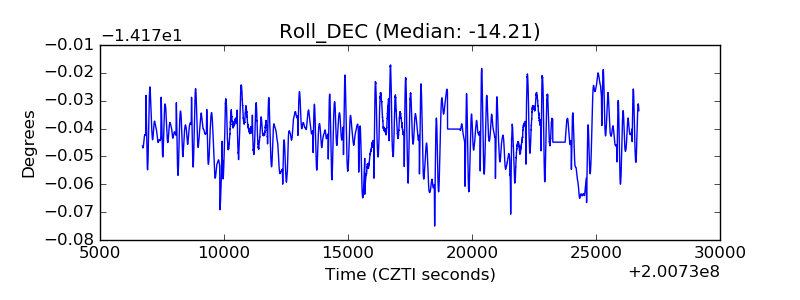

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
