| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03367cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03367cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,116,480 | 77,783,040 |
| Size | 470.3 MB | 74.2 MB |
| Events in quadrant A | 3,511,188 | 467,506 |
| Events in quadrant B | 3,961,608 | 463,901 |
| Events in quadrant C | 3,496,158 | 460,172 |
| Events in quadrant D | 3,455,910 | 442,243 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15537 | 3 |
| B | 0 | 16816 | 2 |
| C | 0 | 15523 | 2 |
| D | 0 | 15718 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7486 | 103 | 1.375902% |
| B | 7486 | 108 | 1.442693% |
| C | 7486 | 72 | 0.961795% |
| D | 7486 | 100 | 1.335827% |

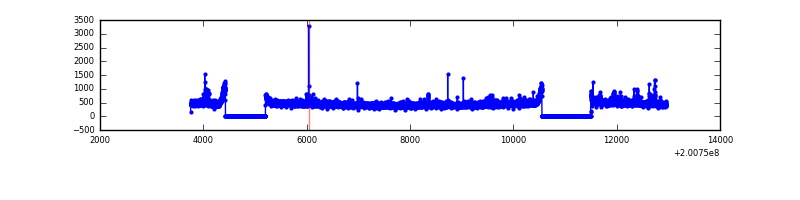

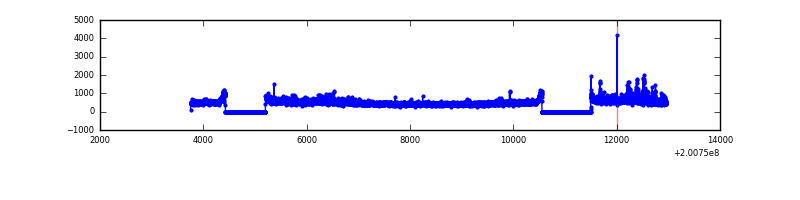

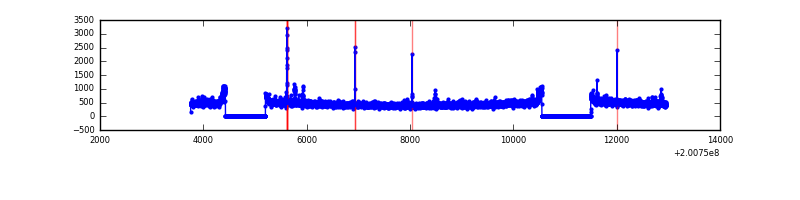

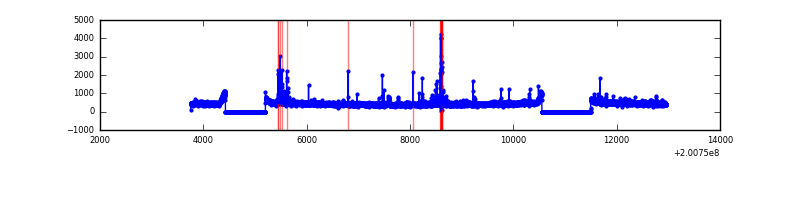

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9206 | 7487 | 9 | 9 | 0.10% | 0.12% |  |
| B | 9206 | 7487 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9206 | 7487 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9206 | 7487 | 21 | 21 | 0.23% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 32333 | 170.73 | 889 | 870 | 184.3 |
| A | 0 | 50 | 16517 | 84.91 | 889 | 870 | 184.3 |
| A | 14 | 249 | 16112 | 82.71 | 889 | 870 | 184.3 |
| B | 15 | 204 | 234650 | 1337.77 | 896 | 873 | 174.8 |
| B | 14 | 167 | 192963 | 1099.22 | 896 | 873 | 174.8 |
| B | 0 | 229 | 46859 | 263.15 | 896 | 873 | 174.8 |
| C | 9 | 54 | 45614 | 220.25 | 865 | 870 | 203.2 |
| C | 15 | 208 | 26860 | 127.93 | 865 | 870 | 203.2 |
| C | 1 | 16 | 25378 | 120.64 | 865 | 870 | 203.2 |
| D | 13 | 223 | 100472 | 476.04 | 858 | 832 | 209.3 |
| D | 13 | 137 | 33486 | 156.01 | 858 | 832 | 209.3 |
| D | 13 | 239 | 21304 | 97.81 | 858 | 832 | 209.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

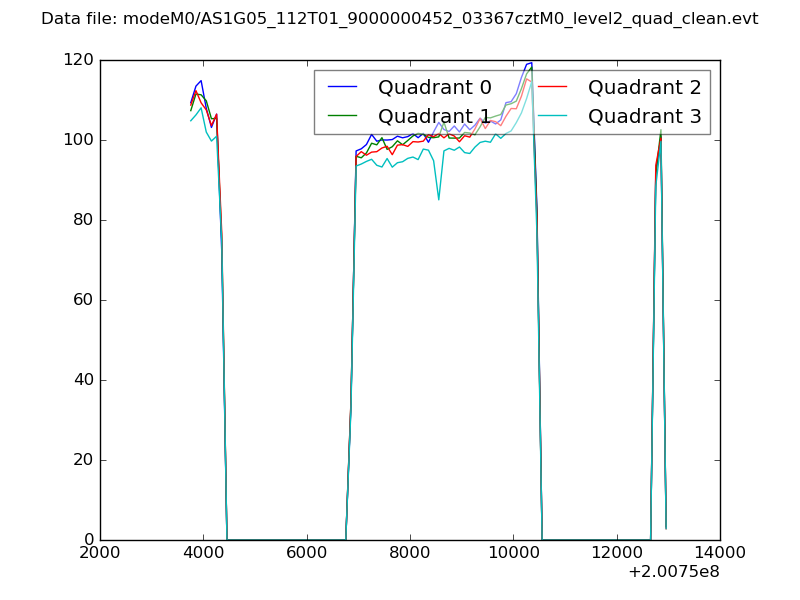

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

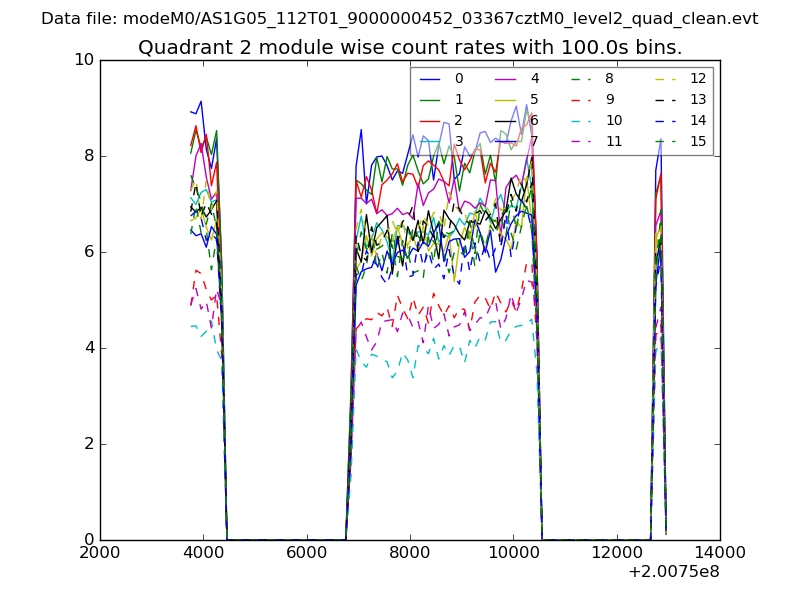

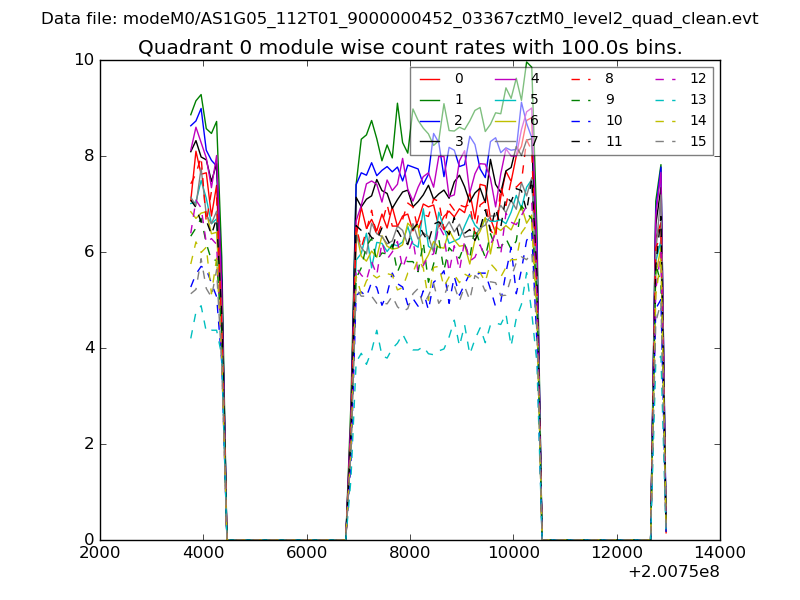

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

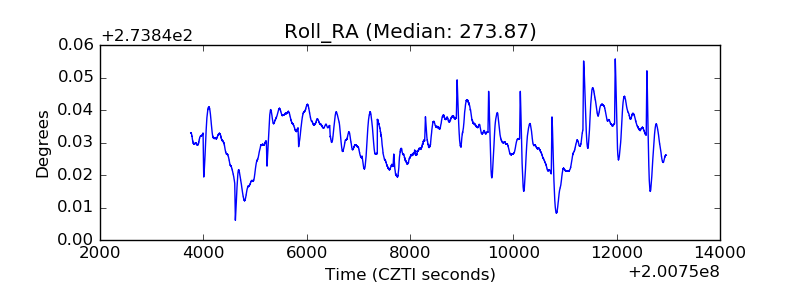

| _Roll_RA |  |
| Veto Counter |  |
