| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03370cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03370cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,729,280 | 78,431,040 |
| Size | 394.6 MB | 74.8 MB |
| Events in quadrant A | 2,962,754 | 493,506 |
| Events in quadrant B | 3,302,222 | 492,521 |
| Events in quadrant C | 2,916,884 | 490,140 |
| Events in quadrant D | 2,926,630 | 466,440 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12975 | 2 |
| B | 0 | 13967 | 1 |
| C | 0 | 12749 | 1 |
| D | 0 | 13078 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6200 | 45 | 0.725806% |
| B | 6200 | 76 | 1.225806% |
| C | 6200 | 31 | 0.500000% |
| D | 6200 | 46 | 0.741935% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7375 | 6201 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7375 | 6201 | 18 | 18 | 0.24% | 0.29% |  |
| C | 7375 | 6201 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7375 | 6201 | 24 | 24 | 0.33% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 47862 | 309.88 | 739 | 724 | 152.1 |
| A | 14 | 249 | 38248 | 246.68 | 739 | 724 | 152.1 |
| A | 0 | 118 | 15172 | 94.98 | 739 | 724 | 152.1 |
| B | 15 | 204 | 160367 | 1093.92 | 754 | 736 | 145.9 |
| B | 14 | 167 | 79159 | 537.42 | 754 | 736 | 145.9 |
| B | 2 | 249 | 55691 | 376.59 | 754 | 736 | 145.9 |
| C | 12 | 4 | 21407 | 121.32 | 726 | 733 | 170.4 |
| C | 9 | 54 | 19045 | 107.46 | 726 | 733 | 170.4 |
| C | 1 | 16 | 17416 | 97.9 | 726 | 733 | 170.4 |
| D | 13 | 223 | 128220 | 737.05 | 718 | 700 | 173.0 |
| D | 13 | 137 | 20553 | 114.75 | 718 | 700 | 173.0 |
| D | 5 | 233 | 18508 | 102.93 | 718 | 700 | 173.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

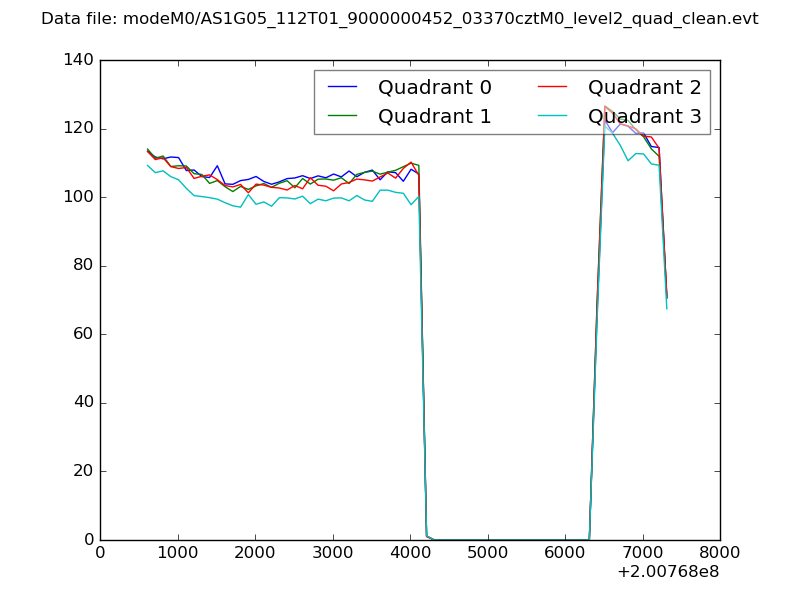

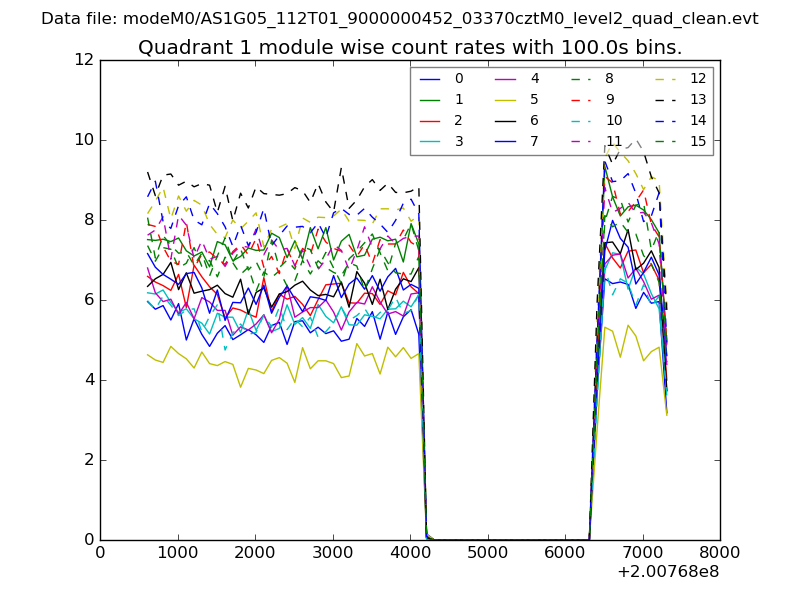

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

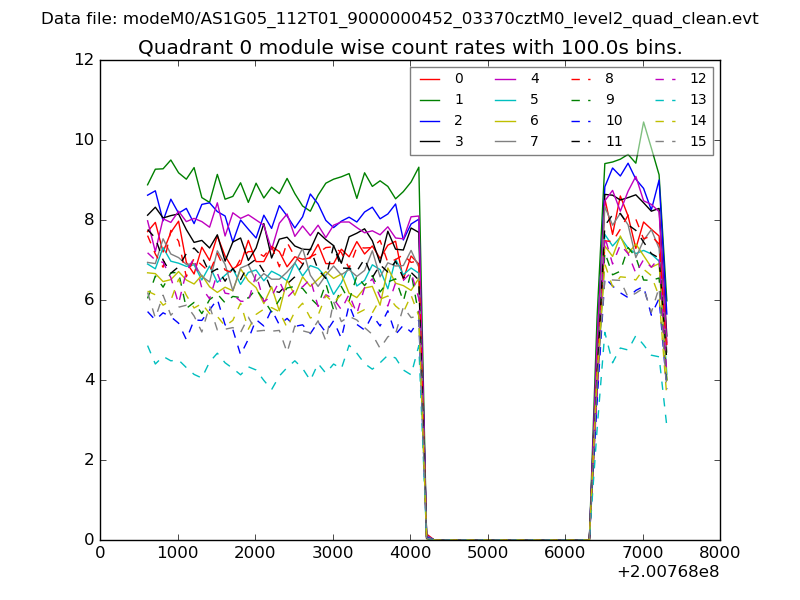

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

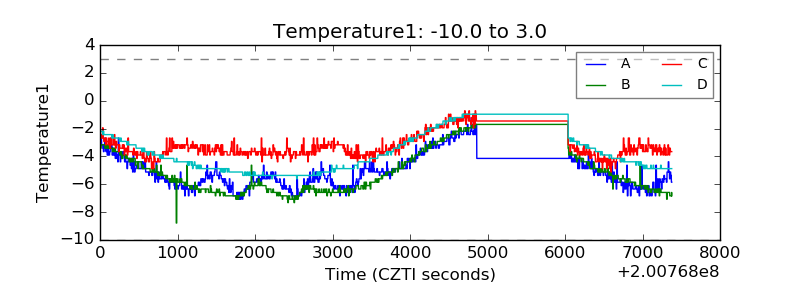

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

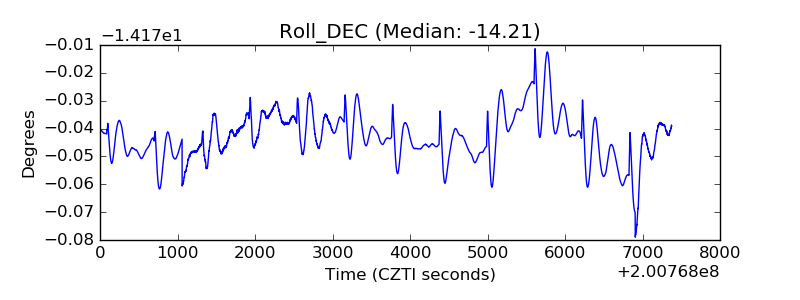

| _Roll_DEC |  |

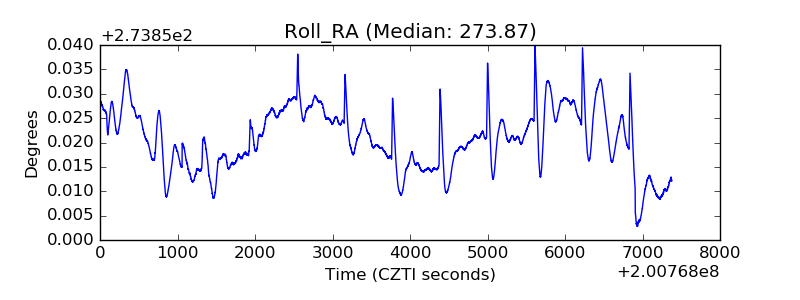

| _Roll_RA |  |

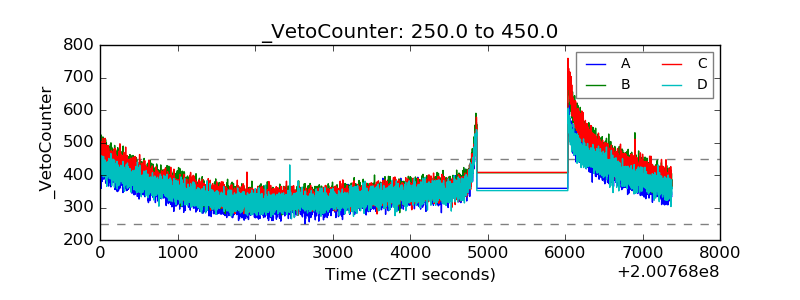

| Veto Counter |  |
