| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_112T01_9000000452_03372cztM0_level2.evt | modeM0/AS1G05_112T01_9000000452_03372cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,424,320 | 88,516,800 |
| Size | 398.1 MB | 84.4 MB |
| Events in quadrant A | 3,089,701 | 561,700 |
| Events in quadrant B | 3,109,044 | 575,978 |
| Events in quadrant C | 3,018,695 | 570,587 |
| Events in quadrant D | 3,002,519 | 539,497 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13276 | 3 |
| B | 0 | 13252 | 2 |
| C | 0 | 13014 | 2 |
| D | 0 | 13269 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6202 | 76 | 1.225411% |
| B | 6202 | 34 | 0.548210% |
| C | 6202 | 18 | 0.290229% |
| D | 6202 | 44 | 0.709449% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7502 | 6202 | 38 | 38 | 0.51% | 0.61% |  |
| B | 7502 | 6203 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7502 | 6203 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7502 | 6203 | 32 | 32 | 0.43% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 159007 | 1034.08 | 745 | 730 | 153.1 |
| A | 10 | 220 | 21823 | 137.81 | 745 | 730 | 153.1 |
| A | 0 | 226 | 21764 | 137.42 | 745 | 730 | 153.1 |
| B | 15 | 204 | 77621 | 524.27 | 767 | 750 | 146.6 |
| B | 2 | 249 | 30660 | 203.99 | 767 | 750 | 146.6 |
| B | 4 | 81 | 14794 | 95.78 | 767 | 750 | 146.6 |
| C | 14 | 234 | 58515 | 333.61 | 743 | 750 | 173.2 |
| C | 6 | 80 | 18016 | 99.71 | 743 | 750 | 173.2 |
| C | 1 | 16 | 13679 | 74.67 | 743 | 750 | 173.2 |
| D | 13 | 223 | 140991 | 790.53 | 731 | 711 | 177.5 |
| D | 13 | 239 | 41455 | 229.61 | 731 | 711 | 177.5 |
| D | 12 | 110 | 17098 | 92.35 | 731 | 711 | 177.5 |

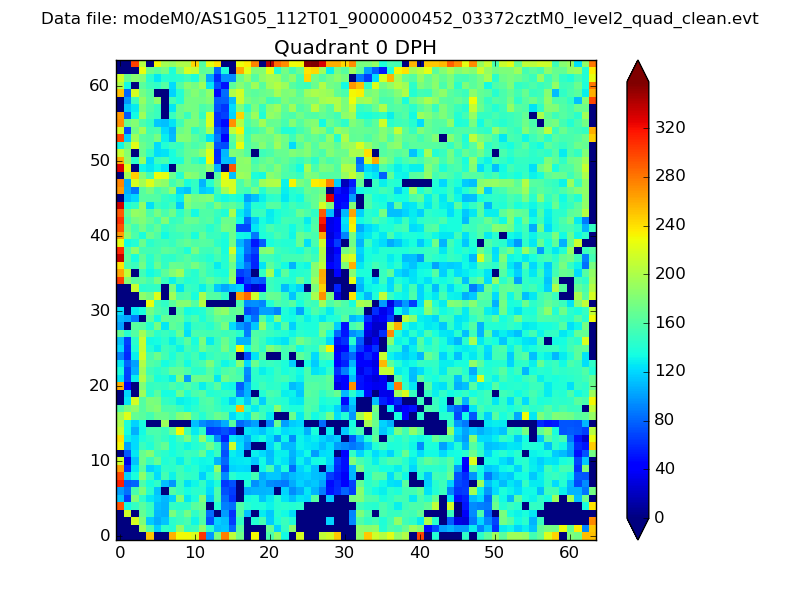

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

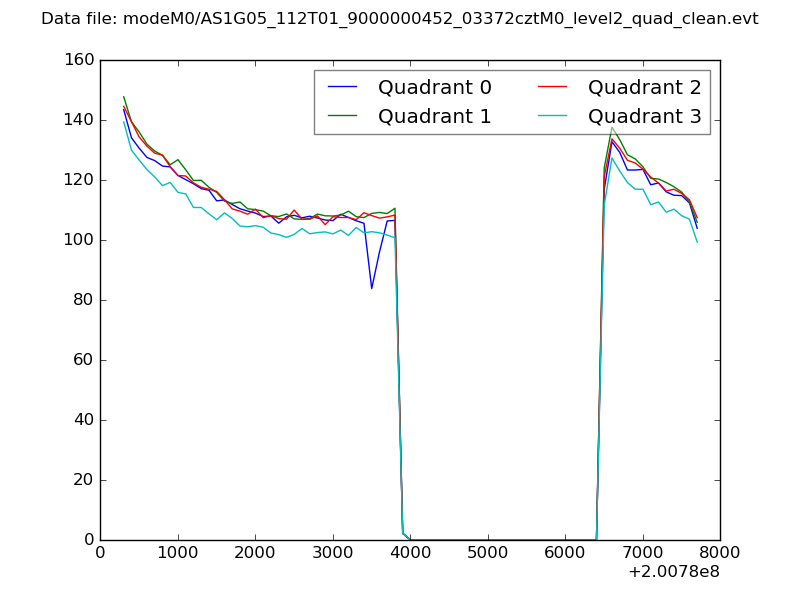

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

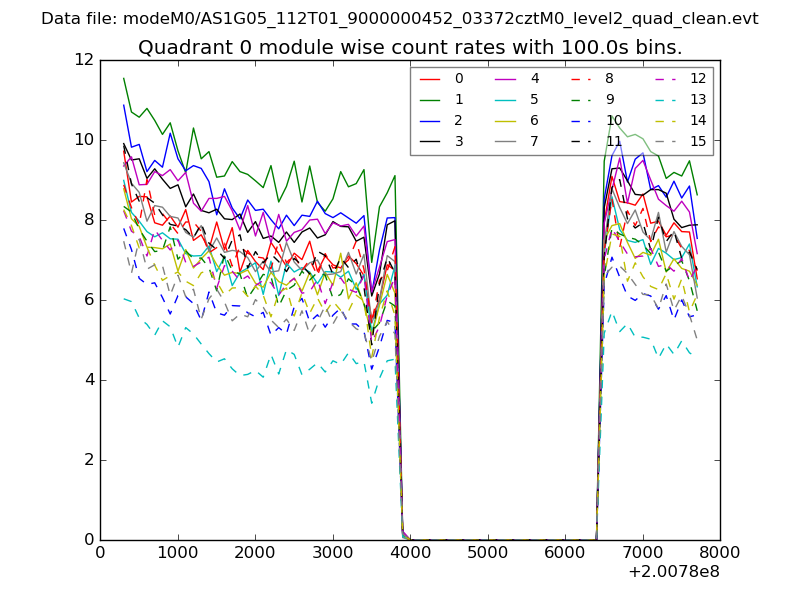

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

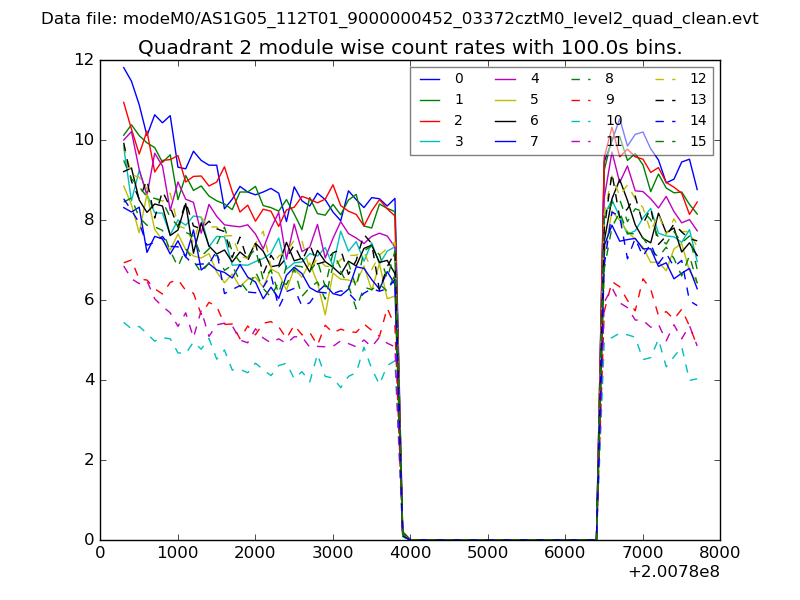

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

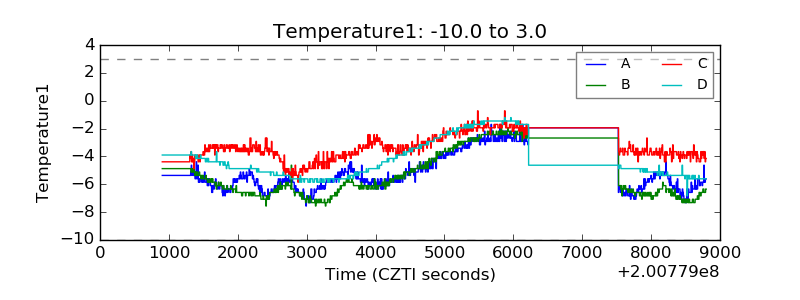

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

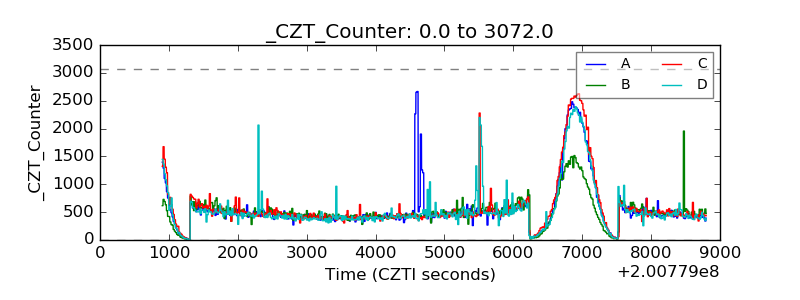

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

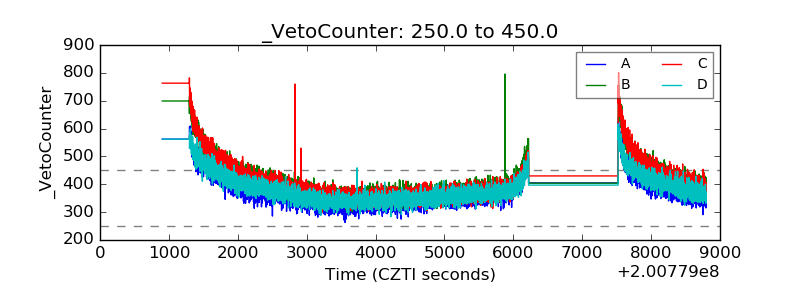

| Veto Counter |  |
